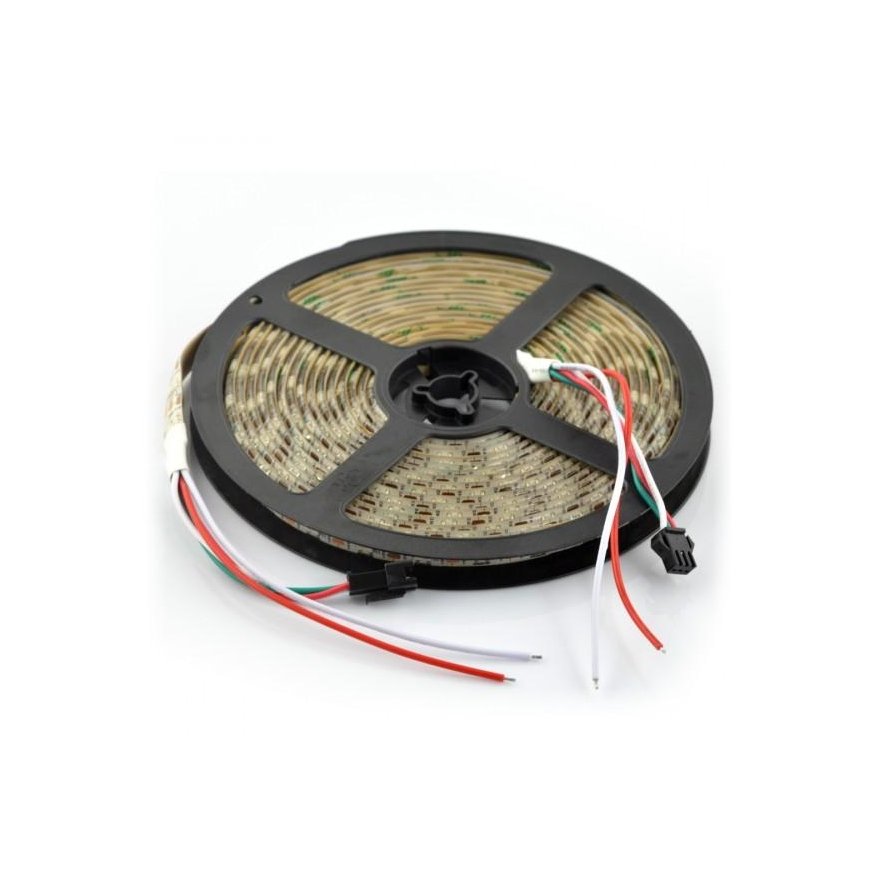

OEM RGB LED strip WS2812B - 30 LEDs/m 5V - 5m
3762912 AN-05447
5904422303068
Shipping 9-14 b.d.
All about the product

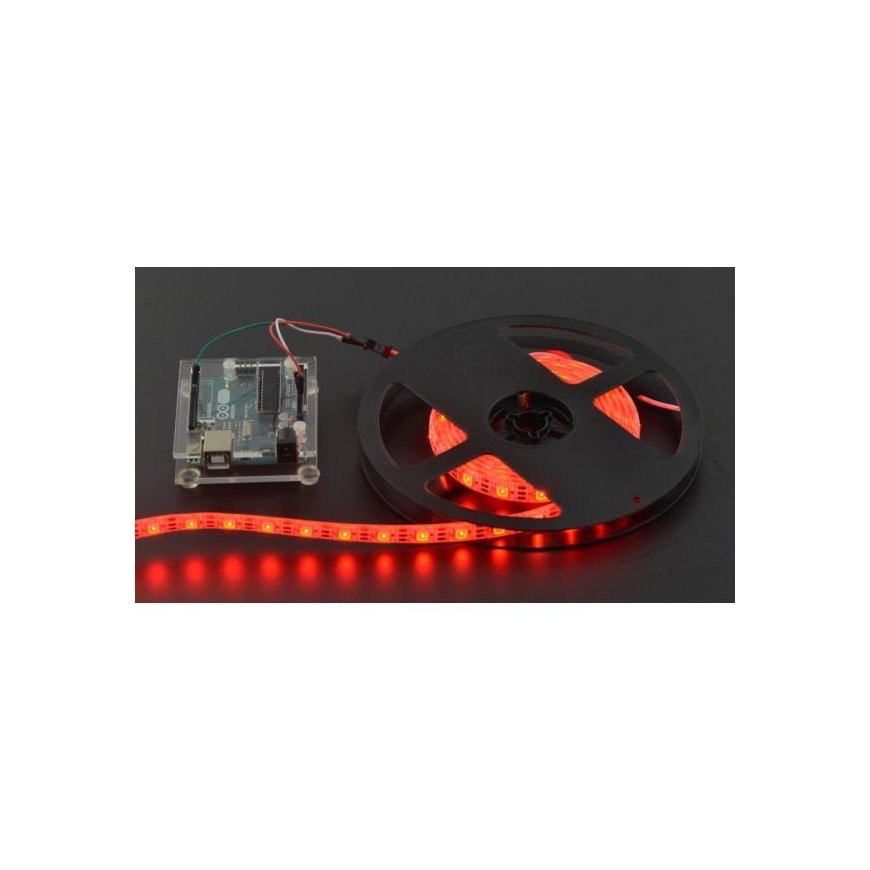

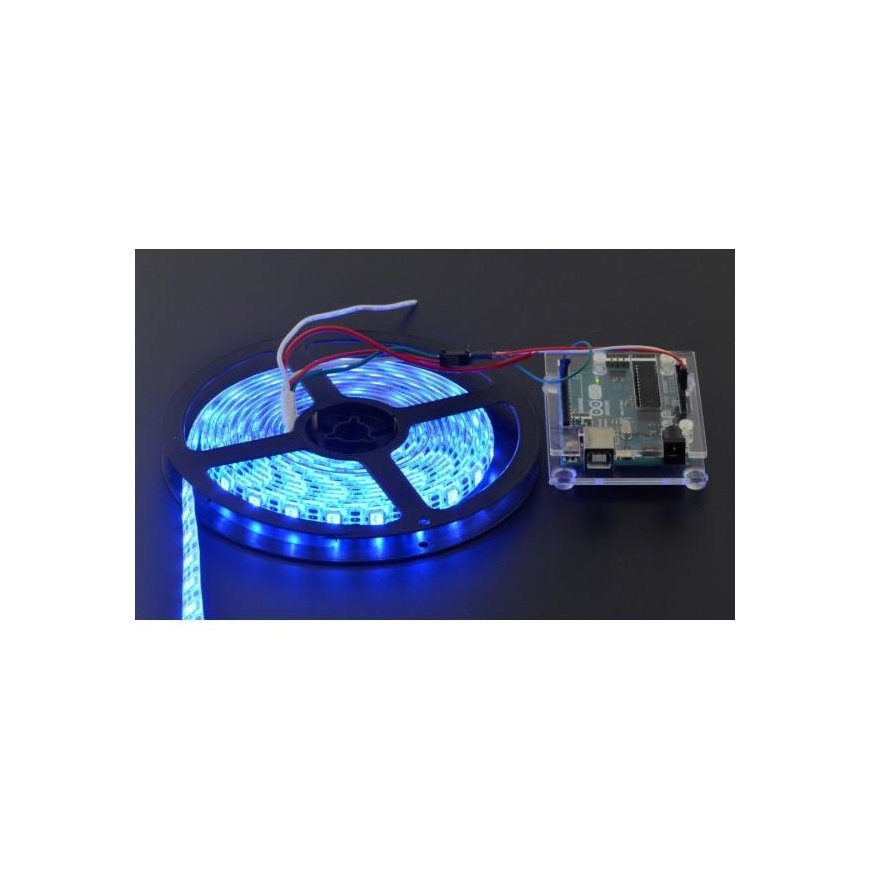

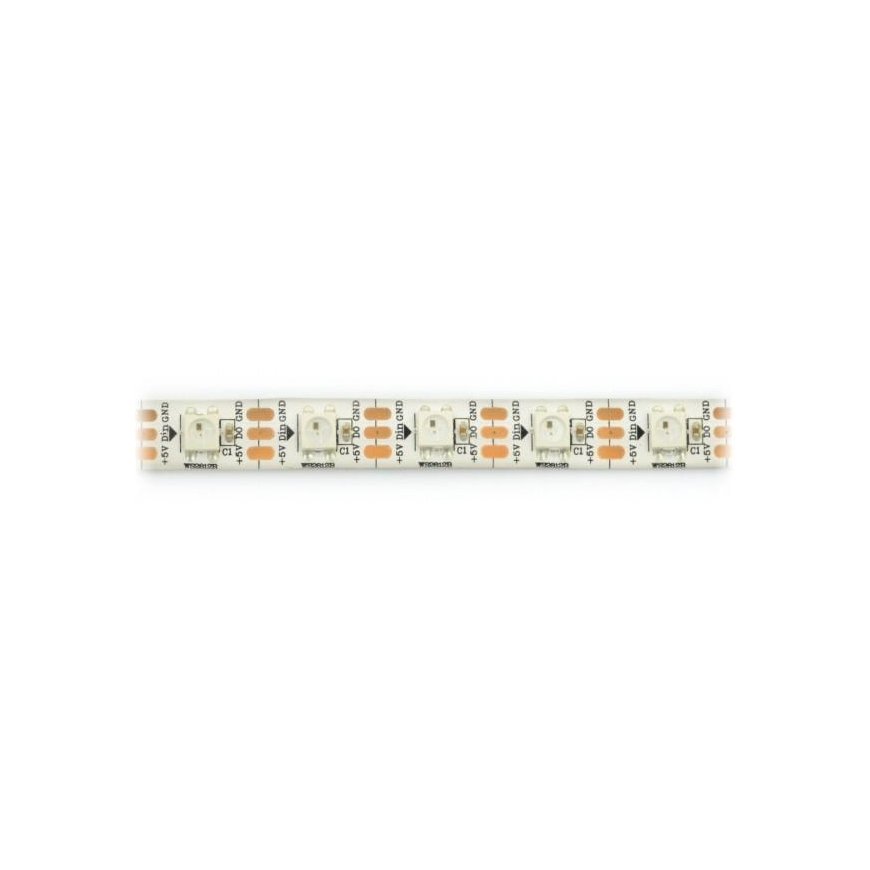

Each pixel can emit colors from a 24-bit palette. One microcontroller pin is sufficient for module control. (e.g. Arduino). The diodes are densely arranged at approximately 34mm apart, resulting in high brightness. The system is powered by 5V, each meter of the strip requires approximately 1.8A. The circuit can be cut after each diode. The communication protocol used allows for the sequential connection of the LEDs. Another circuit should be connected to the output connector, connecting 5V, GND, and DOUT to DIN respectively. The manufacturer notes that using more than 500 diodes may not provide enough RAM on the Arduino Uno system. It should also be noted that each subsequent matrix will require an increase in the power source efficiency.
Specification:
- Power supply voltage: 5V
- Power: 9 W/m
- Energy consumption: approximately 1.8A per 1 meter of the strip
- Used diodes: LED RGB SMD5050 WS2812B
- Addressable point: 1 RGB LED
- Protection class: IP65 (silicone cover)
- Strip length: 5m
