VL53L1X time-of-flight - distance sensor - STEMMA QT/Qwiic I2C - Adafruit 3967
3762778 AN-20370
5904422308520
Shipping 8-15 b.d.
All about the product

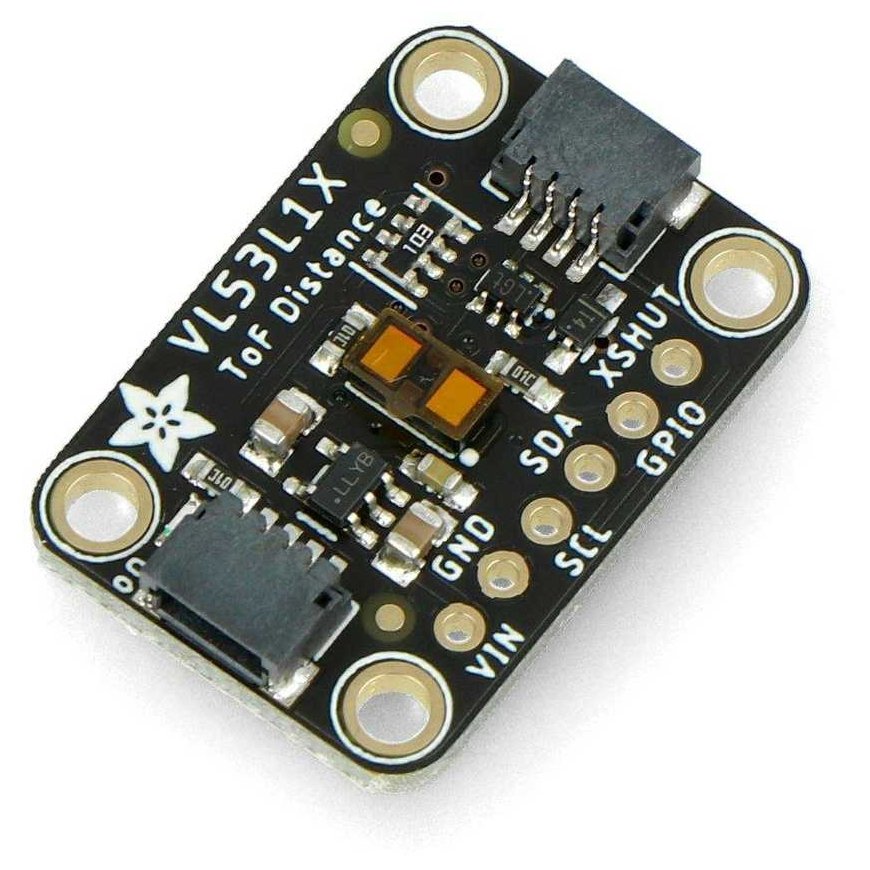

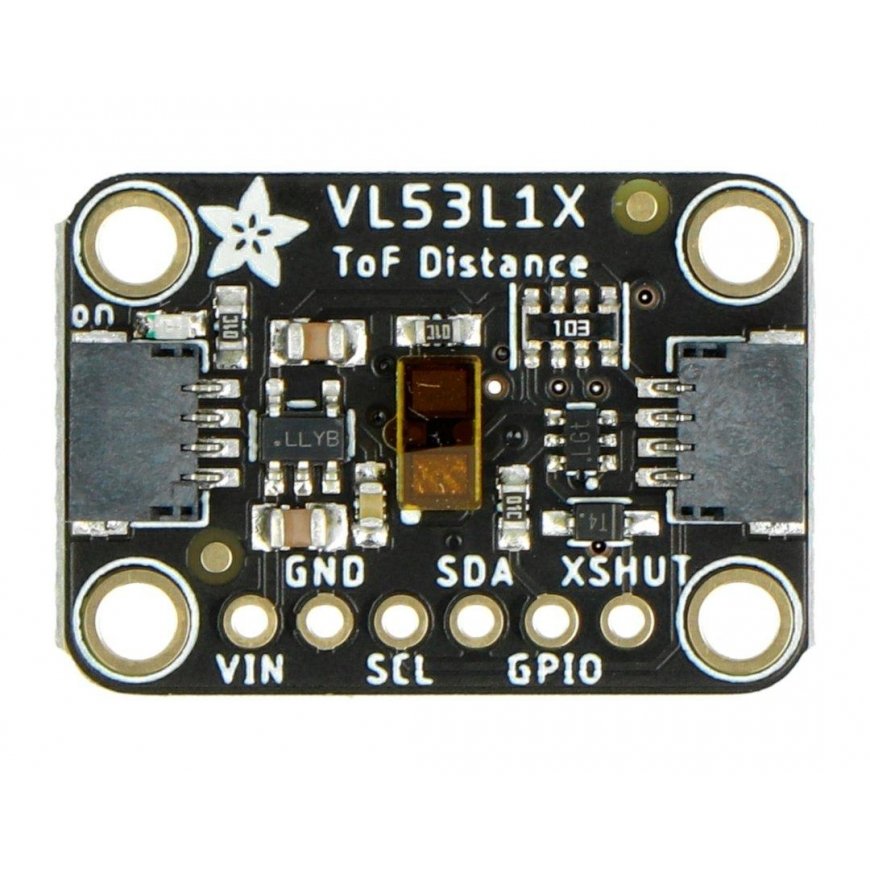

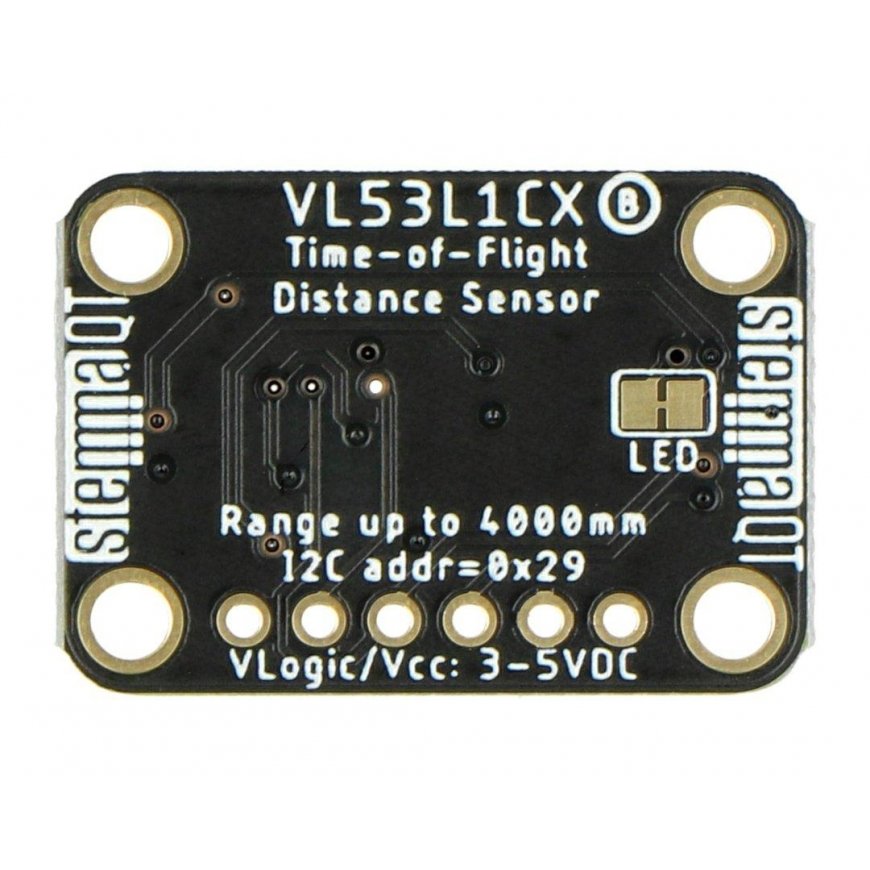

Adafruit time-of-flight distance sensor module VL53L1X. The VL53L1X sensor allows measuring distances from 30 mm to 4000 mm with the precision of LIDAR sensors. The time-of-flight method measures the time from the emission of an infrared laser pulse to its return to the detector. It does not depend on the light reflection from the object. The board features Qwiic / STEMMA QT connectors for seamless connection to a microcontroller with the same I2C connector. The module operates with a logic voltage of 3.3 V and 5 V, powered from 3 V to 5 V.
Specifications:
- Chip: VL53L1X
- Emitter: 940 nm (Class 1)
- SPAD (single photon avalanche diode) receiver chip with integrated lens
- FlightSense distance sensor for fast and accurate measurement
- Measurement range: from 30 mm to 4000 mm
- Measurement frequency: 50 Hz
- Typical field of view (FoV): 27°
- Programmable region of interest (ROI) in the receiver array to reduce the sensor's field of view
- Programmable ROI position in the receiver array for multi-zone master control
- Interface: I2C
- Default I2C address: 0x29
- Dimensions: 25.5 x 17.5 x 4.6 mm
- Weight: 1.8 g
- VL53L1X sensor module

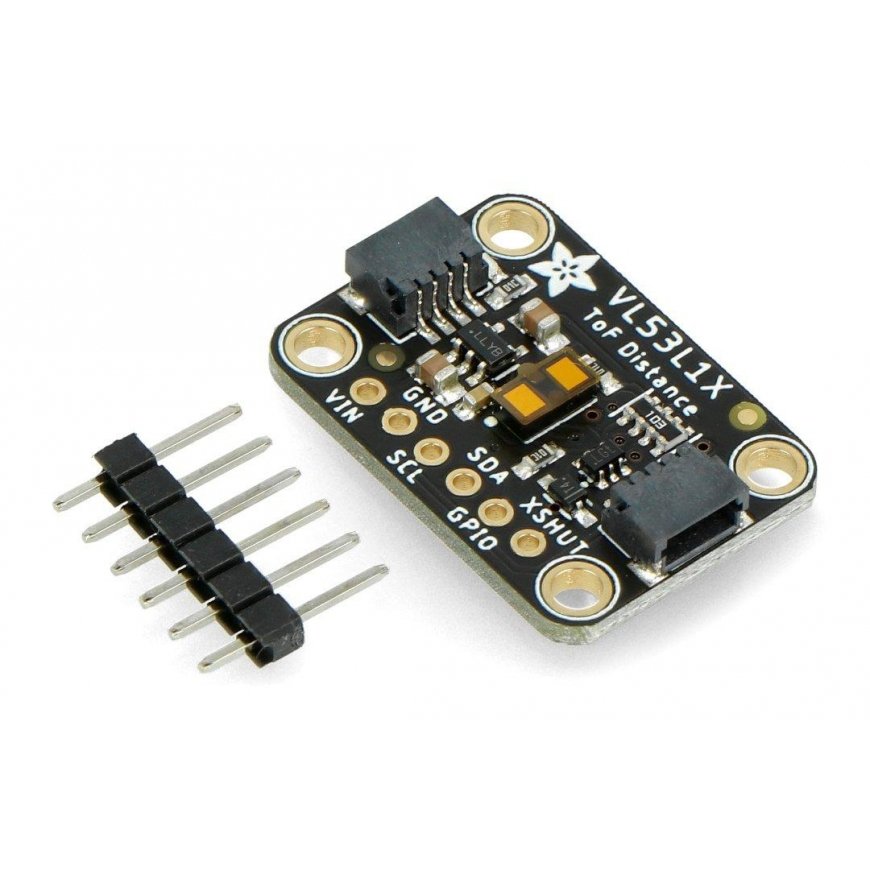

- Pins for self-assembly
