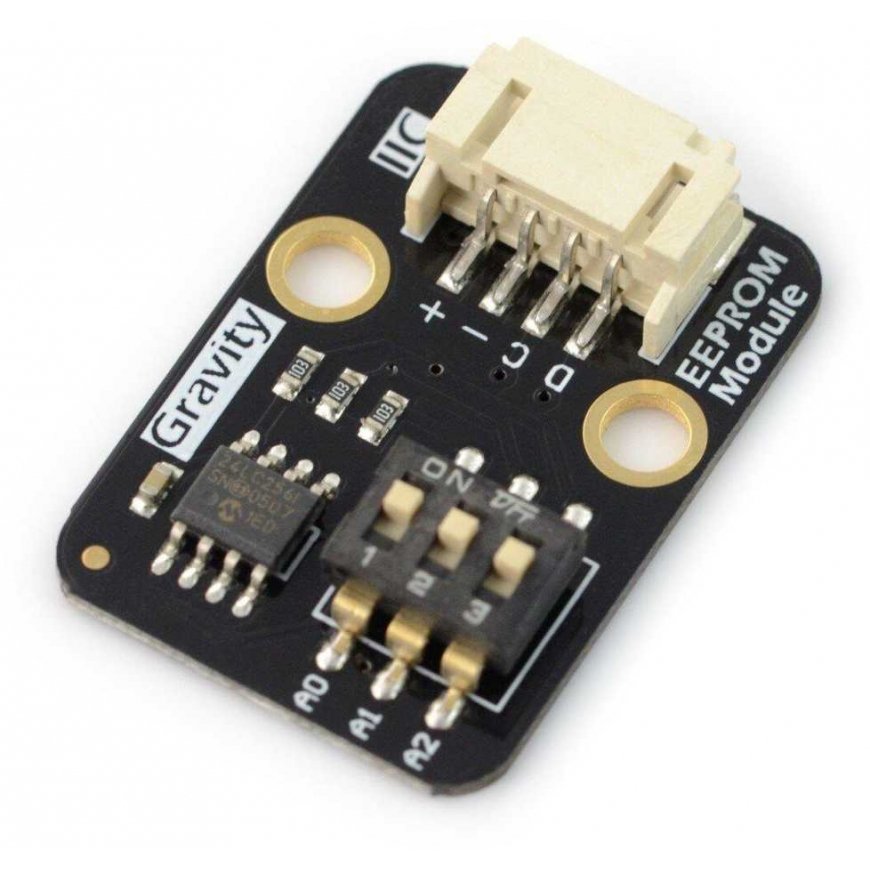

DFRobot Gravity data storage module with EEPROM memory, I2C, 256 KB
19.17 €
3760458 AN-13242
5903351243667
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Gravity EEPROM data storage module allows for memory data expansion using Arduino with 256 KB. Connection via I2S interface. Saves data in case of power loss. The EEPROM module features an almost unlimited number of read cycles and very low power consumption.
Specifications:
- Supply voltage: from 2.5 V to 5.5 V
- System: 24LC256
- Available EEPROM memory size: 32 K x 8 (256 Kbit)
- Maximum current consumption: 400 uA at 5.5 V and 400 kHz frequency
- Current consumption in standby: up to 1 uA at 3.6 V voltage
- Interface: I2C
- Operating temperature: from -40 ℃ to 125 ℃
- Dimensions: 30 x 21.05 mm
- Mounting holes: 3.5 mm
- Weight: 10 g
In the package:

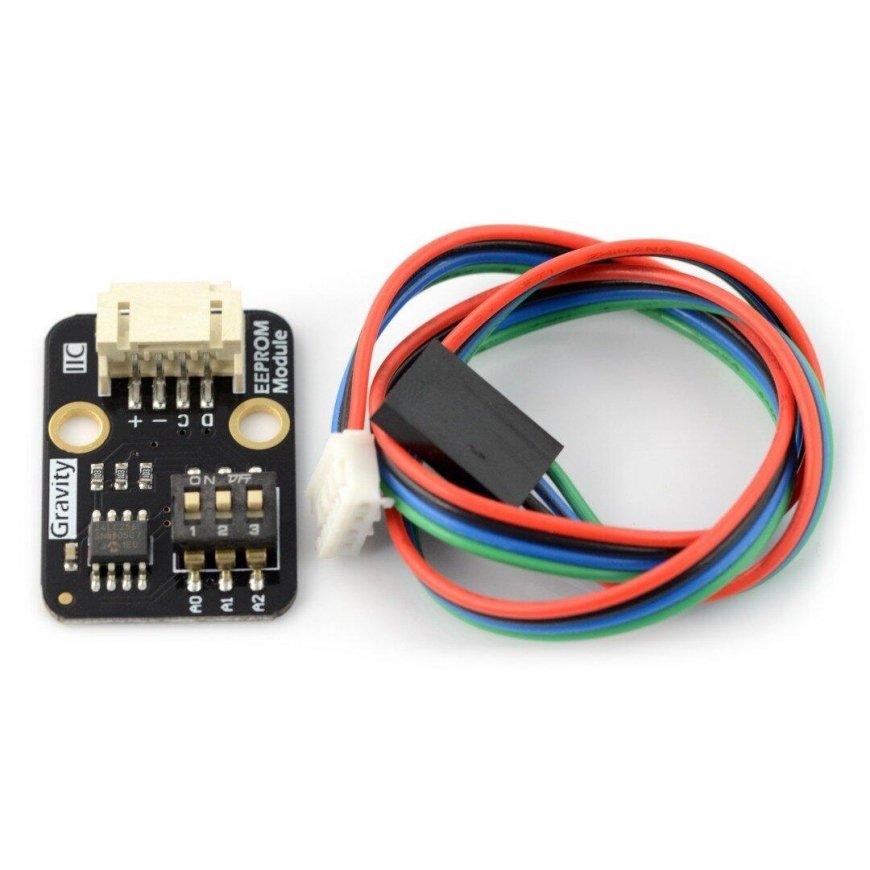

- Gravity I2C / UART sensor cable x1
Links:
Manufacturer's page
Manual
