All about the product
The EMG sensor was developed in collaboration with DFRobot and OYMotion. EMG - electromyograph, a sensor for the electrical activity of human muscles and peripheral nerves. This sensor is a combination of filtering and amplification circuits. It amplifies the smallest sEMG value ±1.5 V by 1000 times and reduces the noise level through differential input and analog filtering circuit.
Specifications:
- Supply voltage: from 3.3 V to 5.5 V
- Operating voltage: 3 V
- Output voltage: from 0 V to 3 V
- Detection range: +/-1.5 mV
- Electrode connector: PJ-342
- Module connector: PH2.0, 3 contacts
- Operating temperature: from 0 ℃ to 50 ℃
- Electrode connector: PJ-342
- Cable length: 50 cm
- Dimensions: 22 x 35 mm
- Weight: 36 g

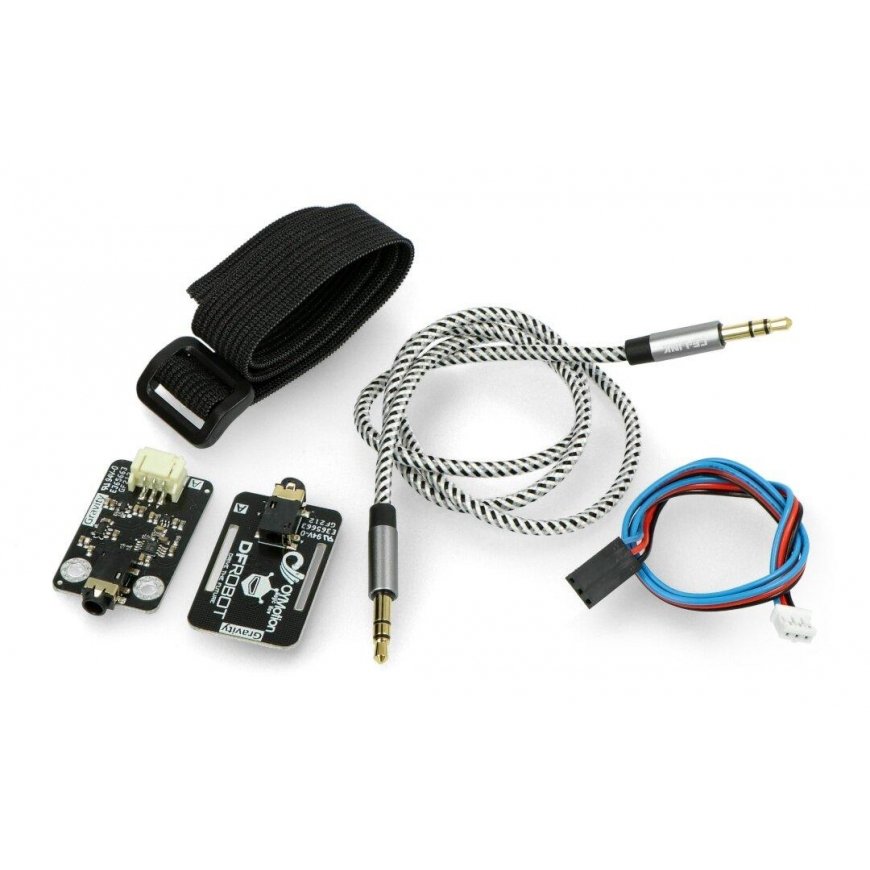

Included:
- 1x wrist strap
- 1x electrode cable
- 1x board for transmitting EMG signal
- 1x Gravity 3 contact cable
References:
Manufacturer's page
Manual
