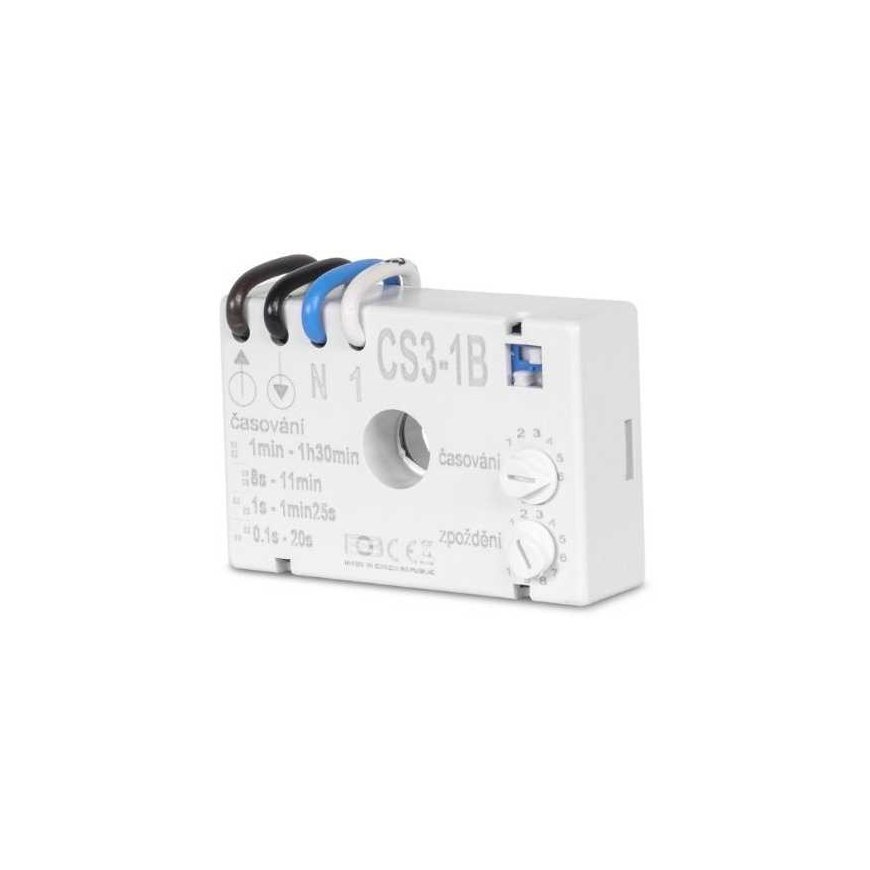

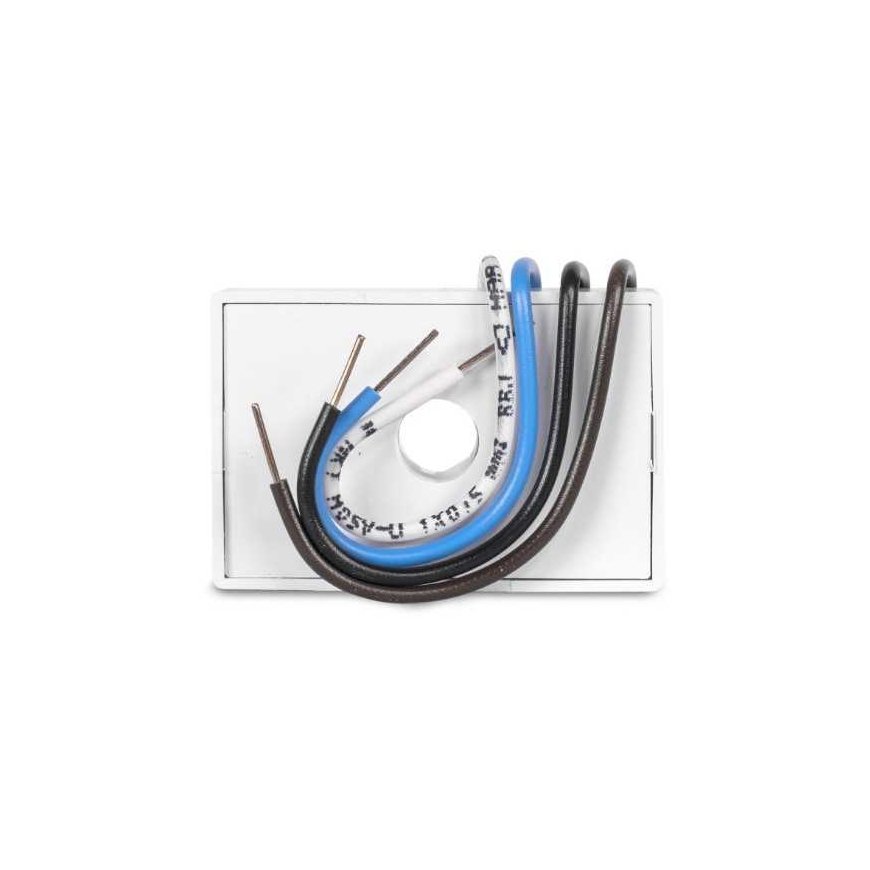

ELEKTROBOCK time switch CS3-1B
3759656 CS3-1B
8594012220027
Shipping 10-15 b.d.
All about the product
Features of CS3-1B: used to delay the fan on and off depending on the lighting. The fan starts 1s to 5min after the lighting is switched on. The adjustment is done by trimmer P1 (delay), using a small screwdriver. The fan is switched off 1s to 1.5h after the lighting is switched off. Technical parameters Power supply 230, 0 V / 50 Hz Mounting type under the switch Mounting without neutral wire No Resistance load 5 W to 150 W Inductive load 5 VA to 50 VA Power input 0.500000000 W Switching element triac Adjustable time 1 s to 90 min Fuse No Degree of protection IP20 Operating temperature 0 °C to 50 °C
