7 drawer tool cart with 208 Irimo tools [8066K7FF208]

All about the product

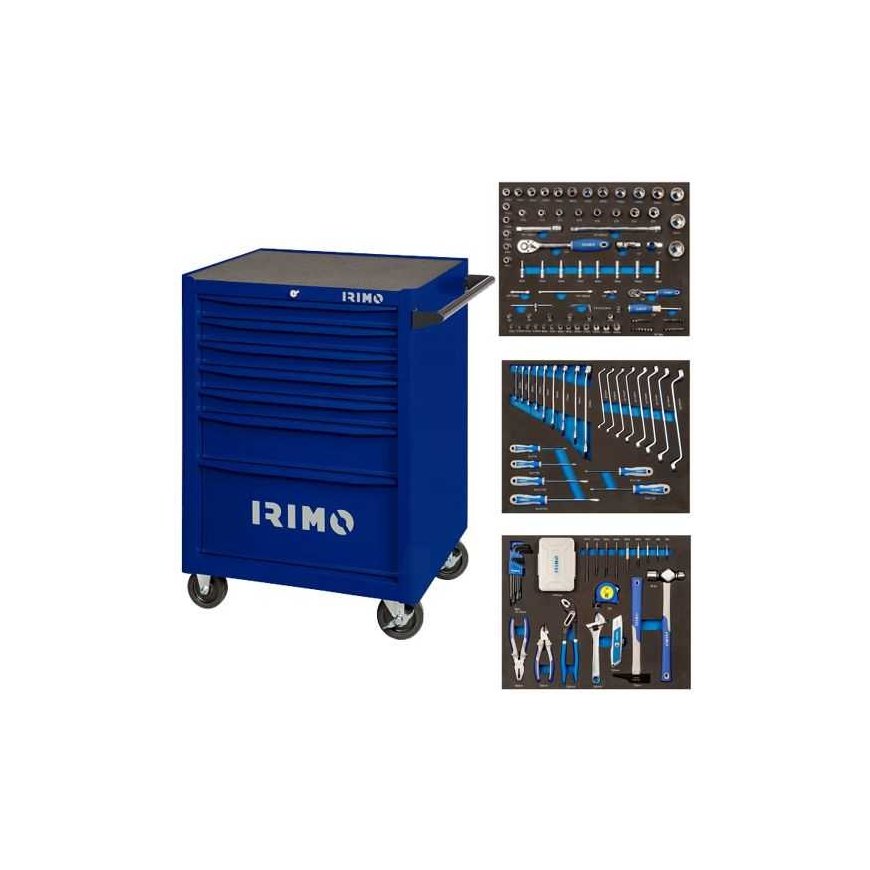

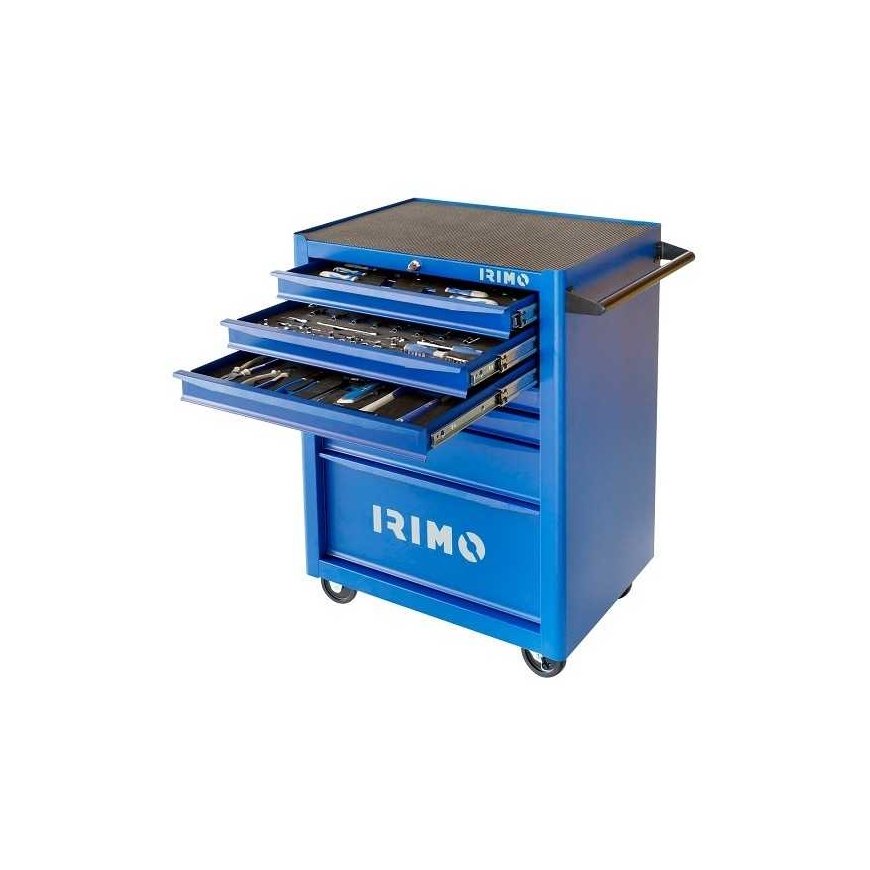

7 drawer workshop trolley with 208 Irimo tools [8066K7FF208]:

• tool trolley with 7 drawers,
• large single drawer load - up to 25 kg,
• maximum trolley load - 400 kg,
• fully extended ball bearing drawer slides,
• drawer locking closure system prevents them from opening during transport,
• full access to drawers throughout their depth,
• central lock with 2 keys,
• durable steel top with edges that prevent tools from rolling, coated with non-slip rubber,
• large wheels (125x30mm), with a slight plastic outer surface: 2 fixed and 2 swivel with brake,
• trolley construction reinforced using double walls (in case of external damage, the drawers still operate properly),
• sturdy handle, which can be mounted on both sides of the trolley,
• high-quality trolley coating - the trolley is coated with powder both inside and outside, protecting it from scratches.

IRIMO SERVICE CABINET EQUIPMENT [8066K7FF208] :

3 two-color foam inserts, dimensions (L x W x H): 540 x 440 x 30 mm, with tools:

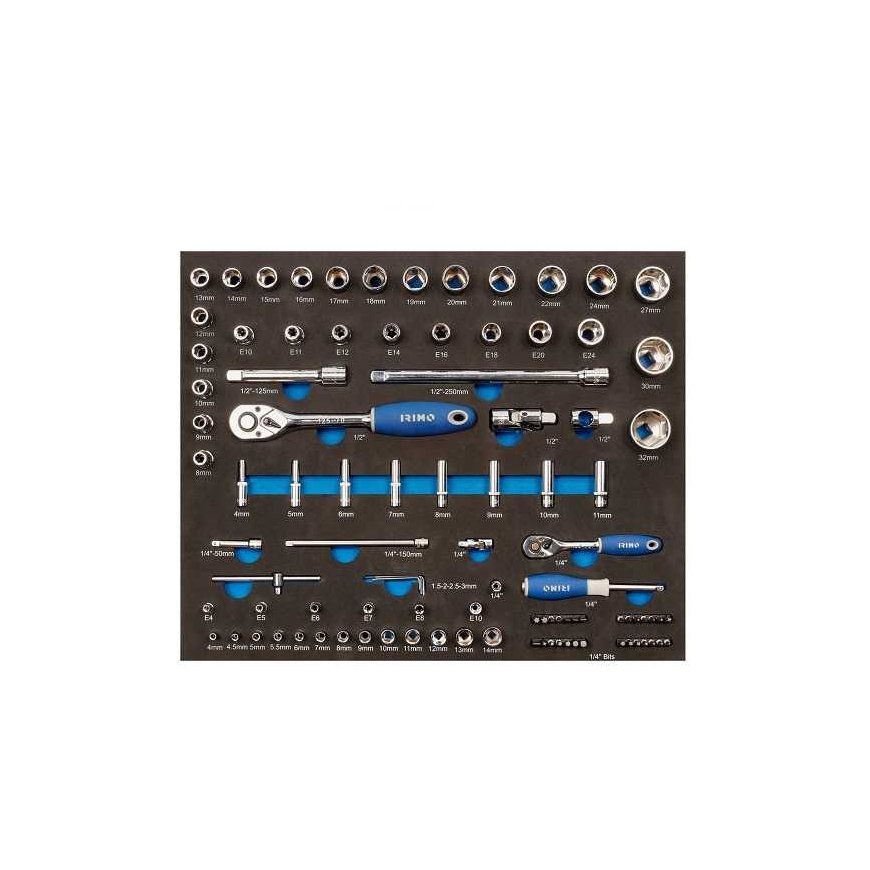

• 13 pcs. hexagon manual sockets with 1/4" square drive : 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 mm,
• 8 pcs. deep hexagon manual sockets with 1/4" square drive : 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 mm,
• 6 pcs. TORX manual sockets with 1/4" square drive : E4 / E5 / E6 / E7 / E8 / E10 mm,
• adapter for bits with 1/4" square inlet for attaching bits with 1/4" hex handle
• angle connector for manual wrenches with 1/4" square drive
• T type handle with sliding pin for 1/4" sockets, 115 mm long [ 105-42-1 ],
• extension for sockets with 1/4" square drive, 50 mm long [ 105-22-1 ],
• extension for sockets with 1/4" square drive, 150 mm long [ 105-26-1 ],
• screwdriver handle with 1/4" square bit
• dual square ratchet 1/4", 72 teeth, length 152 mm [ 105-70-1 ],
• 4 pcs. metric hex keys : 1.5 / 2 / 2.5 / 3 mm,
• 28 pcs. screwdriver bits with 1/4" hex drive, 25 mm long:
  - Phillips screws : PH0 / PH1 / PH2 / PH3,
  - Pozidriv screws : PZ0 / PZ1 / PZ2 / PZ3,
  - Torx screws : T8 / T10 / T15 / T20 / T25 / T27 / T30 / T40 / T45,
  -   hex screws : 3/4/5/6 mm,
  - flat screws: 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 8 mm,
  - adapter from 1/4" HEX to 1/4" square,
• 18 pcs. hexagon manual sockets with 1/2" square drive : 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 21 / 22 / 24 / 27 / 30 / 32 mm,
• 8 pcs. TORX manual sockets with 1/2" square drive : E10 / E11 / E12 / E14 / E16 / E18 / E20 / E24,
• adapter / pin for T type handle with 1/2" square drive
• angle connector for manual wrenches with 12 inch square drive
• extension for sockets with 1/2" square drive, 125 mm long [ 125-23-1 ],
• extension for sockets with 1/2" square drive, 150 mm long [ 125-25-1 ],
• dual square ratchet 1/2", 72 teeth, length 262 mm [ 125-70-1 ],

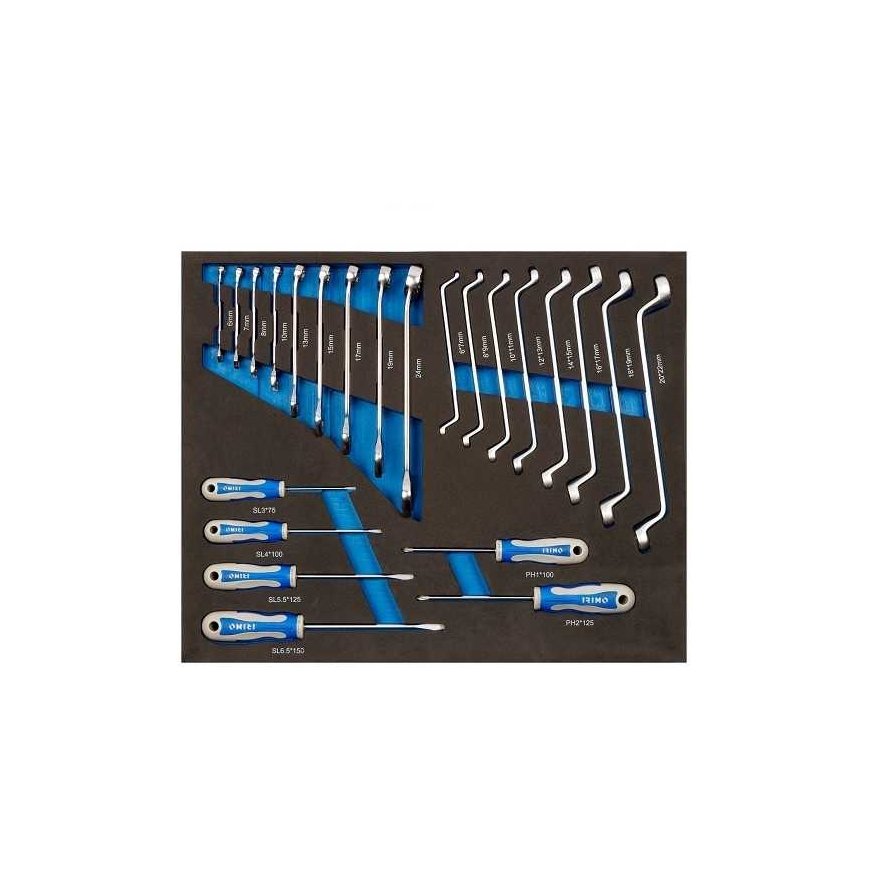

• 9 pcs. bent combination wrenches : 6/7/8/10/13/15/17/19/24 mm,
• 8 pcs. double-ended ring wrenches : 6x6 mm / 8x9 mm / 10x11 mm / 12x13 mm / 14x15 mm / 16x17 mm / 18x19 mm / 20x22 mm,
• 4 pcs. screwdrivers for flat screws : SL3x75 mm / SL4x100 mm / SL5.5x125 mm / SL6.5x150 mm,
• 2 pcs. screwdrivers for Philips screws : PH1x100mm / PH2x125mm,
• 61 1/4" screwdriver bit set, packed in a durable and practical plastic case [ 475-61-1 ]:
  - Phillips screws : PH0 / 2xPH1 / 3xPH2 / 2xPH3 / PH4,
  - PH2G type screws : 2xPH2G,
  - Pozidriv screws : PZ0 / 2xPZ1 / 3xPZ2 / 2xPZ3 / PZ4,
  - TORX screws : TX6 / TX7 / TX8 / TX9 / 2xTX10 / 2xTX15 / 3xTX20 / 2xTX25 / 2xTX27 / 2xTX30 / 2xTX40,
  - TORX screws with hole : TR10 / TR15 / TR20 / TR25 / TR27 / TR30 / TR40,
  - hex screws : 3/4/5/6 mm,
  - flat screws: 4 / 4.5 / 5.5 / 6.0 / 6.5 / 8.0 mm,
  - Robertson square screws : R1 / R2 / R3,
  - magnetic adapter from 1/4" hex to 1/4" square, allowing to attach 1/4" sockets
  - adapter from 1/4" hex to 1/4" square,

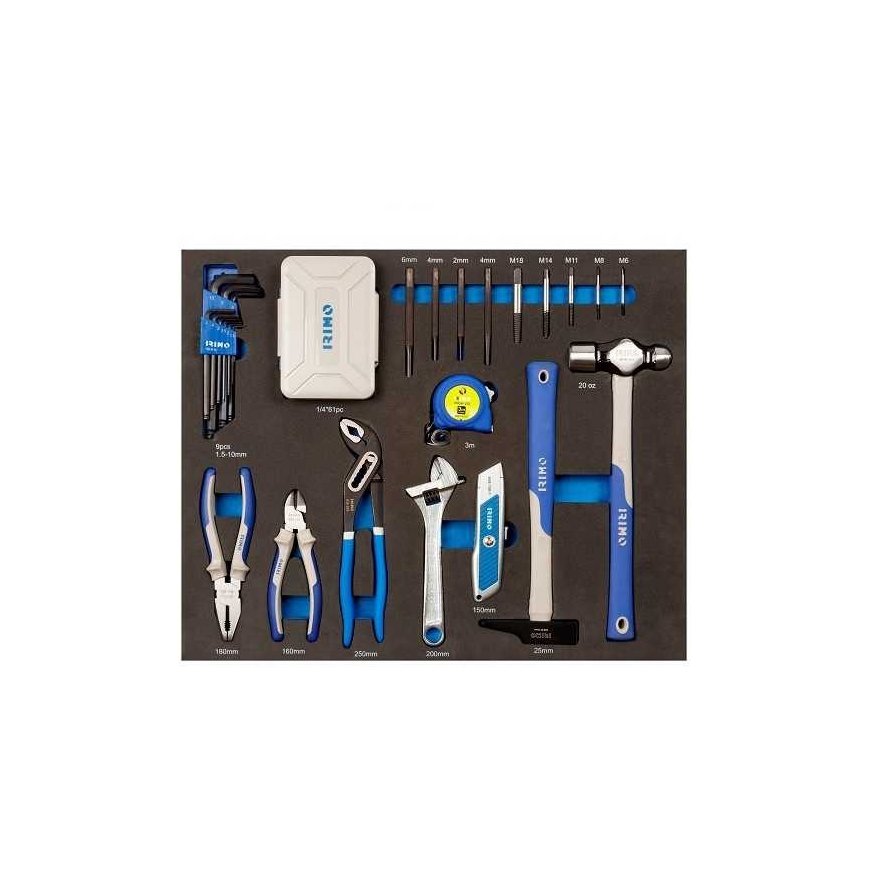

• 9 long hex keys with ball set, metric [ 48-9-H ]: 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm,
• 5 pcs. manual extractors for broken screws with thread:
  - M3-M6 [ 716-M6-1 ],
  - M6-M8 [ 716-M8-1 ],
  - M8-M11 [ 716-M11-1 ],
  - M11-M14 [ 716-M14-1 ],
  - M14-M19 [ 716-M18-1 ],
• 4 pcs. stamp sizes : 2 mm / 2 x 4 mm / 6 mm,
• universal pliers, combination pliers, 180 mm long [ 601-180-1 ],
• side cutter 160 mm [ 624-160-1 ],
• Aligator pipe adjustable pliers 250 mm [ 634-250-1 ],
• Swedish adjustable wrench jaw distance 24 mm [ 5-200C-1 ],
• carpenter's hammer with fiberglass handle 25 mm [522-33-2],
• ball peen hammer with fiberglass handle 33 mm, 560 g [527-53-2],
• knife with trapezoidal blade [668-150-1],
• measuring tape 3 m, HIGH VIZ [980HV-3-1]

IRIMO TOOL CABINET [8066K7FF208] TECHNICAL PARAMETERS:

• 7 drawers with internal dimensions:
  - 5 drawers: 543 x 445 x 50 mm ,
  - 1 drawer: 543 x 445 x 116 mm,
  - 1 drawer: 543 x 445 x 246 mm,
• maximum load of 1 drawer : 25 kg,
• maximum trolley load : 400 kg,
• wheel size : 125 x 30 mm,
• color : blue RAL5002,
• trolley catalog number (without equipment) : 9066K7,
• tool trolley dimensions : 954 x 501 x 677 mm,
• trolley weight : 52 kg
