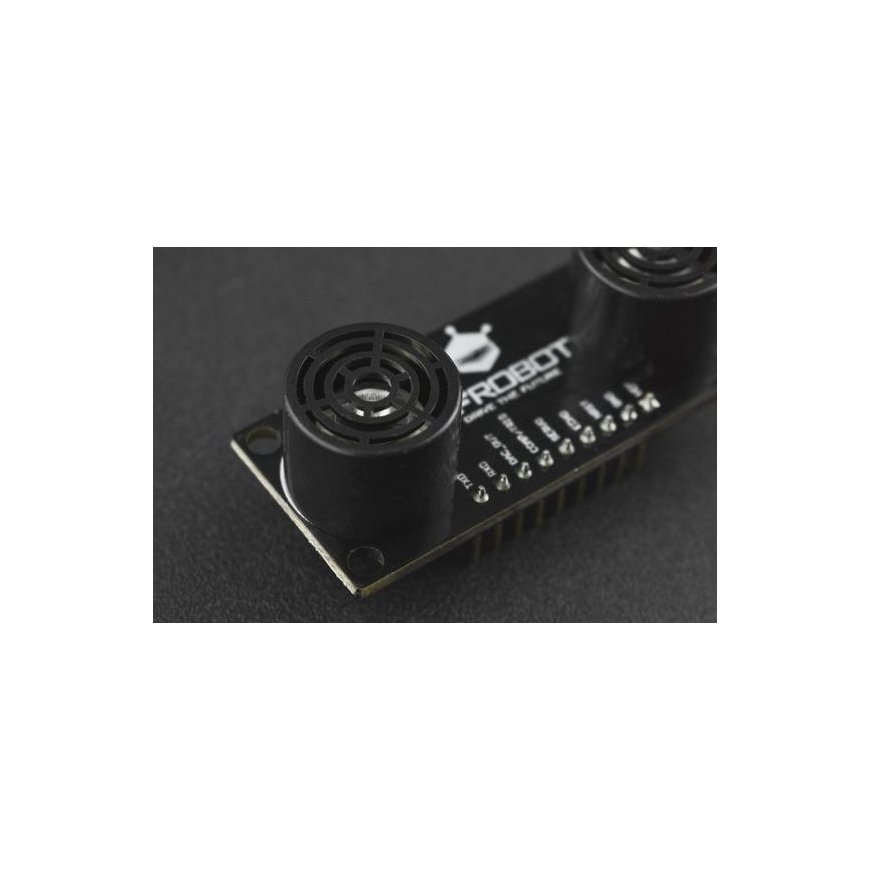

DFRobot URM37 V5.0 Ultrasonic Sensor for Arduino / Raspberry Pi
3758976 AN-03413
5904422331856
Shipping 11-18 b.d.
All about the product
URM37 V5.0 is a powerful ultrasonic sensor with temperature compensation for accurately measuring temperature-changing applications. It has a wide interface and offers various outputs: analog output, switch, serial (TTL and RS232 optional), PWM, etc. In analog mode, the sensor outputs a voltage that is proportional to the distance, it can be connected to Arduino, Raspberry Pi, and LattePanda (Windows 10 development board). The module can be used to measure the servo rotation angle.
Specification:
- Operating voltage: 3.3V～5.5V
- Operating current: 20mA
- Operating temperature: -10 ℃ ～ 70 ℃
- Detection range: 2cm-800cm (maximum range 1000cm)
- Resolution: 1cm
- Accuracy: 1%
- Measurement period: ＜ 100 ms （Max）
- Dimensions: 22 mm × 51 mm
- Weight: about 25 g
