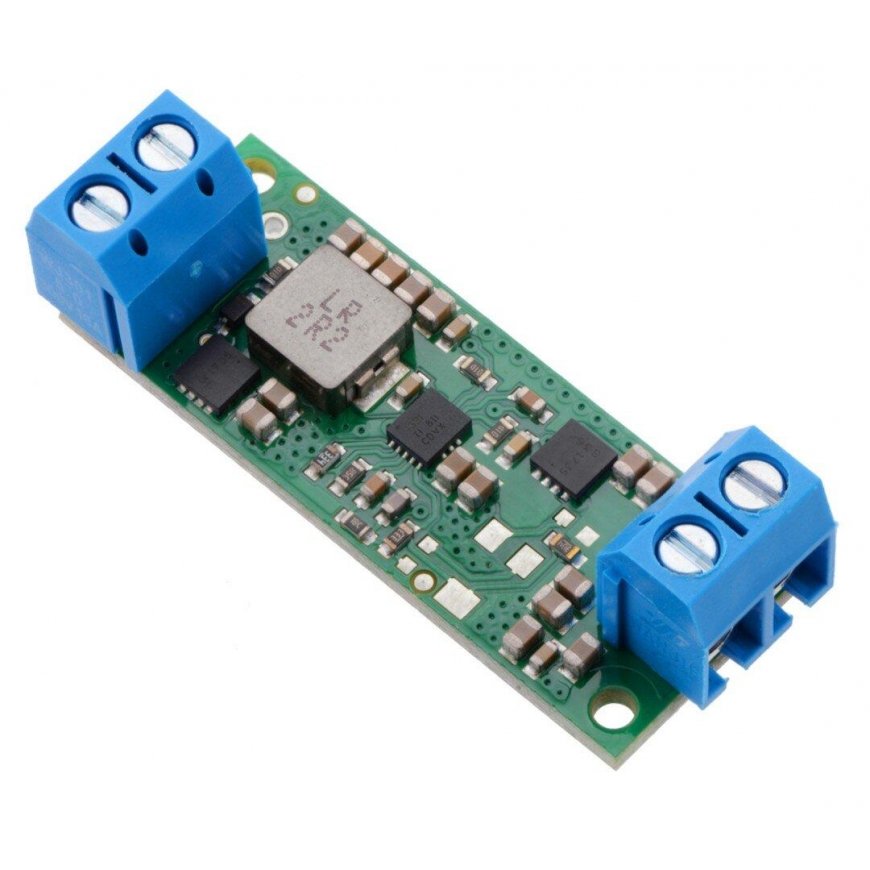

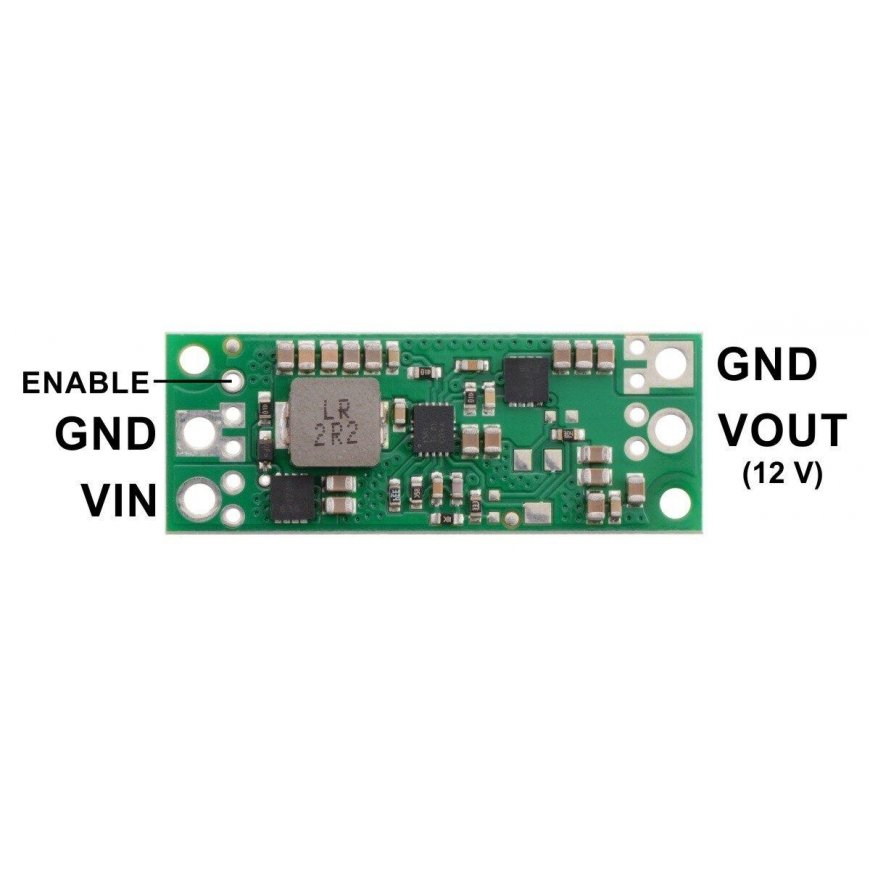

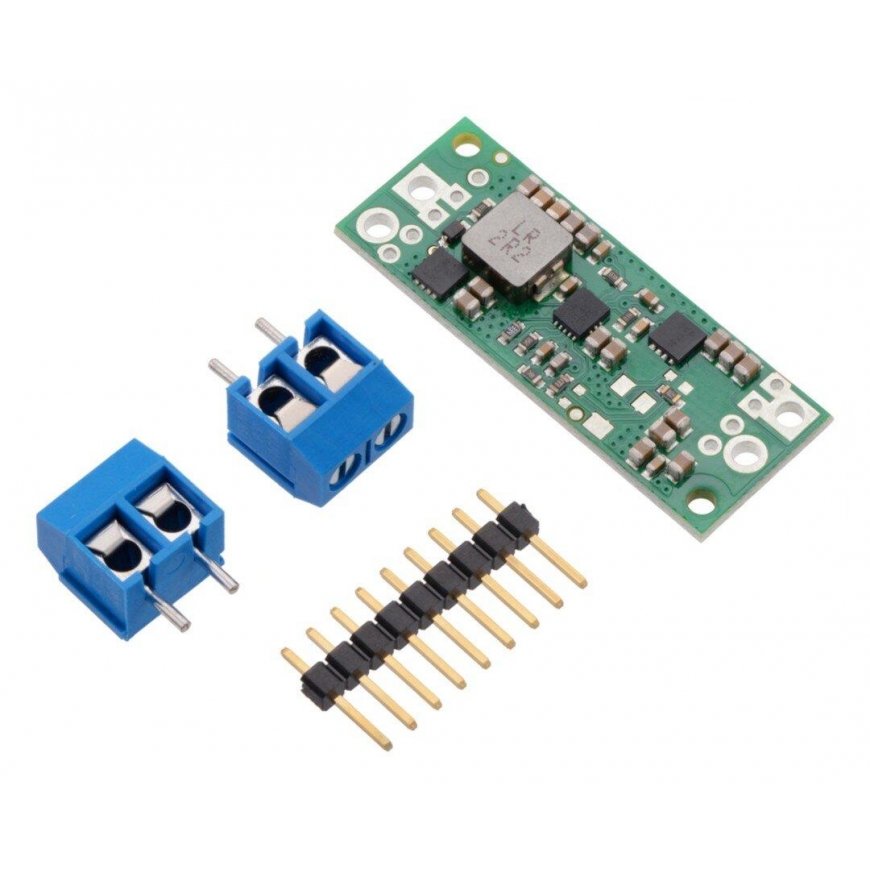

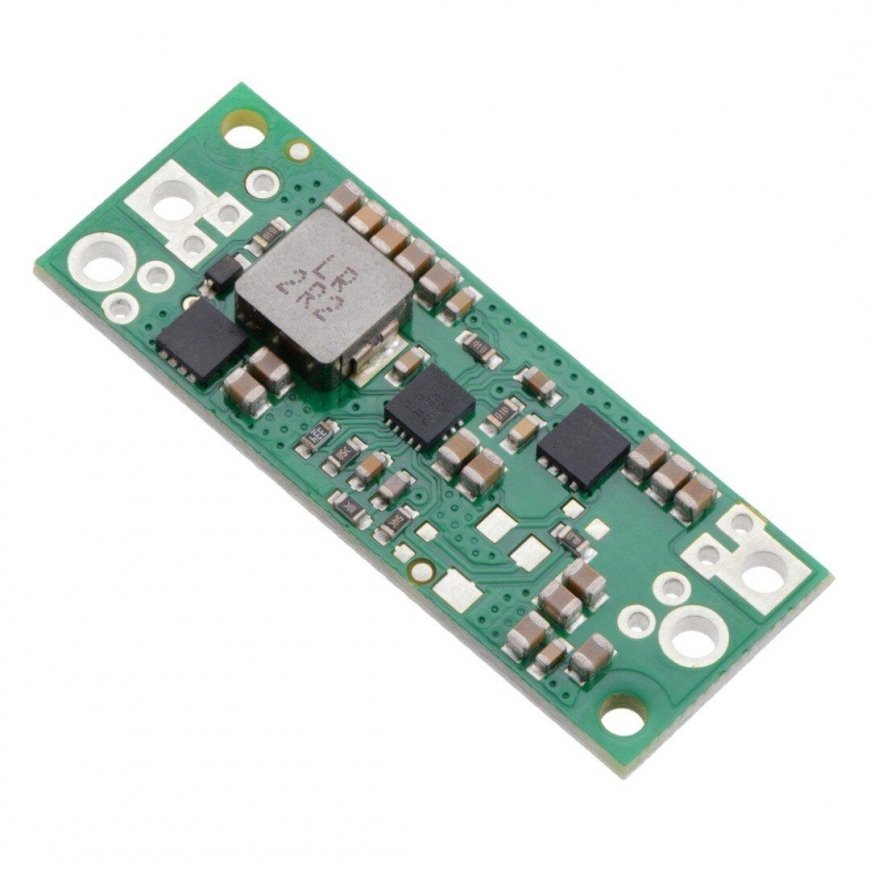

Step-Up Voltage Regulator U3V70F12, 12V, 10A, Pololu 2895
39.00 €
Monthly payment from 1,90 €
3757450 AN-14007
5904422342364
Shipping 8-15 b.d.
You are interested in this product?
All about the product
A controller that increases voltage from 2.9 to 12 V to a steady 12 V. The system can handle a maximum input current of 10 A, with a typical input current bringing 8 A for a few seconds before entering thermal protection mode. It is recommended to use up to 6 A, the converter can operate for several minutes. The output current is a function of the input voltage, output voltage, and converter efficiency.
Specifications:
- Input voltage: from 2.9 V to 12 V
- Output voltage: 12 V with 4% accuracy
- Maximum input current:
- up to 10 A - instantaneous
- up to 8 A - for a few seconds
- up to 7 A - for a longer time
- Low power consumption in idle state
- 80–95% efficiency
- Safety:
- Before connecting reverse power
- Thermal - shuts down the system at high temperatures
- Enable lock at low power voltage - below 2.5 V
- Short circuit
- Input current limit up to 10 A
- Two mounting holes for M2 screws

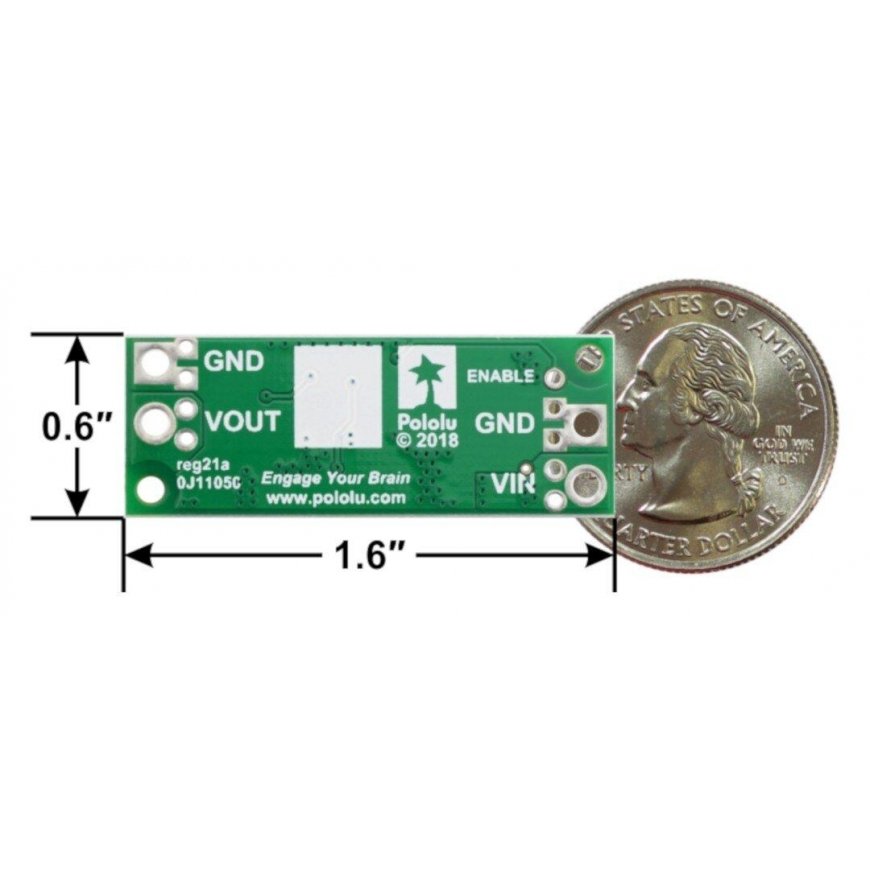

- Dimensions: 40.6 x 15.2 x 4.6 mm
- Weight (without connectors): 3.4 g
