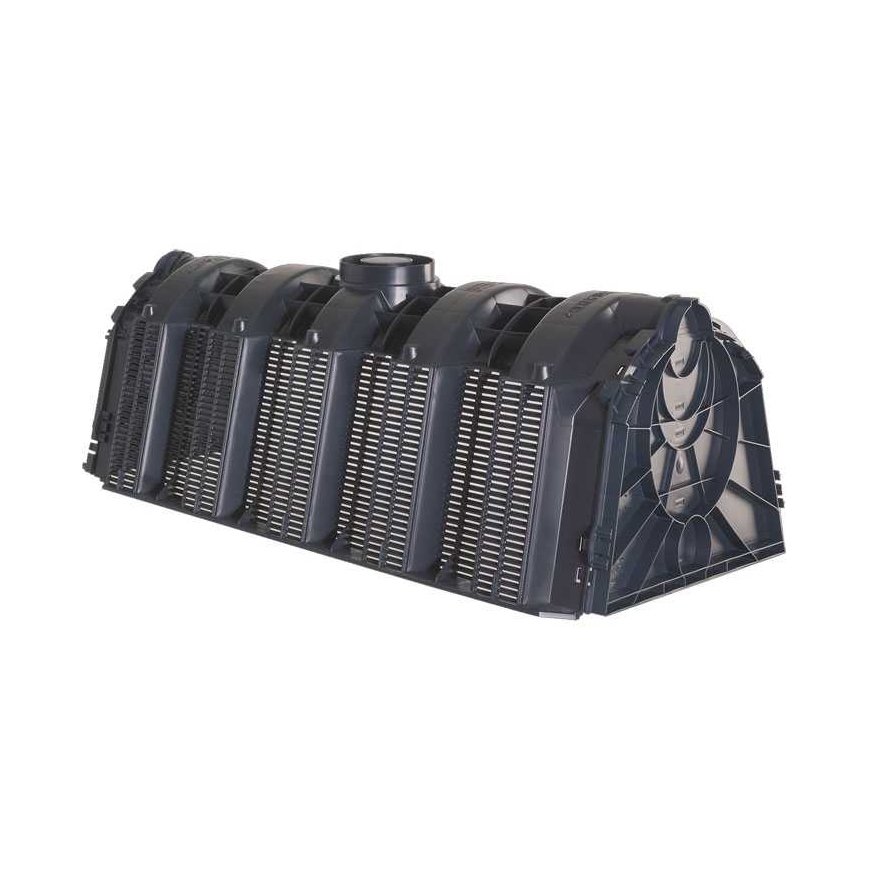

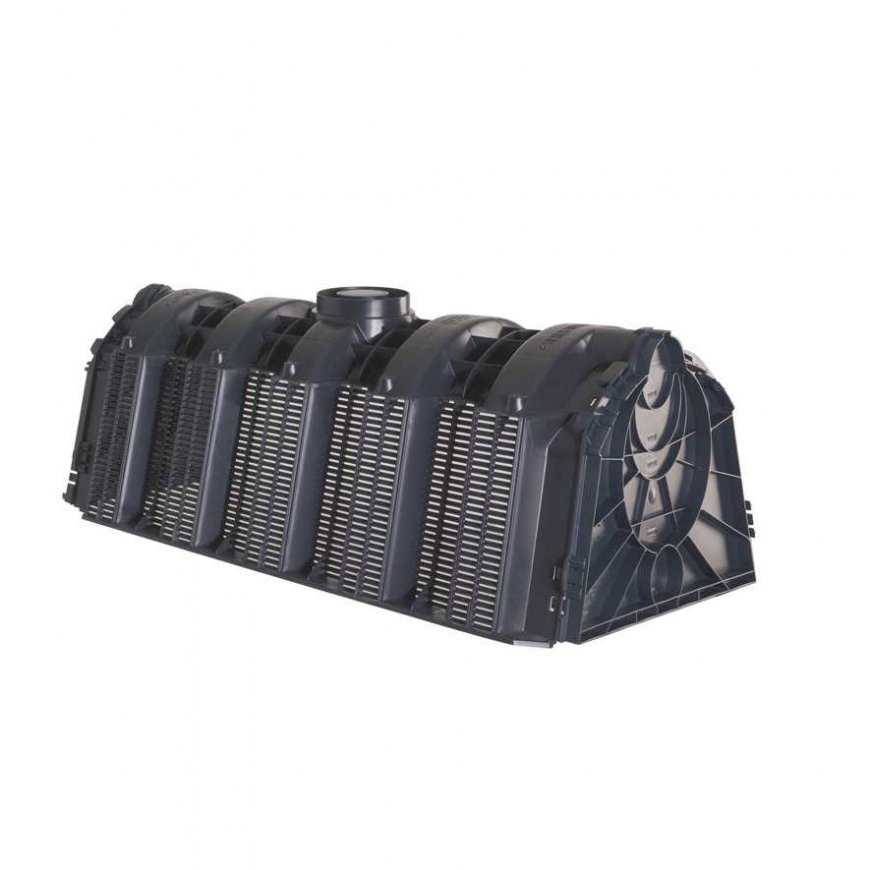

Otto Graf Infiltration Tunnel 300l GRAF (230010)
3756951 4023122115632
Shipping 4-7 b.d.
All about the product
- Tunnel size: 116 x 80 x 51 cm
- Tunnel capacity: 300 L
- Patented German technology
- Made in Germany
- Lightweight. The infiltration tunnel weighs only 11 kg , so no special equipment is needed for installation. This also reduces transportation costs.
- High quality. The Graf brand meets ISO requirements and has been awarded multiple times for innovative solutions. Meanwhile, their product - infiltration tunnels - has received a BBA certificate and comes with a 15-year warranty for resistance and stability.
- Durable. The tunnels can withstand up to 3.5 t/m2 load , so they can be confidently installed under a parking lot or road.
- High volume. One tunnel section replaces 36 drainage pipes or 800 kg of gravel! Therefore, transportation and labor costs are reduced.

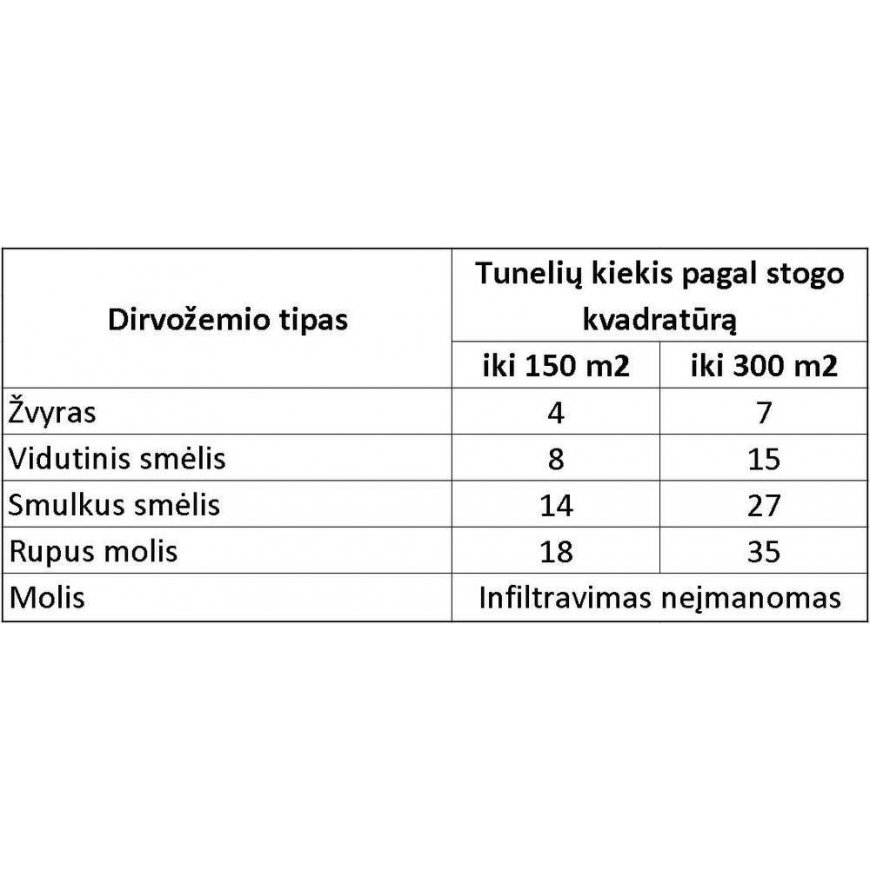

- Easy to install. The product is designed to be easy to assemble: to connect or relocate. This helps save time and effort. To collect rainwater from an average-sized house roof and area, only 2–3 infiltration tunnel sections are needed. The number of tunnels depends on the soil's permeability to water.
Installation

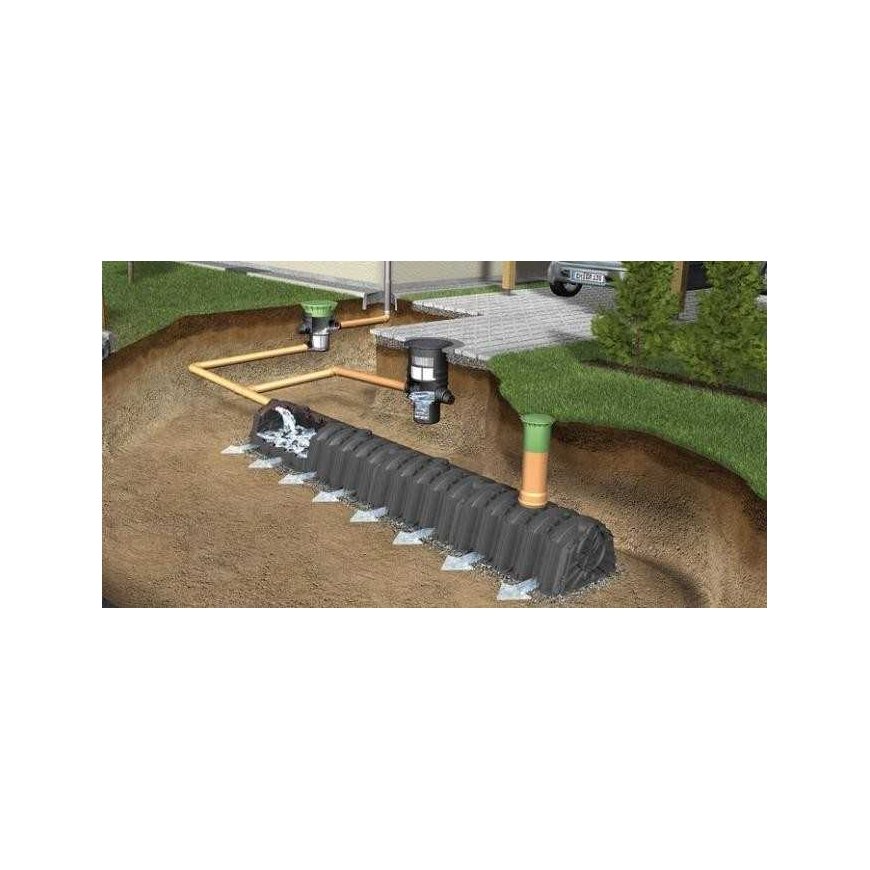

To collect rainwater from an average-sized house roof and area, only 2–3 infiltration tunnel sections are needed. Infiltration tunnels are designed to be easy to transport and straightforward to install. The easily connectable parts allow for the tunnel structure to be expanded according to individual needs. Infiltration tunnels are installed on a gravel base, and their upper part is wrapped in geotextile and covered with soil. The curved tunnel design reduces the risk of film tearing. The tunnel is closed off at the sides with caps, but access to the tunnel is left through a 200 mm diameter plastic opening.
