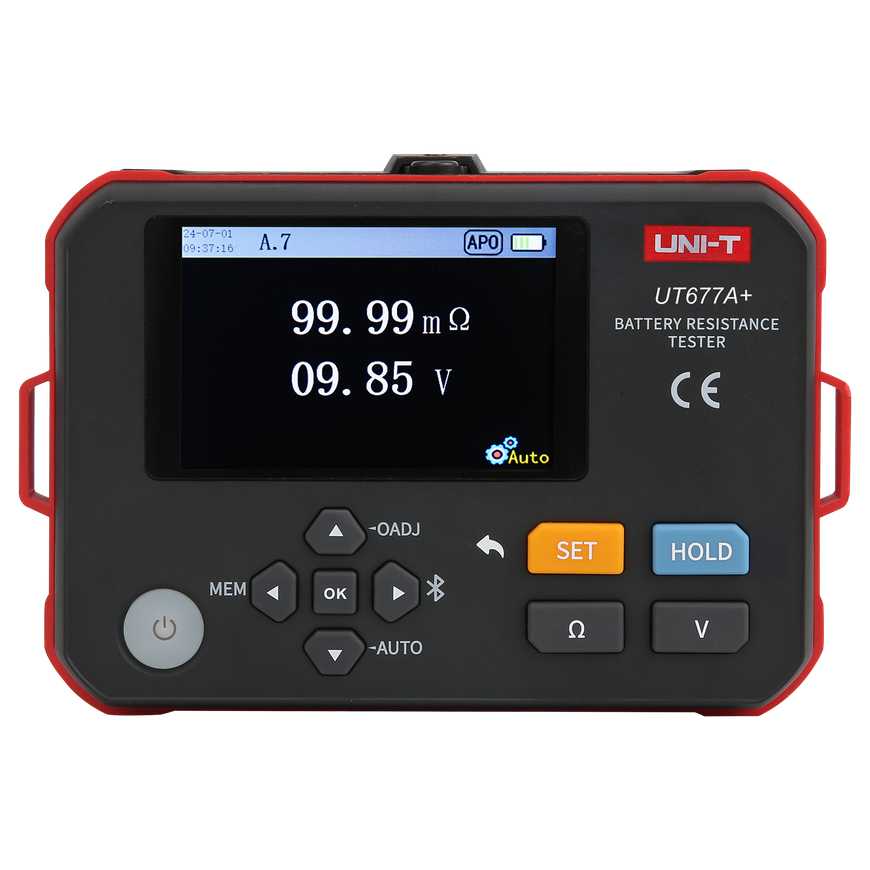

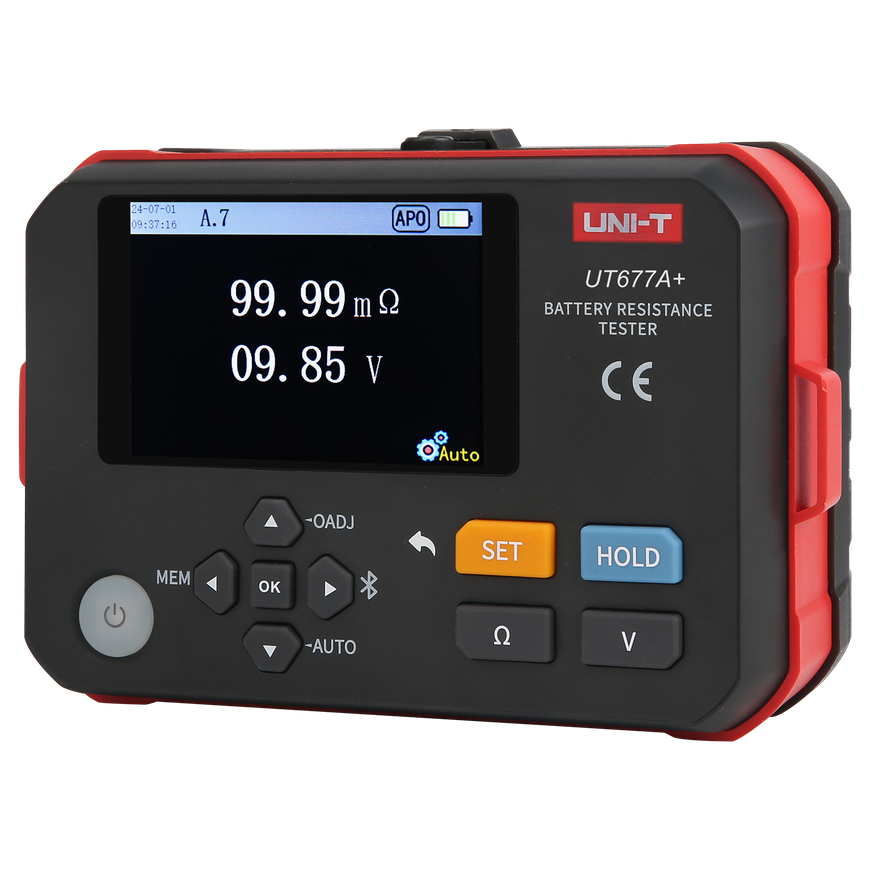

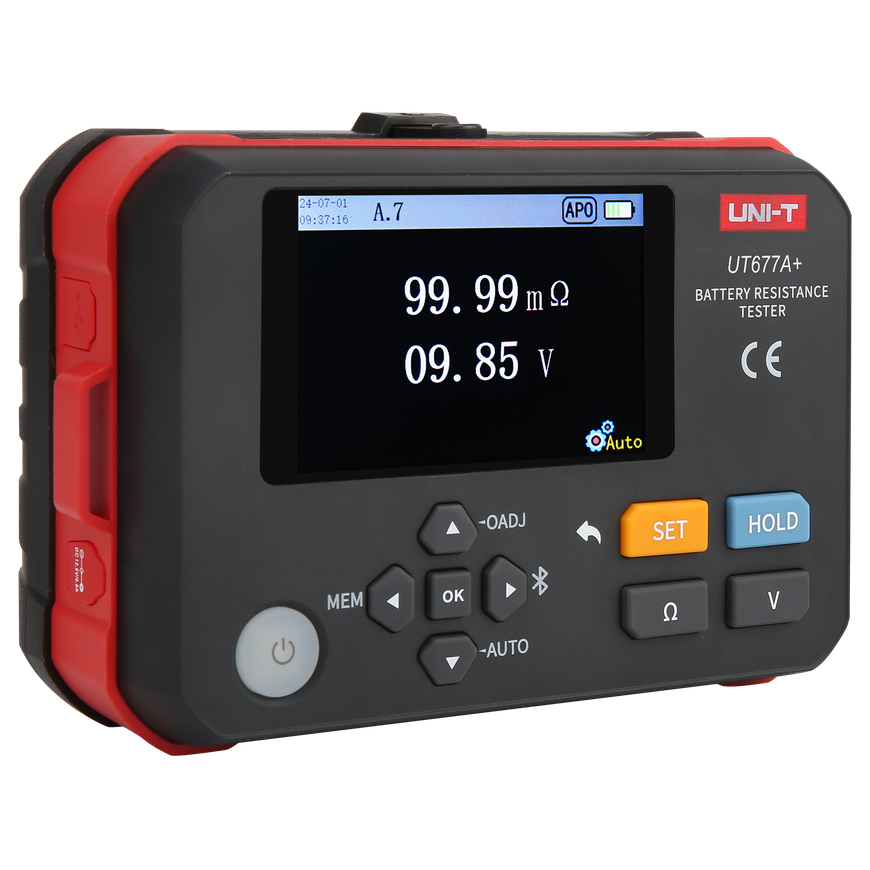

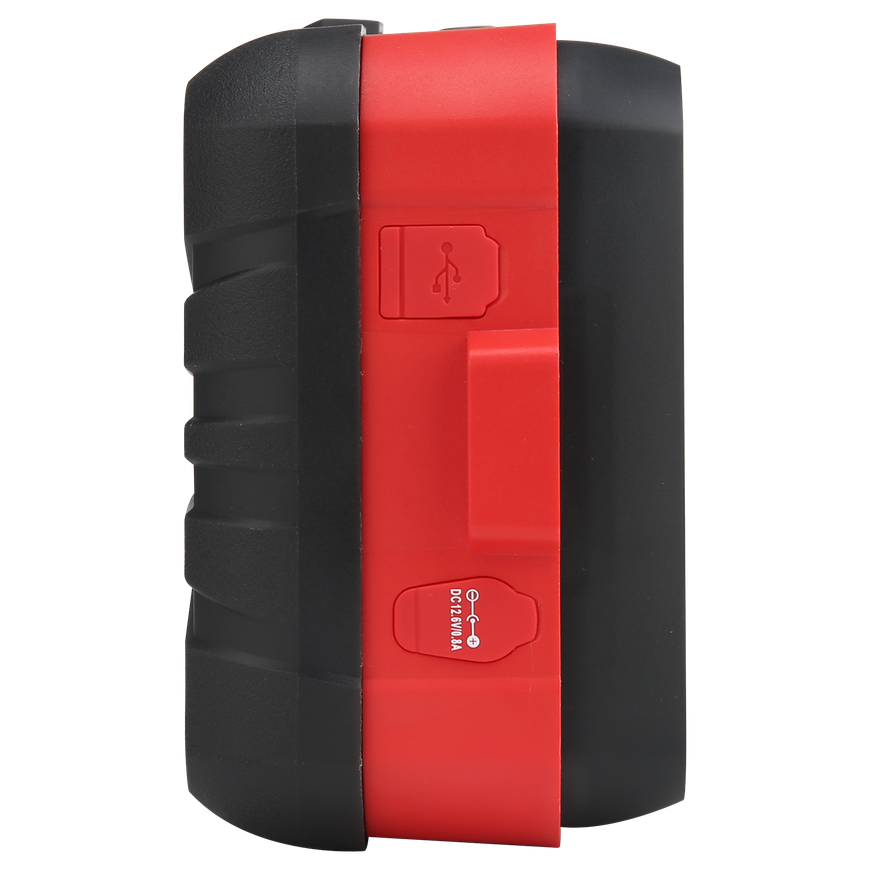

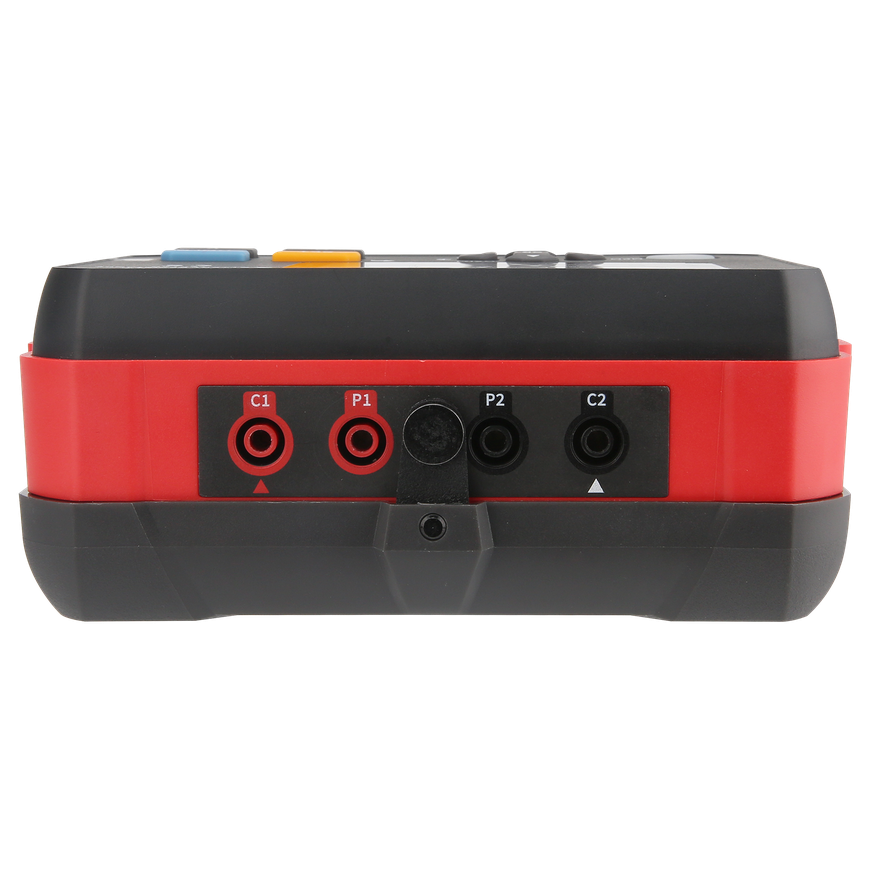

Uni-T UT677A+ meter
3756838 MIE0509
5901890121484
Shipping 9-13 b.d.
All about the product
------------
MEASUREMENT RANGES
-----------
Internal resistance range of the battery:
0 mOhm ~ 3 mOhm: ±1 % ±20 (1 μOhm resolution)
3mOhm ~ 30mOhm: ±0.5% ±15 (10uOhm resolution)
3 mOhm ~ 300 mOhm: ±1 % ±15 (resolution 100 μOhm)
300 mOhm ~ 3 ohms: ±0.5 % ±15 (100 μOhm resolution)
Battery voltage range:
0 V ~ ±7 V: ±0.2 % ±10 (resolution 1 mV)
7V ~ ±71V: ±0.2%+10 (10mV resolution)
------------
ADDITIONAL FUNCTIONS
------------
Display: 3.5 inches
Display resolution: 480 x 320 pixels
Measurement time: about 2 sec.
USB interface
Bluetooth application
Data storage: up to 5000 records
Three alarm thresholds
------------
GENERAL SPECIFICATIONS
------------
Product dimensions: 190 x 121 x 51 mm
Product weight: 674 g
