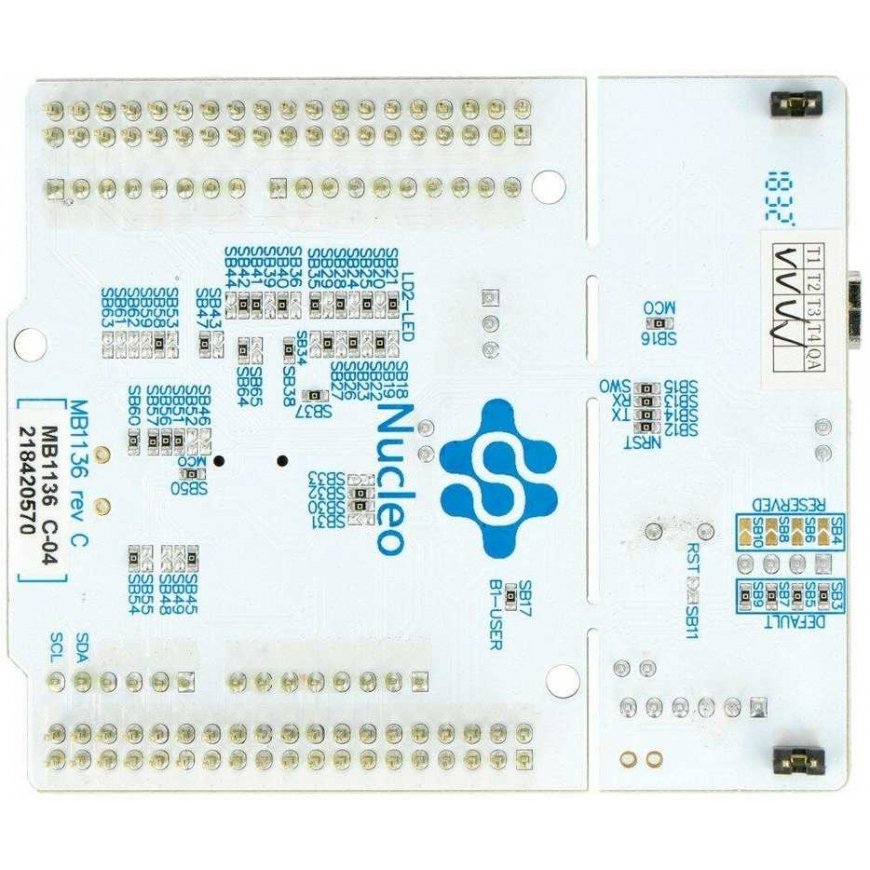

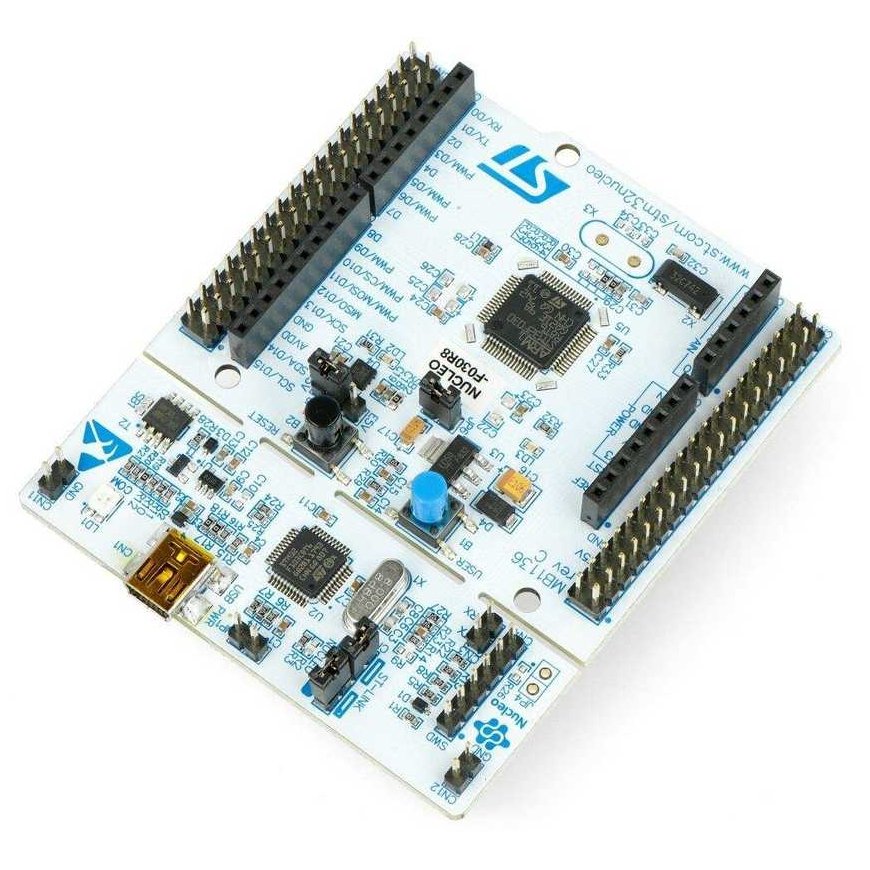

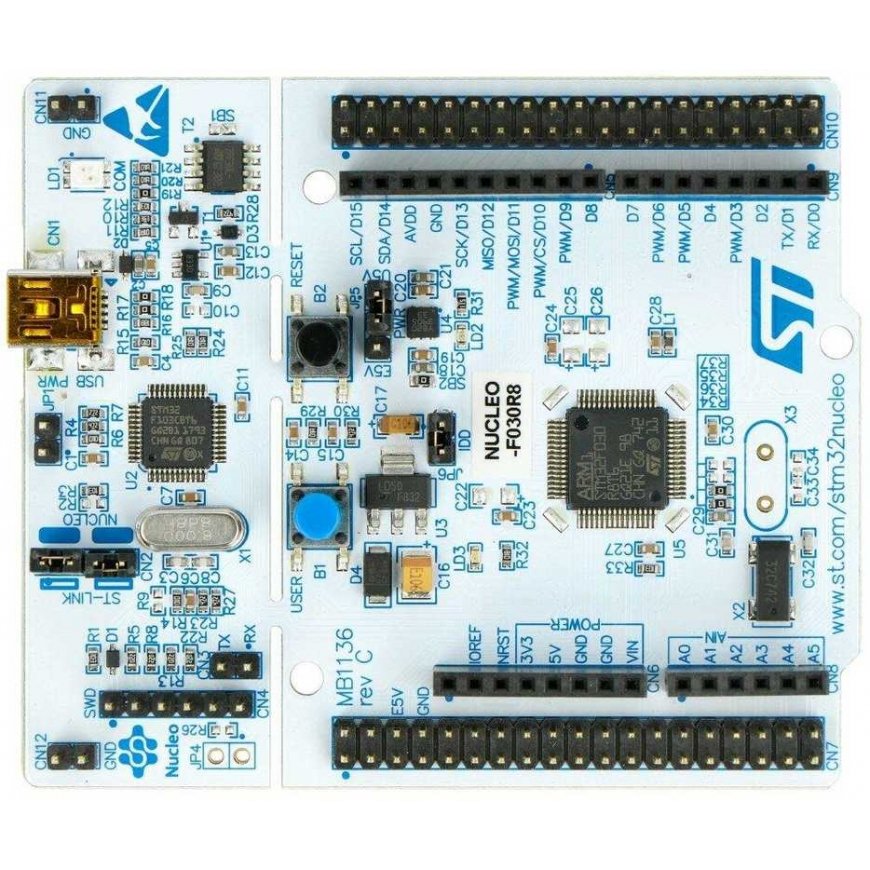

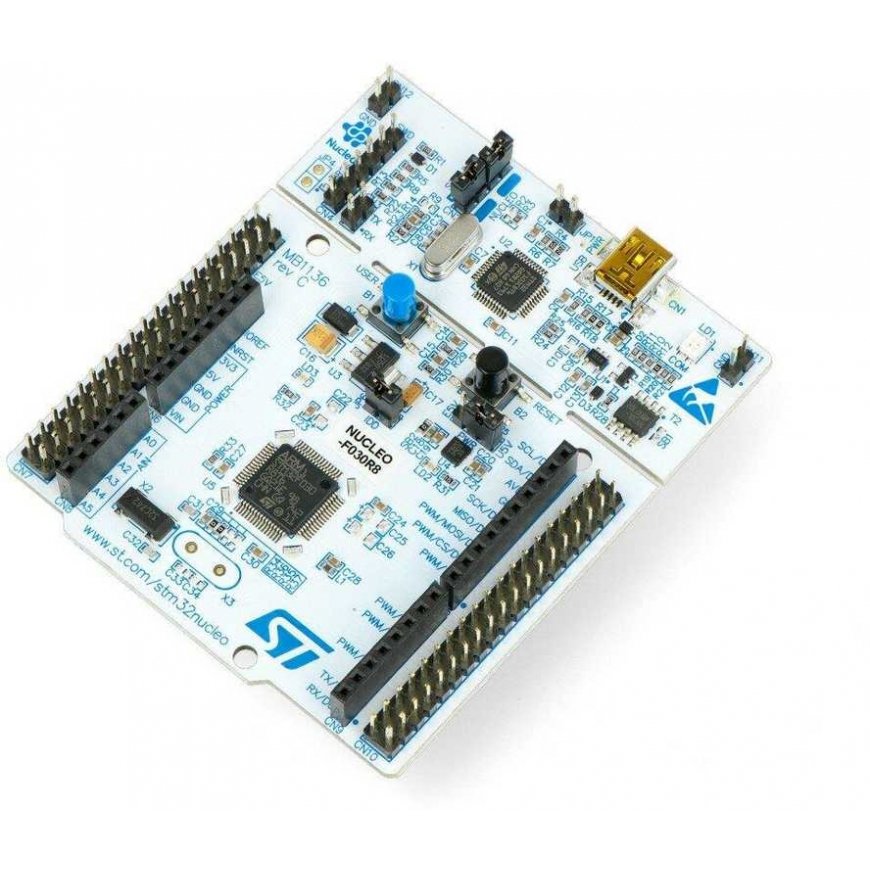

Stmicroelectronics STM32 NUCLEO-F030R8 module – STM32F030R8T6 ARM Cortex M0
49.00 €
Monthly payment from 2,16 €
3755896 AN-02215
5904422364885
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with a 32-bit microcontroller with ARM Cortex M0, 48 MHz, 64 KB Flash, 8 KB RAM. Nucleo is compatible with the mbed platform and has connectors for connecting Arduino shields.
Specifications:
- Microcontroller: STM32F030R8T6
- Core: ARM Cortex M0 32-bit
- Clock frequency: 48 MHz
- Flash memory: 64 KB
- RAM memory: 8 KB
- Analog-to-digital converter: 12-bit, 16 channels
- Number of timers: 10
- Number of programmable inputs/outputs: 55
- Interfaces: 2x I2C, 2 USART, 2x SPI
- Two types of connectors:
- Shield connectors compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho provide access to microcontroller pins
- The module is compatible with the mbed system (mbed.org)
- ST-Link/V2 debugger is mounted on the board with the ability to operate as a standalone device with SWD output
- Ability to power via USB connector
- Three built-in LEDs:
- 1 x power voltage indicator
- 1 x connection indicator
- 1 x user indicator
- Two buttons:
- 1 x RESET
- 1 x user button
- Three different interfaces via miniUSB connector (USB re-enumeration):
- Virtual COM port
- Mass storage
- Programming/debugging port
- The module supports most popular environments, e.g.: IAR, Keil, and platforms based on GCC compiler
