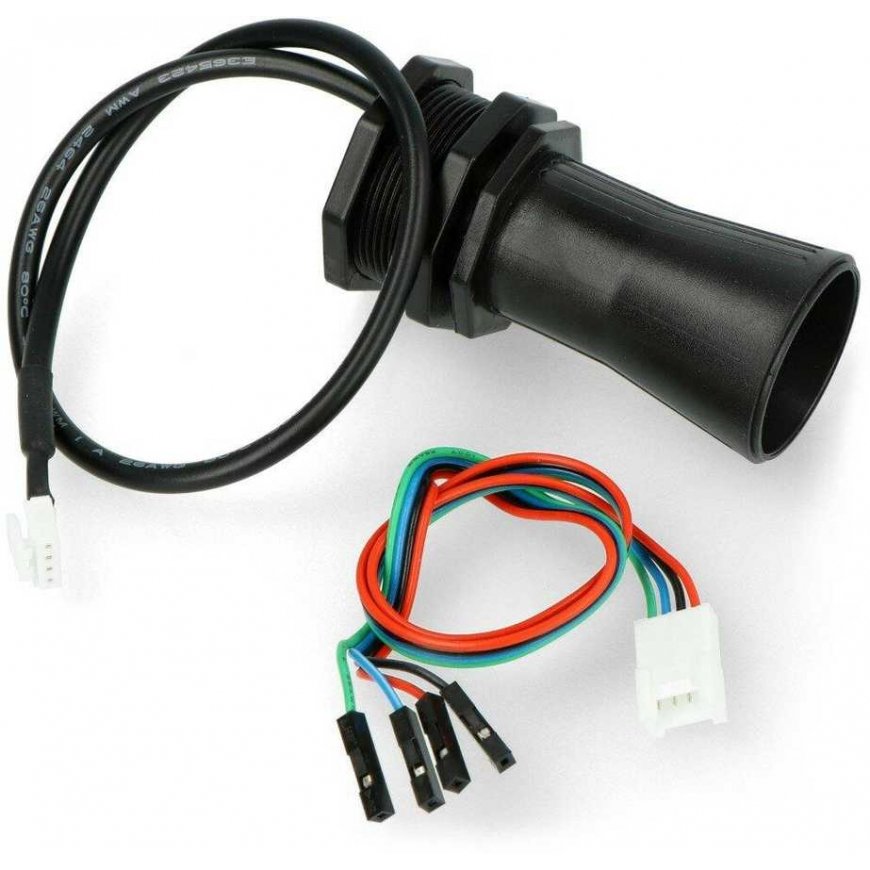

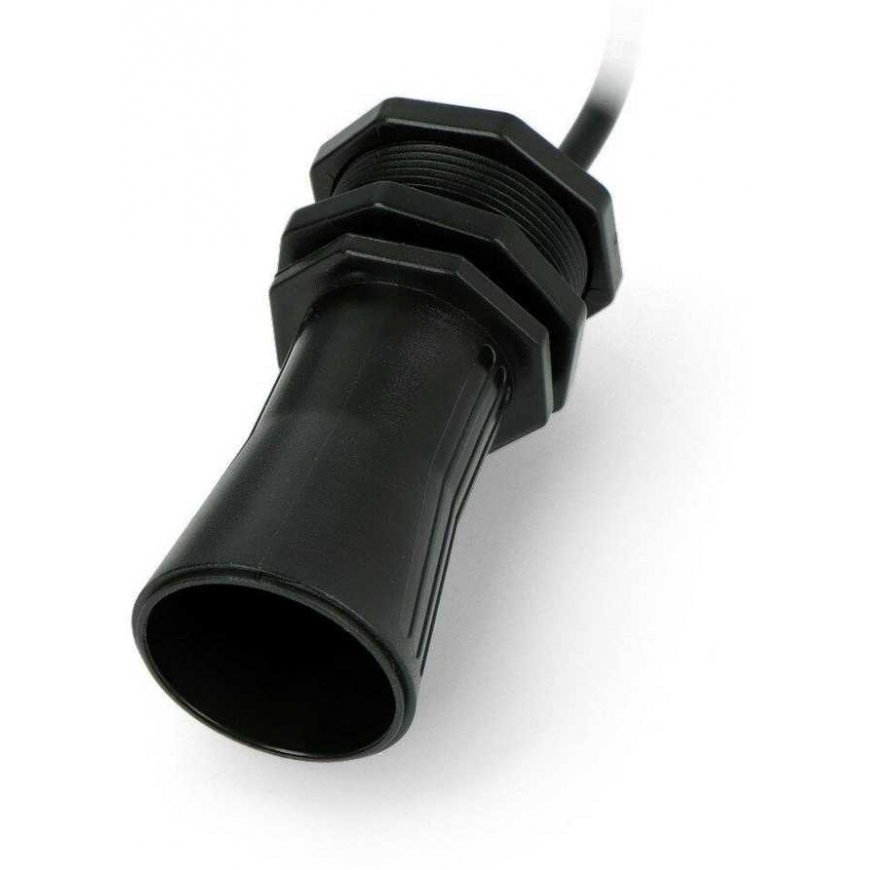

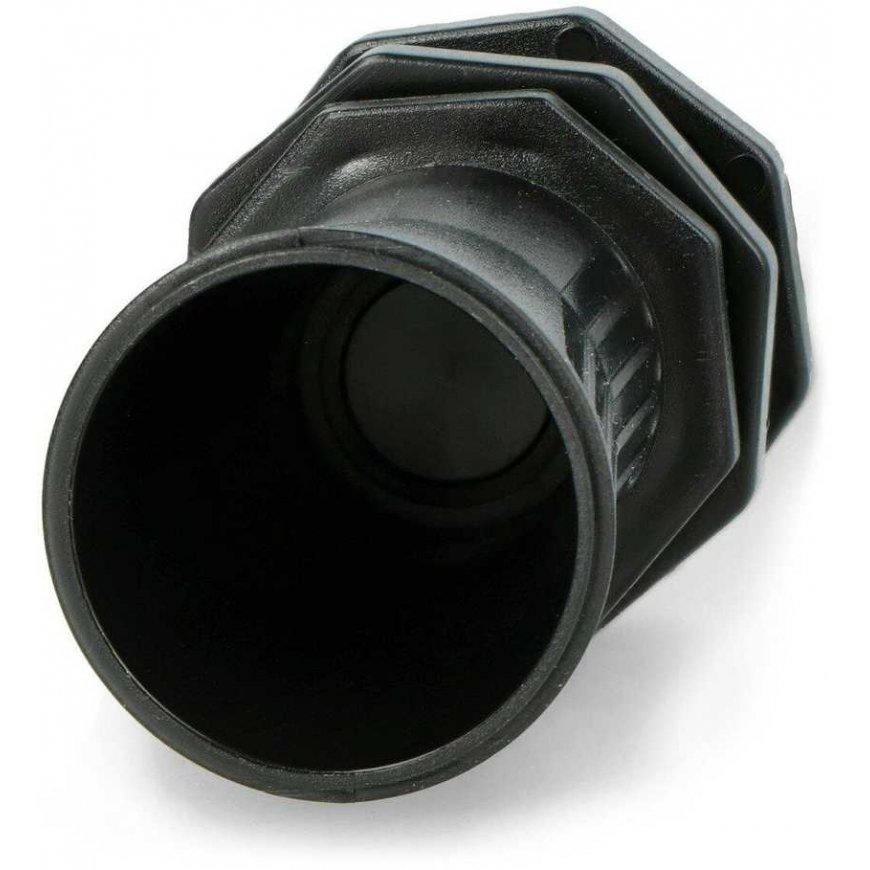

A01NYUB ultrasonic distance sensor 28-750cm, waterproof, DFRobot SEN0313
69.01 €
Monthly payment from 2,68 €
3755892 AN-15716
5904422308445
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Distance sensor that measures the time between sending and receiving an impulse. A01NYUB measures distances from 28 to 750 cm and supports communication via UART serial interface. The module is powered from 3.3 V to 5 V. Due to its housing with an IP67 protection class, it is resistant to water and dust.
Specifications:
- Operating voltage: from 3.3 V to 5 V
- Average current consumption: 15 mA
- Blind zone: 28 cm
- Measurement range: from 28 cm to 750 cm
- Interface: UART
- Response time: 100 ms
- Probe center frequency: 40 kHz ±1 kHz
- Operating temperature: from -15 °C to 60 °C
- Storage temperature: from -25 °C to 80 °C
- Measurement angle: 55°
- Measurement angle without handle: 40°
- Leakage class: IP67
References:
Manual
