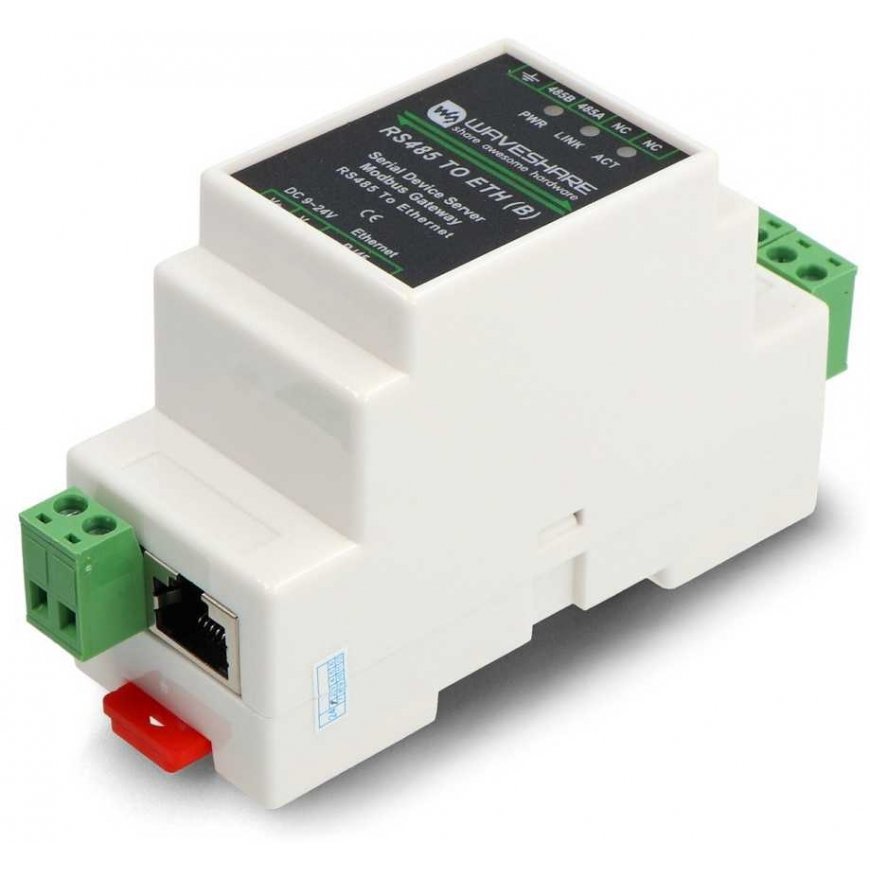

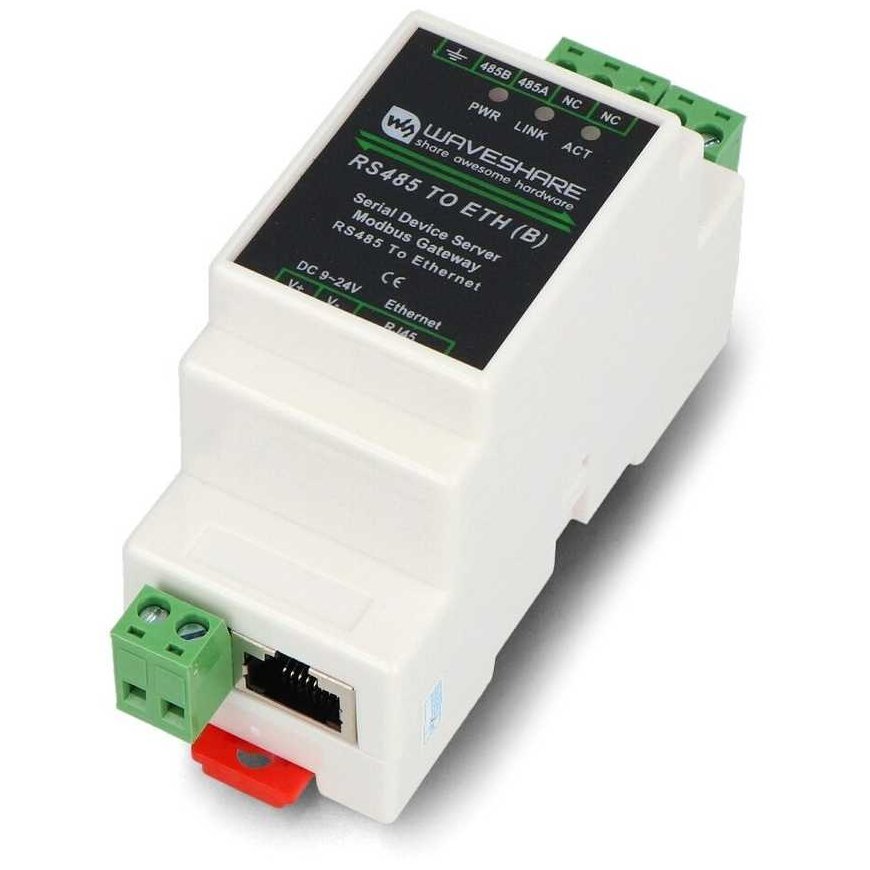

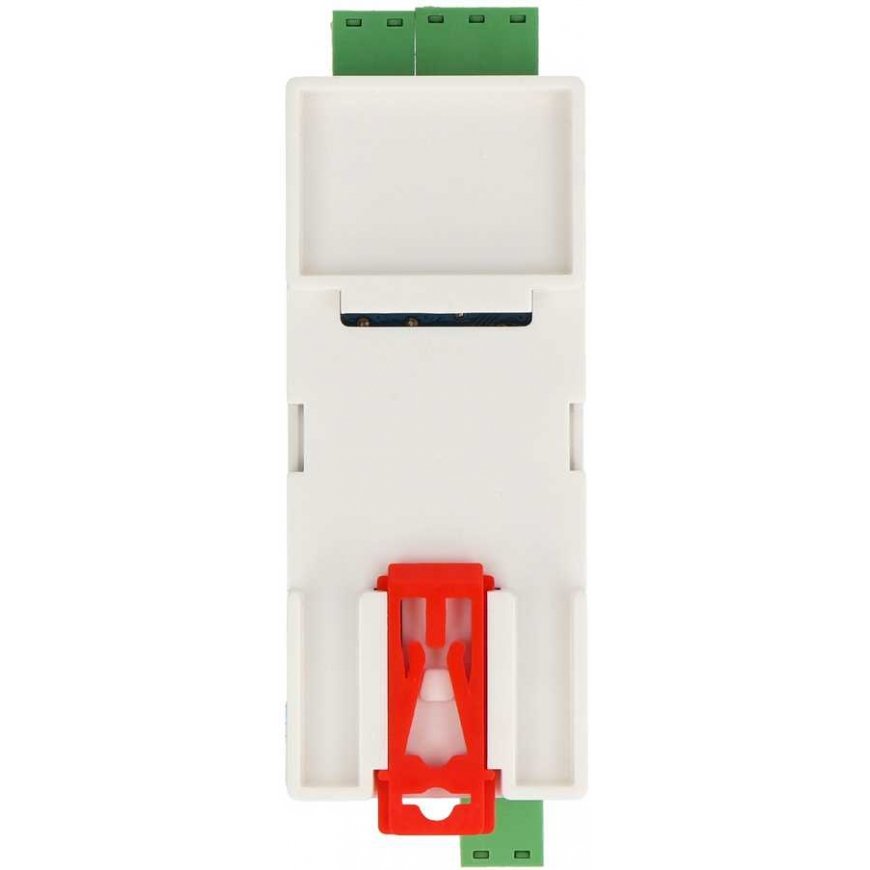

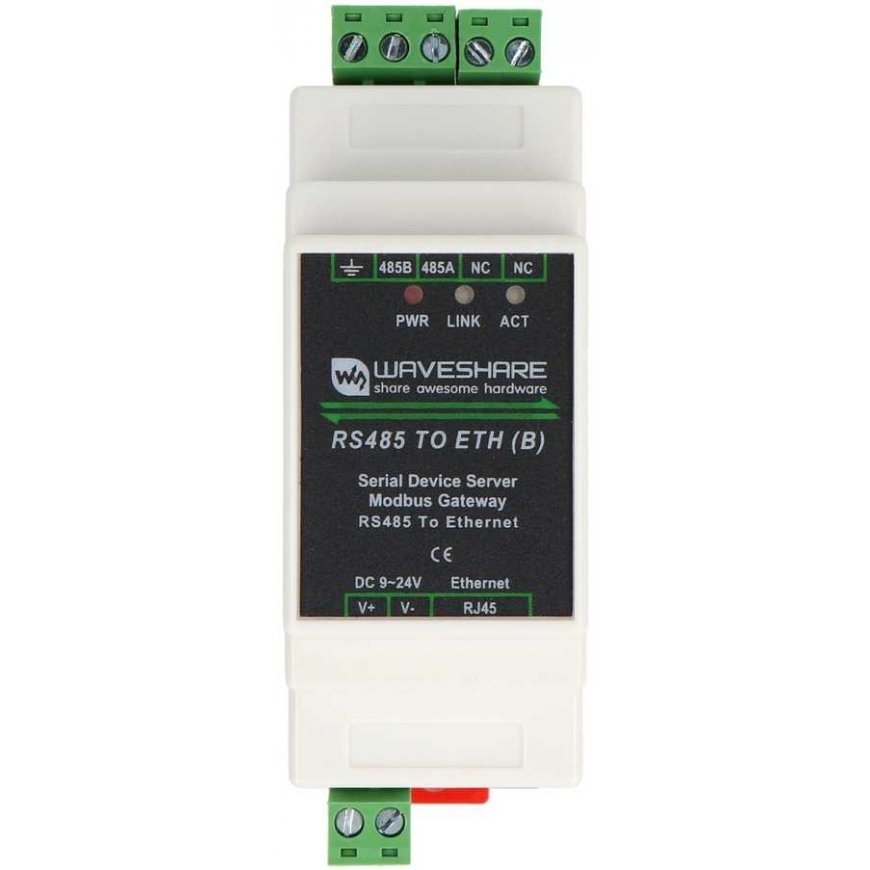

RS485/RJ45 converter – TCP/IP to serial port – Waveshare 20978
41.52 €
Monthly payment from 1,97 €
3754529 AN-24478
5904422385866
Shipping 6-11 b.d.
You are interested in this product?
All about the product
A converter that ensures bidirectional communication between RS485 and Ethernet interfaces. Supports protocols such as TCP/IP, MQTT, and JSON, making it an ideal choice for remote monitoring and control of industrial devices. The converter is designed for mounting on a DIN rail and can be freely connected serially.
Specifications:
- Product type: Serial server, Modbus gateway, MQTT gateway
- Function: Bidirectional RS485 to Ethernet transmission
- Communication interface: RS485, RJ45
- Power method: Screw terminal
- Voltage range: 9 V–24 V DC
- Ethernet connection: RJ45 network port
- Serial port: RS485
- Transmission speed: 300 bps–115200 bps
- Software:
- - Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- - Configuration: Host computer, web browser, device management function library
- - Communication method: Direct TCP/IP connection, VCOM
- - Operating mode: TCP server, TCP client (works with TCP server), UDP, UDP multicast transmission
- Operating temperature: from -40 °C to 85 °C
- Humidity range: from 5 % to 95 % relative humidity
- Dimensions: 106x36x58.6mm
