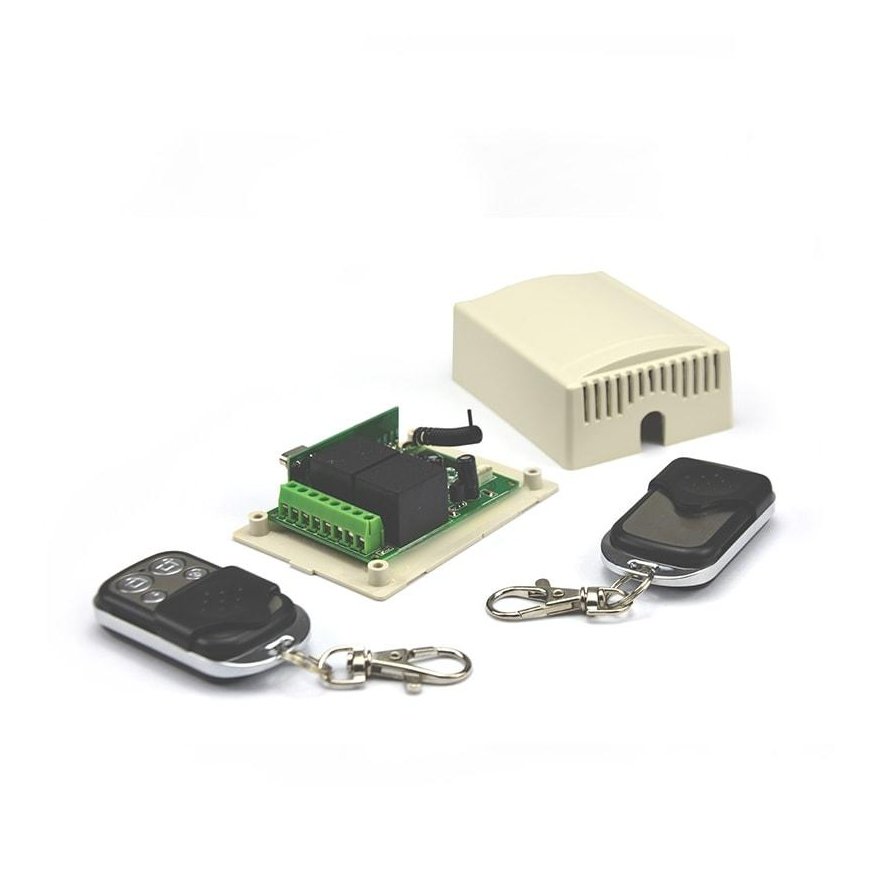

Electrobim 2 channel relay 12-24VDC 433 MHz with 2 remote controls RCD-2C
59.00 €
Monthly payment from 2,42 €
3754232 AN-16010
4779044513277
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The remote control was designed for simple solutions and less demanding users, maintaining high quality and reliability. Two NO/NC relay outputs are controlled by the included 433.92 MHz remote control, which shows high selectivity and resistance to interference. The power range is 12–24 V DC. Designed for controlling blinds, windows, doors, and gates. A 4-channel remote control is required to control the gates.
Specifications:
- Receiver sensitivity –100dBm
- Remote control frequency 433.92MHz
- Power supply voltage 12–24 V DC
- Maximum load 10A
- Maximum current 40mA
- Current in static operation 8mA
- Memory for up to 50 remotes
- Temperature range -20'C ~ 60'C
- Dimensions 57.4mm x 40.5mm x 17.1mm
Included:
- 2 channel control unit
- Two remote controls 433.92 MHz,
- Control instructions
- Warranty 12 months.

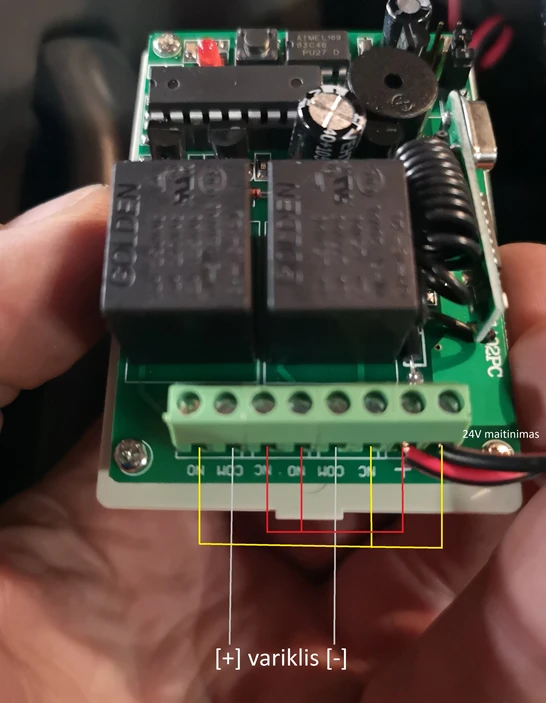

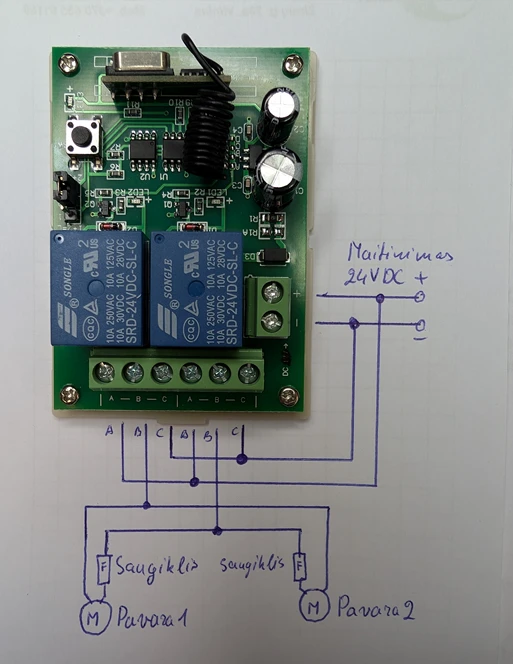

Connection instructions
