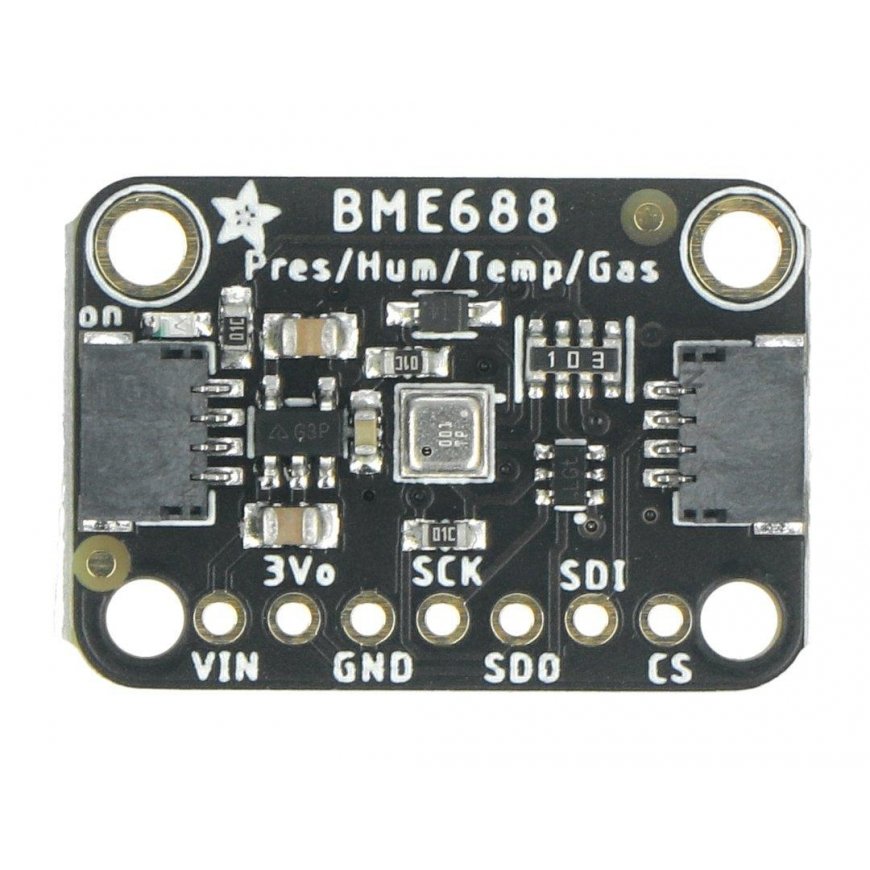

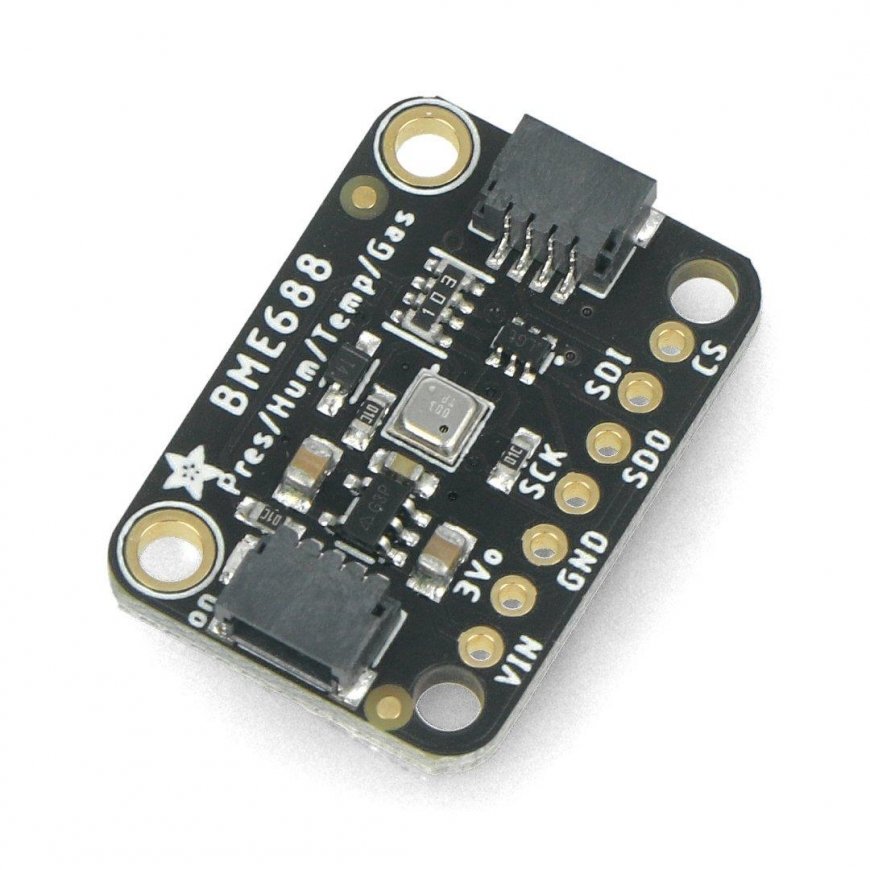

Temperature, humidity, pressure, and gas sensor, BME688, SPI/I2C, STEMMA QT/Qwiic, Adafruit 5046
49.00 €
Monthly payment from 2,16 €
3753836 AN-19788
5904422347574
Shipping 8-15 b.d.
You are interested in this product?
All about the product
Multifunction sensor that combines temperature, humidity, pressure, and VOC gas sensors. It features an embedded Bosch BME688 chip. Designed for interaction with the main module, it uses SPI and I2C buses. It works with controllers such as Arduino and Raspberry Pi.
Specifications:
- Type: temperature, humidity, pressure, and gas sensor
- Built-in circuit: Bosch BME688
- Temperature measurement range: from -40 °C to 85 °C
- Temperature measurement accuracy: ± 1 °C
- Humidity measurement range: from 10% to 90% RH
- Humidity measurement accuracy: ± 3%
- Pressure measurement range: from 300 hPa to 1100 hPa
- Pressure measurement accuracy: ± 1 hPa
- VOC gas measurement range: from 0 to 500 IAQ
- Interface: I2C bus

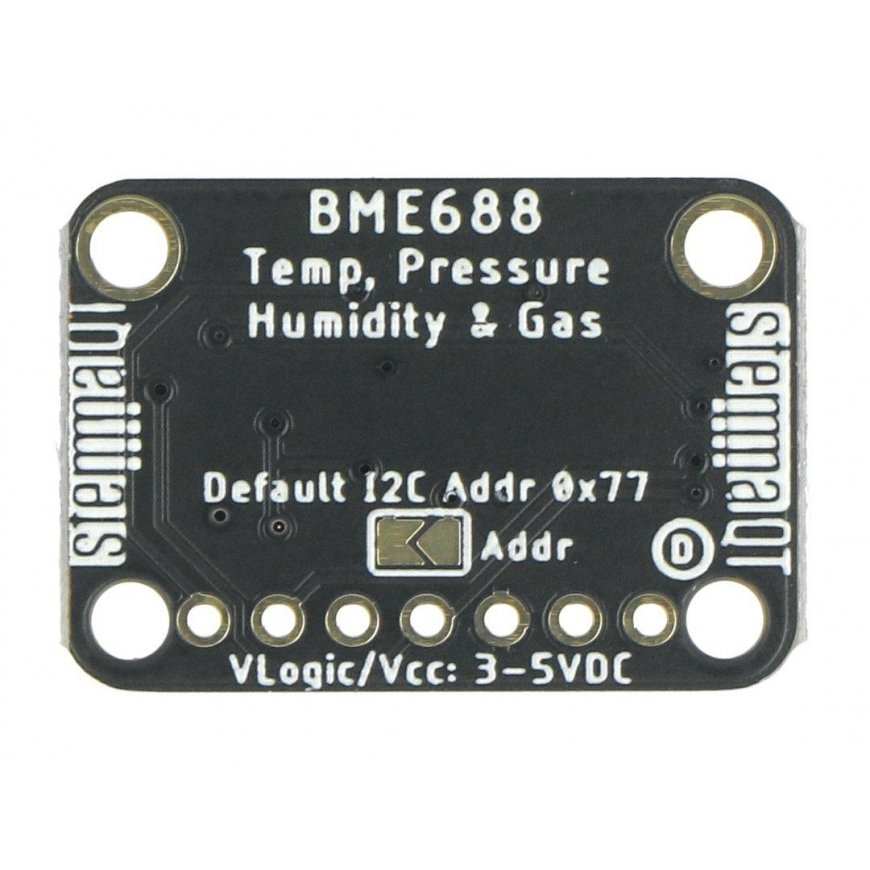

- I2C interface address: 0x77
- Supply voltage: from 3 V to 5 V
- Connectors: STEMMA QT / Qwiic / solder pads - 2.54 mm
- Mounting holes - x4
- Board dimensions: 25.5 x 17.6 x 4.6 mm
- Weight: 1.7 g
- Temperature, humidity, pressure, and gas sensor - BME688

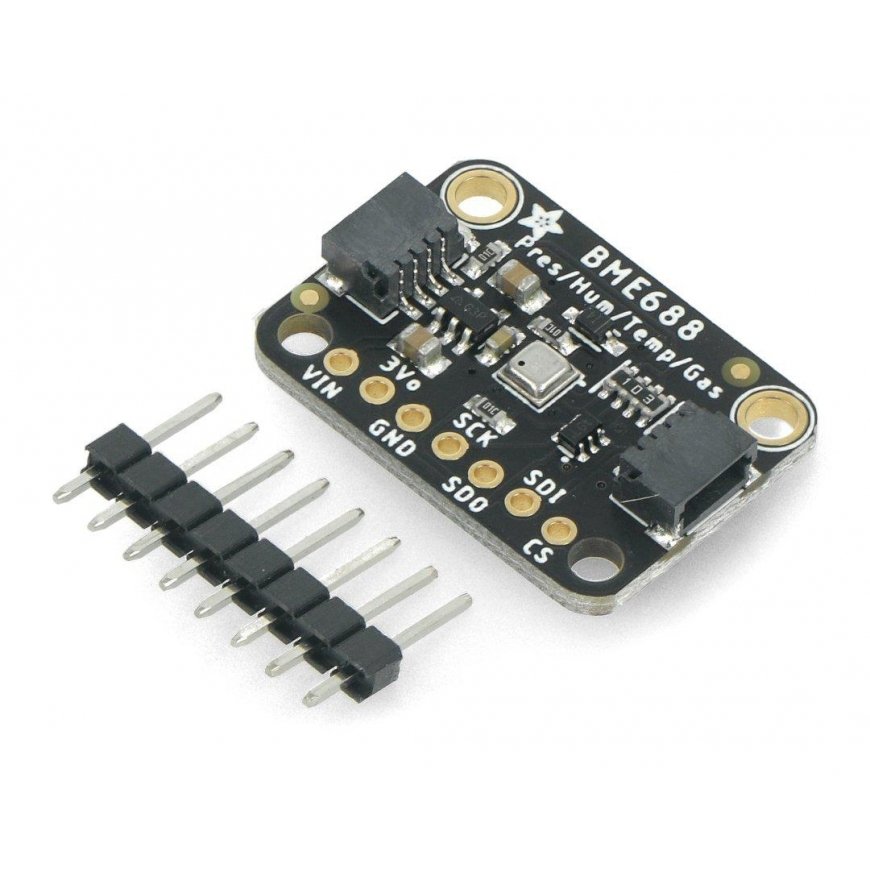

- Goldpin 1x8 strip - 2.54 mm
