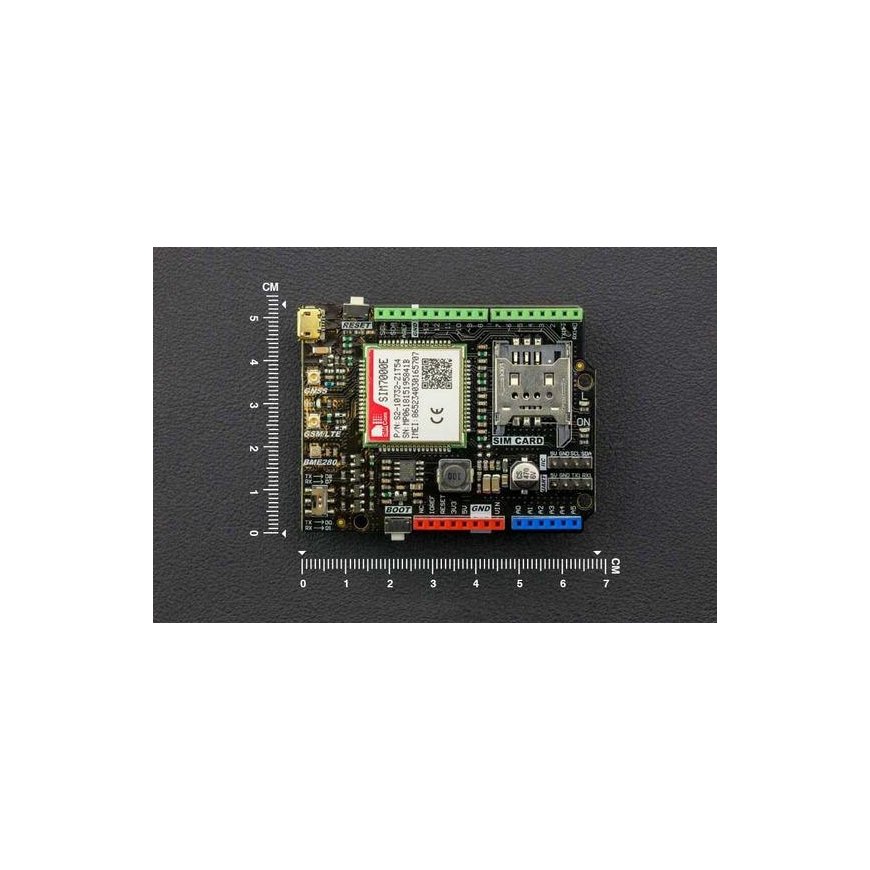

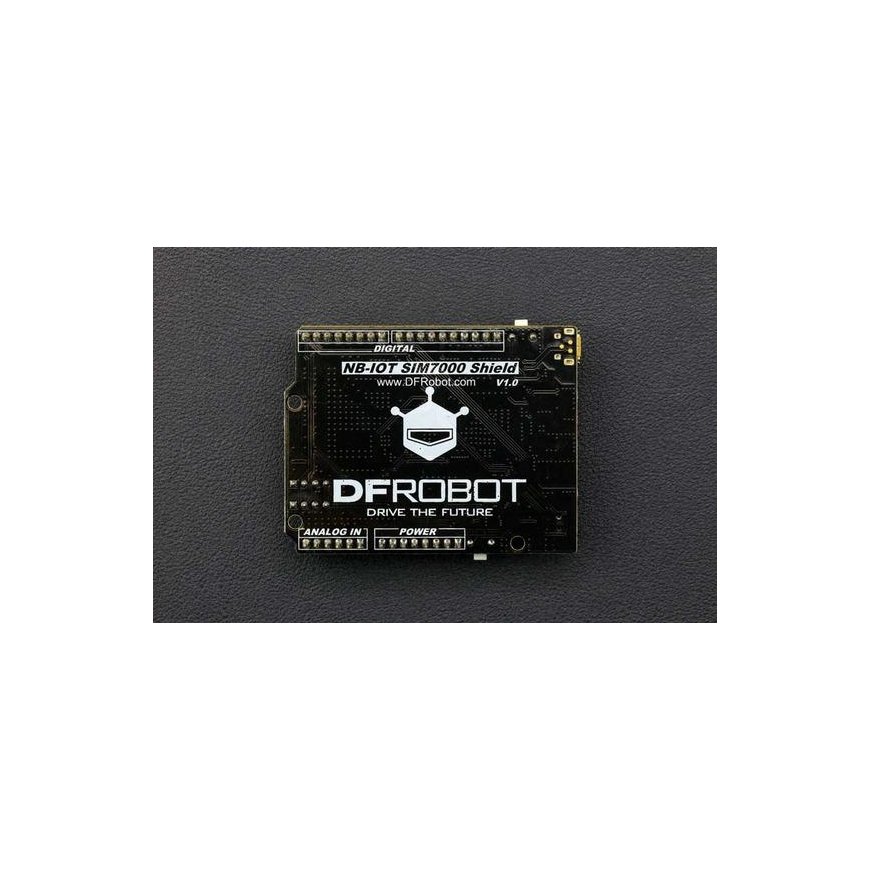

DFRobot Shield NB-IoT/LTE/GPRS/GPS SIM7000E - for Arduino controller
88.99 €
Monthly payment from 3,19 €
3753491 AN-12362
5904422319076
Shipping 11-18 b.d.
You are interested in this product?
All about the product
This SIM7000E Arduino NB-IoT / LTE / GPRS expansion module is a wireless communication module designed by DFRobot, and the design is based on the SIMCom SIM7000E. This wireless communication module is intended for Arduino controllers that support multi-band LTE-FDD connectivity, dual-band GPRS / EDGE connectivity, and NB-IoT connectivity.
Specifications:
- Operating voltage: 5V
- Input voltage: 7 ~ 12VDC (VIN range: 6 ~ 20V)
- Single band TDD-LTE B39
- Four-band FDD-LTE B1 / B3 / B5 / B8 (SIM7000C)
- Four-band FDD-LTE B3 / B8 / B20 / B28 (SIM7000E)
- GPRS / EDGE 900/1800 MHz
- Output power - GSM900: 2W - DCS1800: 1W
- Control via AT commands
- Operating temperature: -40 ℃ to + 85 ℃
- GNSS (GPS, GLONASS, BeiDou, compass, Galileo, QZSS)
- Firmware update via USB 2.0
- SIM card and NB-IoT card support (NOTE: Ensure that the SIM frequency range used is included in the supported frequency range).
- BME280 environmental sensor
- Temperature measurement range: -40 ℃ ~ + 85 ℃, resolution 0.1 ℃, deviation ± 0.5 ℃
- Humidity measurement range: 0 ~ 100% RH, 0.1% RH resolution, ± 2% RH deviation
- Pressure measurement range: 300 ~ 1100 hPa
- Humidity sampling time: 1 s
- Operating temperature -30 ℃ ~ + 85 ℃
- Dimensions: 2.1 x 2.7 inches / 53.4 x 68.6 mm
