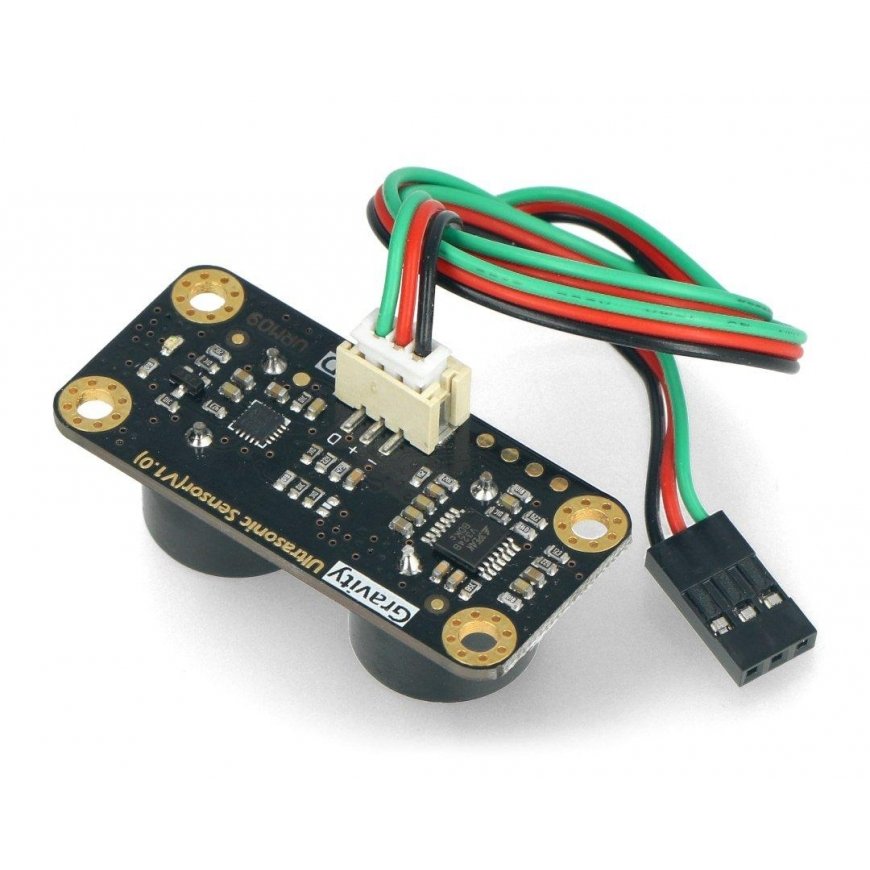

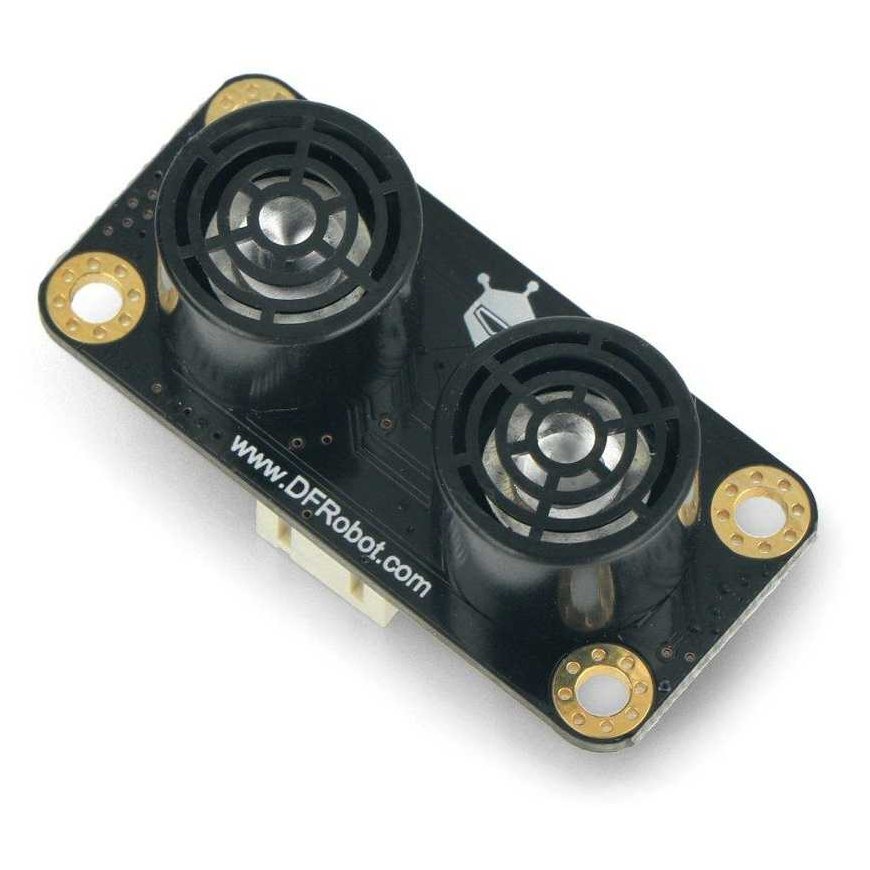

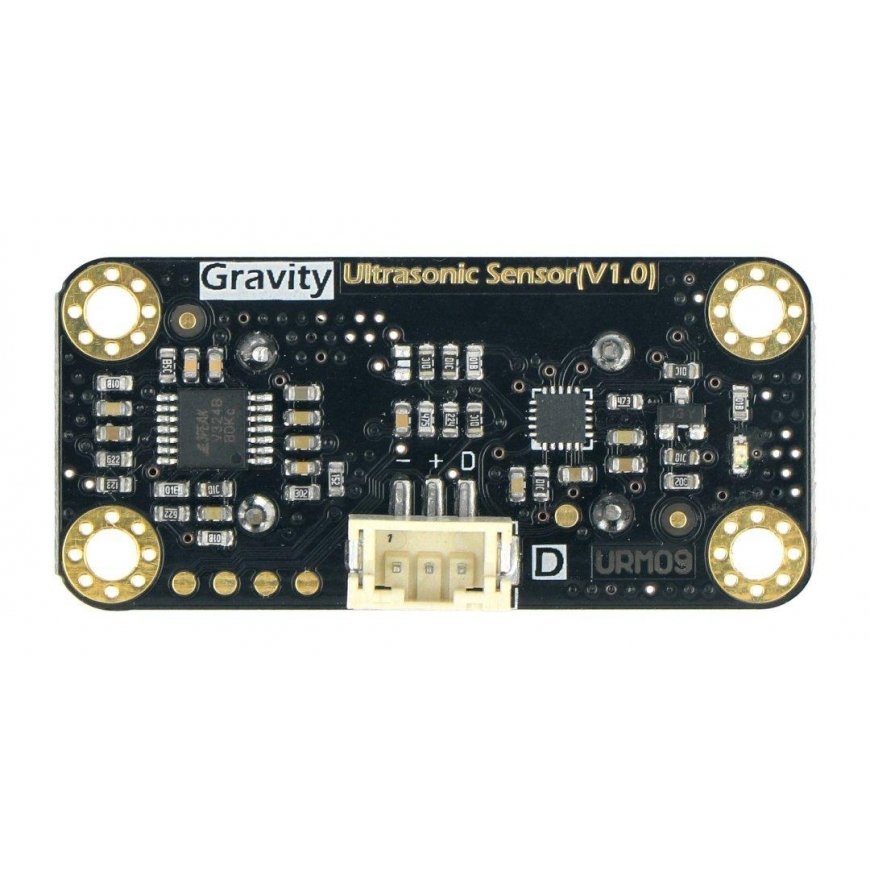

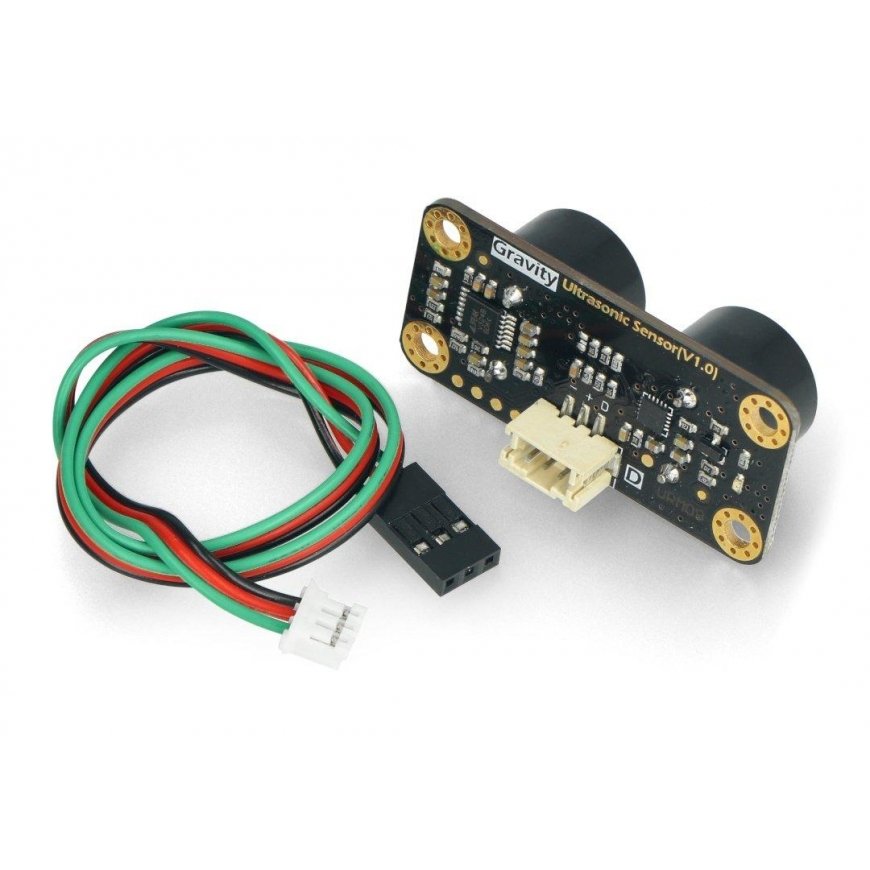

Gravity, TRIG URM09 ultrasonic distance sensor, DFRobot SEN0388
3752955 AN-19194
5903351246354
Shipping 11-18 b.d.
All about the product
The DFRobot ultrasonic distance measuring module with integrated URM09 chip. Detects objects from 2 cm to 500 cm away. The distance is determined with a resolution of 1 cm and an accuracy of 1%. The sensor can be powered from 3.3 V to 5.5 V DC. Its small size, high measurement accuracy, Plug & Play support, and wide measurement range make the module widely applicable for projects aimed at avoiding obstacles, warning about crossing a safety line, or in applications such as car reversing signals.
Specifications:
- Compatible with Arduino and Raspberry Pi controllers
- Module: ultrasonic distance sensor
- Embedded chip: URM09
- Connection standard: Gravity
- Input voltage range: from 3.3 V to 5.5 V
- Maximum operating current (instantaneous): <20 mA
- Distance measurement range: from 2 cm to 500 cm
- Measurement resolution: 1 cm
- Measurement accuracy: 1%
- Acoustic frequency: 40 ± 2 kHz
- Maximum frequency range: up to 25 Hz
- Plug & Play support
- Operating temperature range: from -10 °C to 70 °C
- Module dimensions: 47 x 22 mm
- Gravity - ultrasonic distance sensor TRIG URM09
- Gravity connecting cable
