Waveshare E-paper E-Ink Screen Add-on for Raspberry Pi Microcomputer - 2.13
29.62 €
3752830 AN-09097
5903351245074
Shipping 8-12 b.d.
You are interested in this product?
All about the product

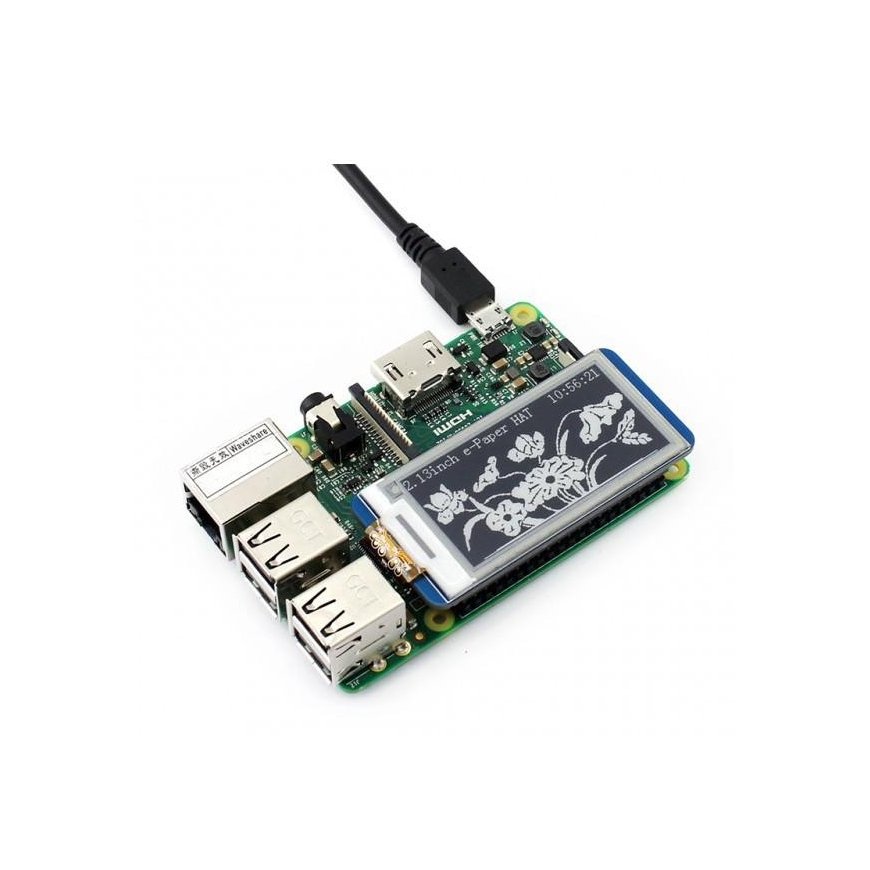

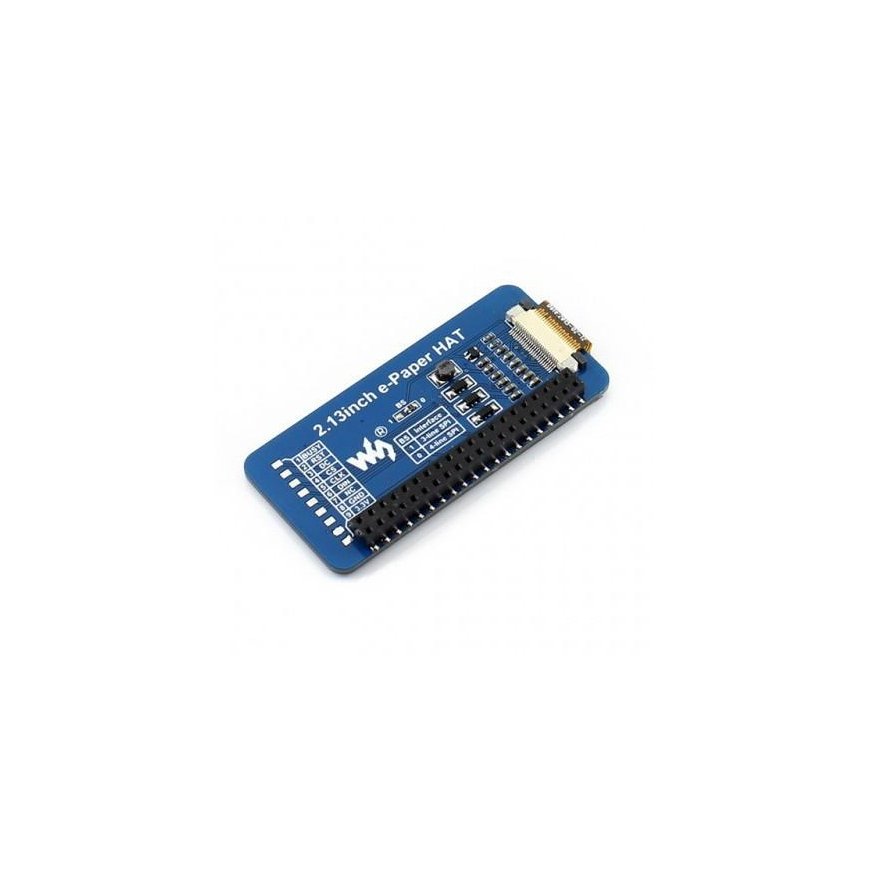

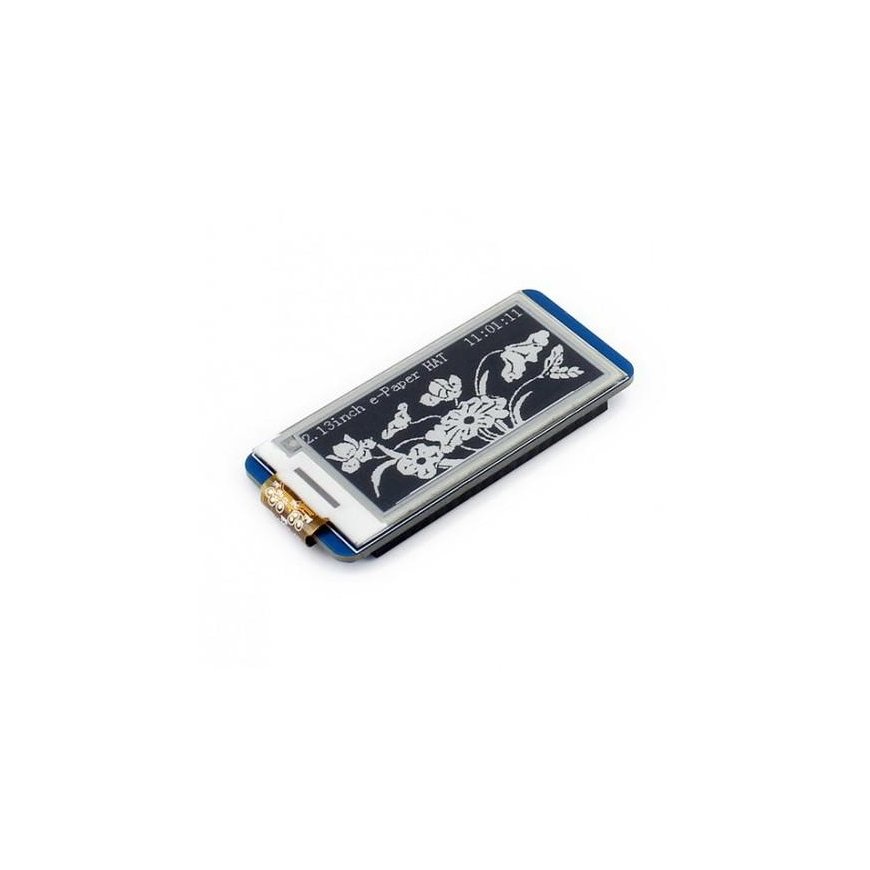

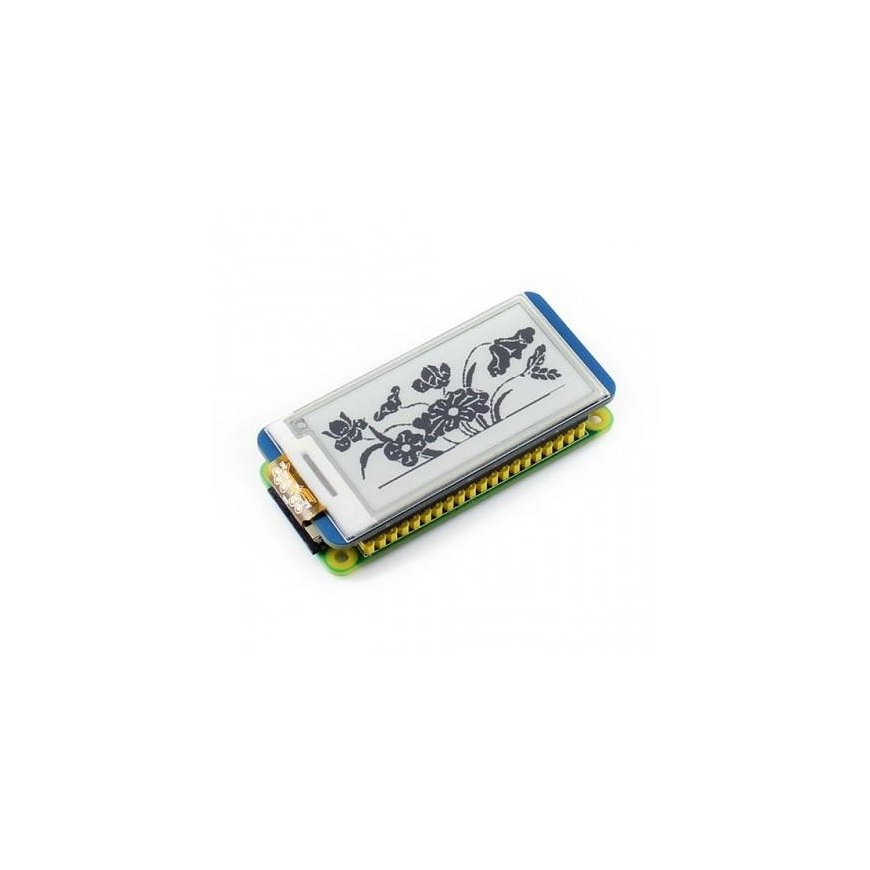

This E-paper display add-on for the Raspberry Pi microcomputer features a 2.13-inch diagonal and a resolution of 250x122, with an integrated controller, and communication occurs via the SPI interface. It also supports partial screen image updates.
Due to features such as ultra-low power consumption, wide viewing angle, and clear screen image without power, this product is an ideal choice for projects such as: shelf integration and similar.
Features:
- No backlight, displays the last loaded image for a long time after power disconnection
- Ultra-low power consumption level. Essentially, power is only needed for image updates
- Works with Raspberry Pi 2B/3B/Zero/Zero W
- SPI interface for connection with Raspberry Pi/Arduino/Nucleo, etc. microcomputers
- Sold with development resources and instructions (application examples with Raspberry Pi/Arduino/STM32)
Specifications:
- Operating voltage: 3.3V
- SPI interface
- Outline dimensions: 65mm × 30.2mm
- Display dimensions: 23.71mm × 48.55mm
- Pixel size: 0.194 × 0.194
- Resolution: 250 × 122
- Display colors: black and white
- Grayscale level: 2
- Partial update duration: 0.3s
- Full update duration: 2s
- Update energy: 26.4mW (avg.)
- Standby mode power: <0.017mW
- Viewing angle: >170°
