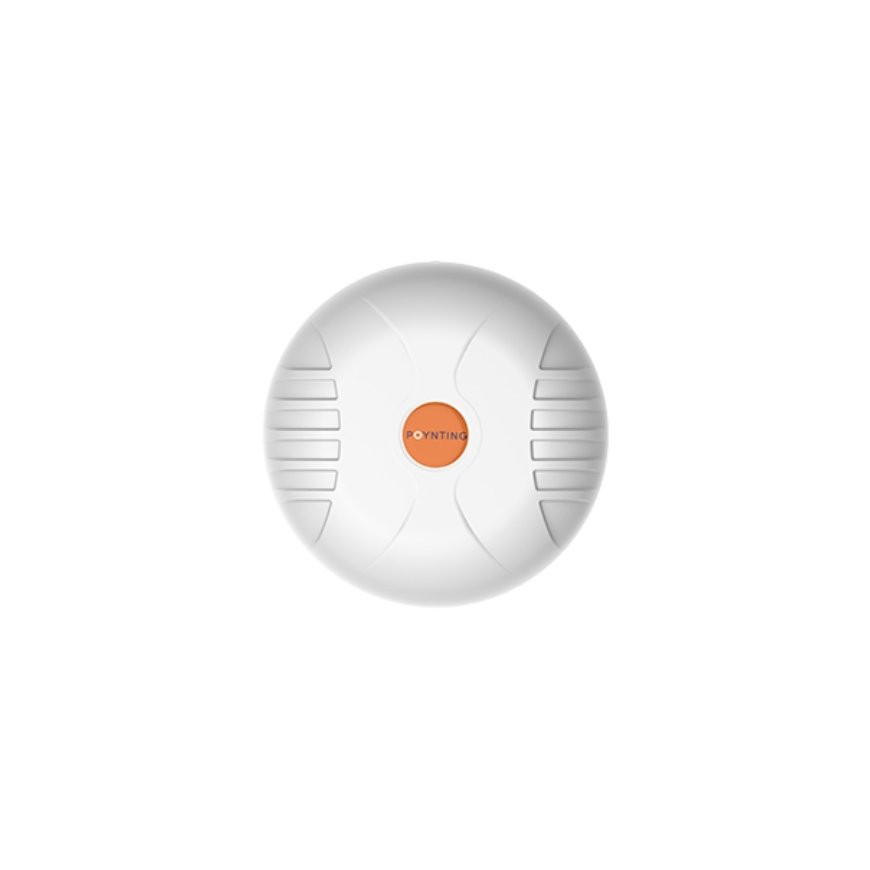

Poynting A-MIMO-0004-V1-04-W network antenna Omni-directional antenna SMA 6 dBi
246.15 €
Monthly payment from 7,24 €
3752322 A-MIMO-0004-V1-04-W
6009710927670
Shipping 11-14 b.d.
You are interested in this product?
All about the product
The MIMO-4-4 is a high-performance 4-in-1 multi-frequency antenna housed in a single enclosure, providing four cellular MIMO antennas for seamless connectivity. Designed for LTE/4G and emerging 5G networks, it supports a wide frequency range from 617 MHz to 6000 MHz, ensuring compatibility with various operators and future cellular technologies up to 6 GHz.Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 6 GHz, covering LTE and 5G applications.
Advanced 4x4 Cellular MIMO Technology: Enhances signal strength, pattern diversity, and omnidirectional coverage.
Optimised for Transportation & Marine Use: Designed to meet the demanding requirements of commercial vehicles, marine, and industrial applications.
Futureproof Connectivity: Ensures long-term compatibility with evolving cellular networks and IoT applications.
Superior Radiation Performance: Engineered for an optimal balance between omnidirectionality, diversity, and signal propagation.
The MIMO-4-4 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.
Ideal Applications
Transport broadband, automation and telemetry for busses, utility, trucking and public safety vehicles
Industrial factory automation, robotic machinery and other M2M systems telemetry
Farming & Agricultural automation such as M2M & IoT
Broadband cellular to Wi-Fi distribution for Marine/Boats
Mining vehicles & machinery communications, telemetry, and automation (M2M & IoT)
Design | |
| Product colour | Black |
| International Protection (IP) code | IP69K |
Antenna | |
| Antenna connector type | SMA |
| Antenna gain level (max) | 6 dBi |
| Antenna type | Omni-directional antenna |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging data | |
| Package width | 265 mm |
| Package depth | 211 mm |
| Package height | 204 mm |
| Package weight | 1.61 kg |
Other features | |
| Input voltage | 2.7 - 3.3 V |
| Frequency band | 0.617 - 6.0 GHz |
| Cable length | 2 m |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
