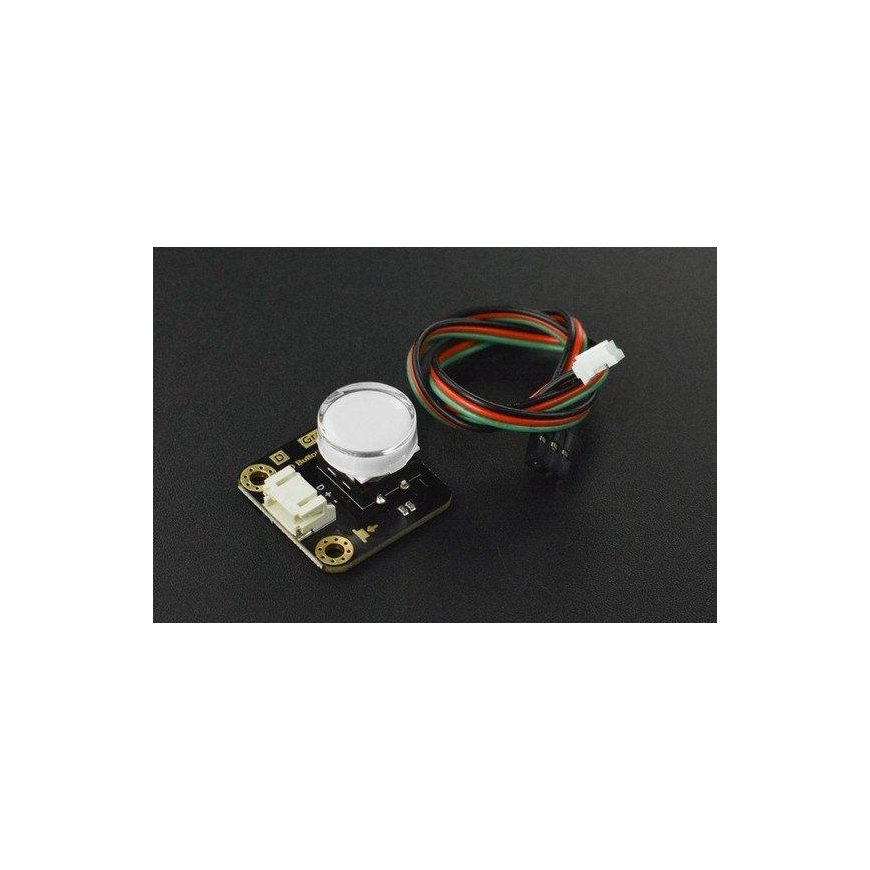

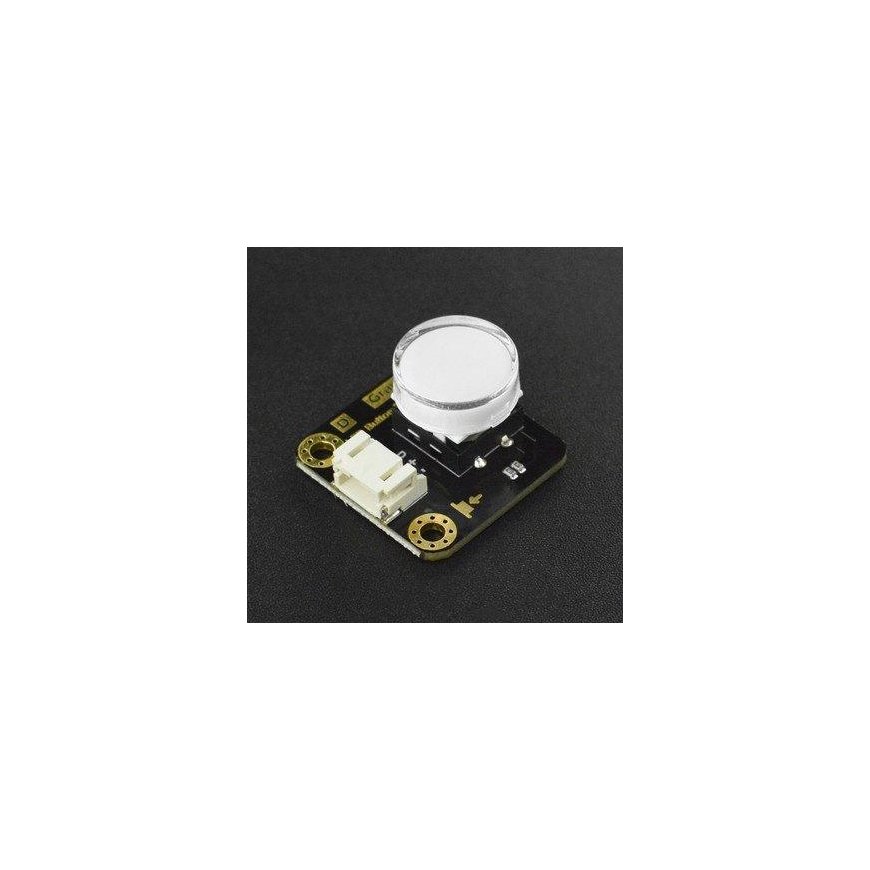

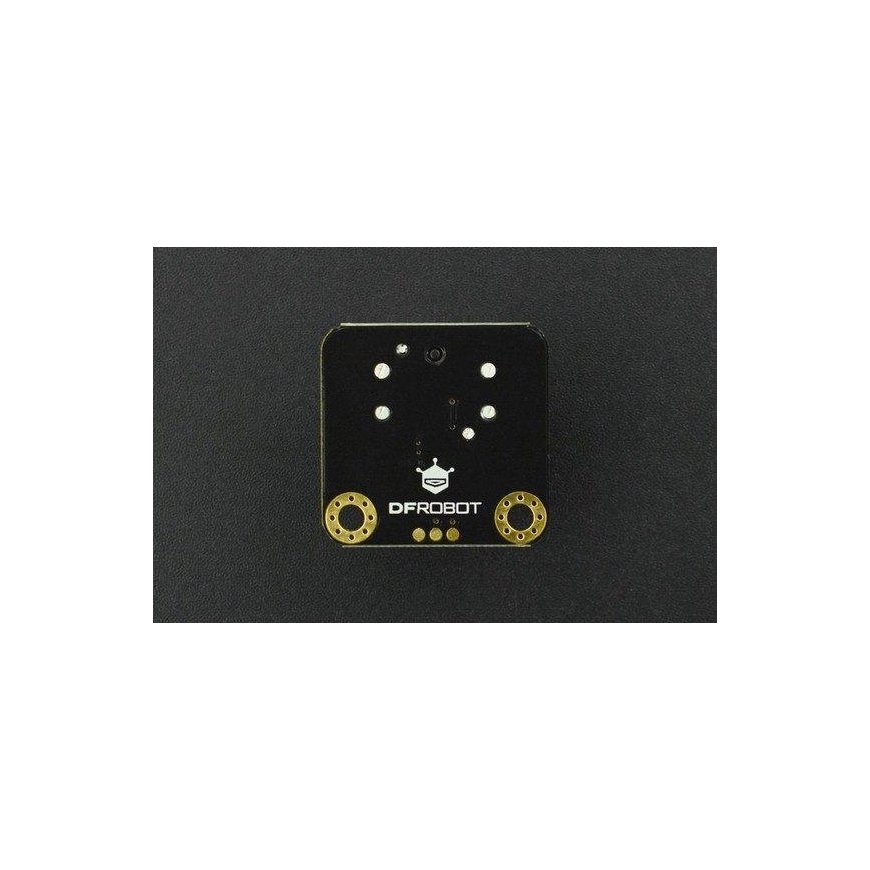

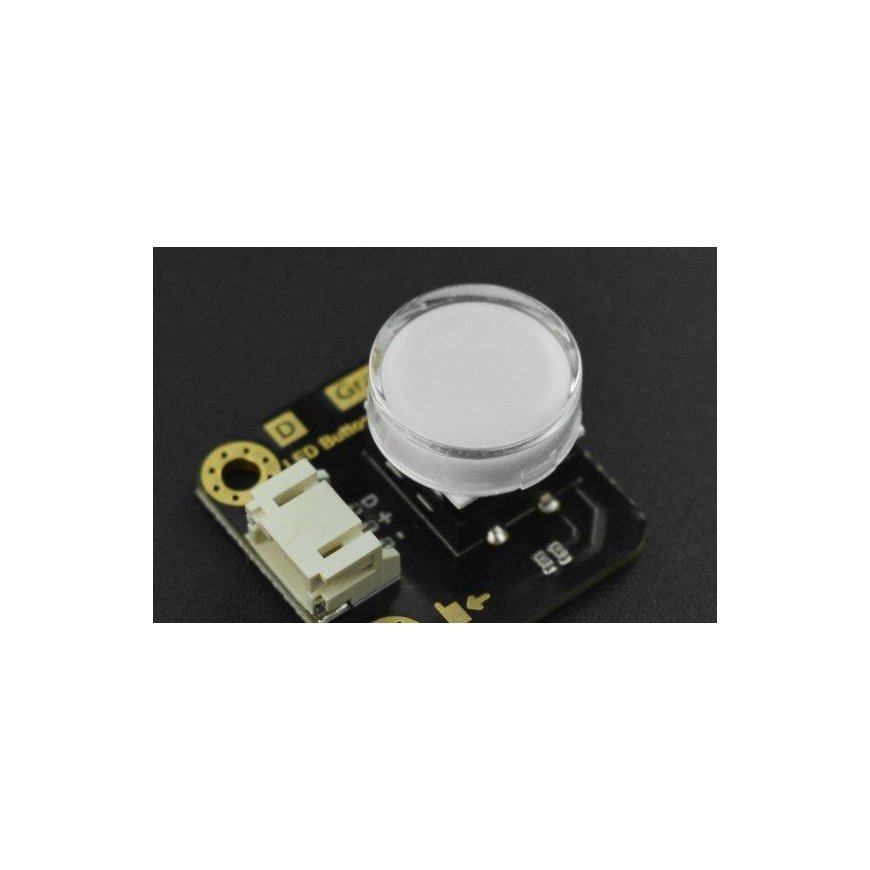

Gravity - LED button - blue - DFRobot DFR0785-B
3752183 AN-20075
5904422349882
Shipping 11-18 b.d.
All about the product
Module with a round button. Equipped with lighting, which is responsible for the built-in LED located under the transparent cover. When pressed, the LED lights up blue. Gravity - LED button can be used, for example, with micro:bit from BBC or Arduino. The button is of monostable type. This means that when the button is pressed, the module outputs a high state and the LED lights up. When the button is released, the module outputs a low signal and the LED goes out. This type of switches can be part of illuminated keyboards or music playback panel designs.
Specifications:
- Operating voltage range: from 3.3 V to 5 V (recommended 3.3 V)
- Output signal type: digital
- Button type: monostable (self-locking)
- Connector: Gravity standard (PH2.0-3P)
- Backlight: LED
- Backlight color: blue
- Button shape: round
- Supported programming environments: Arduino, Mind+, MakeCode
- Module dimensions: 27 x 26.5 mm
- Gravity - LED button - blue LED illuminated button
- Connecting cable - digital
