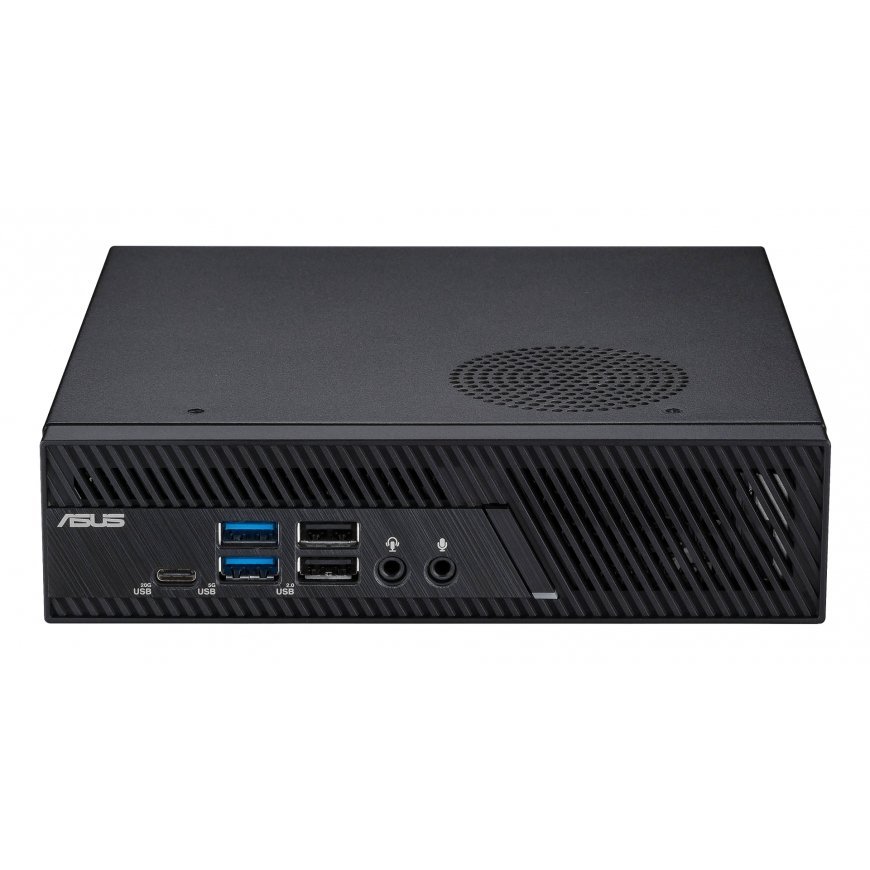

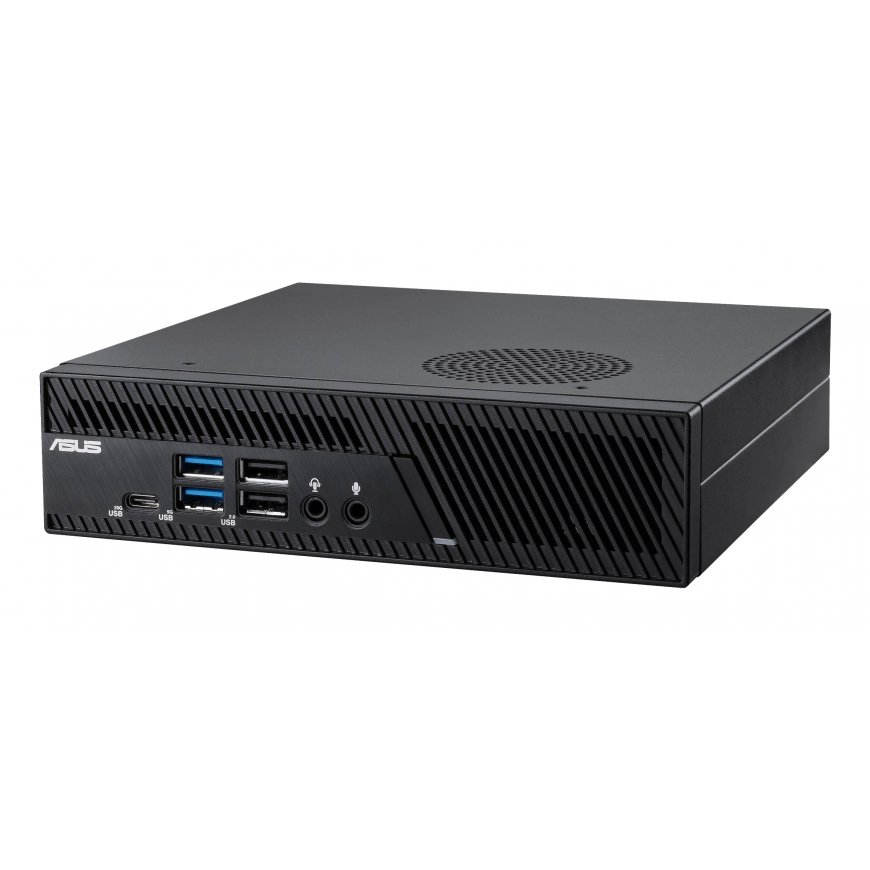

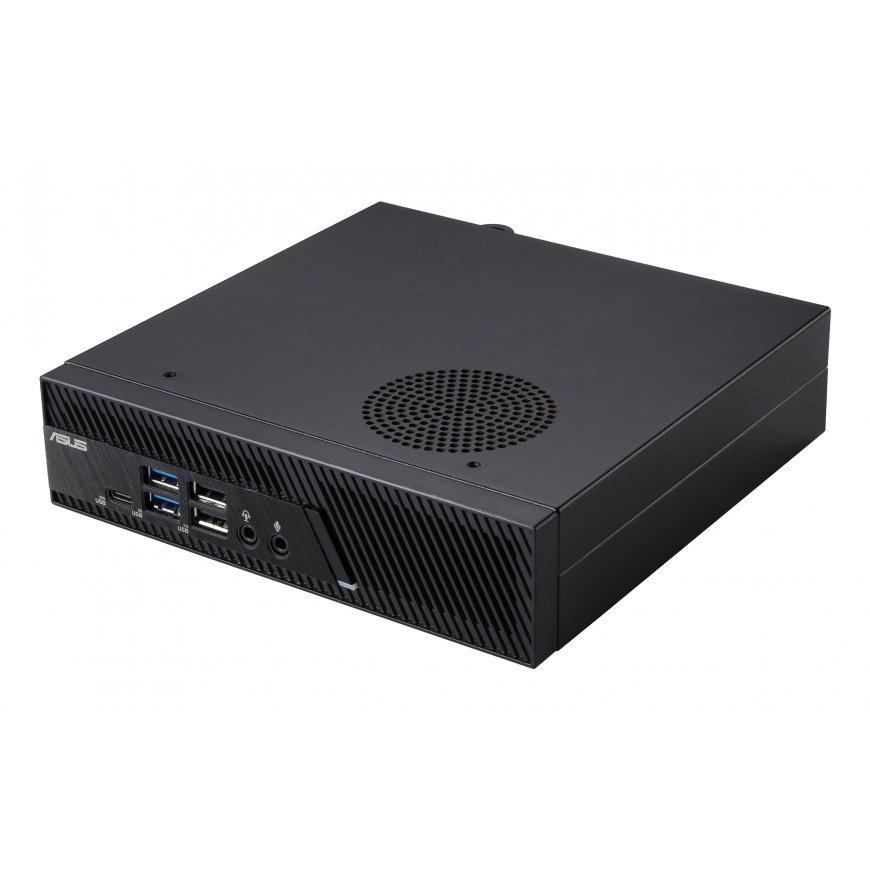

ASUS PB63-B3203AH Intel® Core™ i3 i3-14100 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
849.00 €
Monthly payment from 22,76 €
3751629 90MS02R1-M006C0
4711636076401
2026-09-29
You are interested in this product?
All about the product
Solid reliability for your businessASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
Processor | |
| Processor model | i3-14100 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor generation | Intel® Core™ i3 (14th gen) |
| Performance-core base frequency | 3.5 GHz |
| Efficient cores | 0 |
| Performance cores | 4 |
| Processor base power | 60 W |
| Maximum turbo power | 110 W |
| Performance-core Max Turbo Frequency | 4.7 GHz |
Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 8 GB |
Storage | |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
Graphics | |
| On-board graphics card model | Intel UHD Graphics 730 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
Network | |
| Ethernet LAN data rates | 10, 100, 1000 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |

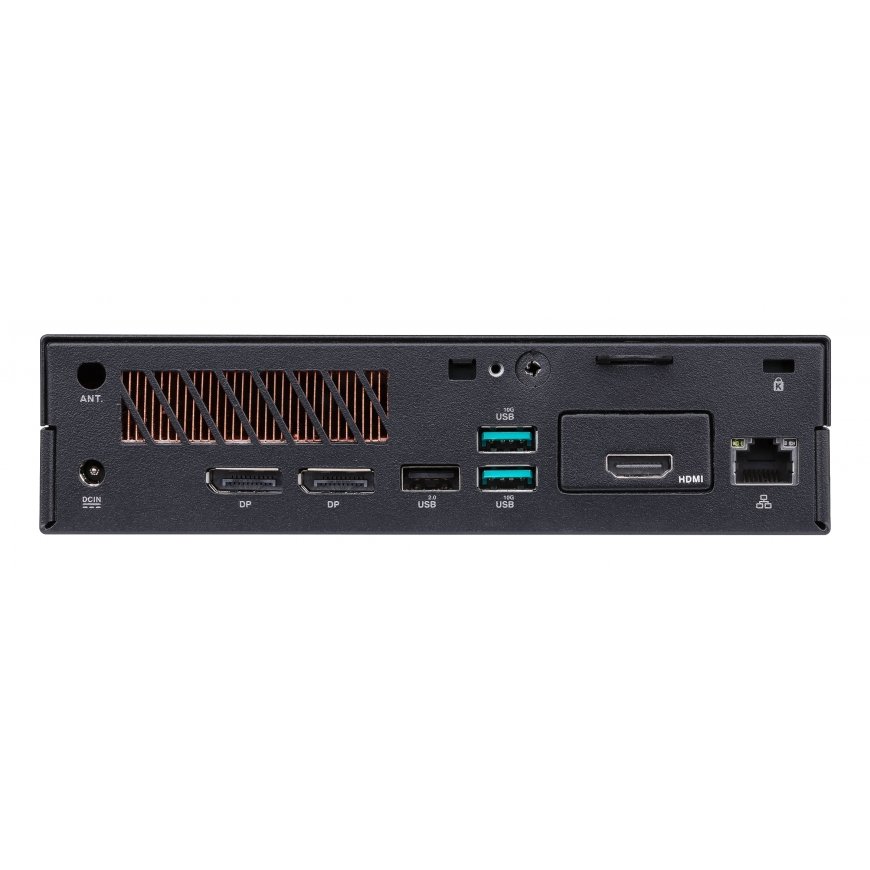

Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Design | |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Product colour | Black |
| Placement supported | Horizontal/Vertical |
| Cable lock slot type | Kensington |
| Colour name | Black |
Performance | |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Power | |
| Power supply | 150 W |
Weight & dimensions | |
| Depth | 175 mm |
| Height | 44.2 mm |
| Width | 175 mm |
| Weight | 1.18 kg |
Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Display | |
| Display included | No |
Packaging data | |
| Package weight | 2.61 kg |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
