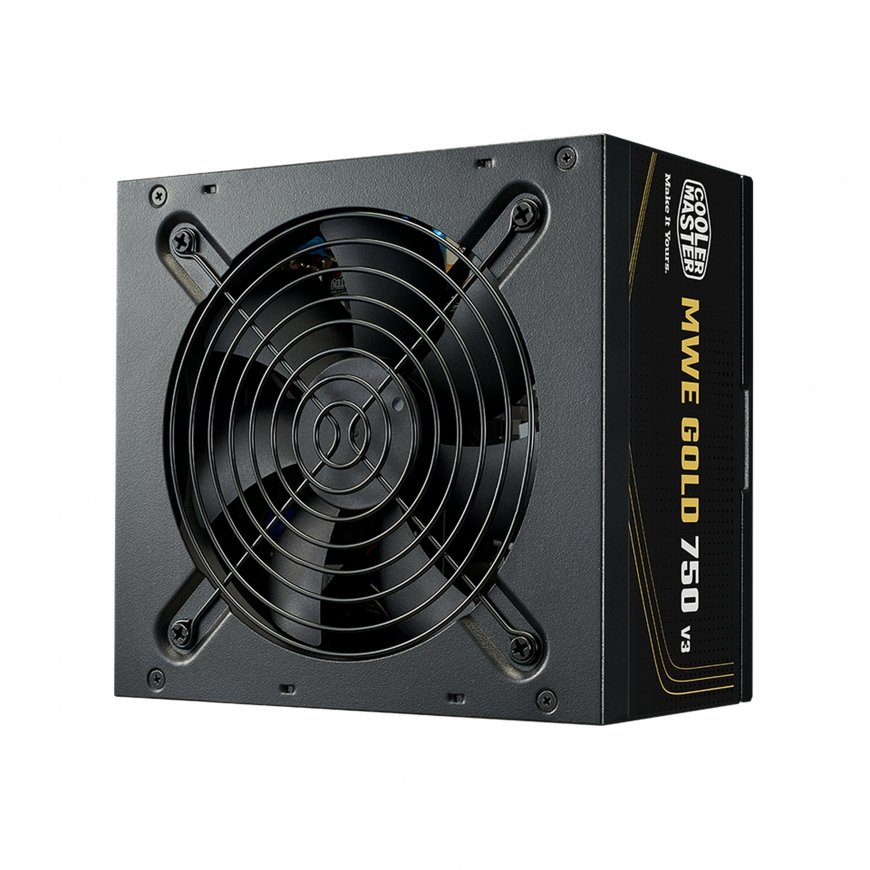

Cooler Master MWE Gold V3 ATX 3.1 Non-Modular Series power supply unit 750 W 24-pin ATX Black
102.50 €
Monthly payment from 3,54 €
3751362 MPE-7506-ACAG-BEU
4719512153284, 0884102122996, 4719512150672
Shipping 3-5 b.d.
You are interested in this product?
All about the product
Level Up Your PowerCooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2x6 Native Cable
The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2x6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
Certified Efficiency
The MWE Gold V3 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Premium Braided EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards. The cables feature premium braided sleeving for enhanced durability, flexibility, and a clean, professional look.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 6 - 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan speed | 0 - 2400 RPM |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 700, 400, 550 |
| Peripheral (Molex) power cable length | 400, 550, 700 |
| PCI Express power cable length | 67 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Number of EPS connectors | 2 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.21 kg |
| Package height | 110 mm |
| Package width | 190 mm |
| Package depth | 260 mm |
Other features | |
| EPS cable length | 67 cm |
Logistics data | |
| Master (outer) cases per pallet | 120 pc(s) |
| Master (outer) case width | 275 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 215 mm |
Certificates | |
| Certification | ErP 2014 Lot 3 |
| Compliance certificates | RoHS, REACH, Federal Communications Commission (FCC), UKCA, EAC, BSMI, RCM, cTUVus, KC, CCC, BIS, China Compulsory Certification (CCC) |
