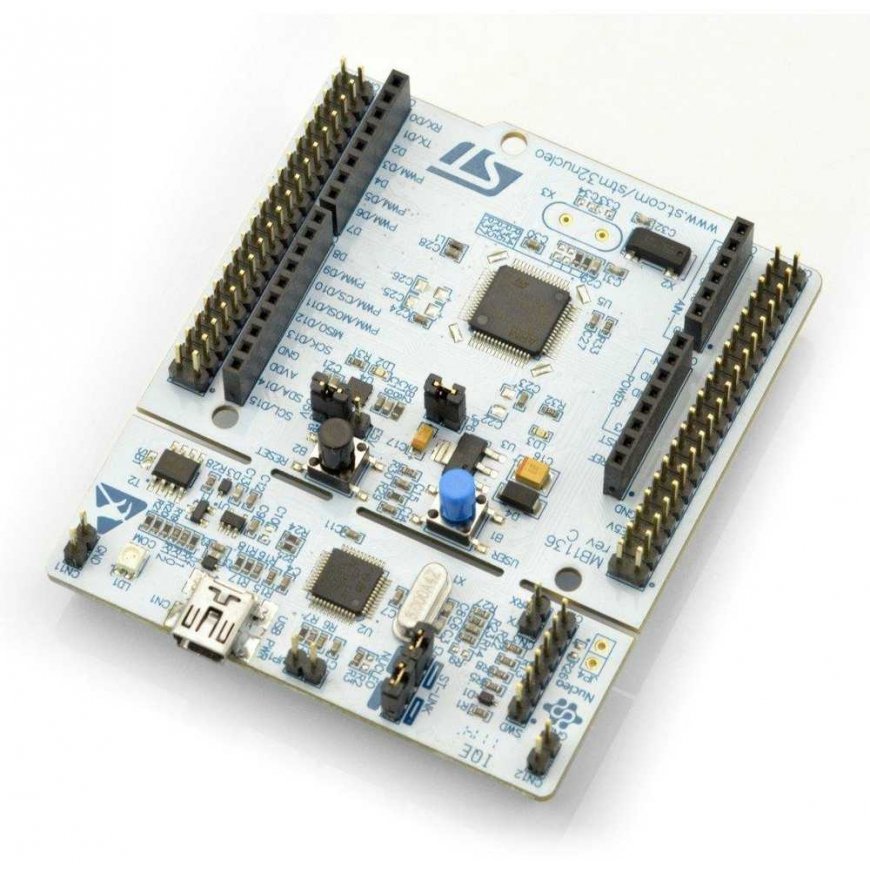

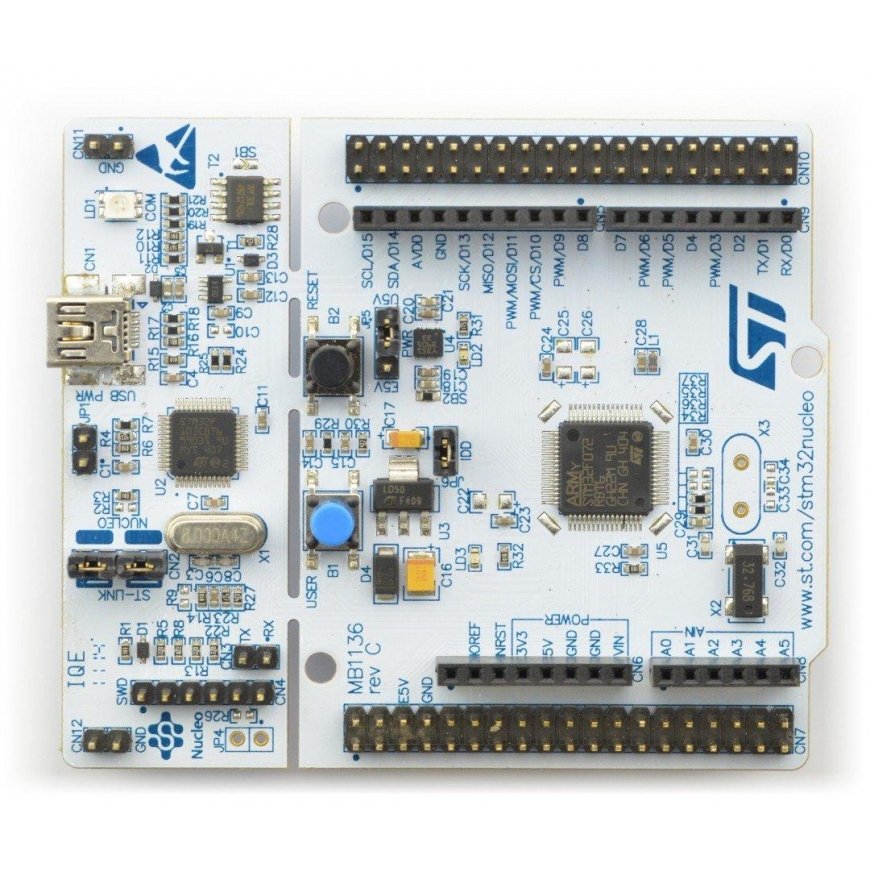

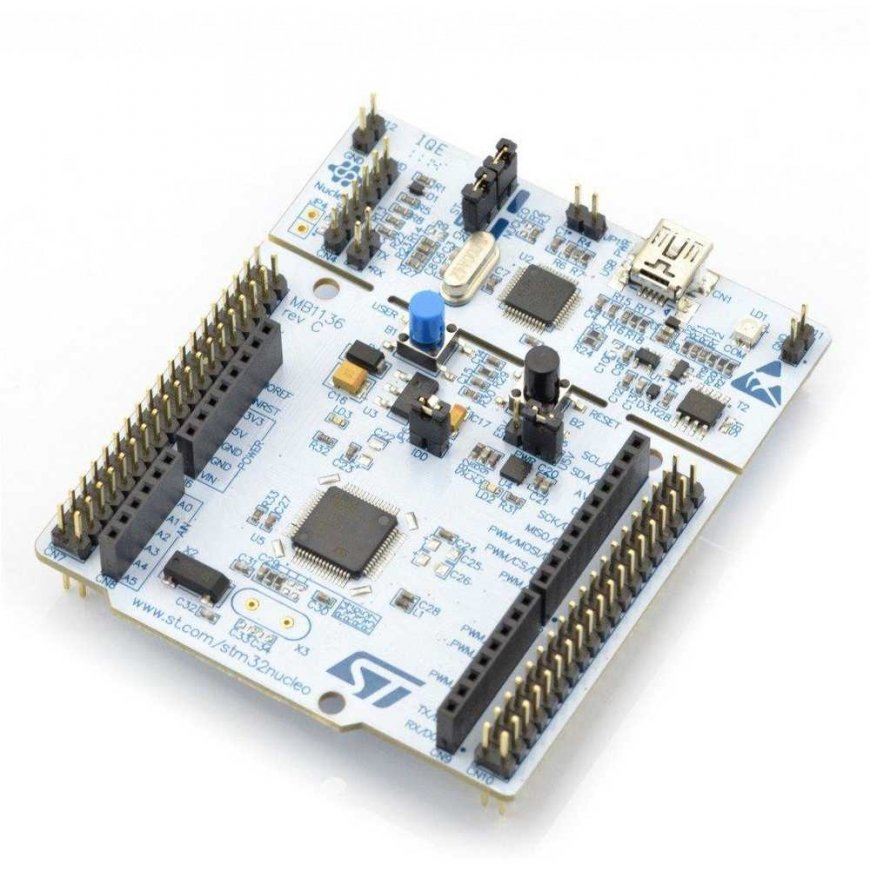

Stmicroelectronics STM32 NUCLEO-F072RB module - STM32F072RB ARM Cortex M0
49.00 €
Monthly payment from 2,16 €
3751279 AN-03320
5904422331672
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with a 32-bit microcontroller with ARM Cortex M0, 48 MHz, 128 KB Flash, 16 KB SRAM. Nucleo is compatible with the mbed platform and has connections for Arduino shield attachment.
Specifications:
- Microcontroller: STM32F072RBT6
- Core: ARM Cortex M0 32-bit
- Clock frequency: 48 MHz
- Flash memory: 128 KB
- SRAM: 16 KB
- Analog-to-digital converter: 12 bits, 10 channels
- Number of timers: 12
- Number of programmable inputs/outputs: 87
- Interfaces: 2x I2C, 4x USART, SPI, 2x
- Two types of connectors:
- Shield connectors compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho provide access to microcontroller pins
- Module is compatible with the mbed system (mbed.org)
- Debugger ST-Link/V2 is mounted on the board with the ability to operate as a standalone device with SWD output
- Ability to power via USB connection
- Three embedded LEDs:
- 1 x for power voltage indication
- 1 x for connection indication
- 1 x for user indication
- Two buttons:
- 1 x RESET
- 1 x for user indication
- Three different interfaces via miniUSB connection (USB reenumeration):
- Virtual COM port
- Mass storage
- Programming/debugging port
- Module supports most popular environments, e.g.: IAR, Keil and platforms based on GCC compiler
