The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

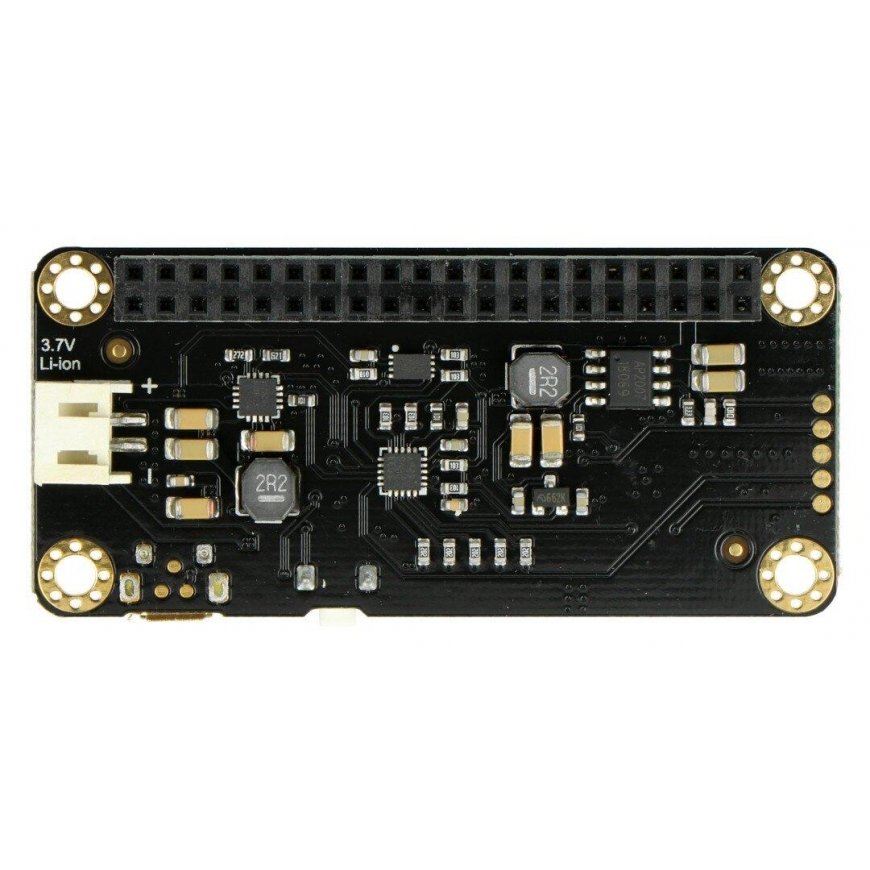

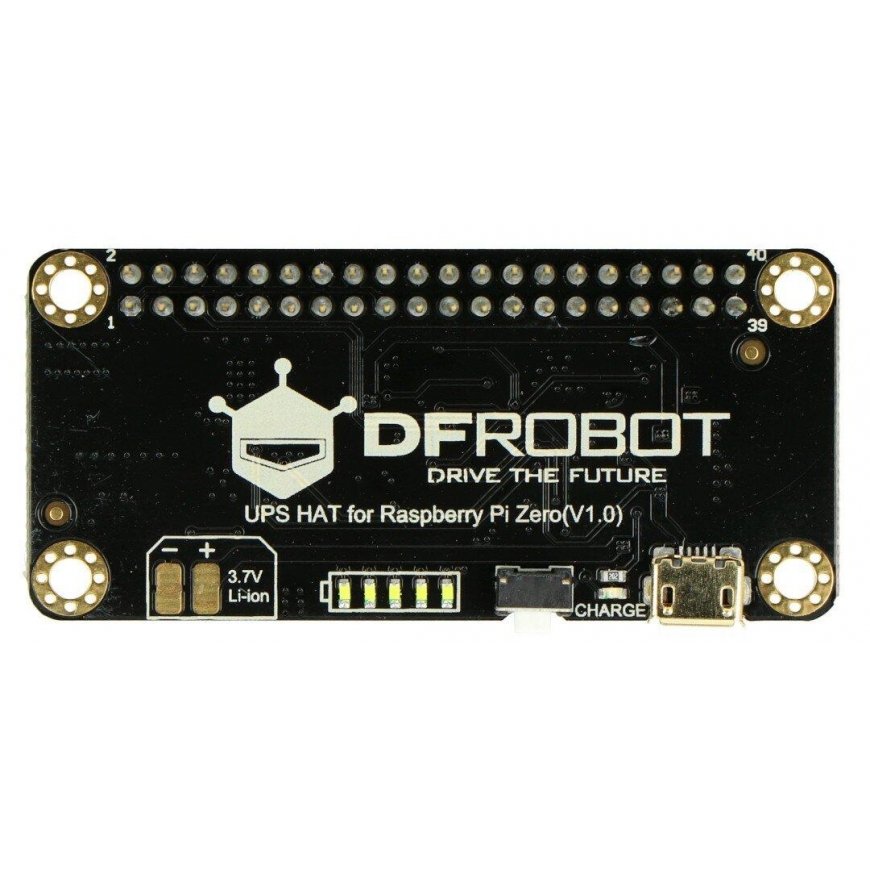

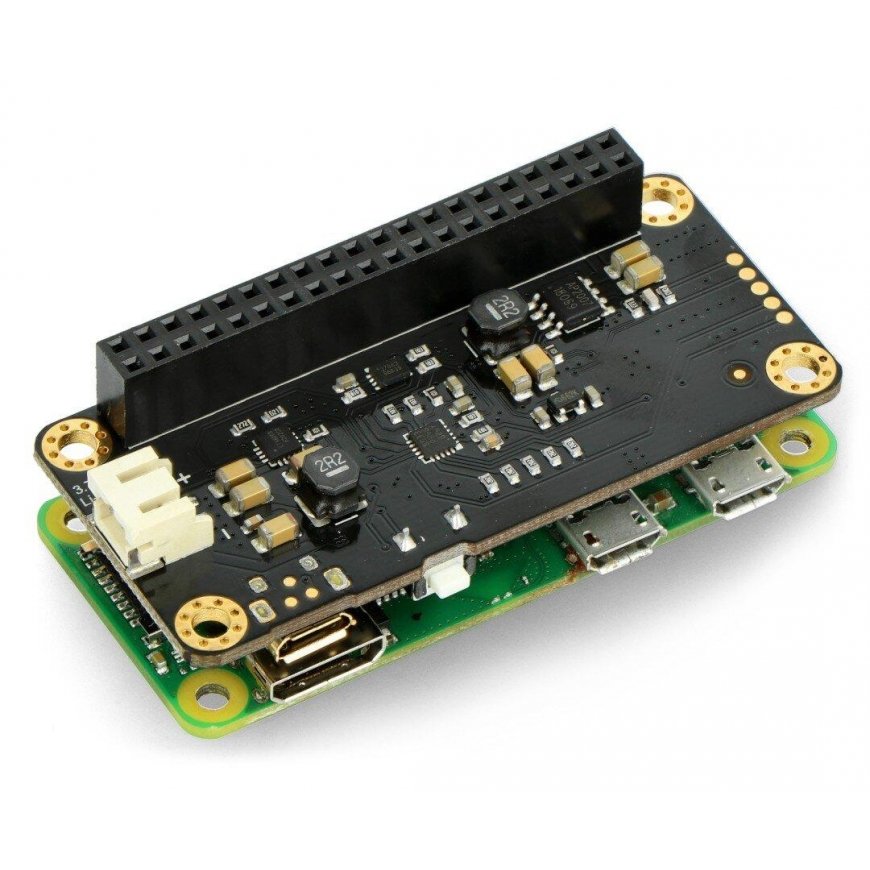

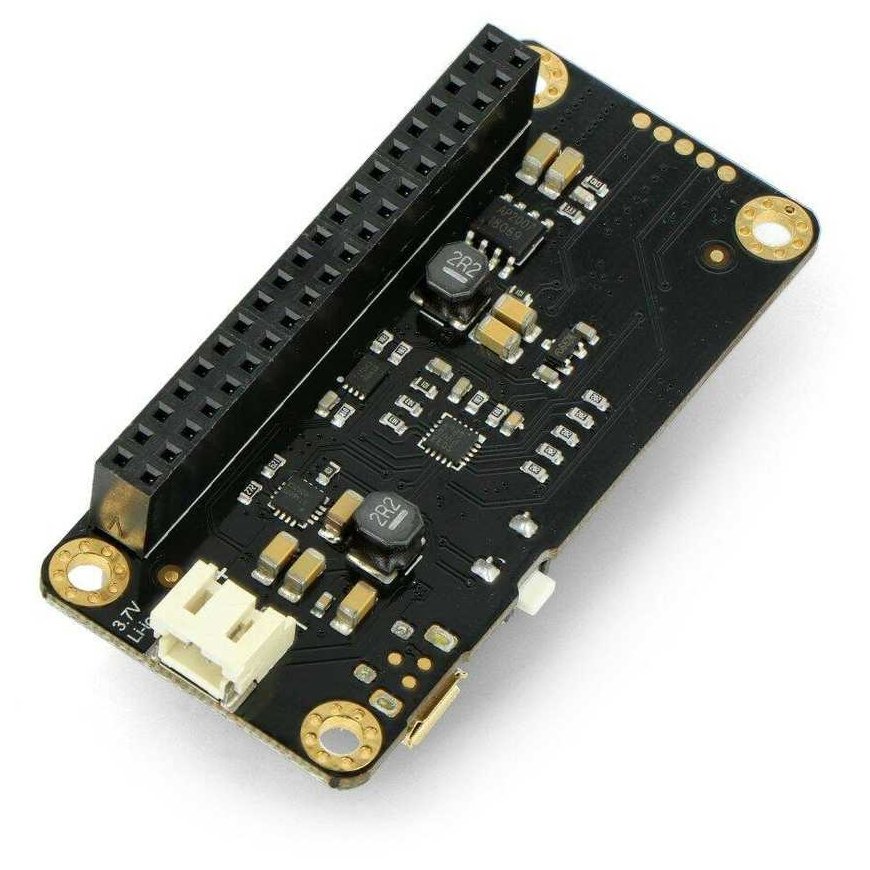

UPS HAT extension for Raspberry Pi Zero, DFRobot DFR0528
41.28 €
Monthly payment from 1,96 €
3750454 AN-15714
5904422324537
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The add-on for Raspberry Pi Zero is used as an emergency power source when the main power is interrupted. The module is also compatible with other Raspberry Pi versions. The HAT UPS will power the device for a certain period, allowing the necessary components to be saved and the system to be safely shut down. The device can also be used in applications that require mobility.
Main features:
- Standard Raspberry Pi connector for connecting more add-ons
- Maximum output current 2 A
- Automatic battery charging/discharging switching
- 5 LEDs indicating battery capacity
- Ability to read battery information via I2C
- Lithium battery protection from overcharging/discharging and overheating
- Backflow protection
Specifications:
- Power supply voltage: from 4.5 to 5.5 V
- Power interface: micro USB
- Maximum charging current: 1.6 A
- Battery port: JST 2 pin 2 mm or solder pads
- Compatible batteries: 3.7 V lithium batteries
- Output voltage: 5 V
- Maximum output current: 2 A
- Communication interface: I2C
- Operating temperature: from -40 °C to 85 °C
- Mounting hole spacing: 58 x 23 mm
- Dimensions: 65 x 30 mm

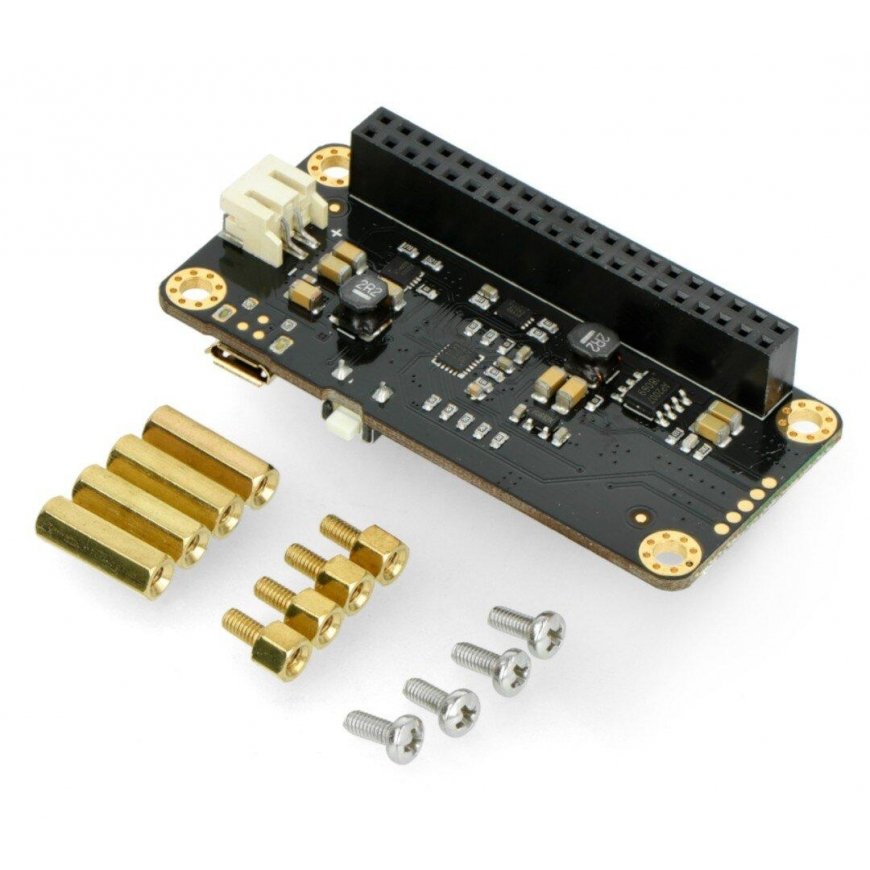

Package includes:
- 4x spacer M2.5 x 14
- 4x spacer M2.5 x 4
- 4x M2.5 x 6 screw
Links:
Manufacturer's page
Manual
