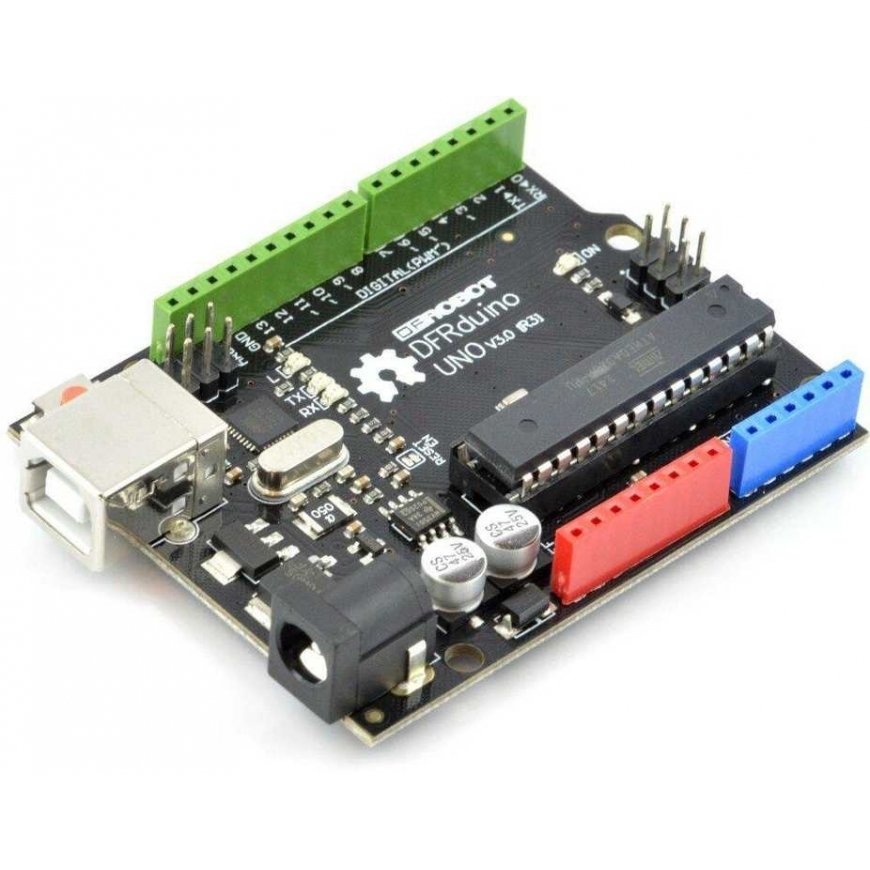

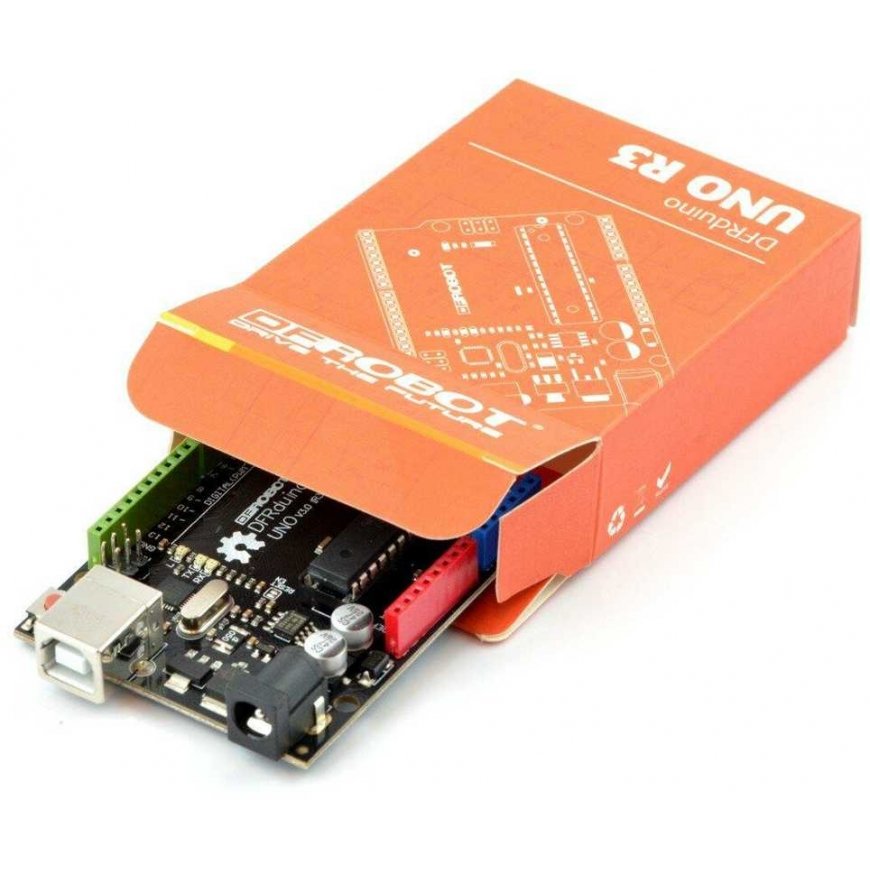

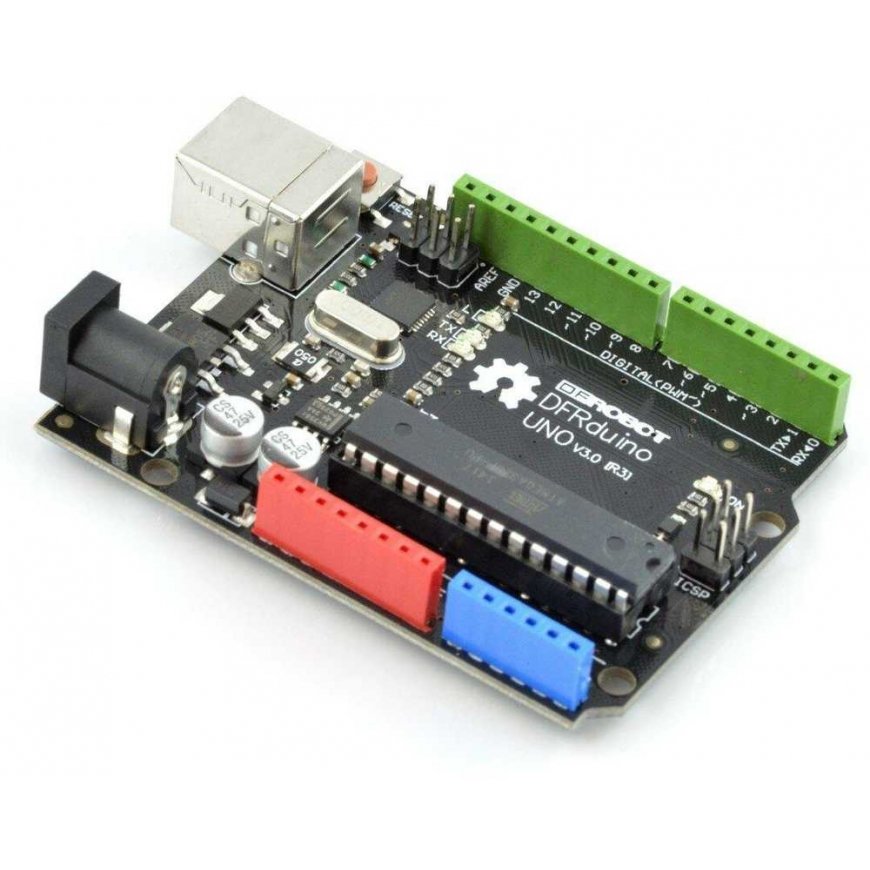

Dfrobot DFRduino Uno v3 - compatible with Arduino
3750215 AN-02683
5904422373443
Shipping 11-18 b.d.
All about the product
DFRduino is fully compatible with the popular Arduino Uno R3 module. It can be programmed using the Arduino IDE environment, with the libraries available there. The DFRobot module will also work with the Arduino Shield.

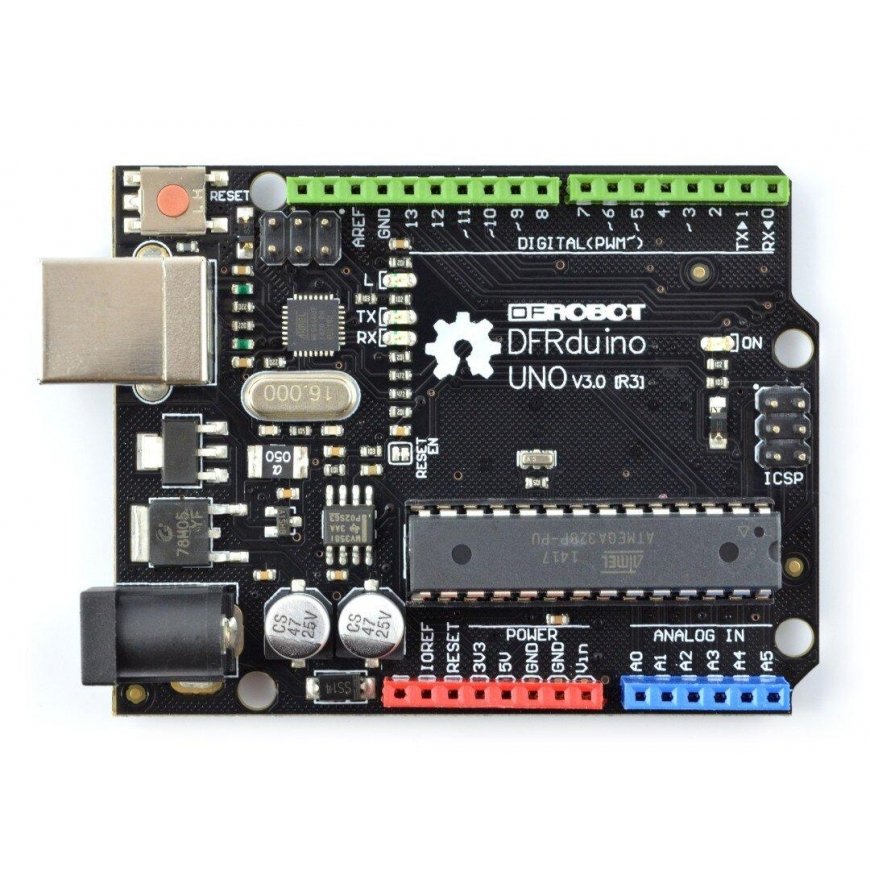

The board features an ATmega328 microcontroller, which has 14 digital inputs/outputs, of which 6 can be used as PWM outputs (e.g., to control motors) and 6 as analog inputs. The circuit is set up with a 16 MHz signal. The module also has a USB connection, a DC power jack, a RESET button, and outputs used to connect AVR programmers.
Specifications:
- Power supply voltage: from 7 V to 12 V
- Programmable via USB, using the Atmega16u2 microcontroller
- Fully compatible with Arduino Uno Rev3
- Microcontroller: ATmega328
- Maximum frequency: 16 MHz
- SRAM: 2 kB
- Flash memory: 32 kB (5 kB reserved for bootloader)
- EEPROM memory: 1 kB
- I/O ports: 14
- PWM outputs: 6
- Number of analog inputs: 6 (A/D converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: USB port
- ISP connector soldering
- Power connector: DC 5.5 x 2.1 mm
- Board dimensions: 75 x 54 x 15 mm
