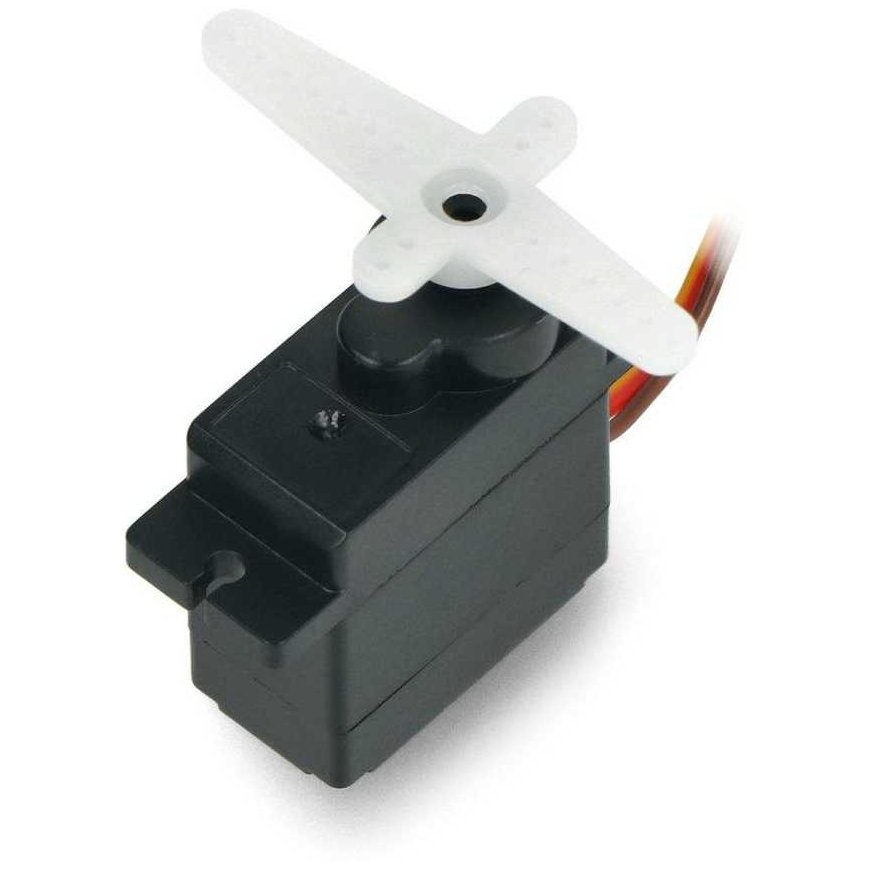

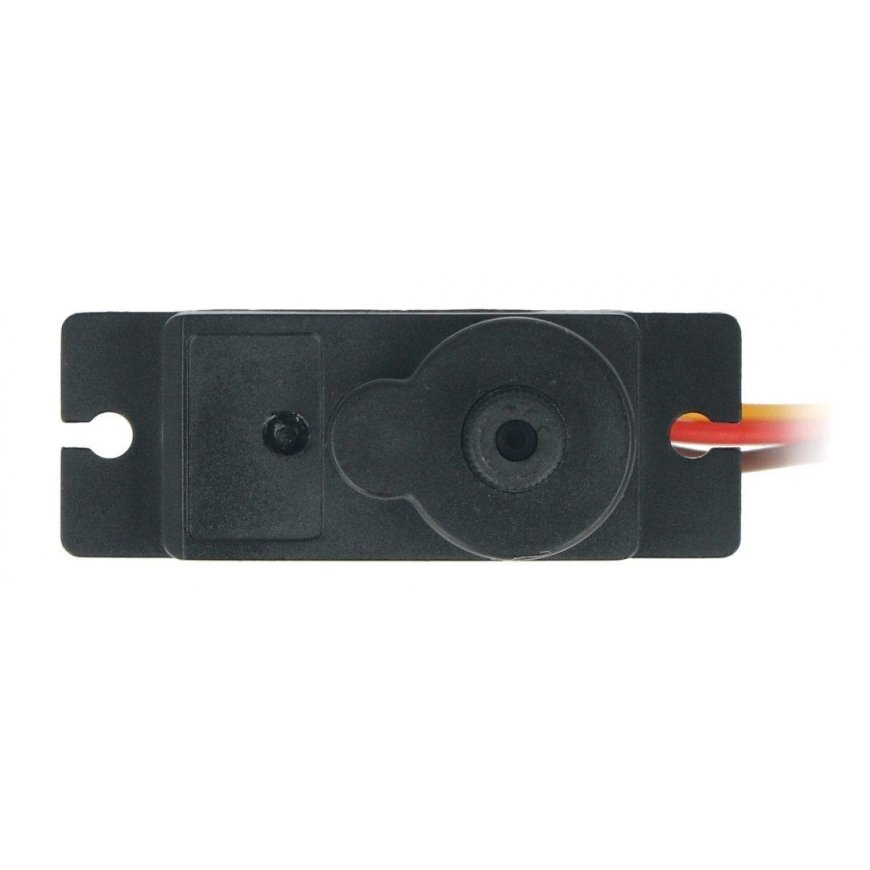

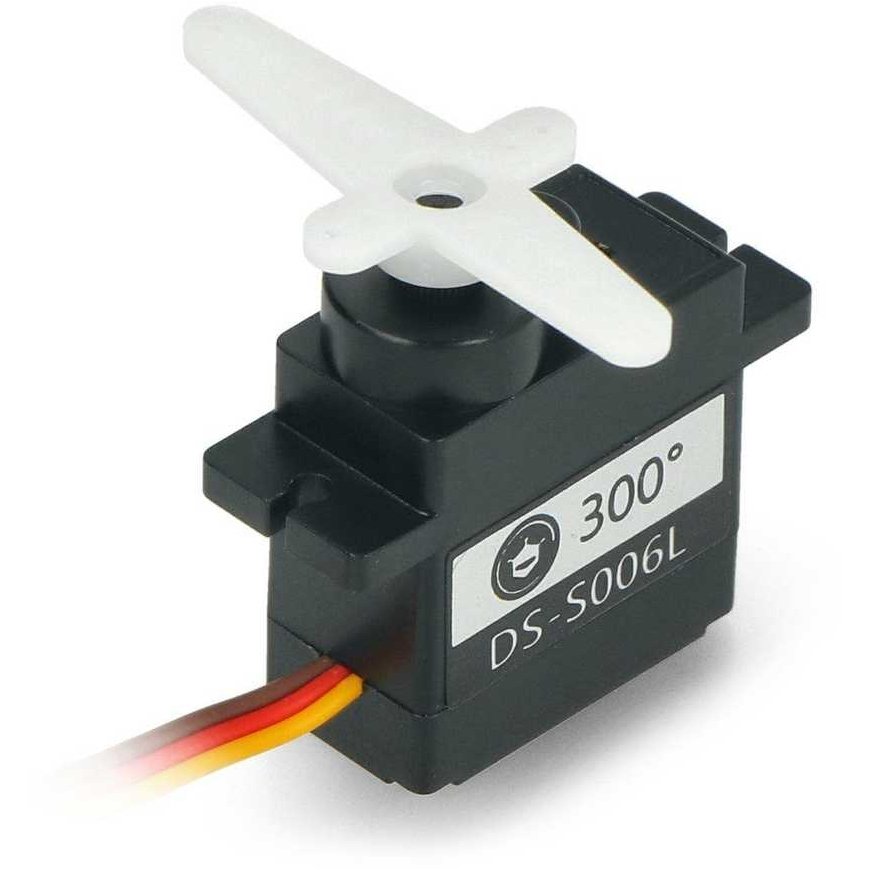

Servo DFRobot SER0053, micro, 9g 300 degrees
3749783 AN-19203
5904422361662
Shipping 11-18 b.d.
All about the product
Made by DFRobot, this micro servo weighs only 9 g but features high strength and speed. It is characterized by high torque, stable operation, precise working angle, and easy installation. The operating voltage ranges from 4.8 to 6 V. When powered at 6 V, the servo torque is 1.2 kg/cm. There are no limited switches at the center of the mechanism, allowing it to be smoothly rotated 360° by hand. Meanwhile, the servo can operate smoothly with minimal power and can be powered by a standard battery or USB. Additionally, users can directly control the servo using Arduino IDE servo libraries, allowing for a maximum rotation angle of 180° with a pulse range of 500–2,500 μs.
Specifications:
- Operating voltage: from 4.8 V to 6 V DC
- Nominal current consumption: up to 8 mA at 6.0 V
- Current consumption without load:
- ≤50 mA at 4.8 V voltage
- ≤60 mA at 6.0 V voltage
- Current consumption when the shaft is stopped:
- ≤550 mA at 4.8 V voltage
- ≤650 mA at 6.0 V voltage
- Nominal torque:
- ≥0.32 kg/cm at 4.8 V voltage
- ≤0.4 kg/cm at 6.0 V voltage
- Torque at stopped shaft
- ≥1.0 kg/cm at 4.8 V voltage
- ≤1.2 kg/cm at 6.0 V voltage
- Operating angle: 300° ± 10°
- Communication mode: PWM
- Pulse width range: from 500 μs to 2500 μs
- Dimensions: 32.5 x 12 x 27.3 mm

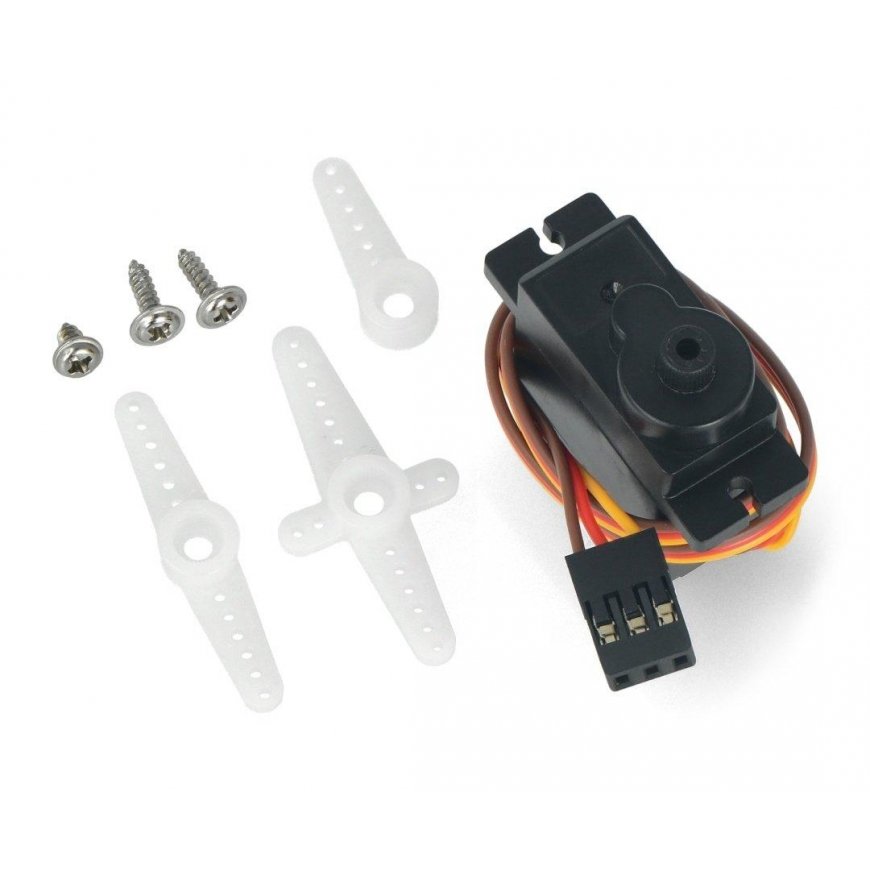

- 9g 300° servo x1
- Servo board and accessories x1 (screw and horn set)
