Dobot Magician robotic arm learning kit

1 959.00 €
Monthly payment from 51,34 €
3749347

AN-07103

6970632060021

Shipping 8-12 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Dobot Magician is a multifunctional robotic arm that is ideal for classrooms, workshops, or even factories. Using different tools, Dobot Magician can easily perform various functions such as 3D printing, laser engraving, writing, or even drawing. It supports 13 expansion interfaces and over 20 programming languages, which truly allows for endless applications. This Dobot Magician won the CES 2018 Innovation awards and the iF DESIGN AWARD 2018.

Control it from your PC / Mac, phone, gesture, voice, even "brain waves" can be used to control the Dobot Magician. The manual training function allows you to control the robotic arm without any technical knowledge. The standardized tool holder allows for quick changes simply by screwing them on. The "Dobot Magician" software "DobotStudio" has a lot of integrated features, allowing you to control the robotic arm like never before. DobotStudio also has a complete set of parameters that you can change and customize for yourself. You can even control your robotic arm without coding!

The use of "Dobot" is limited only by your imagination; it can do everything from simply picking up objects to 3D printing , and much more! Magically draw with 0.2 mm precision, it supports BMP, SVG, and DXF. Print complex 3D models up to 15x15x15 cm in size, with a resolution of up to 0.1 mm using PLA.

Educational kit: This version includes the " Laser Kit " set, which allows you to engrave personal models on various materials such as leather, cardboard, wood, and much more. WiFi and Bluetooth modules provide even more ways to interact with the robot, and the Joystick set offers an additional unique way to control the arm.

Specifications:

  • Number of axes: 4
  • Maximum load: 500g

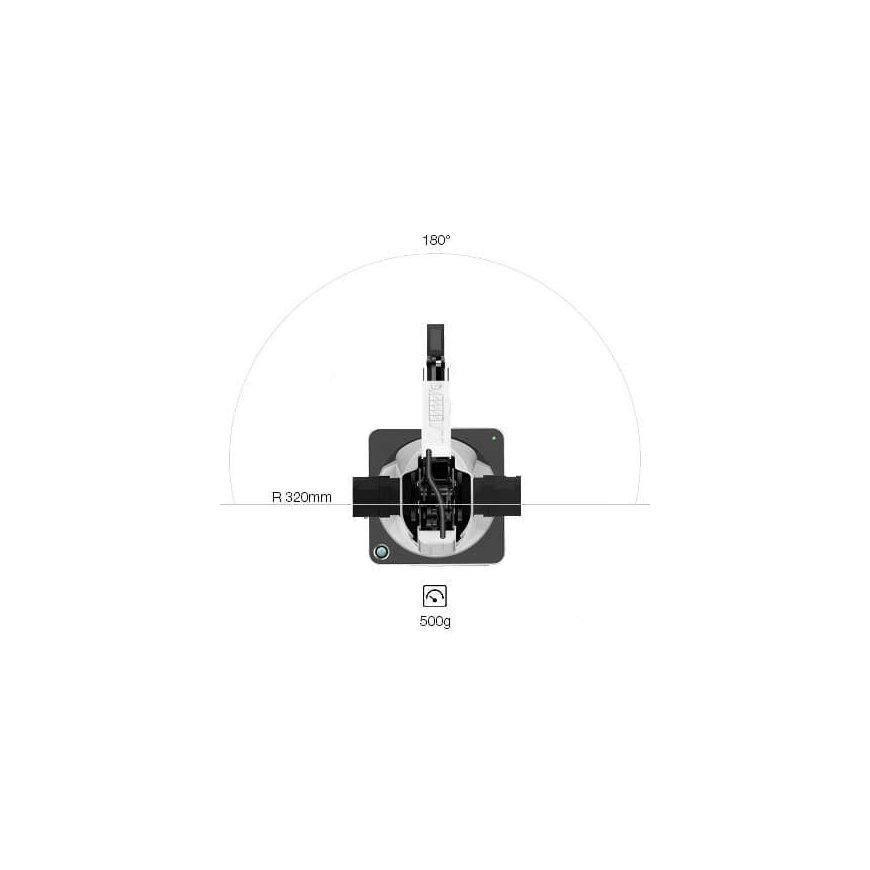

  • Maximum length: 320mm
  • Position control (accuracy): 0.2mm
  • Communication: USB, WiFi, Bluetooth
  • Power supply: 100V-240V, 50/60Hz
  • Power: 12V/7A DC
  • Operating temperature: -10 — 60 °C

Axis movement:

  • Joint 1 (base): from -90 ° to + 90 °, 320 ° / s maximum speed (250g load)
  • Joint 2 (shoulder): from 0 ° to + 85 °, 320 ° / s maximum speed
  • Joint 3 (elbow): from -10 ° to + 95 °, 320 ° / s maximum speed
  • Joint 4 (wrist servo): + 90 ° to -90 °, 480 ° / s maximum speed (250g load)

Specifications:

  • Net weight: 3.4KG
  • Total weight: 7.2KG

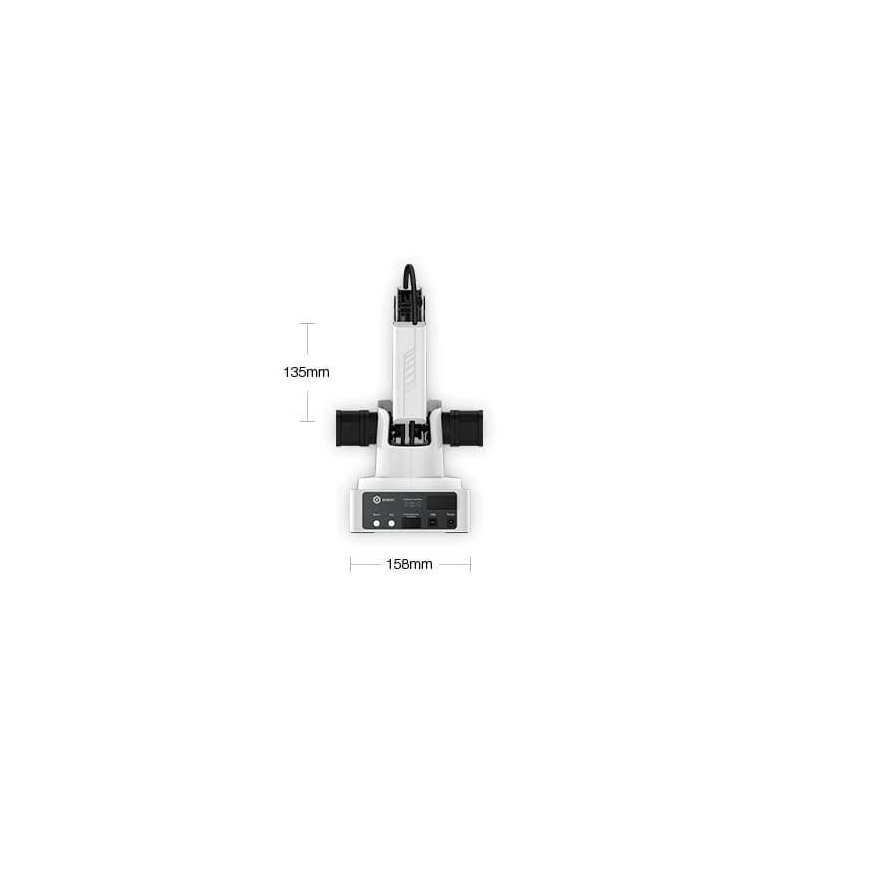

  • Base dimensions (footprint): 158 x 158 mm
  • Materials: aluminum alloy 6061, ABS plastic
  • Controller: integrated "Dobot" controller

Applications:

  • Software: DobotStudio, Repetier Host, GrblController3.6, DobotBlockly ("Visual Programming" editor)
  • SDK: communication protocol, "Dobot" application library
  • Expandable I / O interfaces:
  • I / O × 10 (configurable as analog input or PWM output)
  • Controlled 12V power outputs x 4
  • Communication interface (UART, Reset, Stop, 12V, 5V, and two I / O)
  • Stepper × 2

Included:

  • 3D printer kit
  • Maximum print size: 150x150x150mm
  • Material: PLA
  • Resolution: 0.1mm
  • Laser
  • Laser power: 500 mW
  • Wavelength: 405nm (blue laser)
  • Power: 12V, TTL trigger (with PWM drive).
  • Pen holder
  • Pen diameter: 10 mm
  • Vacuum suction cover
  • Cover diameter: 20 mm
  • Pressure -35 KPa
  • Gripper
  • Range: 27.5 mm
  • Operating type: pneumatic
  • Force: 8N
