Keyboard extension v1.0 - Arduino display module - RGB text - DFRobot DFR0936
3748789 AN-22464
6959420922604
Shipping 11-18 b.d.
All about the product

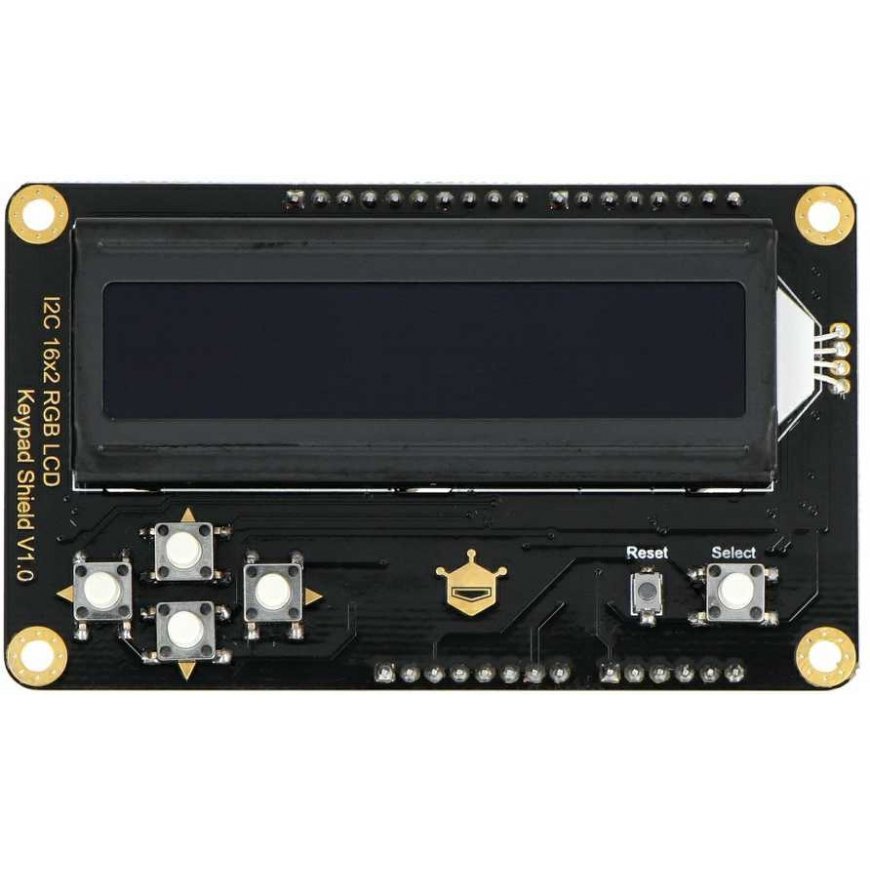

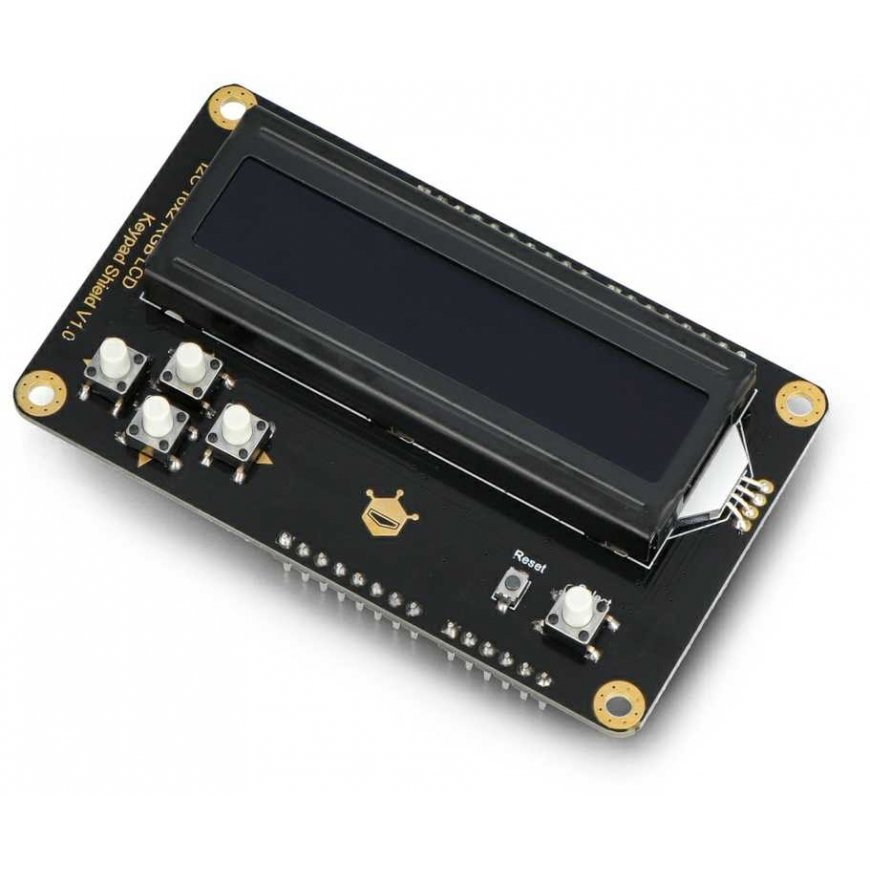

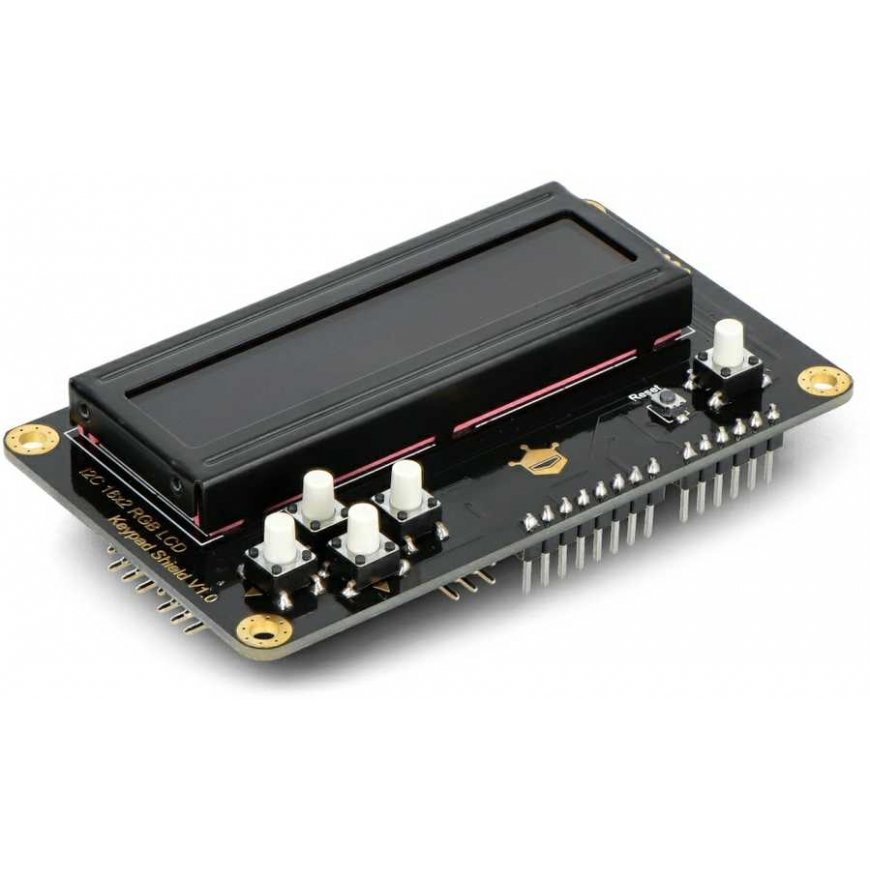

The DFRobot keyboard module add-on v1.0 is designed for Arduino boards. The content on the RGB LCD screen is displayed in two lines of 16 characters each. The user can configure the color of the displayed text using the programmable buttons on the board. The module has two rows of analog and digital ports compatible with Arduino pins. This allows the user to expand the project, for example, with additional sensors and use the screen to display their measurement results. The communication device uses the I2C interface, making it very easy to use. The manufacturer's provided guide will also facilitate the activation of the module.

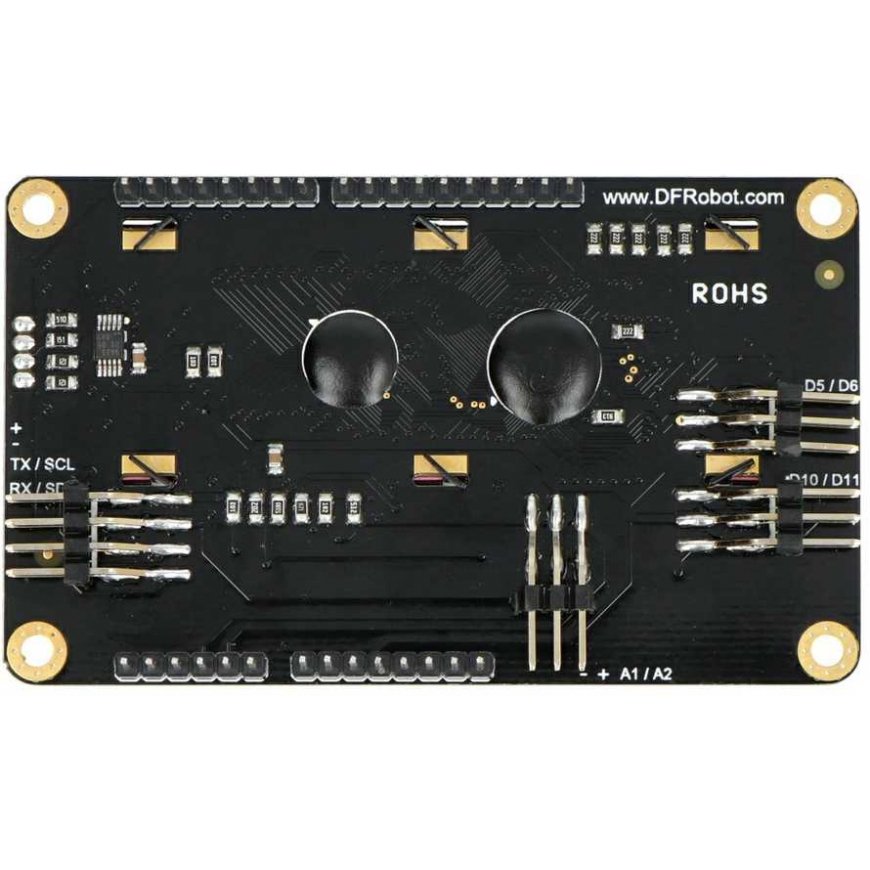

- Arduino output pins - digital and analog
- Works with the standard Arduino Liquid Crystal library
- I2C interface
- Character RGB LCD screen
- Content of two lines of 16 characters
- 5 programmable buttons and RESET
- Ability to connect to sensors and display measurements
- Small size
- Easy to use
- Screen type: LCD RGB 16x2
- Operating voltage: from 3.3 V to 5 V
- Logic contact operating voltage: 5 V (taken from Arduino)
- Current consumption: < 0.8 mA
- Connection: I2C
- Backlight: RGB with adjustable brightness
- Buttons: 5 programmable and RESET
- Operating temperature: from -20 °C to 70 °C
- Storage temperature: from -30 °C to 80 °C
- Module dimensions: 87 x 52 x 14.8 mm
