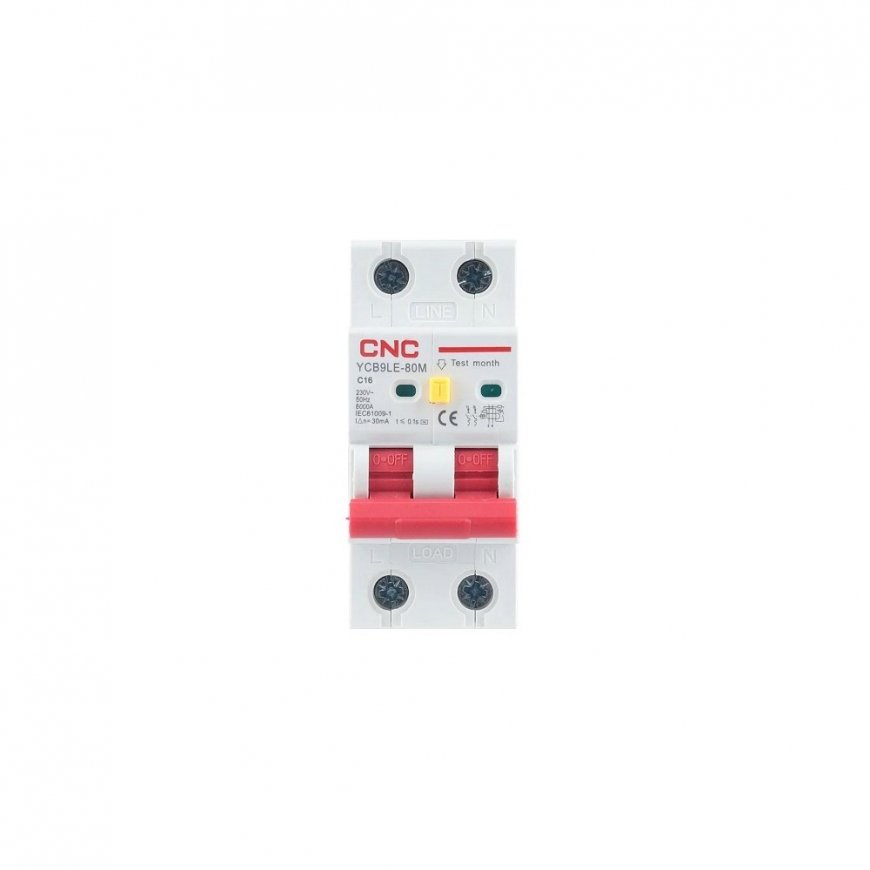

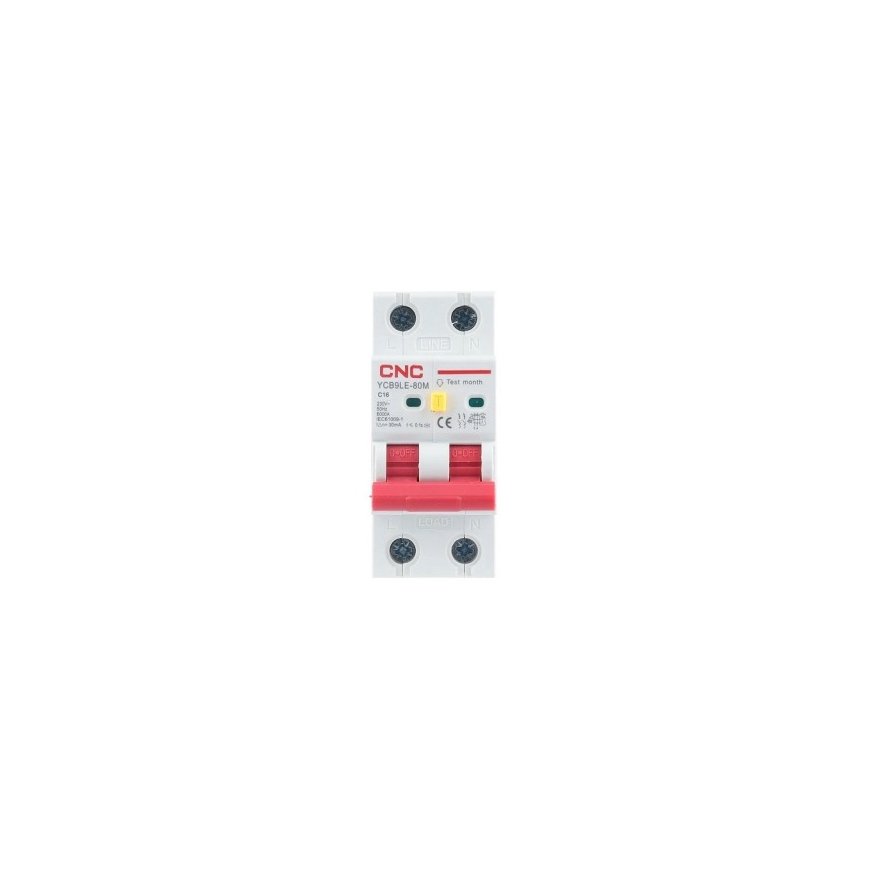

CNC Leakage relay with automatic switch, 2P, 16A, Class C, 30mA, 6kA
29.00 €
3741307 NV821877
6942034323684
Shipping 1-2 days
You are interested in this product?
All about the product
Leakage relay with automatic switch, 2 contacts, 16A, Class C, 30mA, 6kAFeatures:
The leakage relay with an automatic switch protects a person from dangerous life-threatening electric shock and electrical circuits from short circuits, overloads, and fire hazards.
The leakage relay is used in damp areas where the electrical installation is not reliably protected (in bathrooms, kitchens, outdoors, garages, for electric heaters, pumps, etc.).
Safe terminal block.
Flame, high temperature, and impact resistance.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Note: the leakage relay must be regularly tested at least once a month.
Technical specifications:
Number of contacts: 2.
Rated current (In): 16 A.
Class: C.
Rated voltage (Ue): AC 230 V.
Permissible leakage current: 30mA.
Response time:
Insulation voltage (Ui): 500 V.
Frequency: 50/60 Hz.
Rated short-circuit breaking capacity (Icn): 6000 A.
Rated impulse withstand voltage (Uimp): 4000 V.
Mechanical lifespan: 10000 cycles.
Electrical lifespan: 4000 cycles.
Protection class: IP20.
Connection type: cable / pin-type busbar.
Cable / busbar cross-sectional area: up to 35mm².
Connection: from above.
Installation: on DIN rail EN 60715 (35mm).
Operating temperature: -25°C~+70°C.
Dimensions: 82 x 36 x 78 mm.
Standards: IEC 61009-1 / EN 61009-1.
Warranty:24 months.
