M5Stack M5Stick ToF Hat laser distance sensor
3740547 AN-18046
6972934171108
Shipping 11-18 b.d.
All about the product
"ToF Hat" laser distance sensor designed for the "M5StickC" module series. The integrated cover connects two components: VL53L0X and a 940nm VCSEL emitter. They provide high-precision distance measurements, regardless of the target's reflectivity. The maximum measurement range of the sensor is up to 2 m, and the laser technology used is invisible to the human eye. For communication with the main module, the Stick series uses the I2C interface. It has GPIO compatible connections for the M5StickC modules, making their connection easy even for beginner users.
Recommended use:
- Laser distance measurement
- Obstacle detection
- Motion recognition
- 3D structural light imaging (3D detection)
- Camera assistance (depth mapping and autofocus)

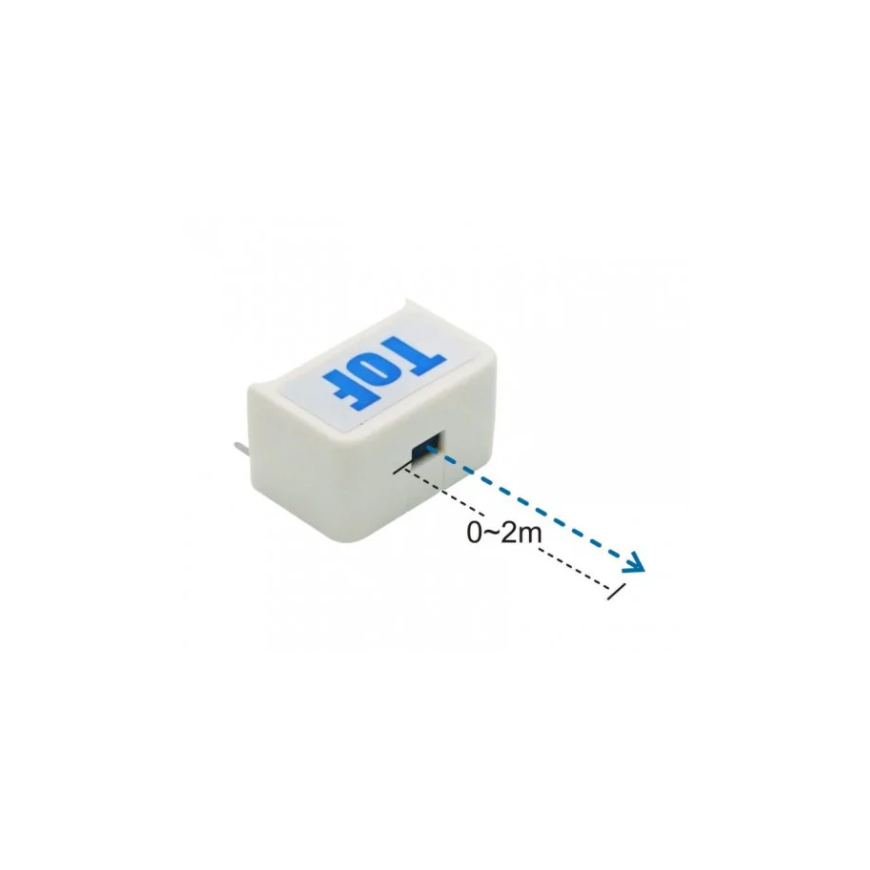

- Distance measurement: from 0 m to 2 m
- Laser: VCSEL 940 nm
- Programming platform: Arduino / Blockly / Python
- Interface: I2C
- Button function
- Dimensions: 24 x 20.3 x 13.8 mm
- Weight: 8 g
