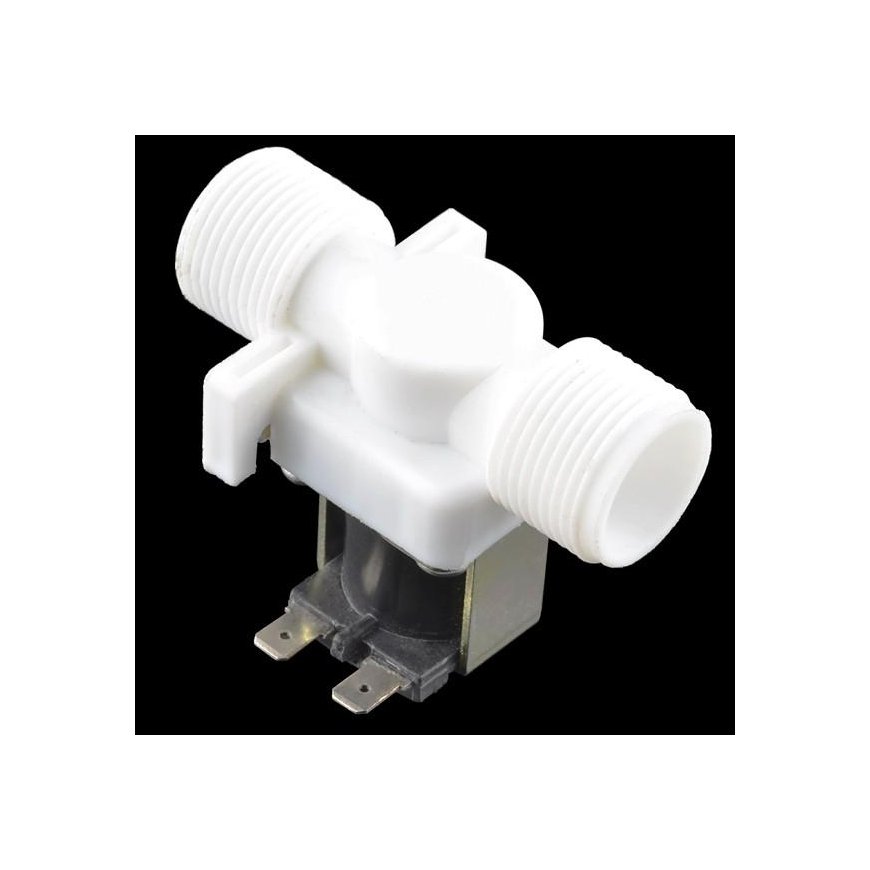

Electromagnetic valve 12 V - 3/4", SparkFun ROB-10456
3739405 AN-01993
4772164006100
Shipping 8-11 b.d.
All about the product
The device supports fluid flow control using a computer or microcontroller, including Raspberry Pi or Arduino. The device is powered by 12 V voltage. The diameter of the water threaded inlet is 3/4”. In its initial state, the valve is always closed, and the current consumption through the coil is 350 mA.
To fully open the valve, proper water pressure is required. The minimum pressure is 0.2 bar (20 kPa). This allows a flow of about 3 l/min. The device works well under pressure from a tap, for example, together with a garden hose.
Specifications:
- Internal diameter: 20 mm
- External diameter: 26 mm
