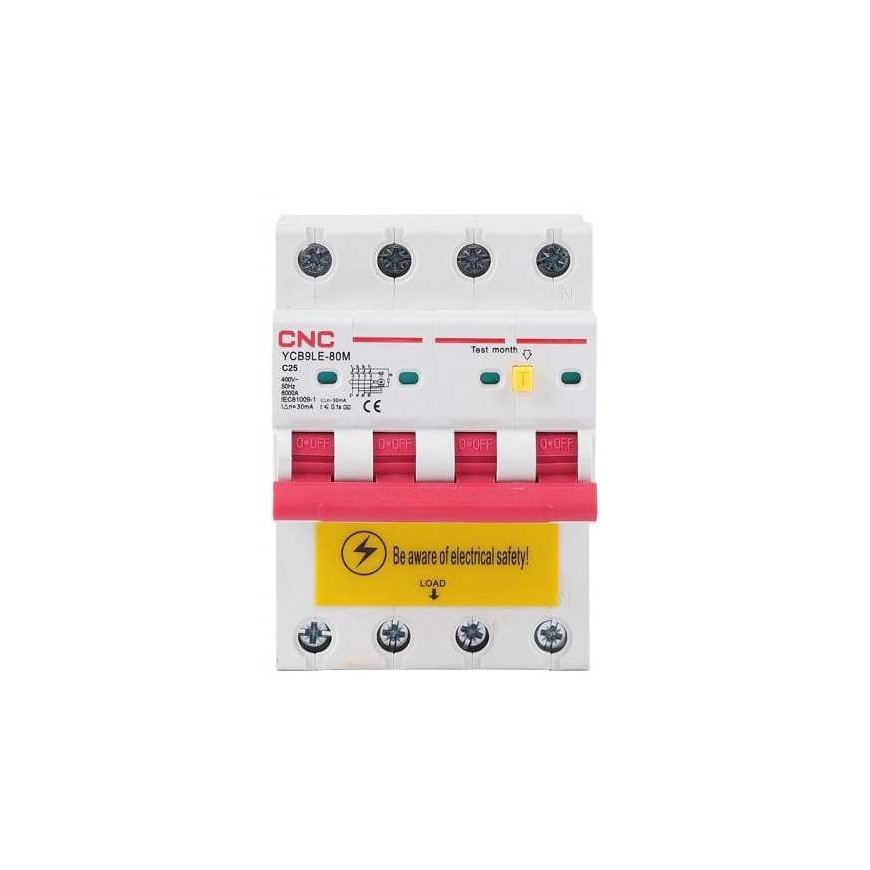

CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA
CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA
CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA
CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA
CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA
CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

CNC Drain Relay with Automatic Switch, 4P, 25A, Class C, 30mA, 6kA

39,04 €
37,84 €
Monthly payment from 1.87 €
3738809

NV821945

6942034324124

Shipping 2-4 days

Quantity

You are interested in this product?
(Read terms of service)
Leakage relay with automatic switch, 4 contacts, 25A, Class C, 30mA, 6kA


Features:
The leakage relay with automatic switch protects a person from dangerous life-threatening electric shock and electrical circuits from short circuits, overloads, and fire hazards.
The leakage relay is used in damp areas where electrical installations are not reliably protected (in bathrooms, kitchens, outdoors, garages, for electric heaters, pumps, etc.).
Safe terminal block.
Flame, high temperature, and impact resistance.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Note: the leakage relay must be tested regularly at least once a month.


Technical specifications:
Number of contacts: 4.
Rated current (In): 25 A.
Class: C.
Rated voltage (Ue): AC 230 V.
Permissible leakage current: 30mA.
Tripping time:
Insulation voltage (Ui): 500 V.
Frequency: 50/60 Hz.
Nominal short-circuit breaking capacity (Icn): 6000 A.
Nominal impulse withstand voltage (Uimp): 4000 V.
Mechanical lifespan: 10000 cycles.
Electrical lifespan: 4000 cycles.
Protection class: IP20.
Connection type: cable / pin-type busbar.
Cable / busbar cross-sectional area: up to 35mm².
Connection: from above.
Installation: on DIN rail EN 60715 (35mm).
Operating temperature: -25°C~+70°C.
Dimensions: 82 x 72 x 78 mm.
Standards: IEC 61009-1 / EN 61009-1.


Warranty:24 months.
