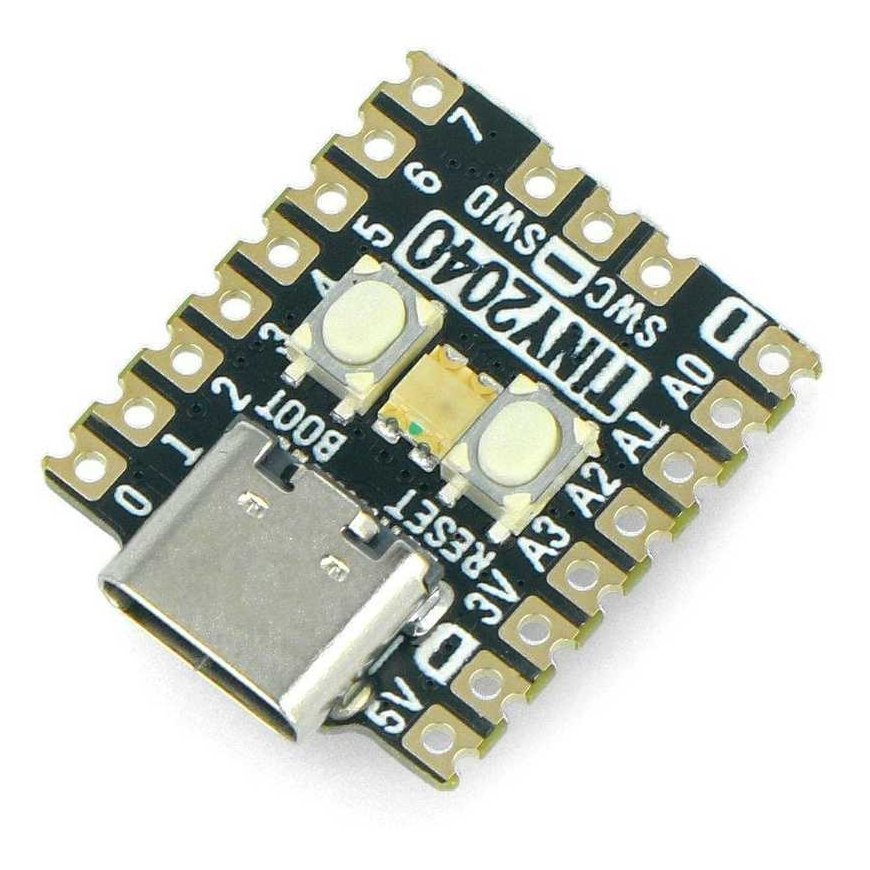

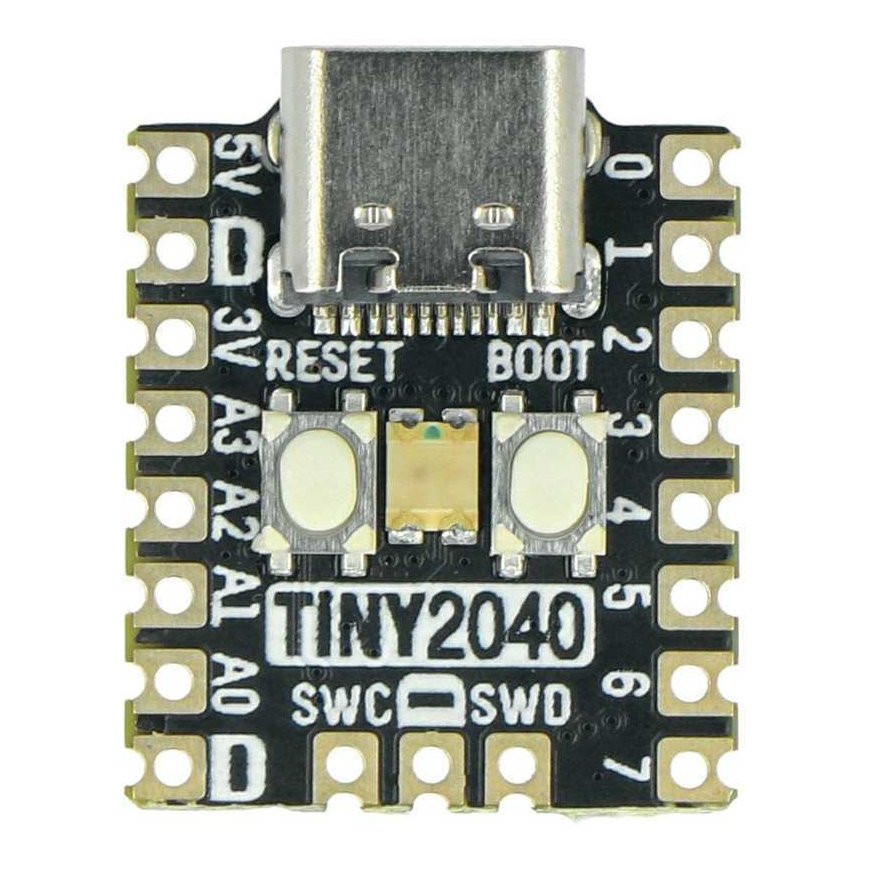

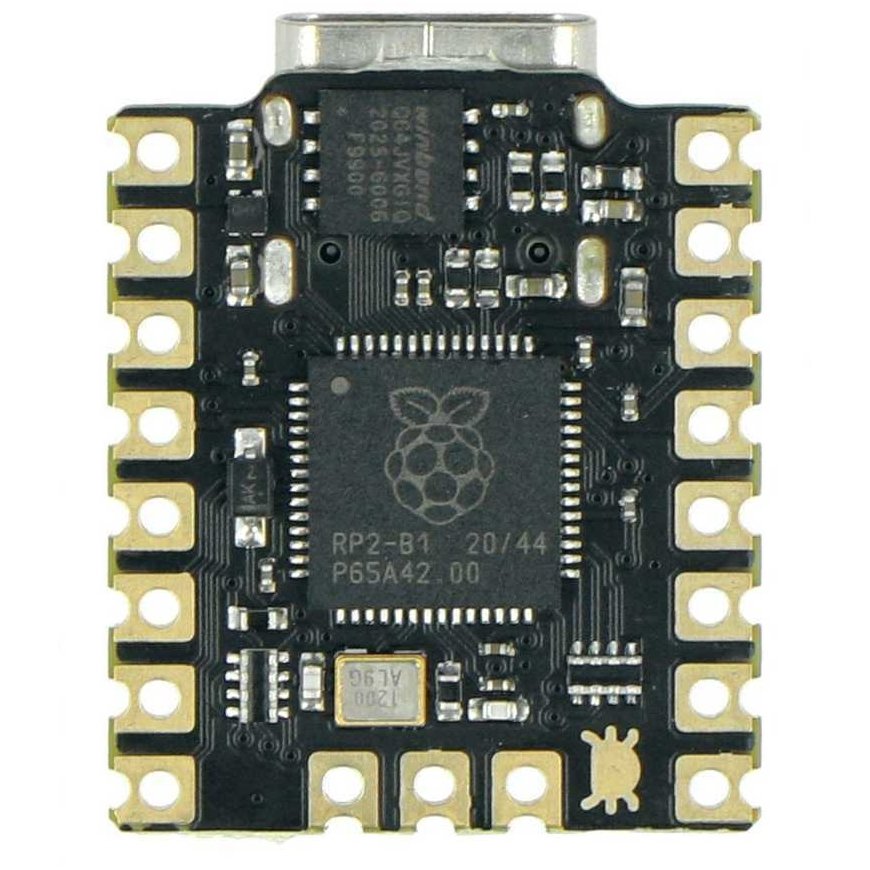

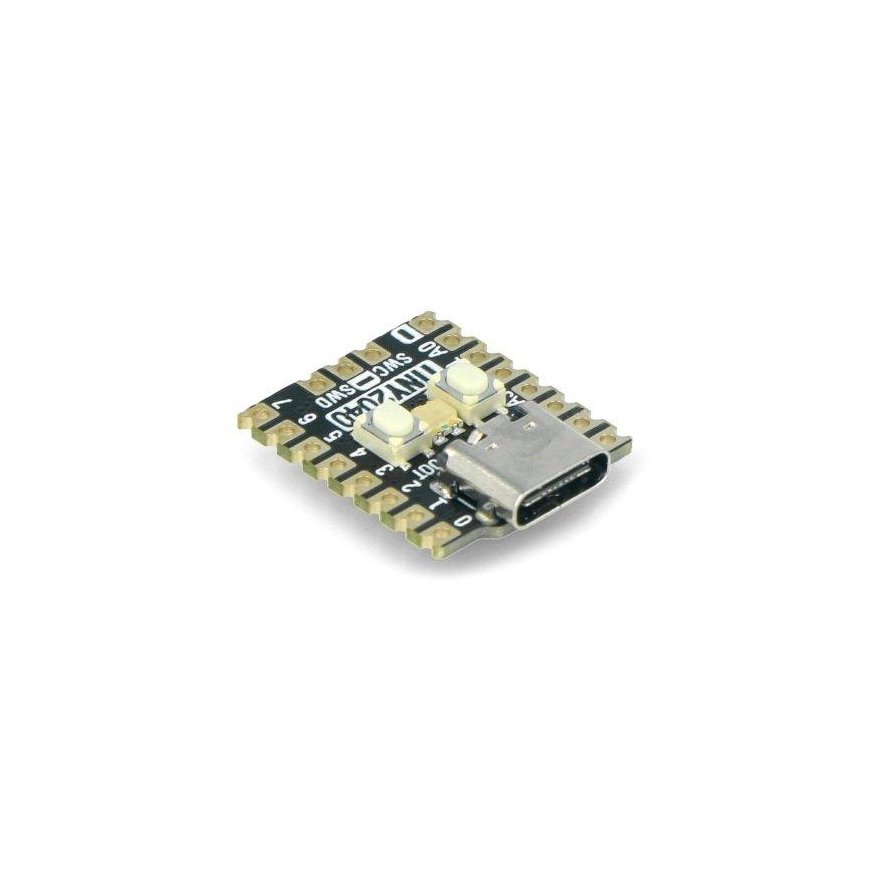

Pimoroni Tiny 2040, development board
3738755 AN-19278
0769894017234
Shipping 11-18 b.d.
All about the product
Small development board with RP2040 microcontroller and 8 MB QSPI (XiP) Flash memory. It features a Type-C USB connector that can be used for charging, programming, and data transfer. The Tiny 2040 also has a programmable LED, as well as Reset and Boot buttons. The board has fewer GPIO pins than the Raspberry Pi Pico. This significantly reduces the size of the product. The module has holes for soldering a strip of gold pins to use it on a breadboard. Alternatively, Tiny can be soldered directly to the PCB. The product can be programmed using C/C++ or MicroPython language.
Specifications:
- Power supply voltage: from 3 V to 5.5 V
- Microcontroller: RP2040
- Processor: ARM Cortex M0+ / 133 MHz
- SRAM: 264 kB
- Flash memory: 8 MB QSPI (XiP)
- Built-in Type-C USB port
- Number of input/output pins: 12
- 3.3 V voltage regulator
- Supported communication buses: I2C, SPI, UART
- Board dimensions (including USB port): 22.9 x 18.2 x 6 mm
