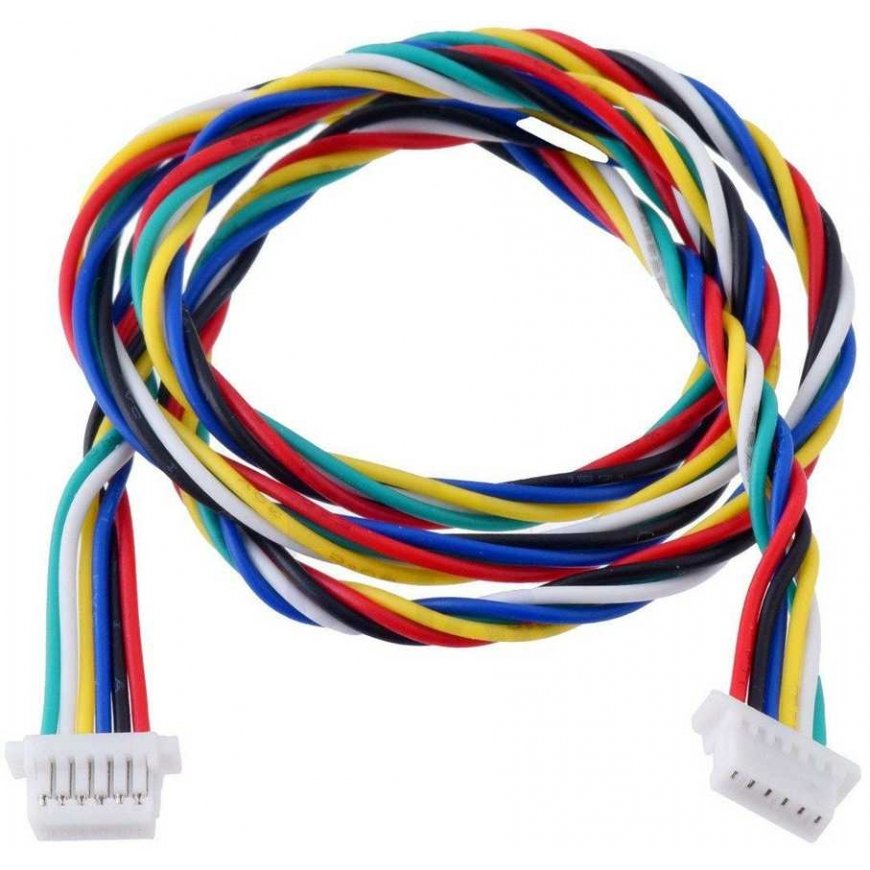

6 contact socket-socket JST SH style cable 40cm, Pololu 4768

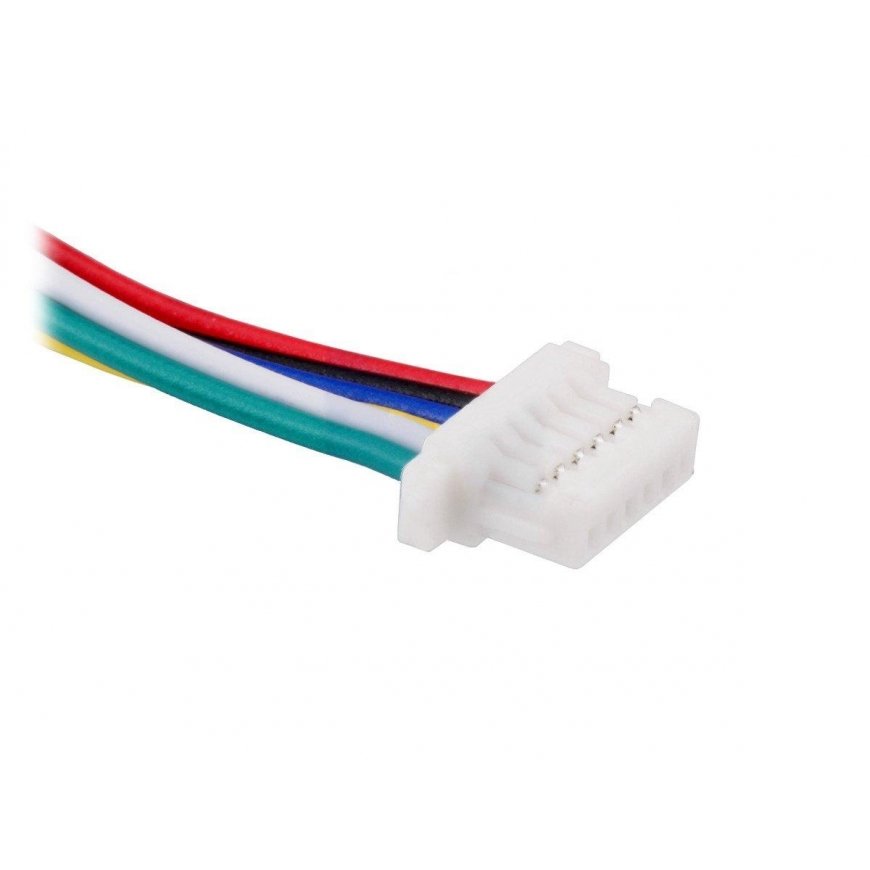

6 contact socket-socket JST SH style cable 40cm, Pololu 4768 – 2

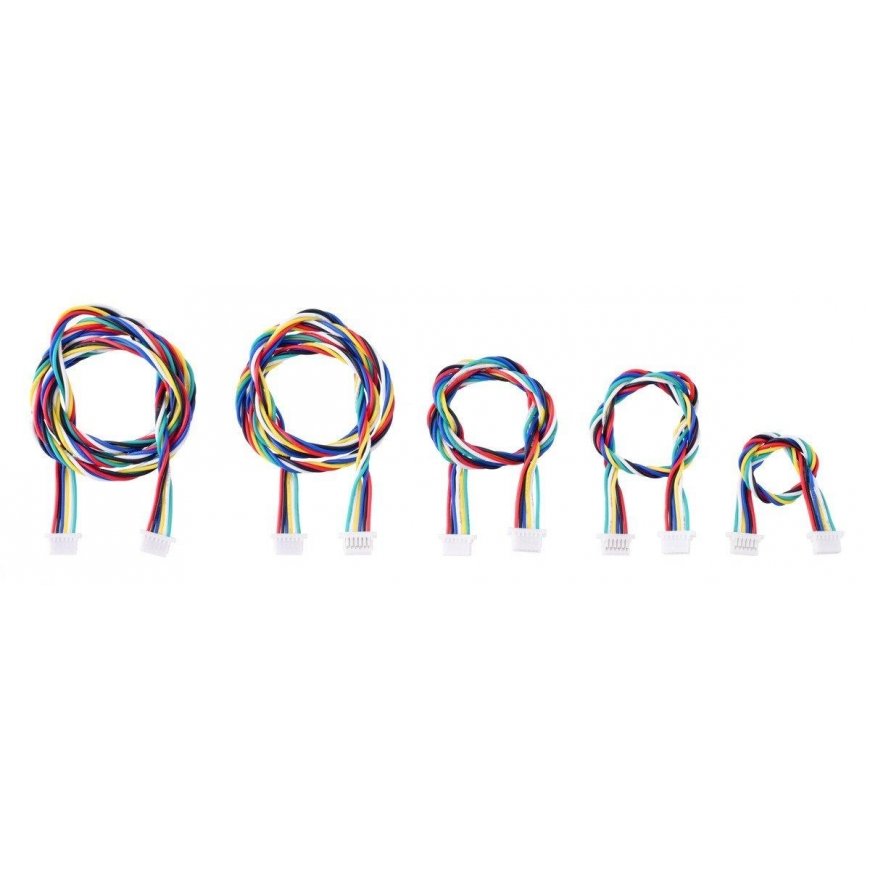

6 contact socket-socket JST SH style cable 40cm, Pololu 4768 – 3

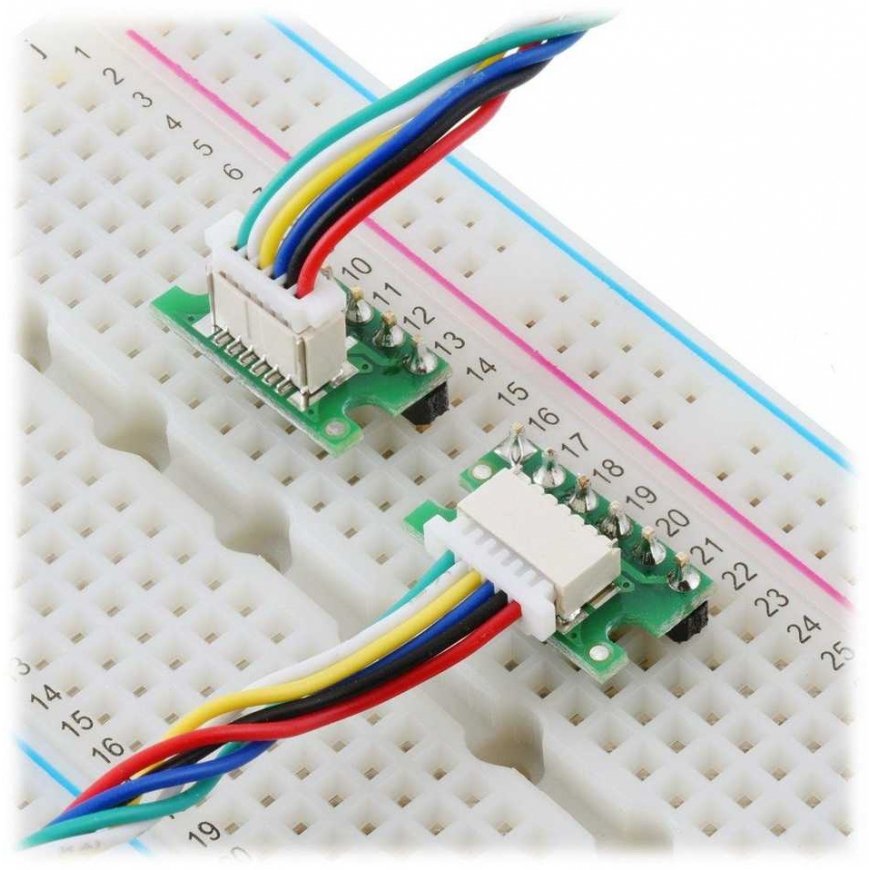

6 contact socket-socket JST SH style cable 40cm, Pololu 4768 – 4
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768
6 contact socket-socket JST SH style cable 40cm, Pololu 4768

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

6 contact socket-socket JST SH style cable 40cm, Pololu 4768

19.60 €
3738378

AN-19490

5904422367503

Shipping 8-15 b.d.

You are interested in this product?
(Read terms of service)

All about the product

JST SH 6-pin connector with cable made by Pololu. It is 40 cm long, its conductor diameter is 28 AWG, and the pin pitch is 1 mm. Wires of this type are used in Pololu magnetic encoders. It can also be used to connect a module with a JST SH 6-pin socket, which can be directly connected to a contact board, facilitating circuit prototyping.

Specifications:

  • Number of pins: 6
  • Pinout
    • JST SH connector: 1 mm
  • Cable length: 40 cm
  • Diameter: 28 AWG
  • Wire description:
    • Red: motor power (voltage)
    • Black: motor power (ground)
    • Blue: encoder power (voltage)
    • Yellow: encoder A output
    • White: encoder B output
    • Green: encoder power (ground)
  • Weight: 4 g
