Mini slide switch MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2811

19.00 €
3738121

AN-04853

5904422300050

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

The execution module with a MOSFET transistor and a pair of P channels to control devices with current consumption higher than allowed by the control system, such as a microcontroller. The module provides a power supply voltage from 4.5 V to 40 V at a current of 4 A.

Specifications:

  • Maximum voltage: 40 V
  • Recommended operating voltage: from 4.5 to 32 V
  • Continuous current at 55 °C: 2 A
  • Continuous current at 150 °C: 4.3 A
  • Maximum current: 7.2 A
  • LED color: green

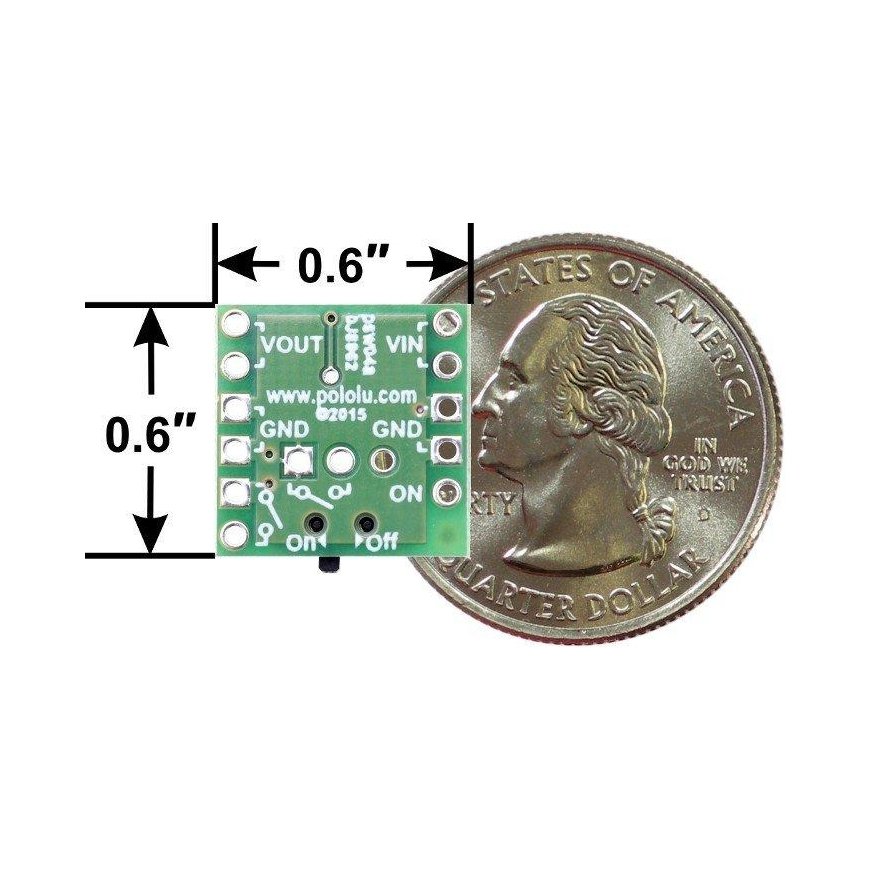

  • Dimensions: 15 x 15 x 2.5 mm
  • Weight: 0.6 g
