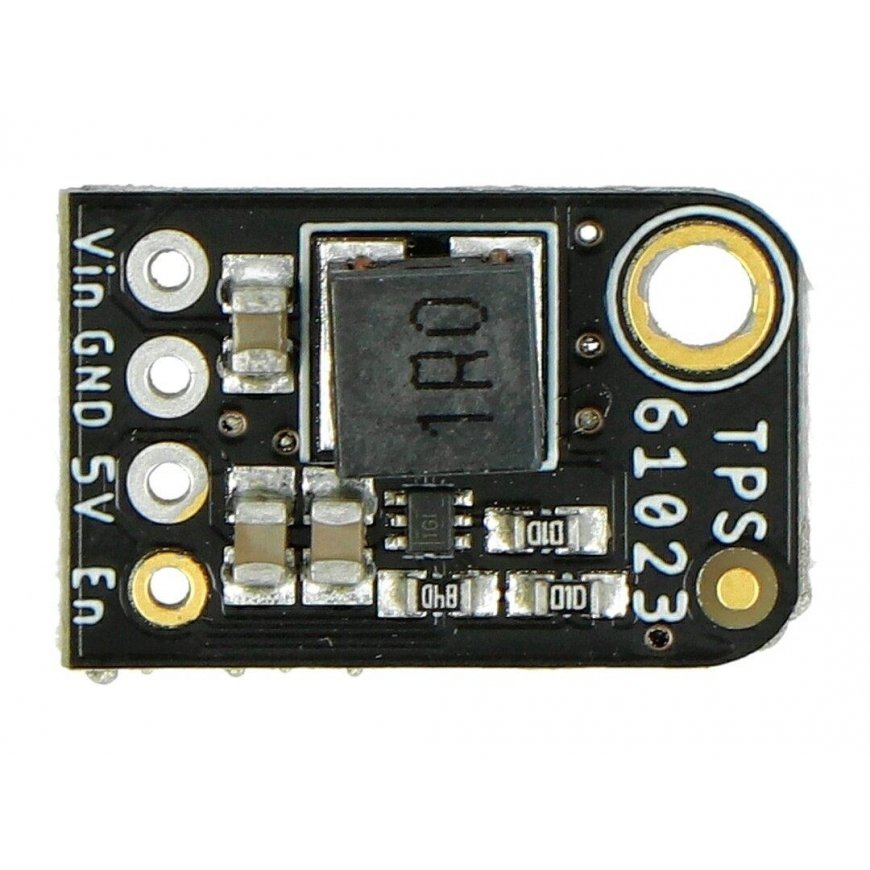

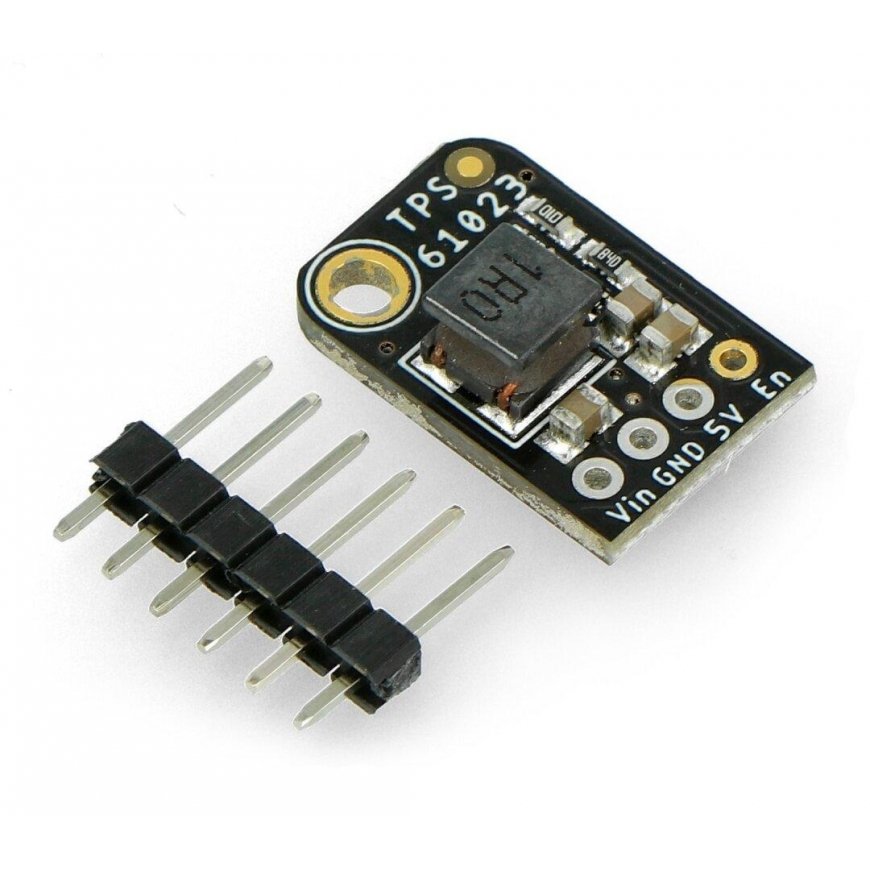

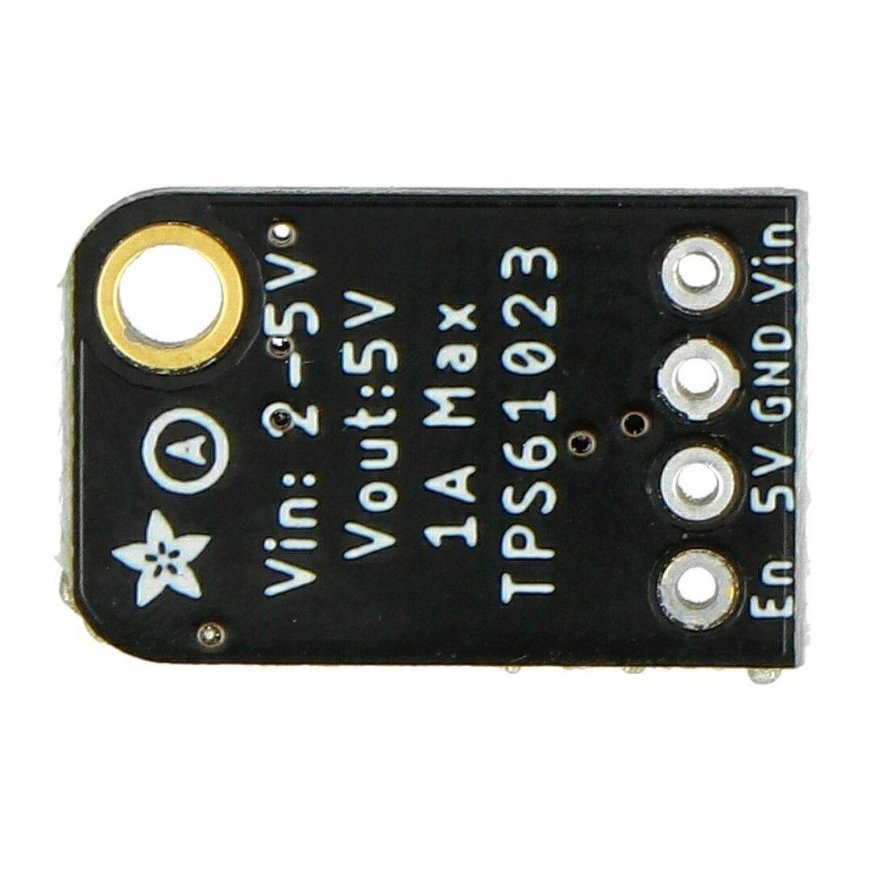

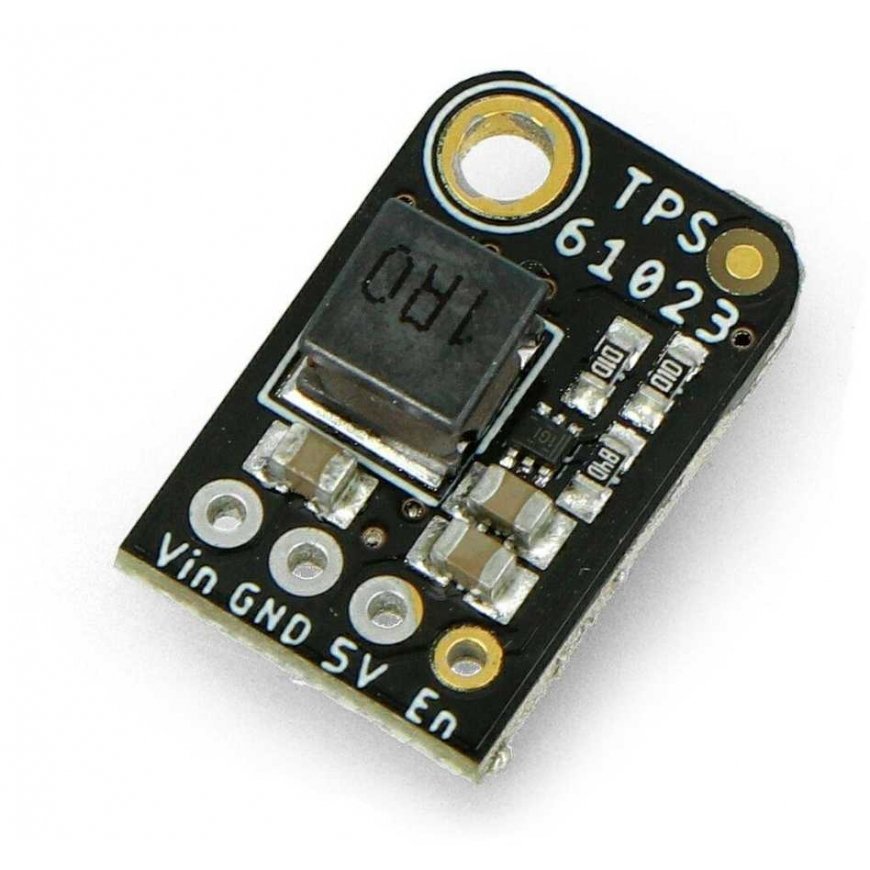

Step-Up Voltage Regulator TPS61023, Adafruit 4654
19.00 €
3737348 AN-17202
5904422327095
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Boost type step-up converter with 5 V output voltage and 1 A current power. The input voltage should be from 0.5 V to 5.5 V. The minimum startup voltage is 1.8 V.
Specifications:
- Input voltage: from 0.5 to 5.5 V
- Minimum startup voltage: 1.8 V
- Two MOSFET transistors 47 mΩ (LS) / 68 mΩ (HS)
- Current limit up to 3.7 A
- Switching frequency 1 MHz with VIN at 1.5 V and 0.5 MHz with VIN from 1 V
- Quiescent current consumption: 0.1 µA
- Voltage accuracy ±2.5% at -40 °C to 125 °C temperature
- Low load automatic HFF mode
- Transition mode when input voltage is greater than output voltage
- Overvoltage and thermal protection
- Output short-circuit protection
- Dimensions: 17.8 x 11.3 x 5.6 mm
- Weight: 1 g
