Fermion, 3-axis accelerometer, I2C LIS2DW12, DFRobot SEN0405
3736175 AN-19909
5903351245487
Shipping 11-18 b.d.
All about the product

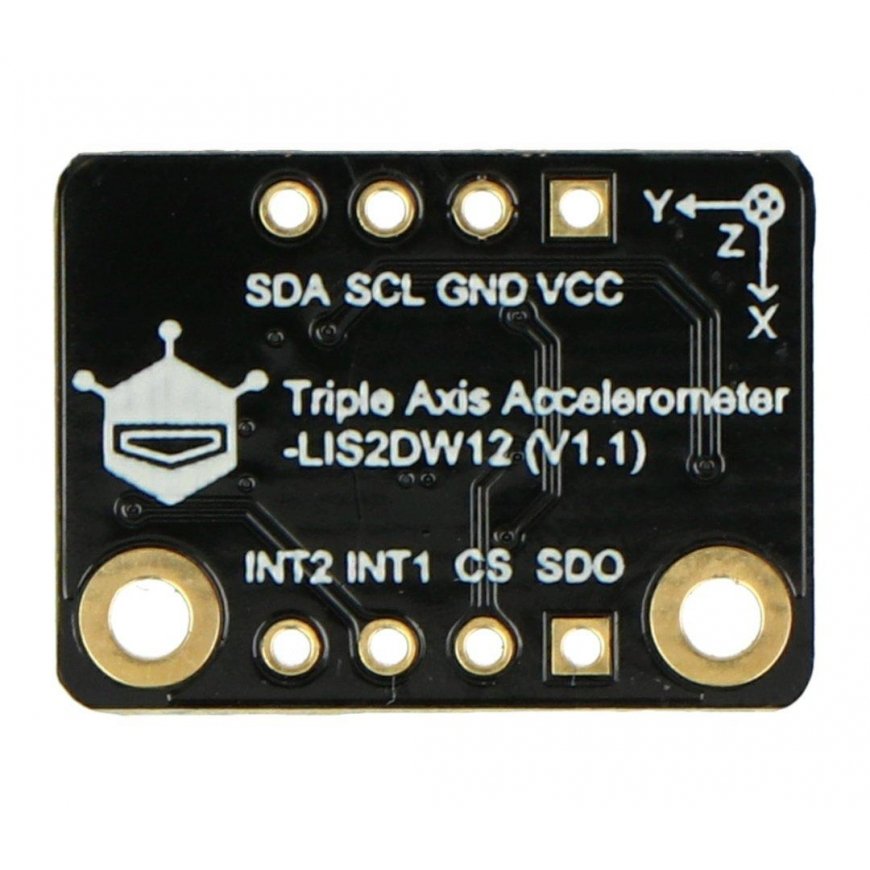

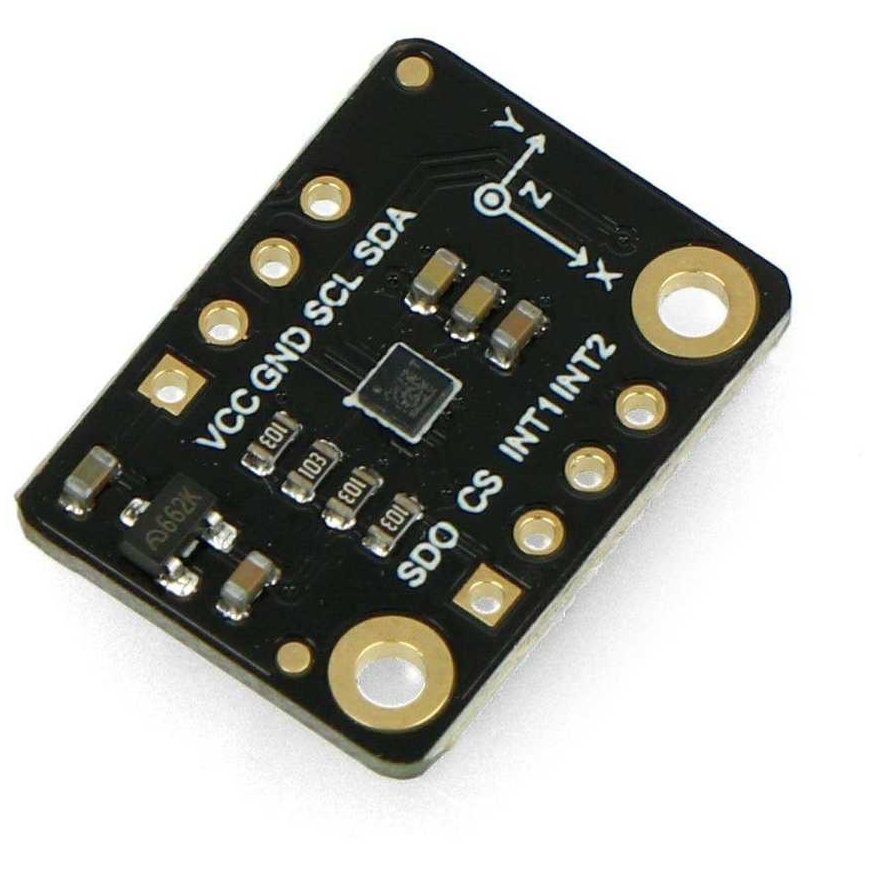

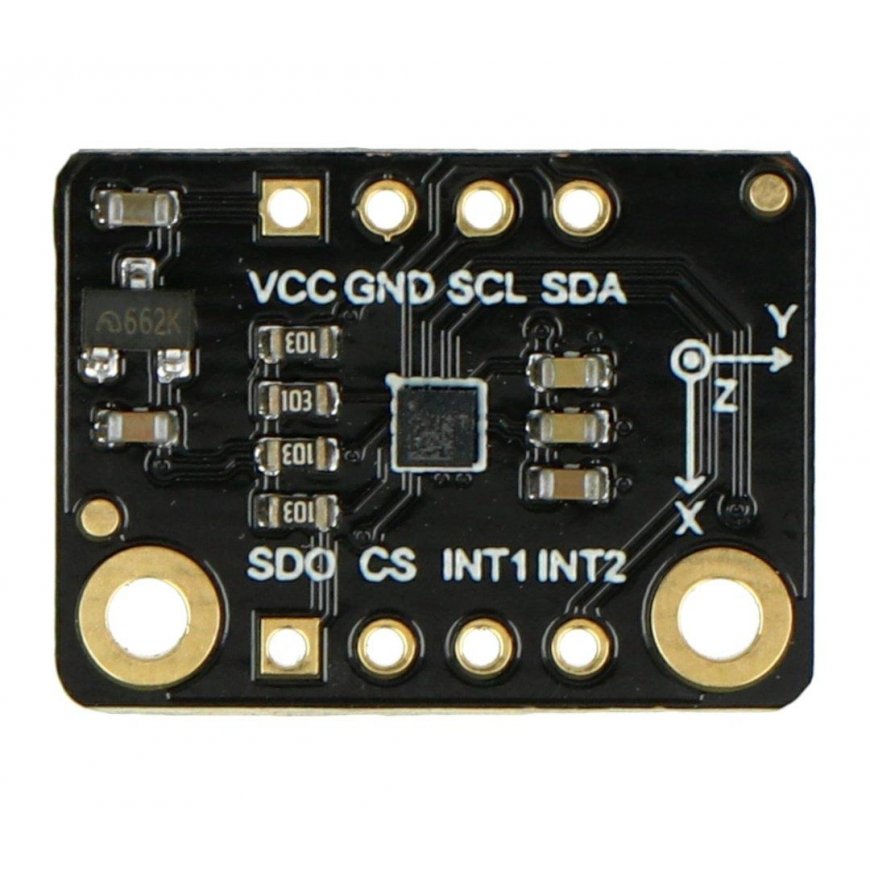

Fermion series module with a powerful 3-axis accelerometer LIS2DW12, manufactured by DFRobot. It features low power consumption (50 nA) and low noise. The module has selectable measurement scales (± 2 g / ± 4 g / ± 8 g / ± 16 g) and can measure acceleration with a data rate from 1.6 Hz to 1.6 kHz. It supports interaction via I2C interface and is powered by 3.3 V. The sensor has two independent programmable interrupt outputs and an internal circuit for motion and acceleration detection, free fall detection, and orientation determination, as well as single/double tap recognition.
Key features:
- Selectable measurement scale: ± 2 g / ± 4 g / ± 8 g / ± 16 g
- Two independent programmable interrupt outputs
- Intelligent sleep and wake-up function
- Free fall detection
- Special internal circuit designed to perform various functions such as 6D / 4D orientation detection, configurable single tap, double tap recognition, etc.
- Operating voltage: 3.3 V
- Operating current:
- 50 nA (low power mode)
- 0.17 mA (high performance mode)
- Interface: SPI / I2C
- I2C address: 0x19 (default address) / 0x18 (optional)
- Optional measurement scale: ± 2 g / ± 4 g / ± 8 g / ± 16 g
- Operating temperature: from -40 °C to 85 °C
- 16-bit data output
- Frequency: from 1.6 Hz to 1600 Hz
- Very low noise level: 1.3 mg RMS (low power mode)
- 32 levels FIFO
- Shock resistance 10000 g
- Module dimensions: 15 mm x 20 mm

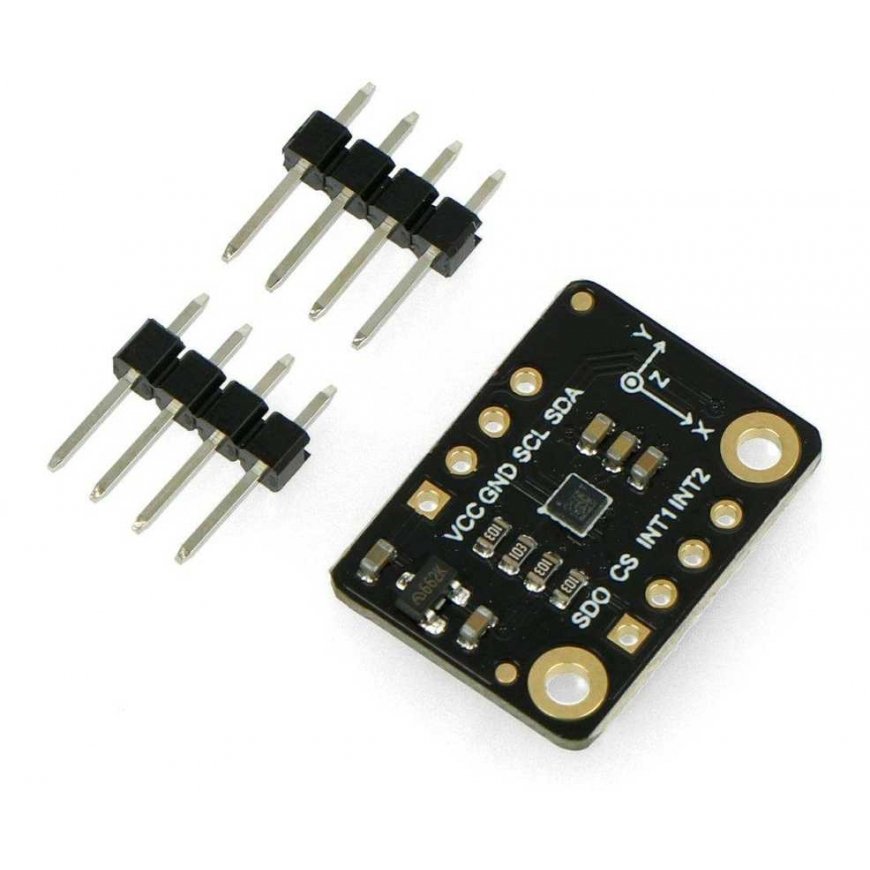

- 1x Fermion - I2C LIS2DW12 3-axis accelerometer
- 2x 4-pin gold pin connector - 2.54 mm
