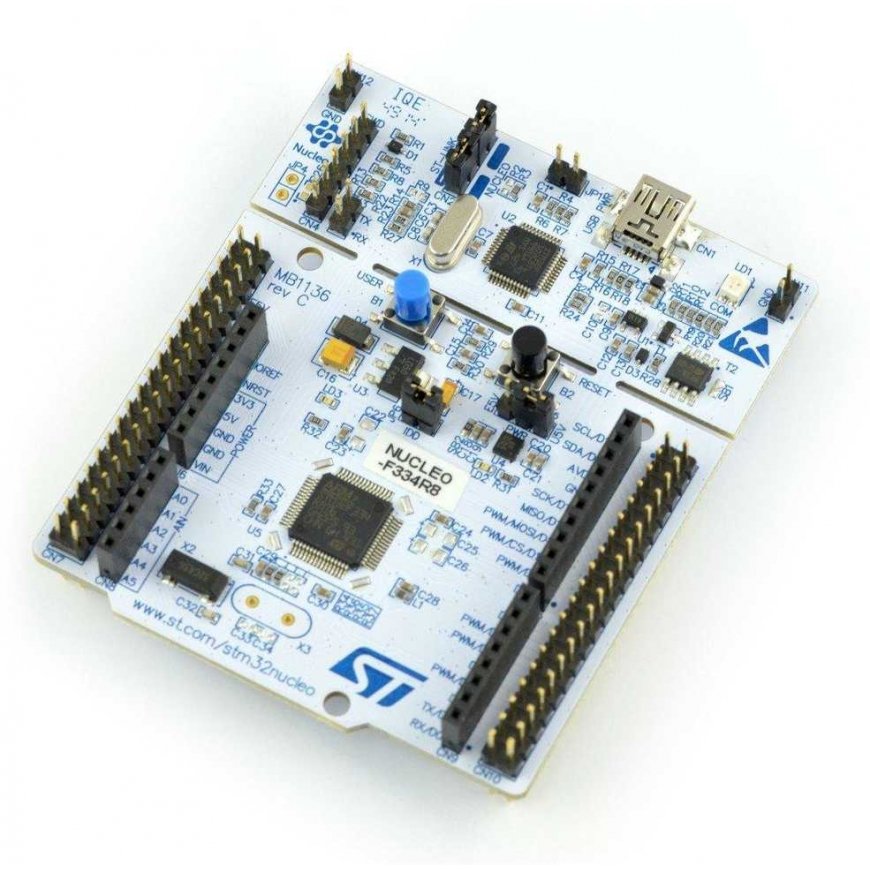

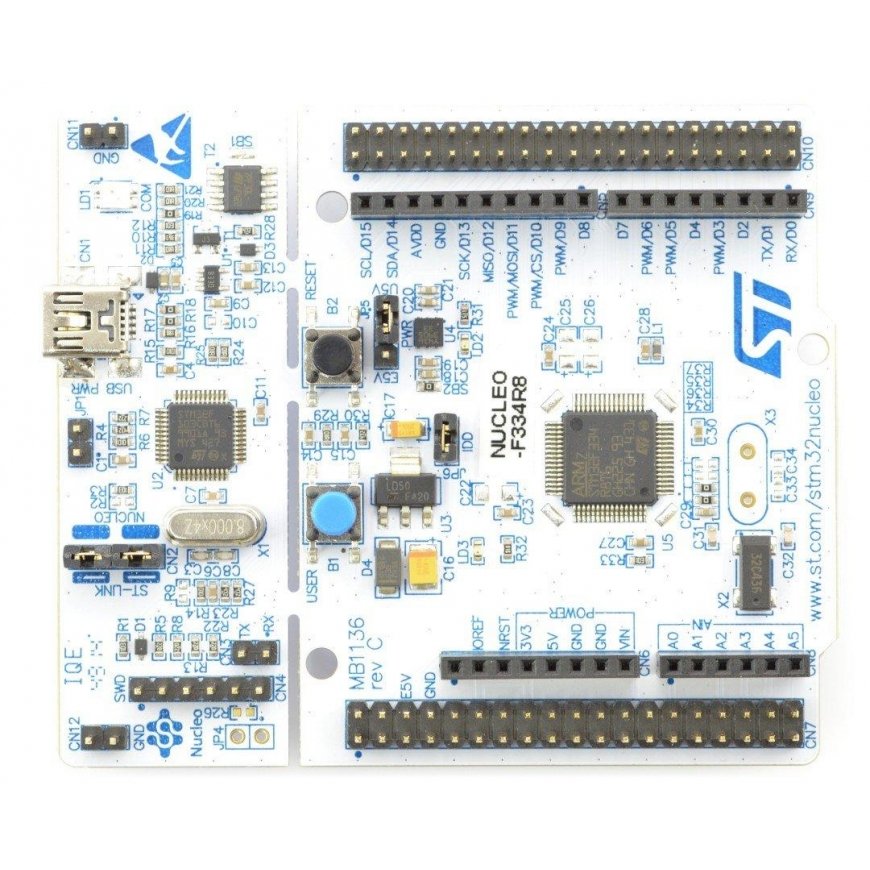

Stmicroelectronics STM32 NUCLEO-F334R8 module - STM32F334R8T6 ARM Cortex M4
69.01 €
Monthly payment from 2,68 €
3735505 AN-03499
5904422364922
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with a 32-bit microcontroller with ARM Cortex M4, 72 MHz, 64 KB Flash, 12 KB SRAM. Nucleo is compatible with the mbed platform and has connectors for Arduino shield connection.
Specifications:
- Microcontroller: STM32F334R8T6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 72 MHz
- Flash memory: 64 KB
- SRAM: 12 KB
- Analog-to-digital converter: 12 bits, 21 channels
- Digital-to-analog converter: 12 bits, 3 channels
- Number of timers: 9
- Number of programmable inputs/outputs: 51
- Interfaces: 1x I2C, 3x USART, 1x SPI, USB, CAN
- Two types of connectors:
- Shield connectors compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho provide access to microcontroller pins
- Module is compatible with the mbed system (mbed.org)
- Debugger ST-Link/V2 is mounted on the board with the ability to operate as a standalone device with SWD output
- Ability to power through USB connector
- Three embedded LEDs:
- 1 x for power voltage indication
- 1 x for connection indication
- 1 x for user indication
- Two buttons:
- 1 x RESET
- 1 x for user indication
- Three different interfaces via miniUSB connector (USB enumeration):
- Virtual COM port
- Mass storage
- Programming/debugging port
- Module supports most popular environments, e.g.: IAR, Keil, and platforms based on GCC compiler
