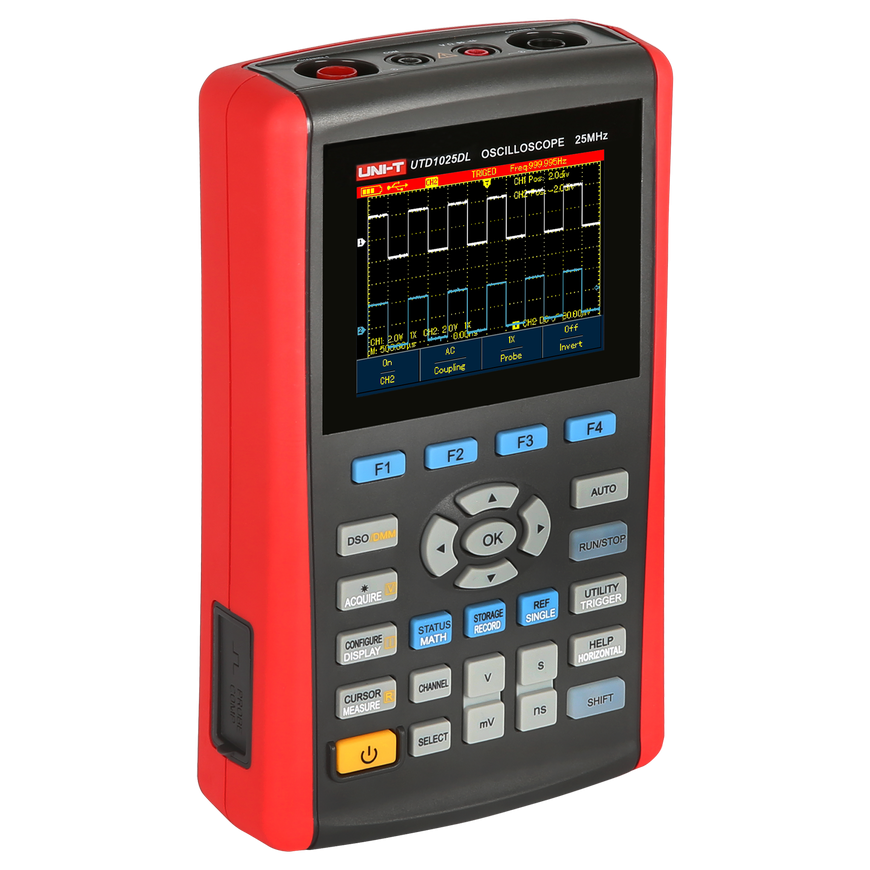

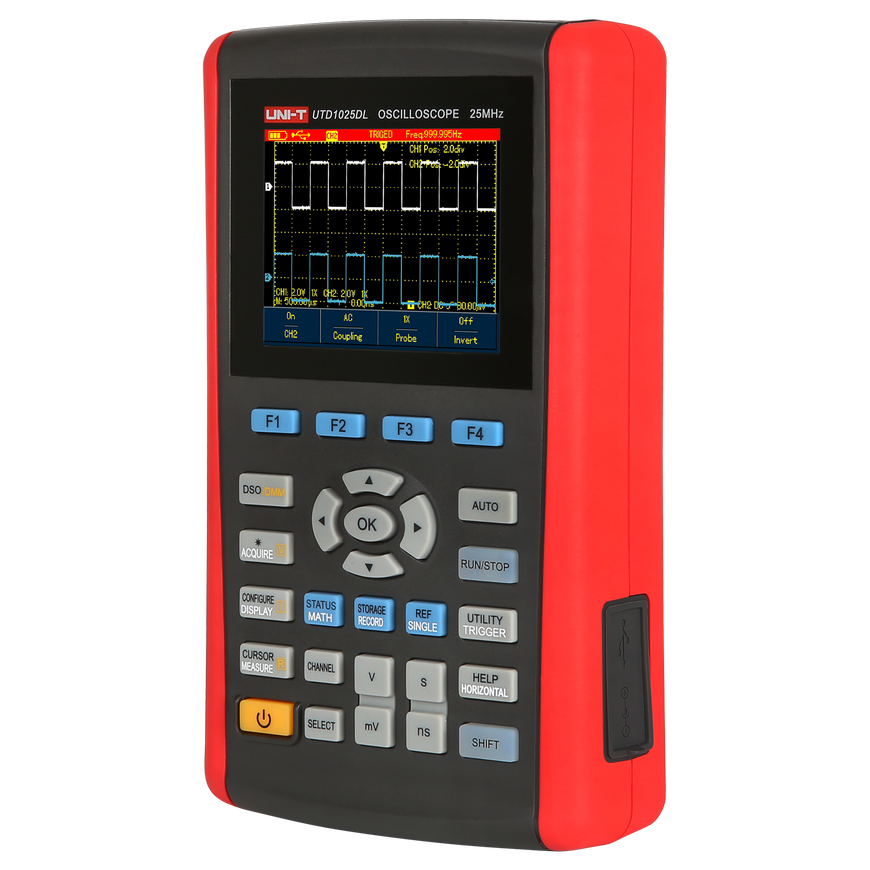

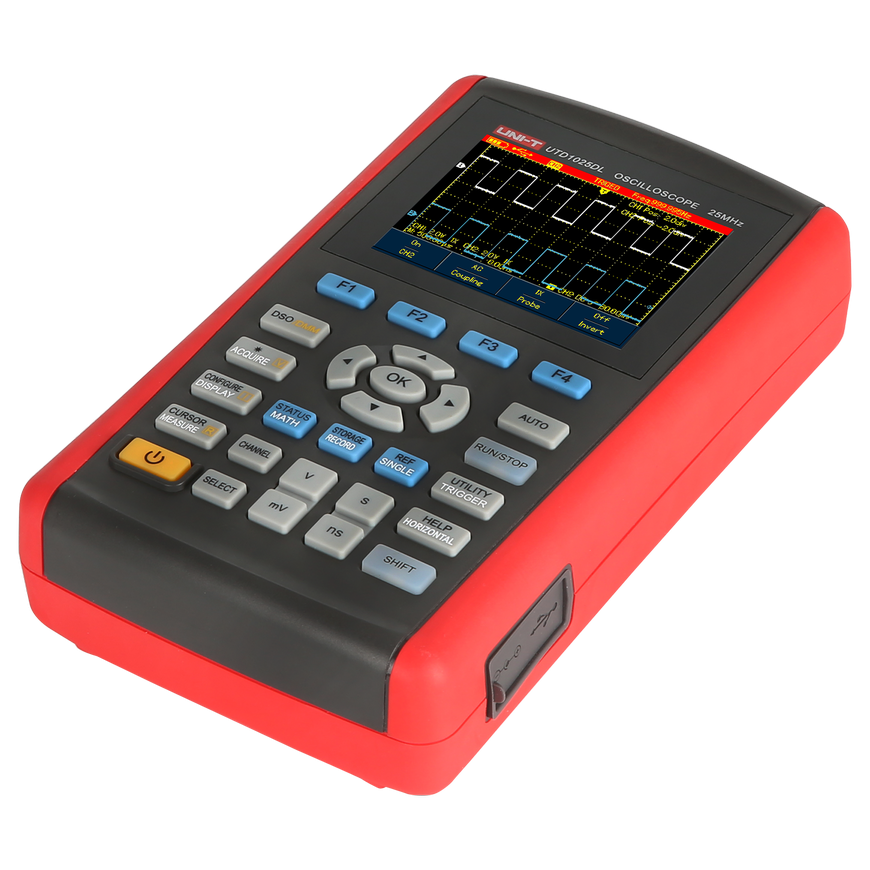

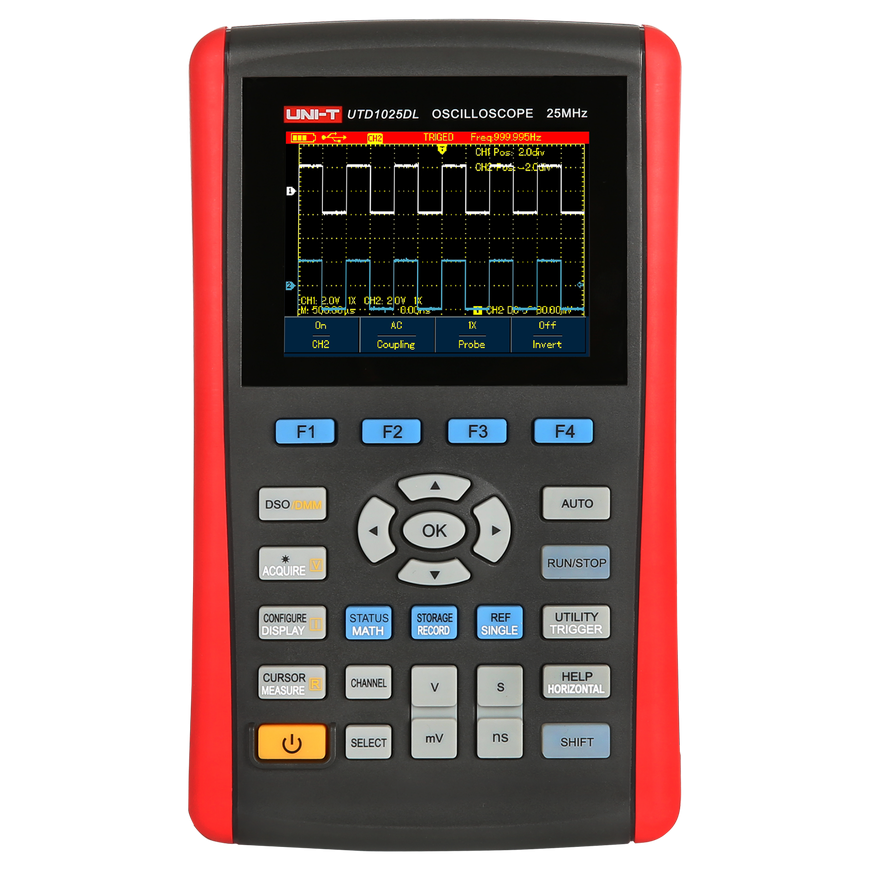

Uni-T UTD1025DL Oscilloscope
3735389 MIE0520
5901890121699
Shipping 9-13 b.d.
All about the product
-----------
MAIN PARAMETERS
------------
Analog bandwidth: 25 MHz
Number of channels: 2
Rise time: <= 14 ns
Sampling rate: 250 MS/s
Memory depth: 12 kpts
Time base: 10 ns/div ~ 50 s/div
Vertical sensitivity: 5mV/div ~ 20V/div
Recording methods: setup, waveform, bitmap
Trigger methods: edge, pulse width, slope, video
Waveform operations: FFT
Automatic measurements: peak to peak, amplitude, maximum, minimum, maximum, low, average, mean, RMS, pre-trigger, frequency, period, rise time, fall time, positive/negative pulse, duty cycle
Frequency window: 6 bits
Interfaces: Mini USB
------------
MEASUREMENT RANGES
------------
DC voltage: 400 mV / 4 V / 40 V / 400 V ± (1% + 5)
AC voltage: 400 mV / 4 V / 40 V / 400 V ± (1.2% + 5)
DC current: 400 µA/ 4000 µA/ 40 mA/ 4000 mA/ 4 A ±(1 %+5)
AC current: 400 µA/ 4000 µA/ 40 mA/ 4000 mA/ 4 A ± (1.5 %+5)
Resistance: 400 ohms / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm ± (1.2% + 5)
Capacitance: 51.2 nF/ 512 nF/ 5.12 µF/ 51.2 µF/ 100 µF ± (3 %+5)
------------
GENERAL SPECIFICATIONS
------------

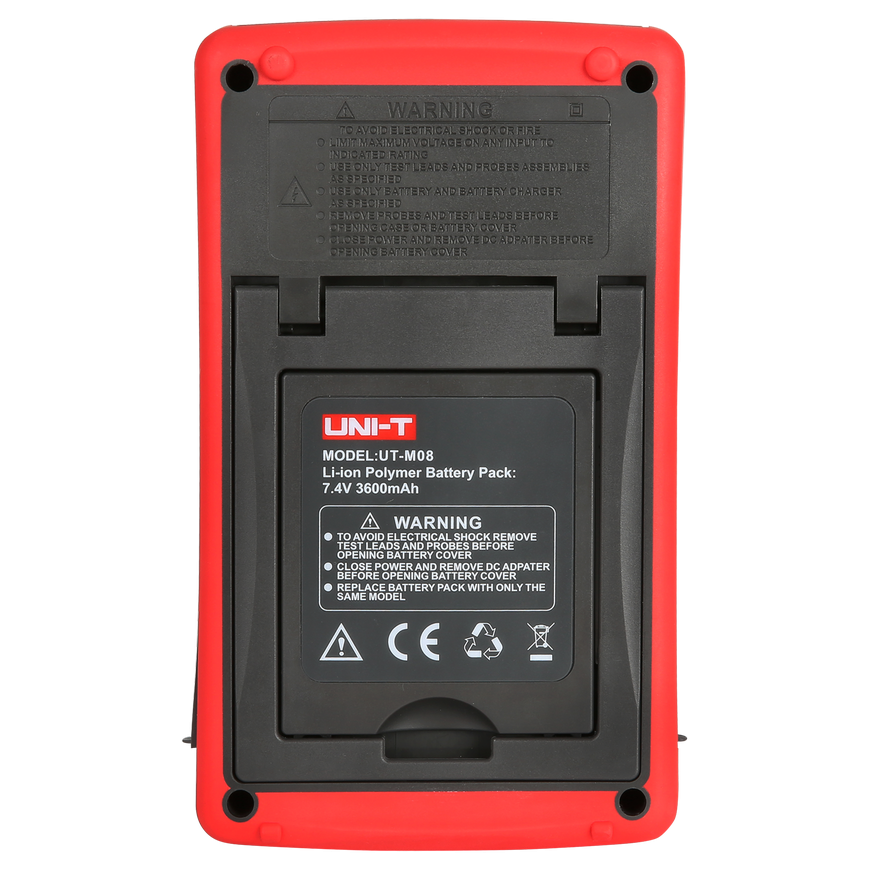

Power: 7.4V 3600mAh lithium-ion battery; 100V ~ 240V AC, 50Hz/60Hz
Display: 3.5 inch TFT LCD (320x240 px)
Dimensions: 199 x 118 x 49 mm
Weight: 0.9 kg
Accessories: power cable, test leads, test probe, USB cable, power supply, current measurement adapters
