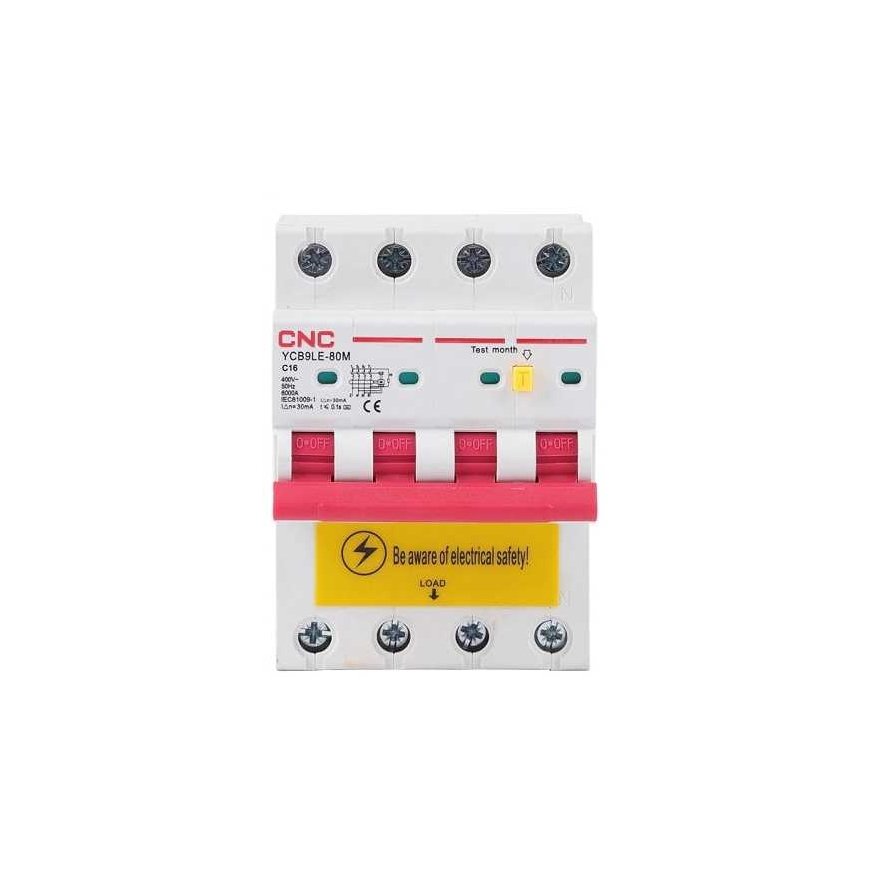

CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA
CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA
CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA
CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA
CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA
CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

CNC Leakage relay with automatic switch, 4P, 16A, Class C, 30mA, 6kA

37,55 €
36,35 €
Monthly payment from 1.84 €
3735191

NV821921

6942034324100

Shipping 2-4 days

Quantity

You are interested in this product?
(Read terms of service)
Leakage relay with automatic switch, 4 contacts, 16A, class C, 30mA, 6kA


Features:
The leakage relay with automatic switch protects a person from dangerous life-threatening electric shock and electrical circuits from short circuits, overloads, and fire hazards.
The leakage relay is used in damp areas where electrical installations are not reliably protected (in bathrooms, kitchens, outdoors, garages, for electric heaters, pumps, etc.).
Safe terminal block.
Flame resistance, high temperature, and impact resistance.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Note: the leakage relay must be regularly tested at least once a month.


Technical data:
Number of contacts: 4.
Rated current (In): 16 A.
Class: C.
Rated voltage (Ue): AC 230 V.
Permissible leakage current: 30mA.
Response time:
Insulation voltage (Ui): 500 V.
Frequency: 50/60 Hz.
Rated short-circuit breaking capacity (Icn): 6000 A.
Rated impulse withstand voltage (Uimp): 4000 V.
Mechanical lifespan: 10000 cycles.
Electrical lifespan: 4000 cycles.
Protection class: IP20.
Connection type: cable / pin-type busbar.
Wire / busbar cross-section area: up to 35mm².
Connection: from above.
Installation: on DIN rail EN 60715 (35mm).
Operating temperature: -25°C~+70°C.
Dimensions: 82 x 72 x 78 mm.
Standards: IEC 61009-1 / EN 61009-1.


Warranty:24 months.
