Uninterruptible Power Supply UPS, Jetson Nano power module, 5V, Waveshare 18307
39.02 €
Monthly payment from 1,90 €
3733854 AN-19045
5904422366704
Shipping 11-18 b.d.
You are interested in this product?
All about the product

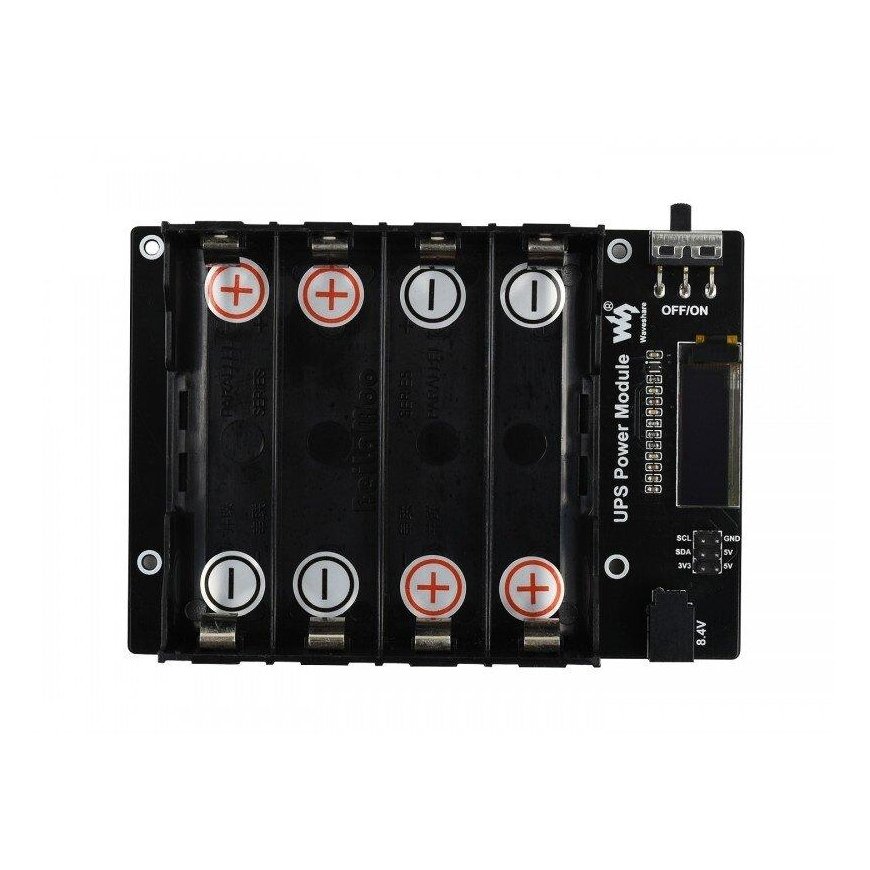

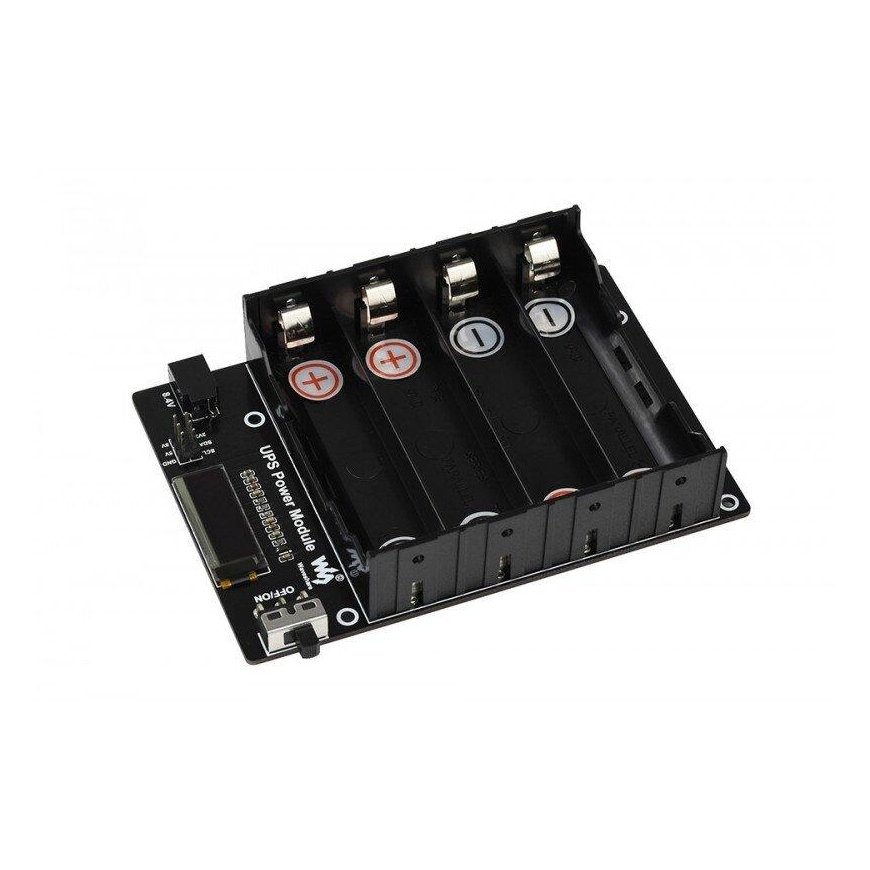

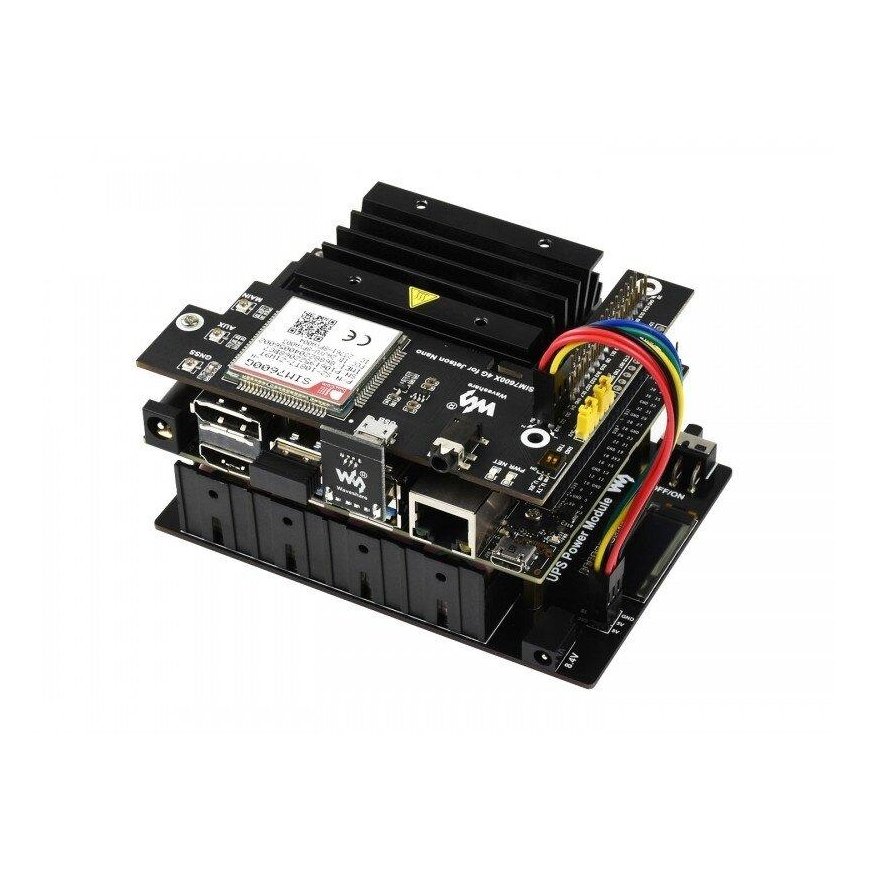

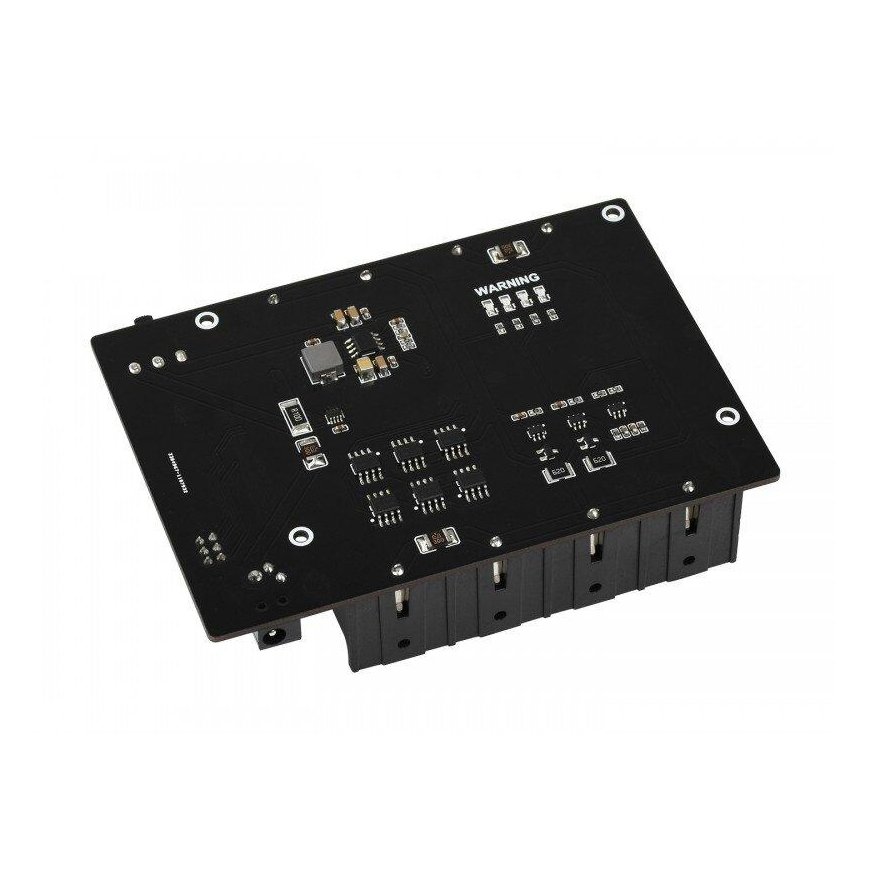

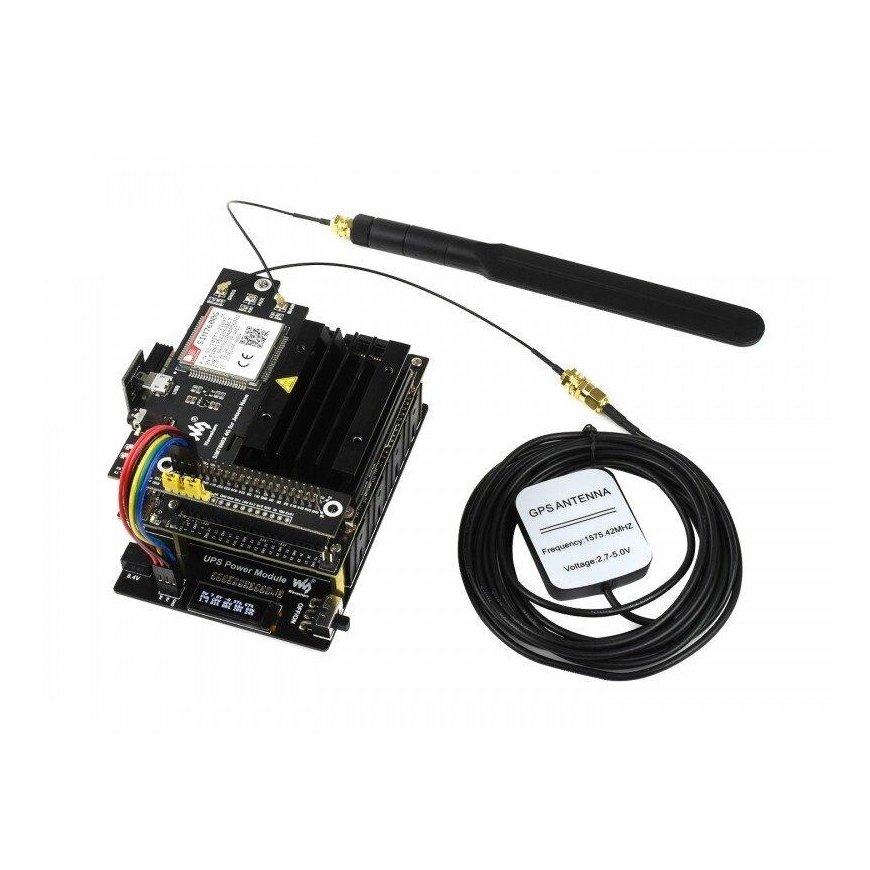

UPS module designed for Jetson Nano. It provides additional power and allows the Jetson Nano to be used while traveling or if another power source fails. The module has space for four 18650 lithium-ion battery cells, has an additional power on/off button for conveniently turning the Jetson Nano on and off. Additionally, the front of the module features a 0.91” display showing battery values, voltage, IP address, or RAM consumption.
Main features:
- Connection using I2C interface
- Integrated 0.91” display showing parameters such as battery level, IP address, and RAM memory usage
- Includes overcharge and over-discharge protection, overcurrent protection, short circuit protection, reverse battery protection, and balancing charging function
- Built-in 5 V regulator
- Equipped with a USB port, allowing convenient power supply to other boards, not just Jetson Nano
- The panel has a power on/off button, allowing manual control of the Jetson Nano
- The kit includes necessary programming resources and user manual
- Output voltage: 5 V
- Supply parameters: 8.4 V / 2 A
- Interface: I2C
- Supported battery: 18650 lithium-ion (not included)
- Number of cells: 4
- Port: Type A USB
- Dimensions: 113 x 79 mm
- Mounting hole diameter: 2.5 mm
