The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

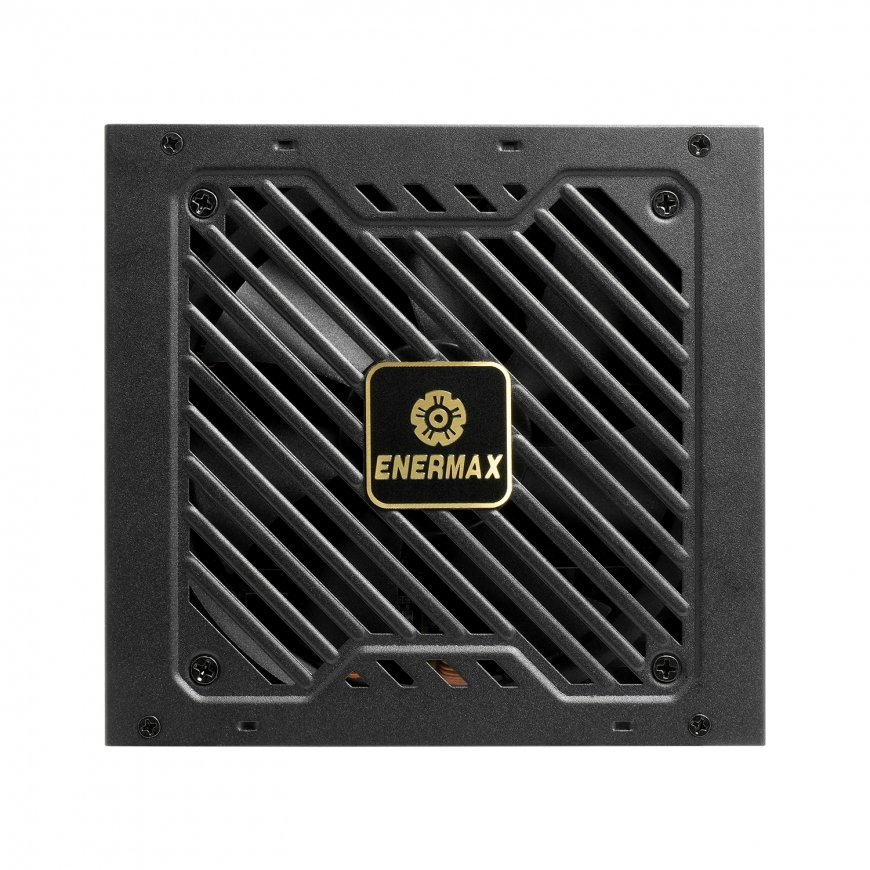

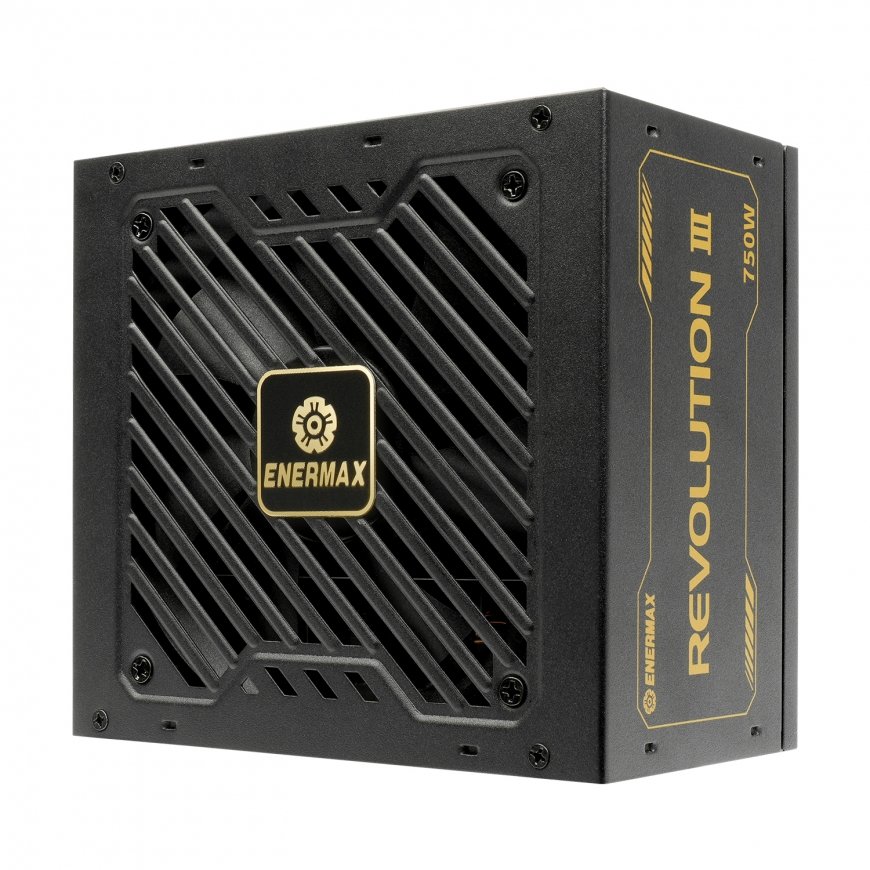

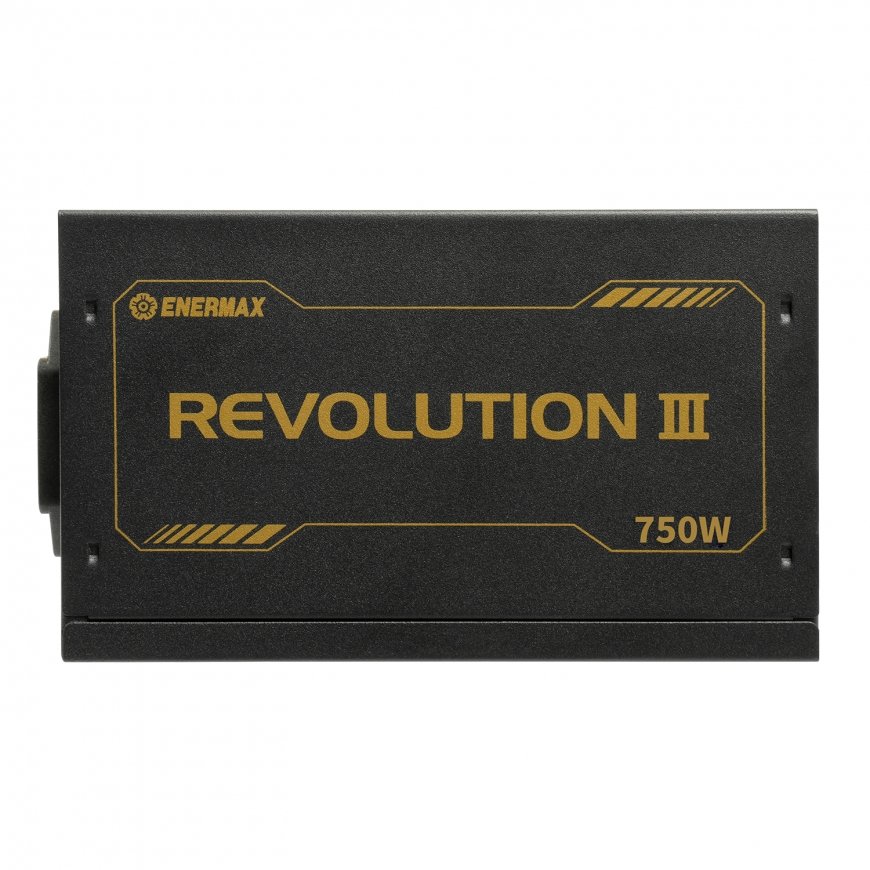

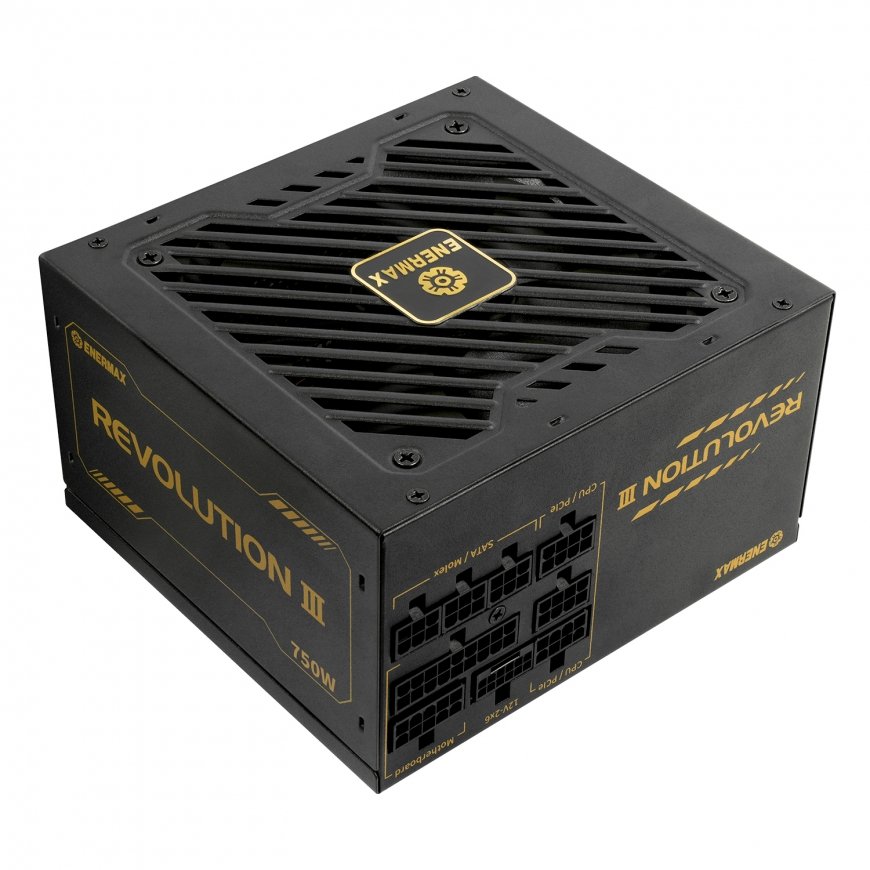

Enermax ERV750G-AHG-MAC power supply unit 750 W 20+4 pin ATX ATX Black
119.00 €
Monthly payment from 3,96 €
3731599 ERV750G-AHG-MAC
4713157728869
Shipping 15-16 b.d.
You are interested in this product?
All about the product
80 PLUS® GOLD CERTIFIEDREVOLUTION III 750W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
REVOLUTION III 750W power supply meets the Intel ATX 3.1 standards to ensure top-notch performance of power hungry graphics cards.
100% JAPANESE CAPACITORS
REVOLUTION III 750W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
FLUID DYNAMIC BEARING FAN
The F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
REVOLUTION III 750W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.
PREMIUM MESH-SLEEVED CABLES
The REVOLUTION III 750W power supply features premium individually mesh-sleeved cables with cable combs for a clean and organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
CABLE AND POWER AS YOU NEED

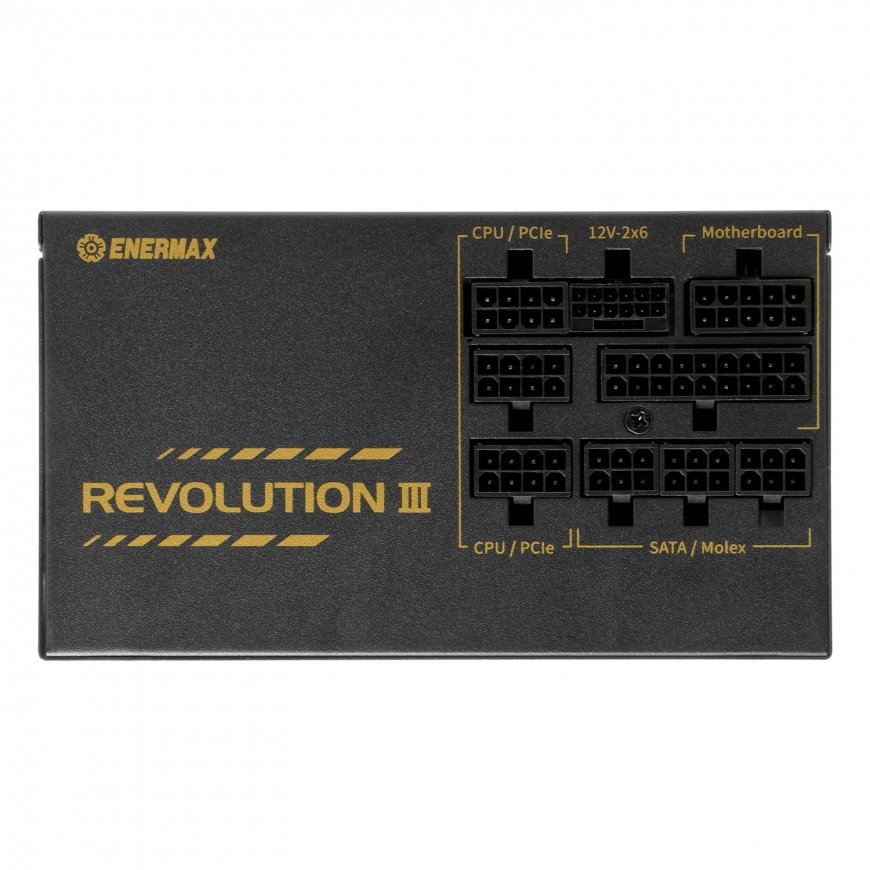

Only connect the cable you need with fully modular design
Power | |
| Input current | 10-6 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 748.8 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.4 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 62.4 A |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
Ports & interfaces | |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 1.5 kg |
| Package height | 110 mm |
| Package width | 190 mm |
| Package depth | 310 mm |
