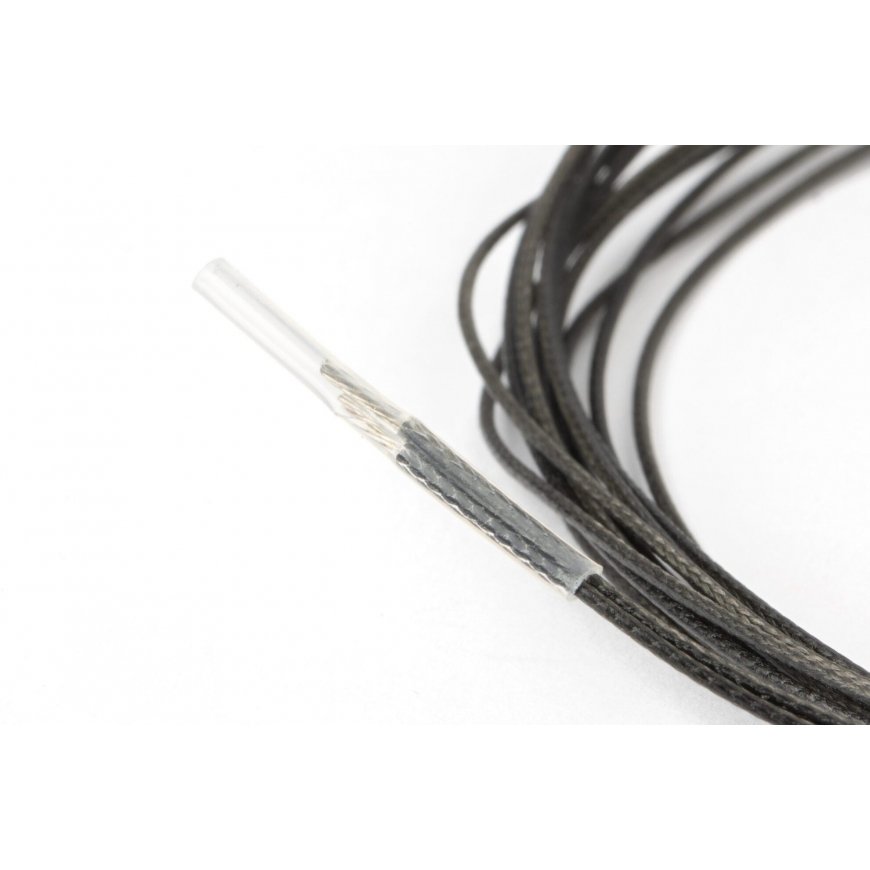

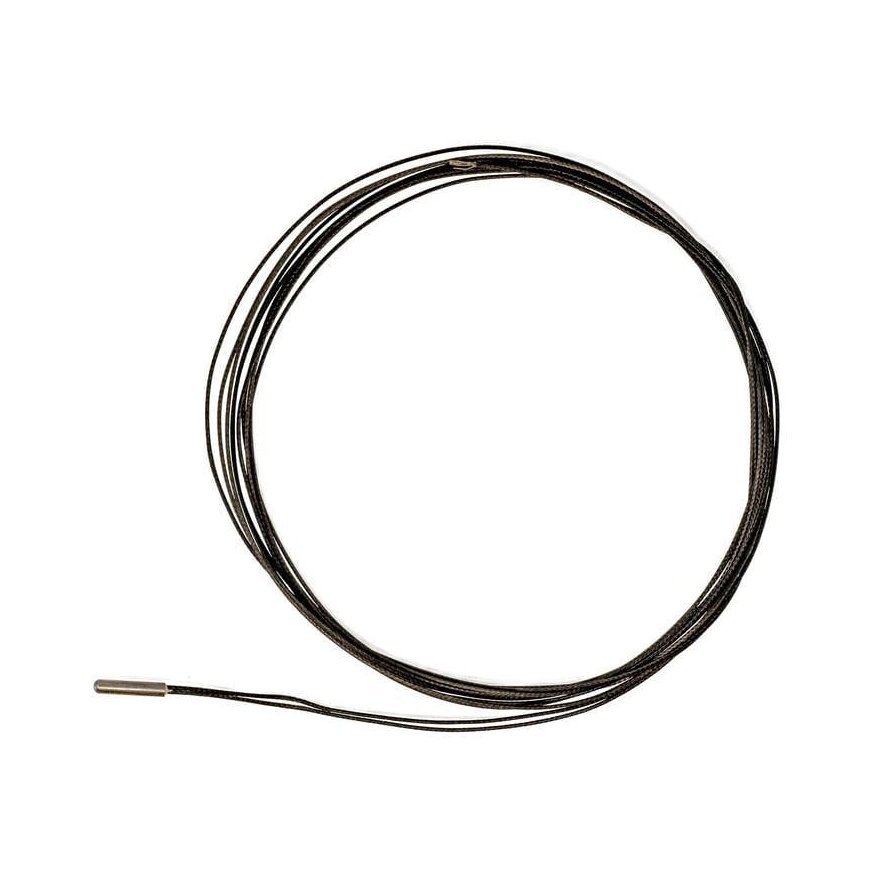

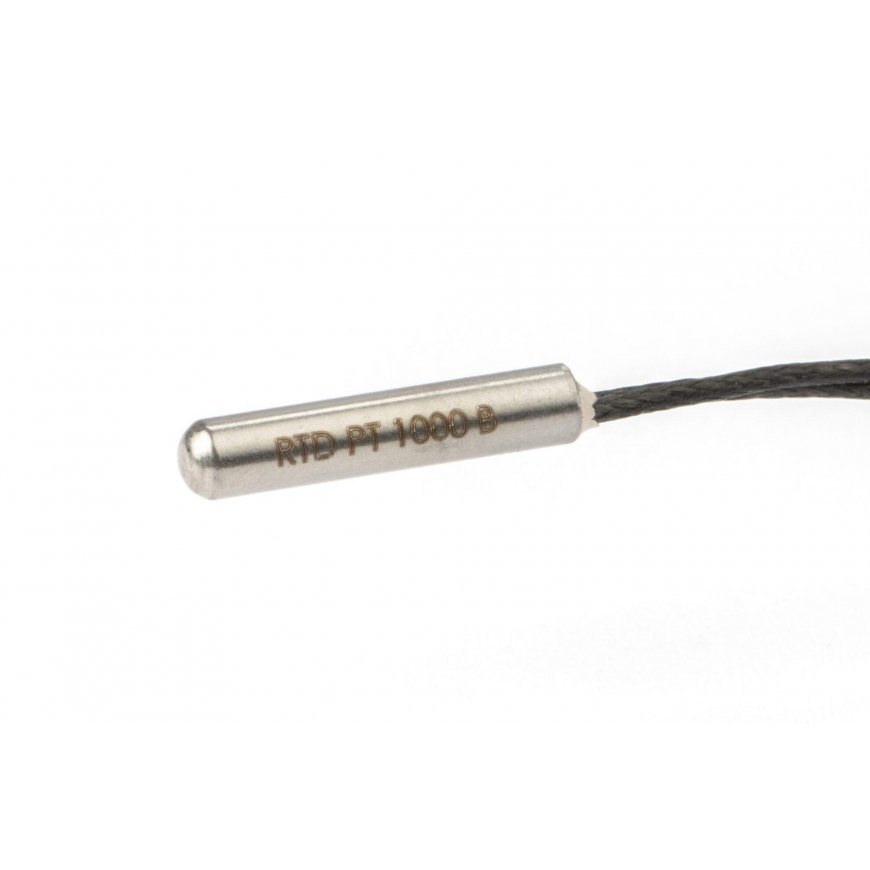

Slice Engineering PT1000 RTD 500 °C temperature sensor
59.00 €
Monthly payment from 2,42 €
3731396 PRM-8259
0850005423461
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The PT1000 resistance temperature detector (RTD) uses a platinum resistor. Platinum has a high and stable resistance to metal and a low temperature coefficient. Platinum resistors allow for easy and accurate measurement of even the smallest temperature changes. Platinum also has advantages as it does not react with many airborne pollutant gases and has very consistent properties in each batch. For these reasons, it has become the standard for temperature sensing accuracy.
Key features:
- Accurate from freezing (-50 °C) to rapid boiling (500 °C)
- Fully linear temperature response improves sensing accuracy across the range
- Practically eliminates lead measurement error typical of Pt100 sensors
- Very accurate, IEC 60751 Class B tolerance (+/- 0.3 +0.005 |t| °C)
- 15 mm long, 3 mm diameter sensor cartridge
- 2 m long bare wires allow easy adaptation to any 3D printer
- 300 series stainless steel cartridge, which enhances durability
- Robust thin-film design sensor
- Made in the USA
