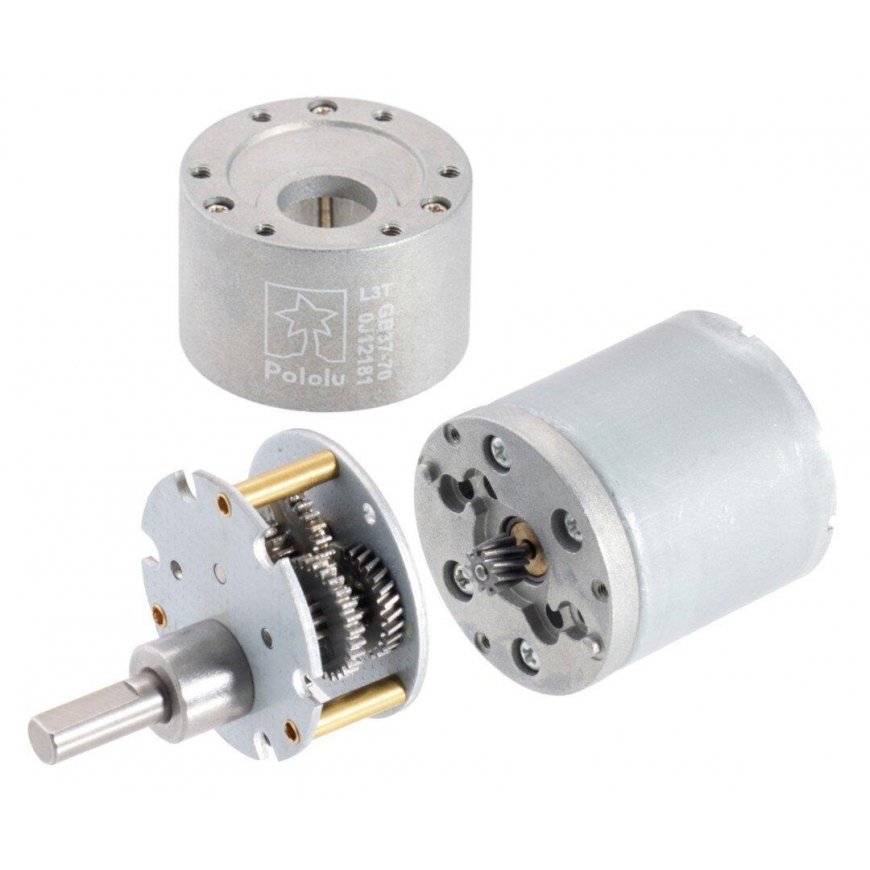

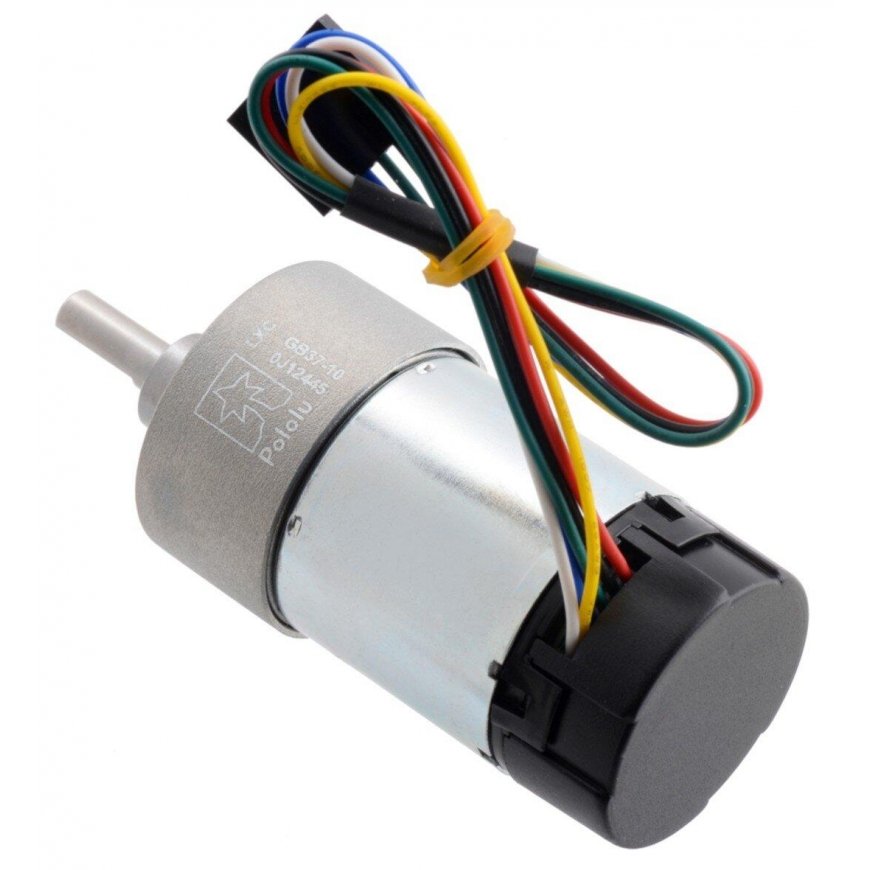

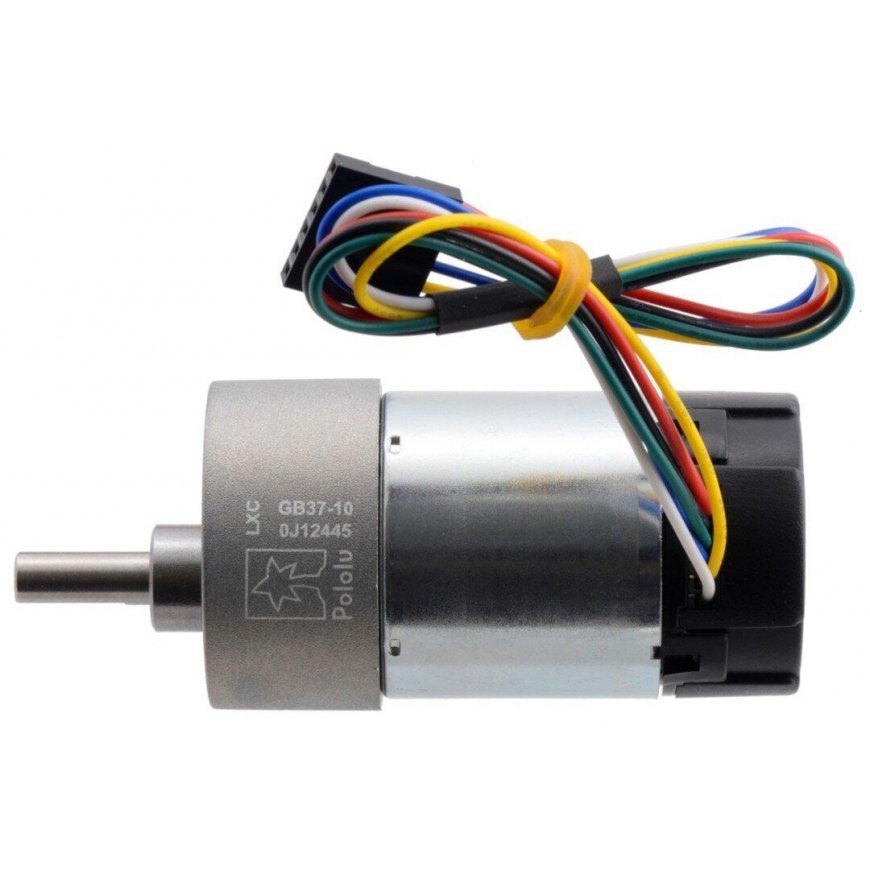

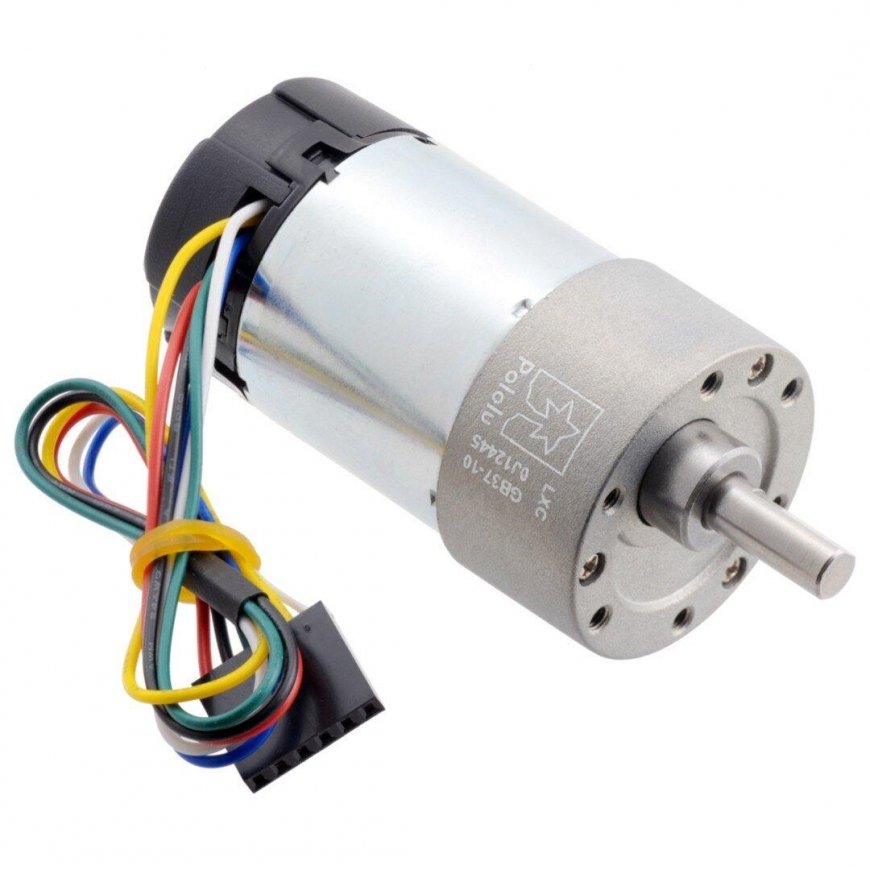

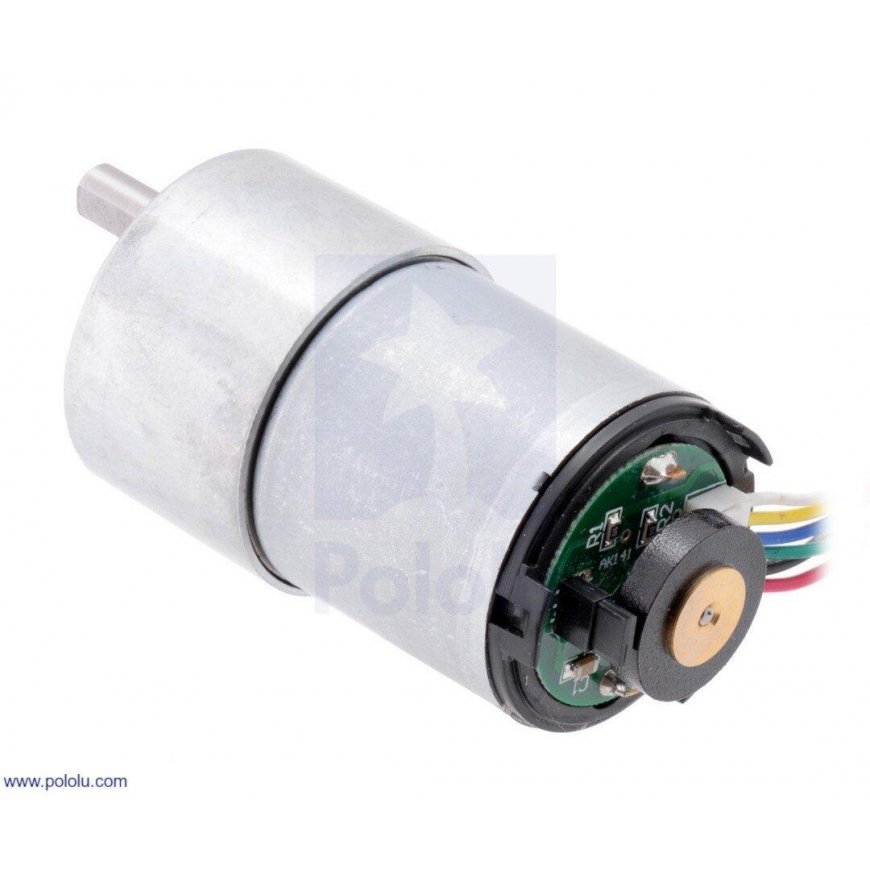

10: 1 gear motor 37Dx65L 24V 1000RPM + CPR 64 encoder - Pololu 4699
88.99 €
Monthly payment from 3,19 €
3730896 AN-17536
5904422327774
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The “Polol” motor has a 10:1 transmission, generates 1000 RPM, and the torque is 5.5 kg * cm. It is powered by a 24 V voltage, and the average current consumption is about 100 mA. It features a CPR 64 encoder, generating 64 pulses per revolution of the motor shaft.
Specification:
- Supply voltage: 24 V
- Encoder operating voltage: 3.5 V - 20 V
- Encoder resolution: 64 pulses per revolution
- Gearbox: 10:1
- Average current consumption at 24 V: 100 mA
- Maximum power consumption at 24 V: 3000 mA
- 24 V supply speed: 1000 RPM
- Torque at 24 V supply: 5 * 5 kg * cm
- Dimensions: 65 x 37 mm
- Shaft diameter: 6 mm
- Weight: 190 g
