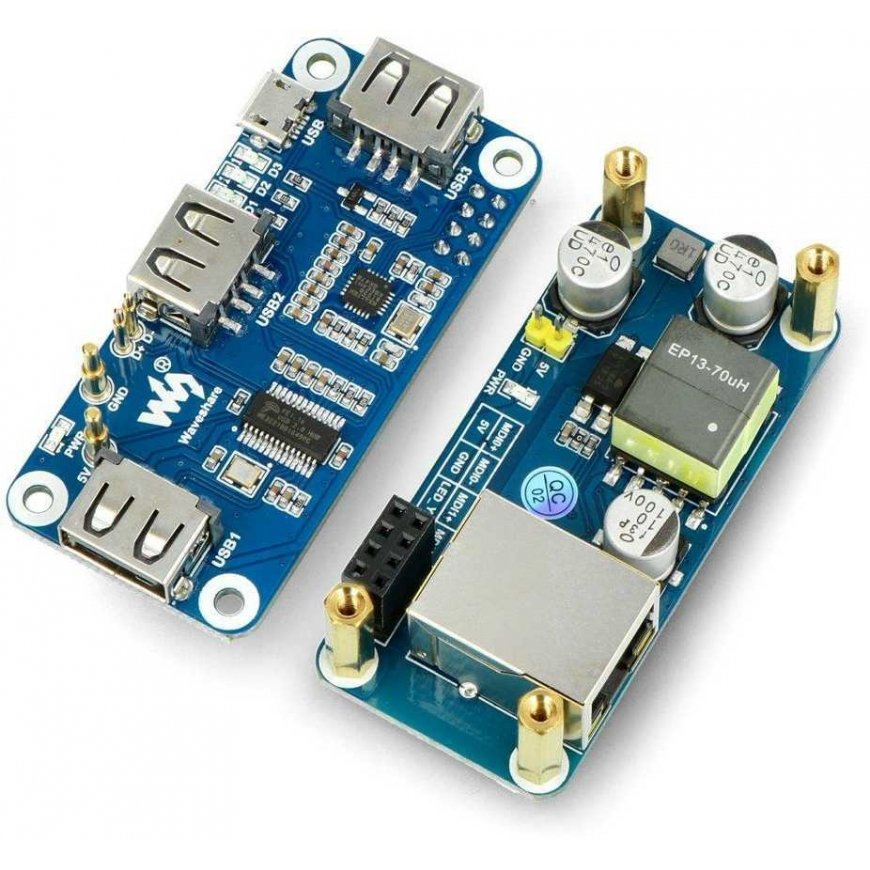

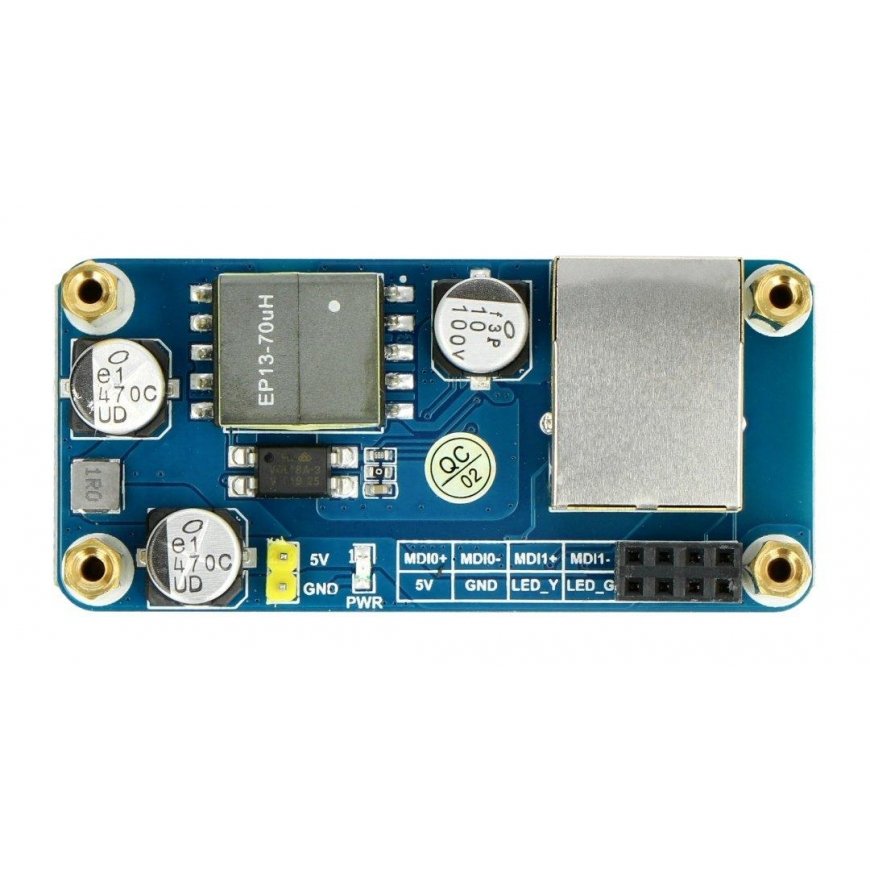

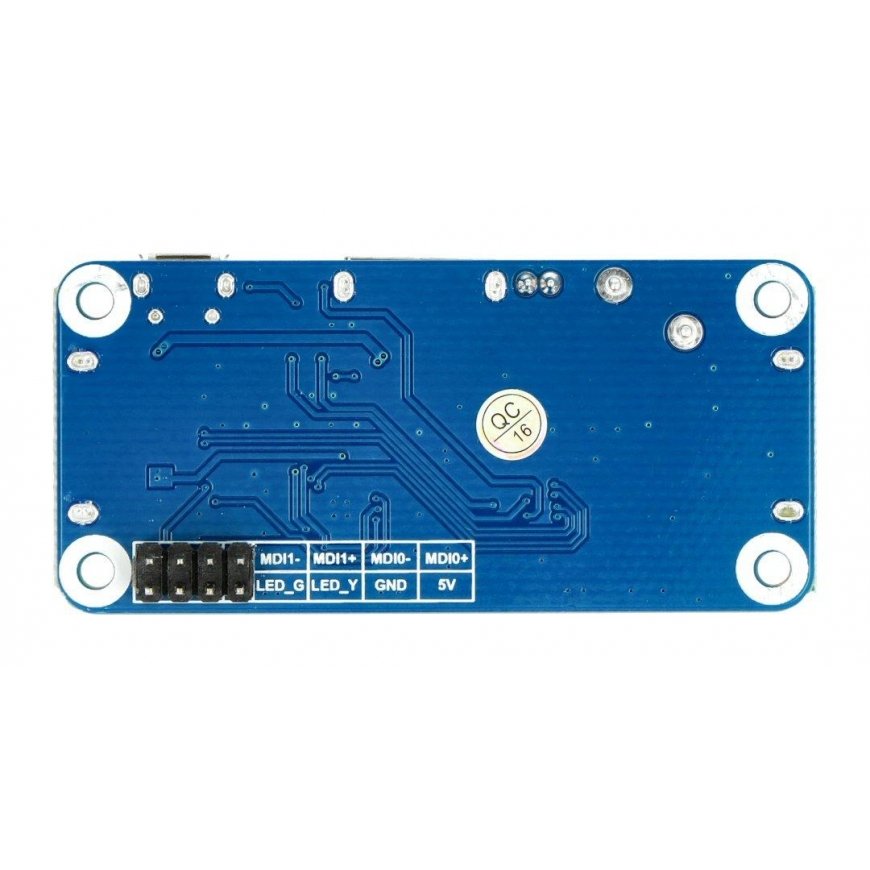

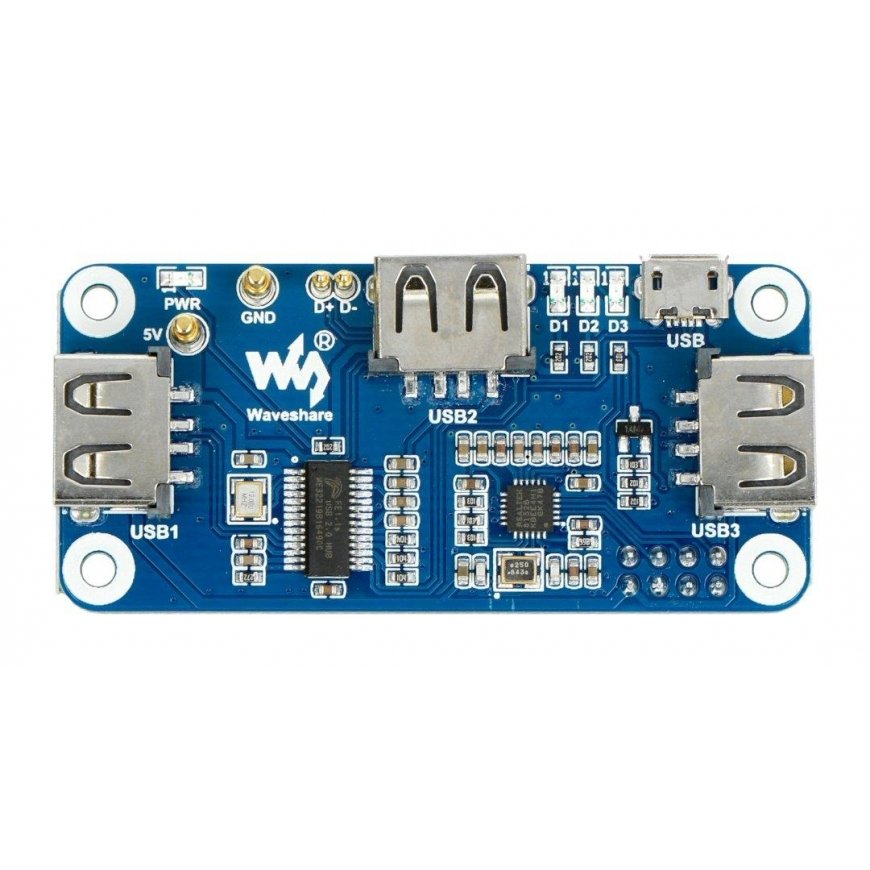

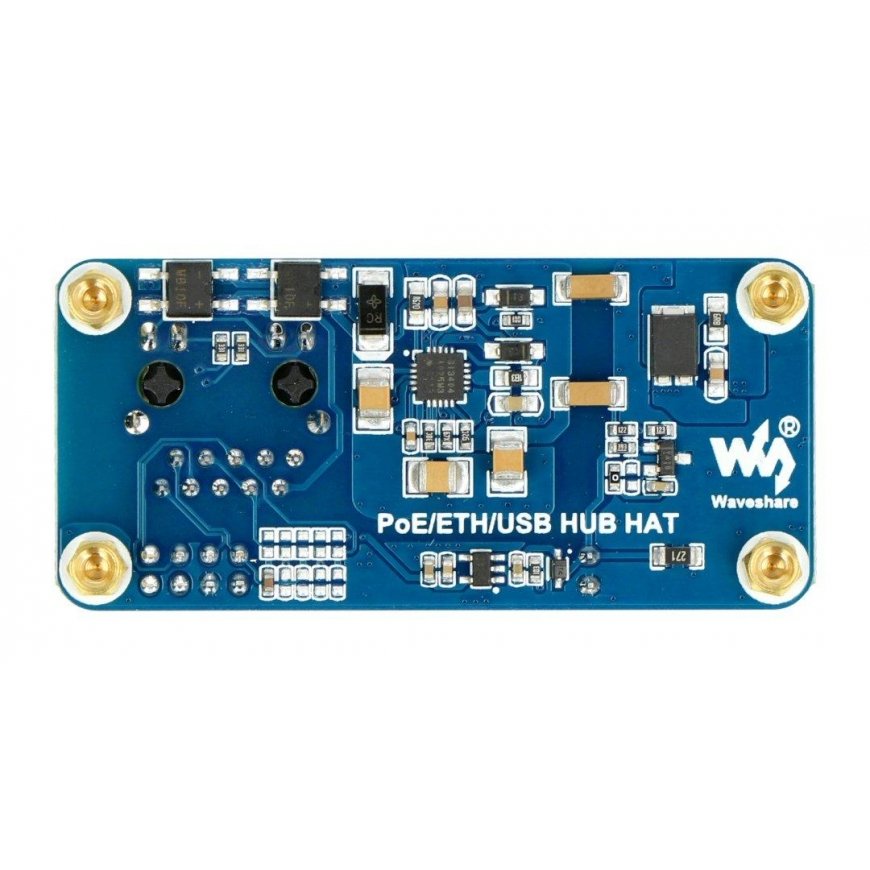

PoE Ethernet/USB HUB HAT, designed for Raspberry Pi Zero - Waveshare 19635
39.00 €
Monthly payment from 1,90 €
3730567 AN-20112
5904422380229
Shipping 11-18 b.d.
You are interested in this product?
All about the product
An add-on that combines the functions of a USB hub and a PoE power source. Designed by Waveshare, the module based on the RTL8152B chip expands the functionality of the Raspberry Pi Zero with 3 USB 2.0 ports and one 10/100 Mb Ethernet port with PoE 802.3af support - power over Ethernet. The add-on works with any version of the Raspberry Pi Zero.
Main features:
- Designed for Raspberry Pi Zero series mini computers
- Based on the RTL8152B chip with RJ45 10/100 Mbps port
- Supports PoE, compatible with 802.3af
- 3 USB ports, compatible with 2.0 / 1.1 standard
- PoE input voltage: from 37 V to 57 V DC
- Output voltage: 5 V / 2.5 A
- Network standard: IEEE 802.3af
- Dimensions: 23.1 x 65 mm
- Raspberry Pi Zero add-on
- Set of screws and spacers
- Screwdriver
