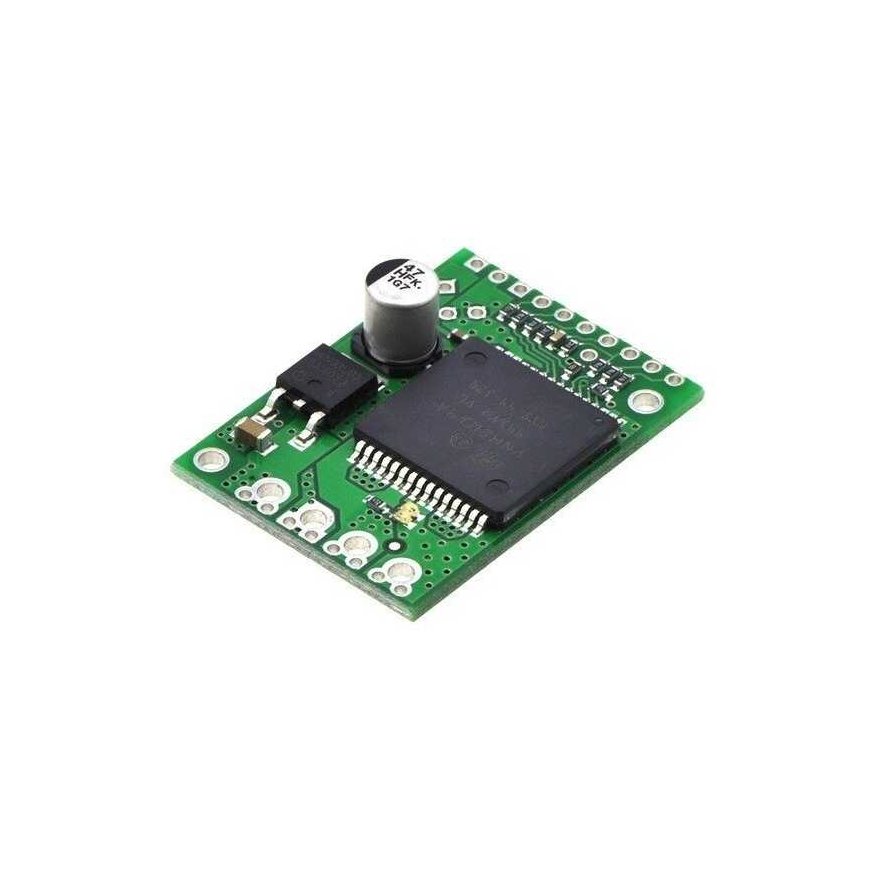

VNH5019, single channel 24V/12A motor driver, Pololu, 1451
39.00 €
Monthly payment from 1,90 €
3729933 AN-00456
5904422308582
Shipping 8-15 b.d.
You are interested in this product?
All about the product
The module with a single channel H VNH3SP30 bridge from ST allows controlling motors with a voltage range of 5.5 V to 24 V, with continuous current consumption up to 12 A, and peak up to 30 A. The system allows changing the motor's rotation direction and speed control via a PWM signal.
Specifications:
- Supply voltage: 5.5 V - 24 V
- Continuous output current: 12 A
- Maximum peak current: 30 A
- PWM frequency: up to 20 kHz
- Current measurement output
- LED indicators
- Protection features
- Against incorrect connection of the power supply
- While the supply voltage is not too high or too low
- Against short circuit to ground and power supply voltage

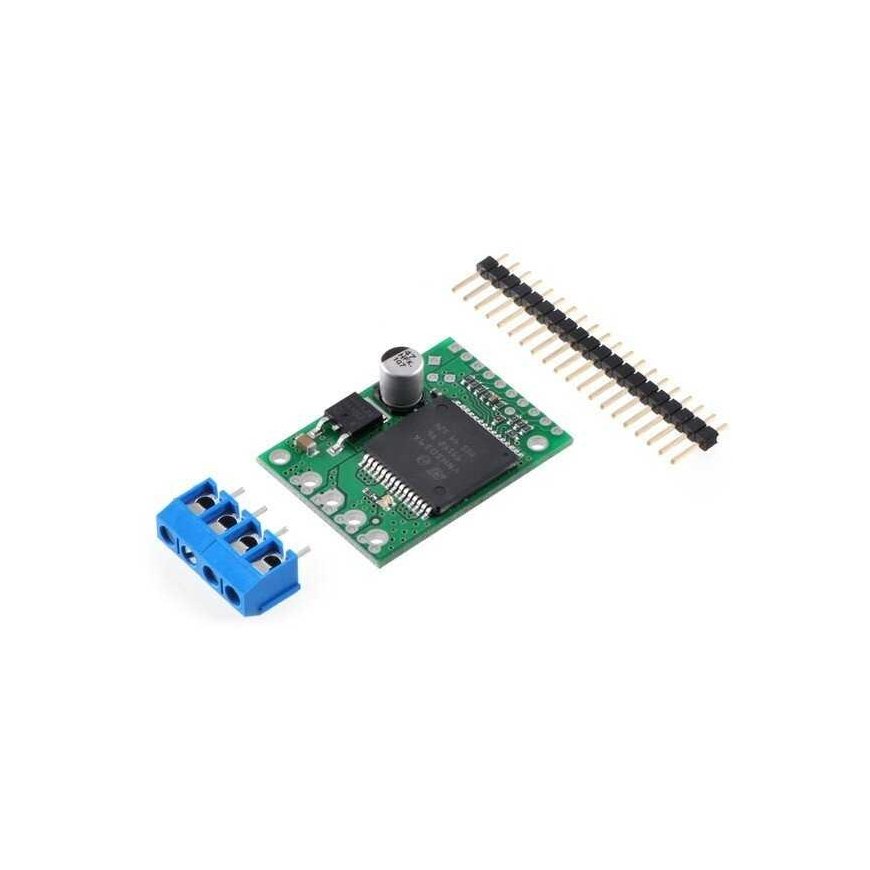

Included:
- Module
- Power connector
- Gold pin
