All about the product

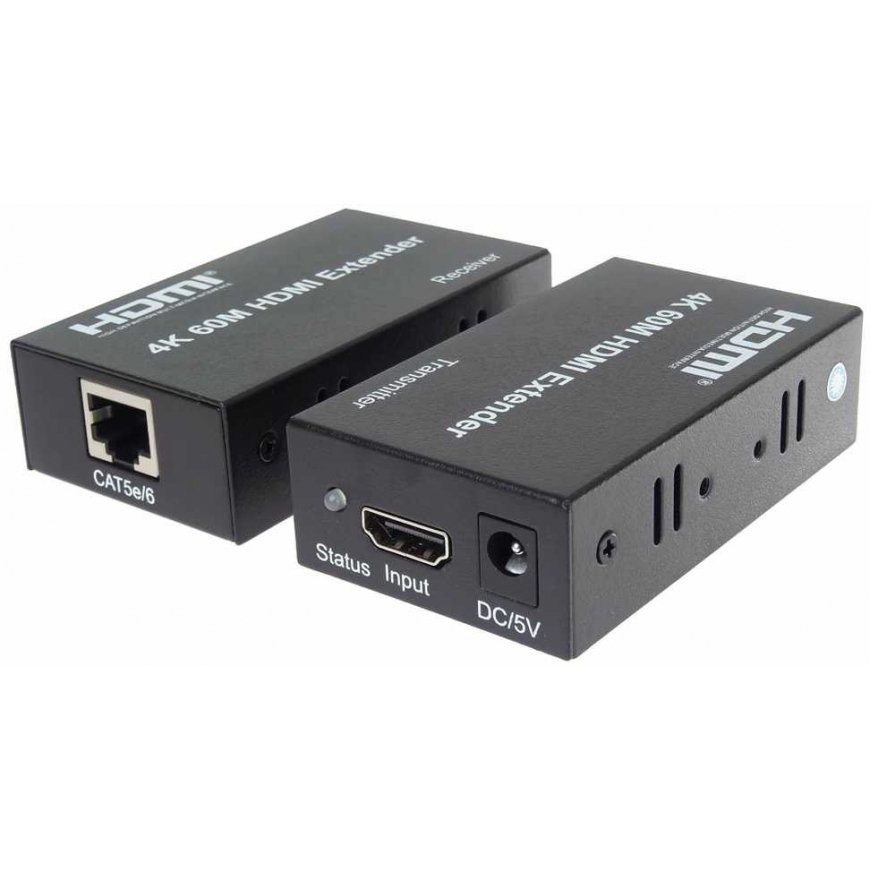

"PremiumCord" 4Kx2K@60Hz HDMI extender up to 60 m via a single "Cat5e" / "Cat6" / "Cat7" cable. The device allows the transmission of high-quality 4K@60Hz or FULL HD 1080p signal up to 60 m distance just through a "Cat5e" / "Cat6" / "Cat7" cable - Input: 1x HDMI input - Output: 1x HDMI output - Supported resolutions: 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz - Maximum data transfer rate: 18 Gbps - Maximum bandwidth: 600 MHz - Used video resolutions: 4K2K (60 Hz), 4K2K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i - Supports compressed audio signal DTS digital, Dolby digital (including DTS-HD and Dolby True HD) - Supports uncompressed LPCM audio signal - EDID button switches to 4K or 1080p - High-quality aluminum housing - The extender transmits HDMI digital video and audio - Uses high-quality 1x LAN cable for connection Cat5e, Cat6, Cat6a, Cat7 with AWG23 copper conductors (for 60 m distance use copper cable with AWG23 conductors) - The extender cannot be connected to an active computer network, switch, router, or other active network device. The extender's transmitter and receiver must be directly connected via LAN cable, preferably without a switch - HDMI input and output cables up to 10 m long with AWG26 copper conductors - Transmitter and receiver powered by 5 V / 1 A power adapters - Maximum transmission current: 450 mA - Maximum receiver current: 250 mA - Nice black metal housing - Dimensions: 81 (length) x 43 (width) x 22 (height) mm - Transmitter weight: 102 g, receiver – 103 g - Operating temperature: from -15 to +55 °C - Operating humidity: from 5 to 90 % relative humidity (non-condensing) Package contents: 1 x transmitter, 1 x receiver, 1 x instruction, 2 x 5 V / 2 A power adapters
