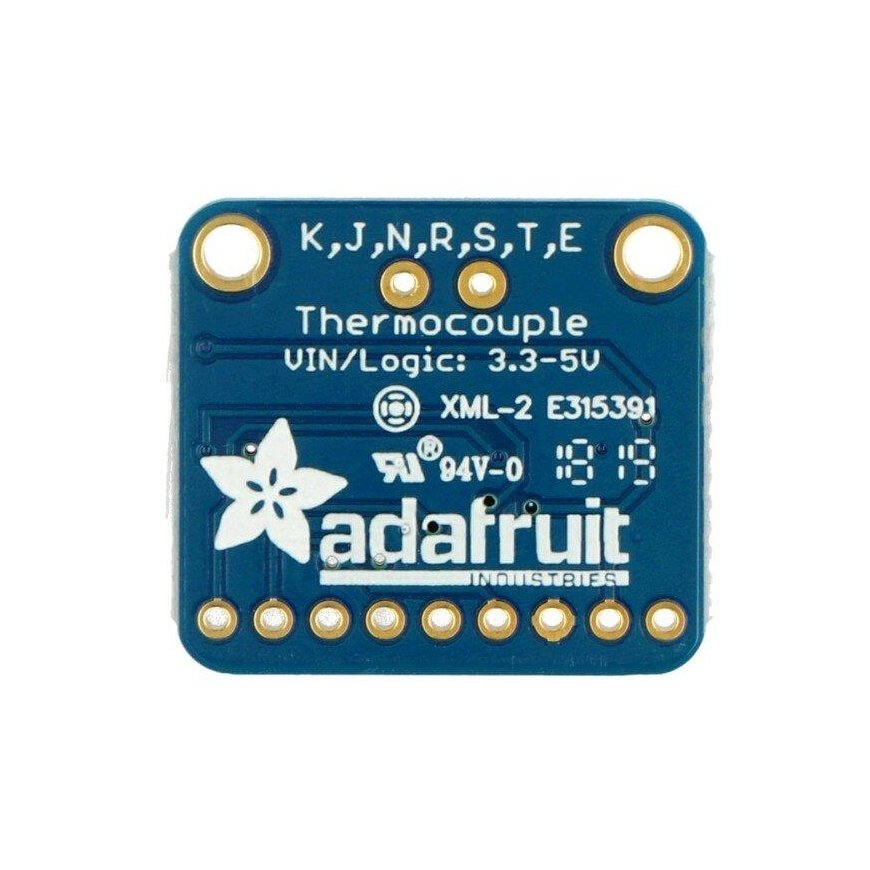

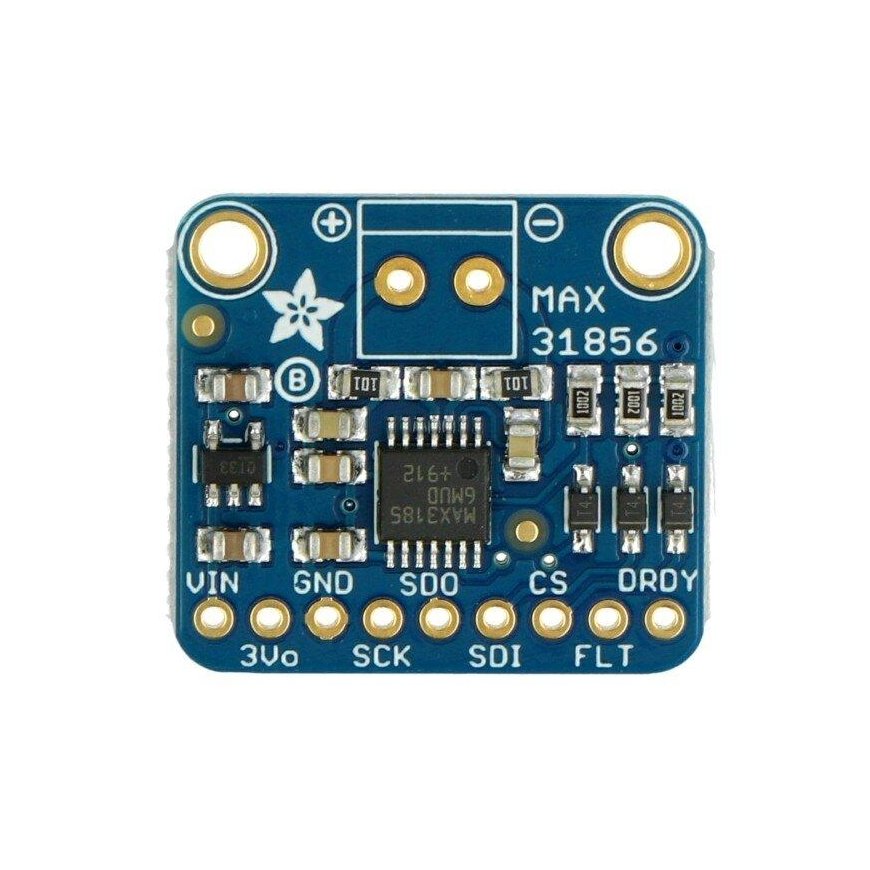

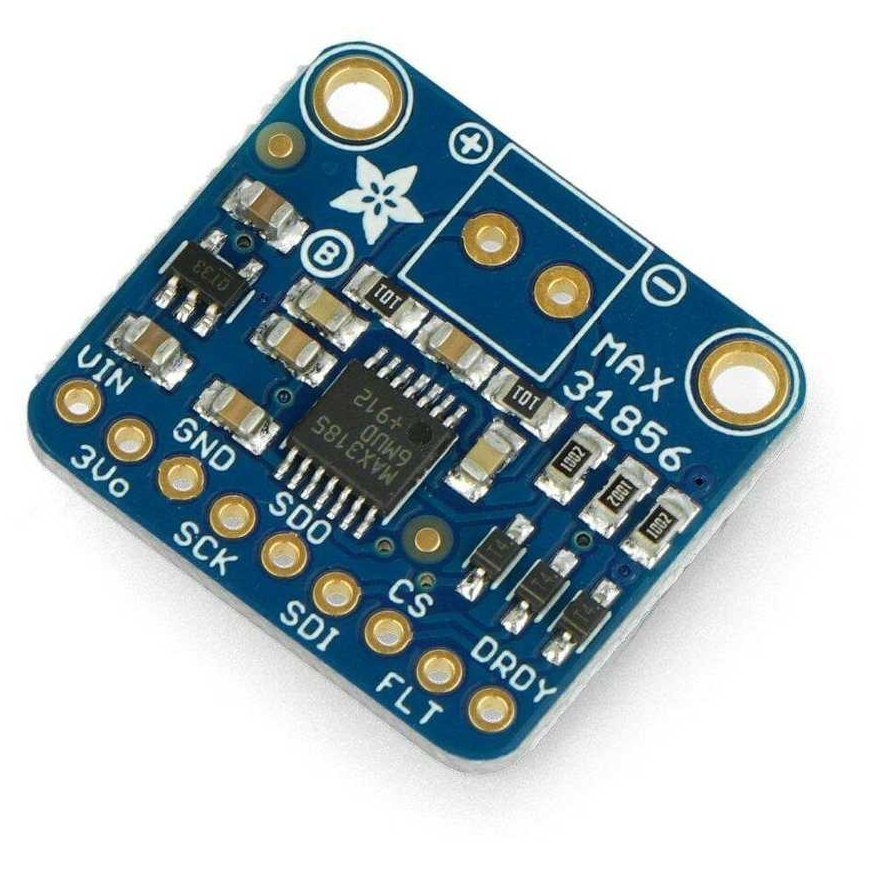

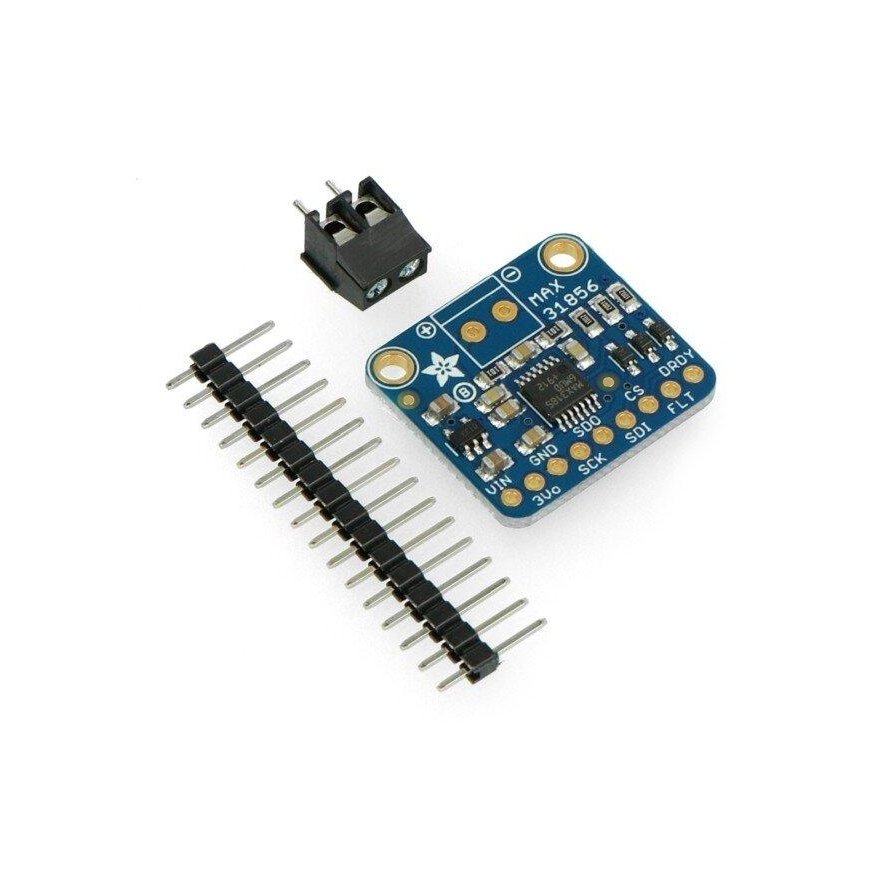

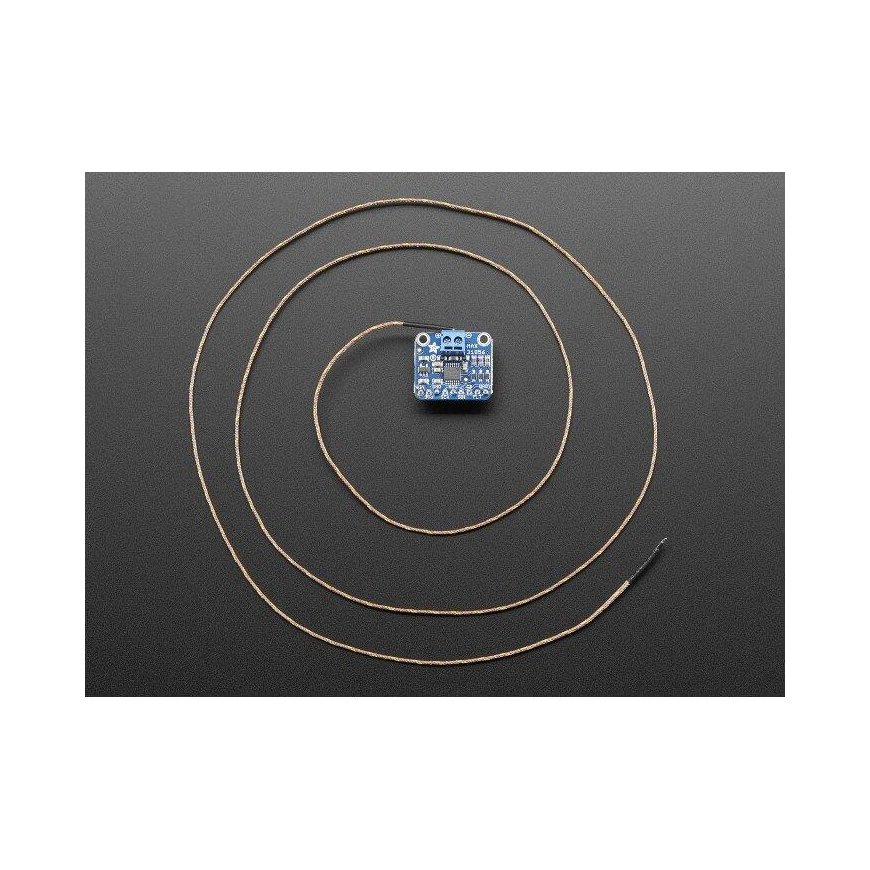

MAX31856 Breakout, universal thermocouple amplifier, Adafruit 3263
39.00 €
Monthly payment from 1,90 €
3729203 AN-07682
5904422336066
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with the thermocouple amplifier MAX31856, interfacing via a 4-pin SPI interface. Works with K, J, N, R, S, T, E, and B type thermocouples. Operates with a supply voltage from 3 V to 5 V and a temperature range from -210 °C to 1800 °C, with a resolution of 0.0078125 °C.
Specifications:
- Supply voltage: from 3 V to 5 V
- Works with K, J, N, R, S, T, E, and B type thermocouples
- Temperature range: from -210 °C to 1800 °C
- Resolution: 0.0078125 °C
- Interface: SPI
- Dimensions: 25 x 22 x 3 mm
- Weight: 3.5 g
