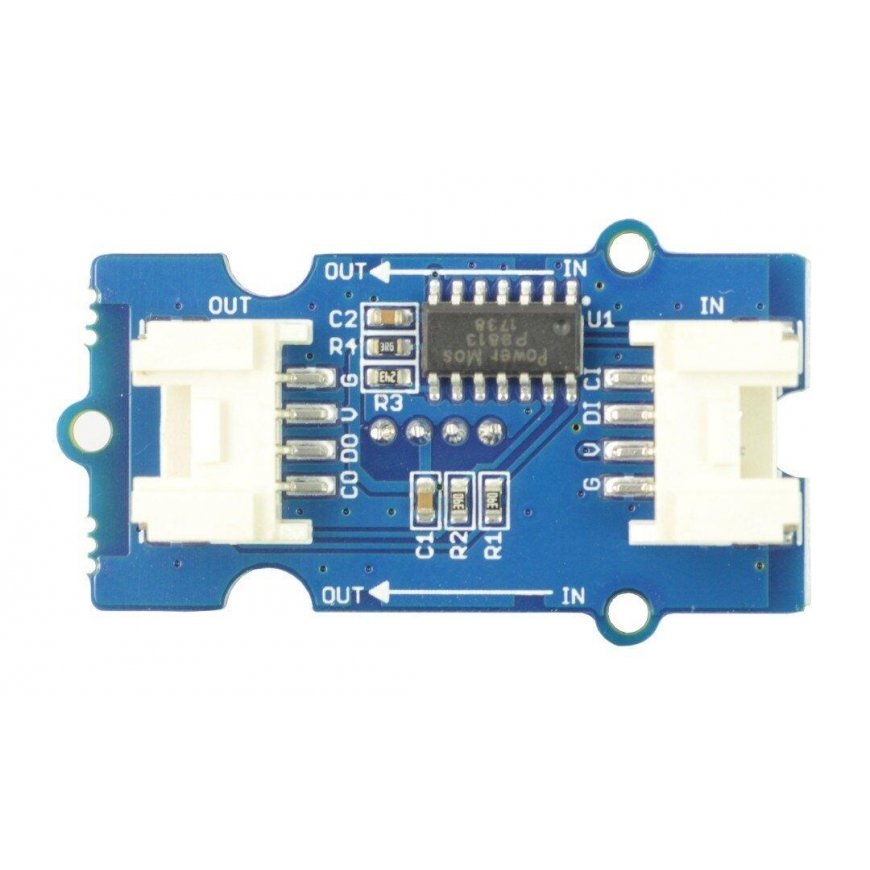

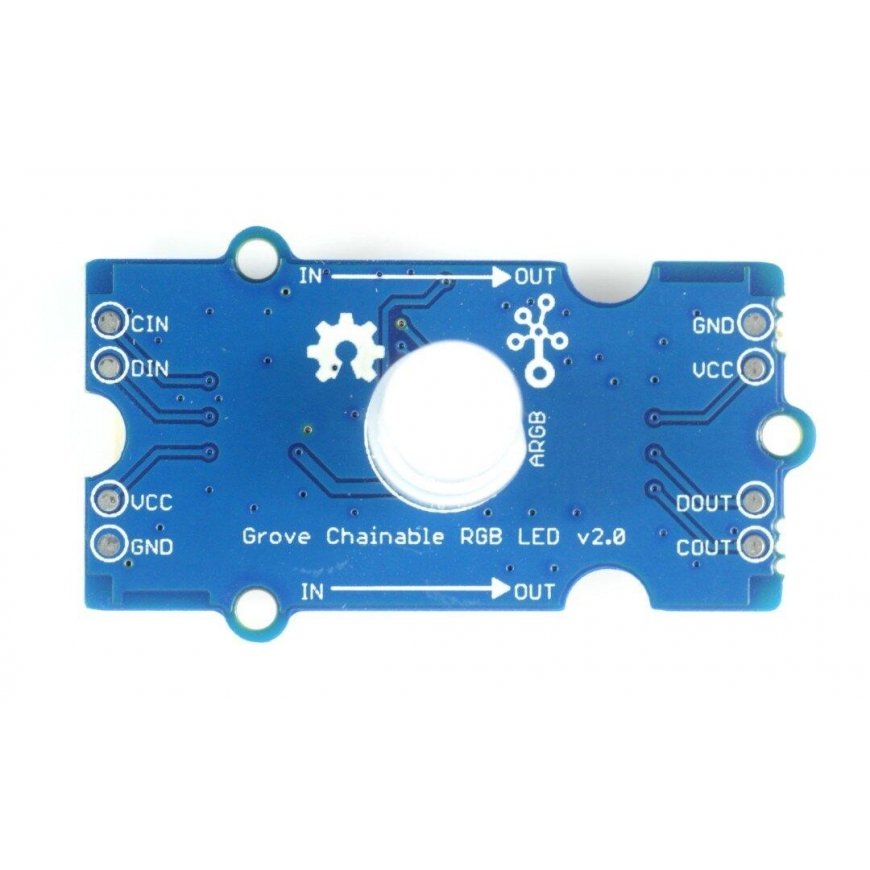

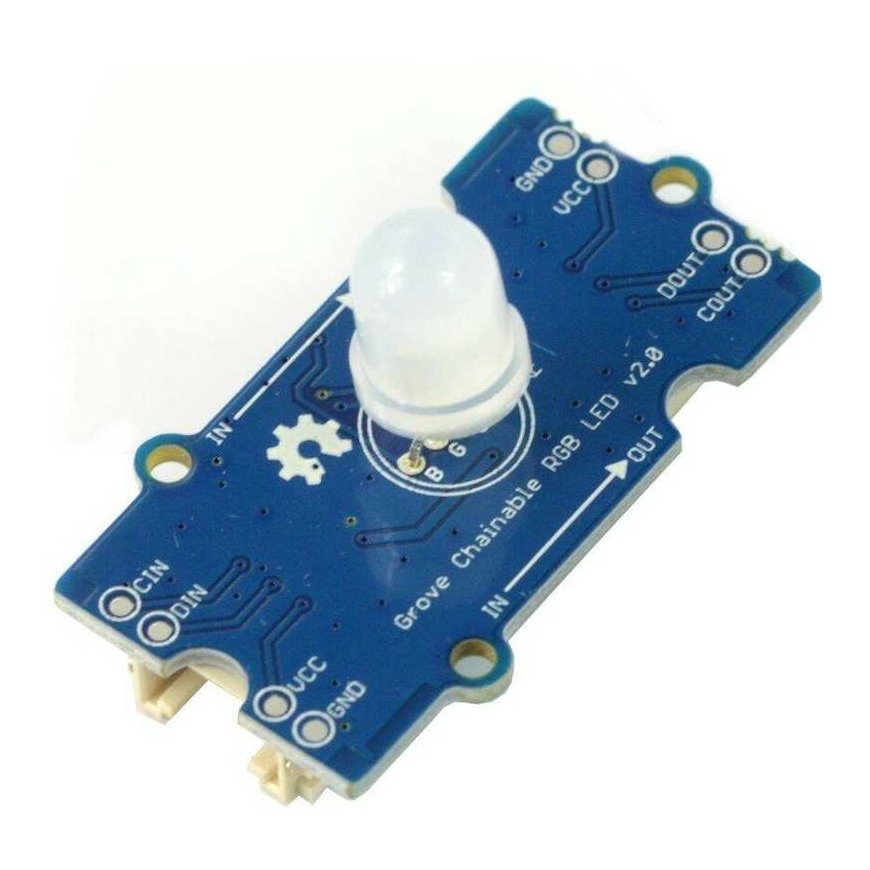

Seeed Studio Grove, RGB LED v2.0, module with RGB diode
19.00 €
3727931 AN-11299
5904422350185
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Grove module with RGB diode. Allows you to control the RGB diode using digital microcontroller pins and connect up to 1024 modules simultaneously using Grove connectors. The package includes a cable designed for Seeedstudio Base Shield v2.0.
Specifications:
- Control system: P9813
- Built-in LED: 8 mm RGB
- Power supply voltage: 5 V
- Maximum current: 60 mA
- Maximum number of modules in one chain: 1024
- Operating temperature: - from -40 °C to 85 °C
- PWM output: 256 grayscale signals
- 4-pin Grove interface
- Module dimensions: 40 x 20 mm
- Weight: 11 g
