OEM Inductive Distance Sensor E2S-H4N1 4mm 5V
33.00 €
3727776 AN-17436
5904422378592
Shipping 11-18 b.d.
You are interested in this product?
All about the product

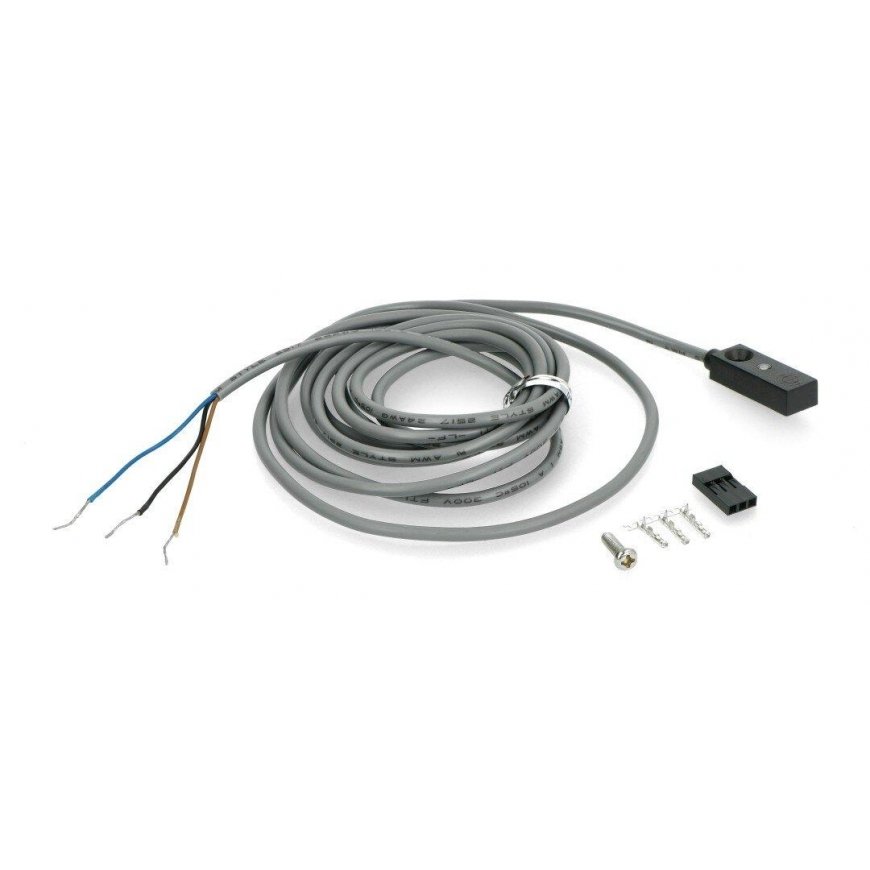

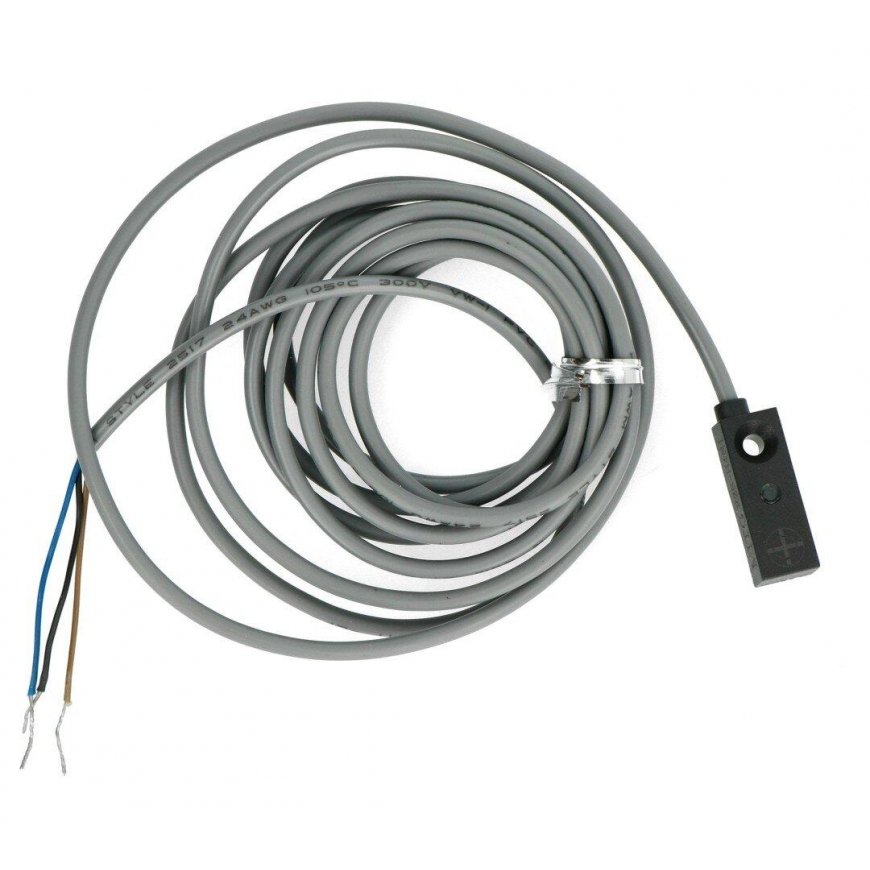

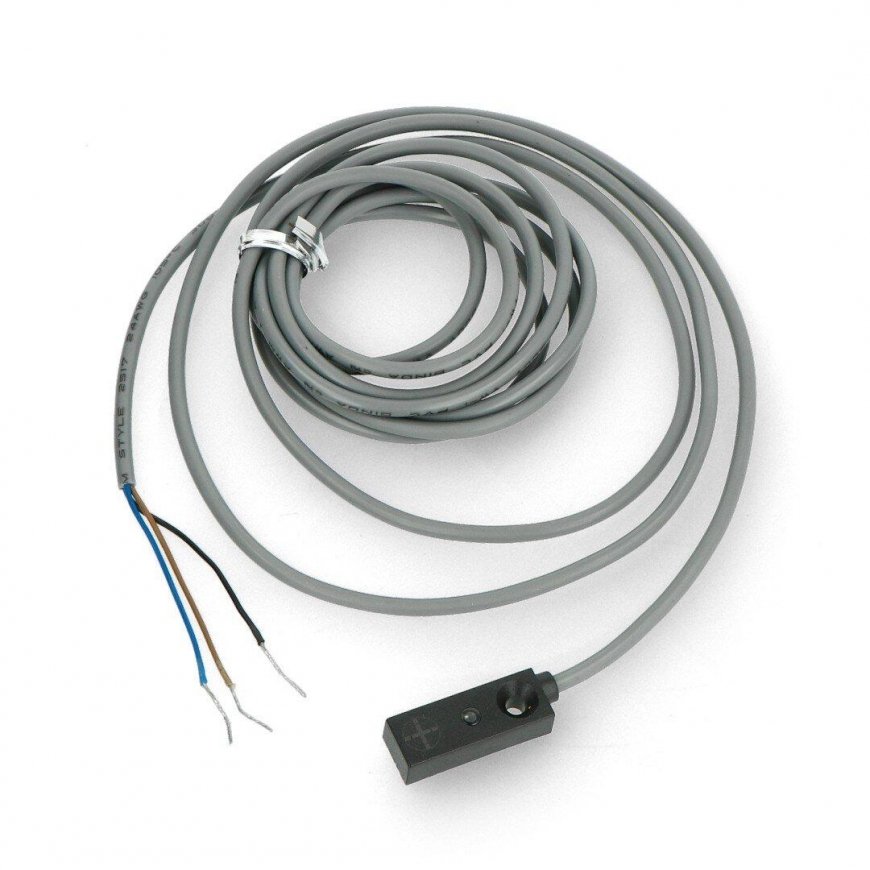

Inductive distance sensor E2S-H4N1 with 200 cm cable. Allows detection of metal up to 4 mm distance. The switching frequency is 1000 Hz, and the response time is less than 1ms. The sensor has an IP67 protection rating and is powered by 5 V. It can be used, among other things, for machine automation, safety devices, as well as for detecting speed in robotics.
Specifications:
- Supply voltage: 5 V
- Current consumption: 30 mA
- Measurement range: up to 4 mm
- Output type: NPN - NO (normally open)
- Detectable object: metal
- Detection type: inductive
- Operating temperature: from -20 °C to 65 °C
- Switching frequency: 1000 Hz
- Response time: ＜1ms
- Protection: IP67
- Outputs:
- Black wire: GND system weight
- Brown wire: 5 V power supply
- Blue wire: signal line
- Cable length: about 200 cm
- Dimensions: 27 x 10 x 6 mm
